Description

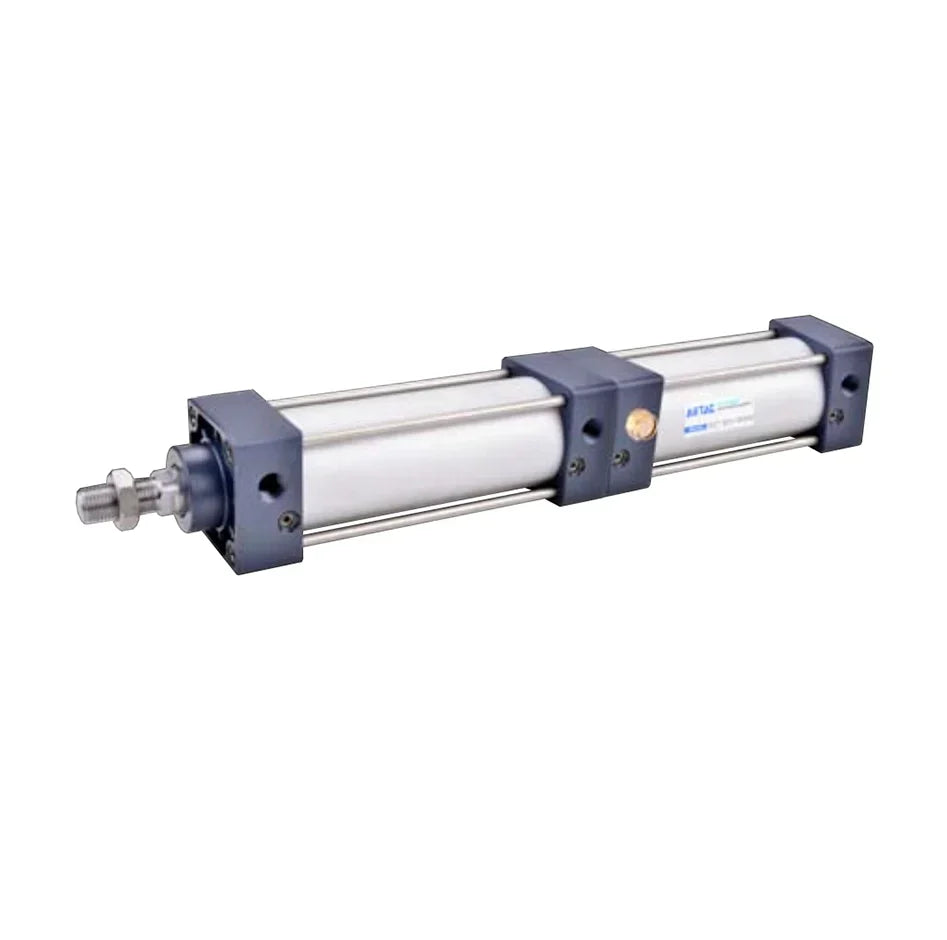

Specifications: multi-position complex type Bore: 32mm Stroke 1:125mm Stroke 2:500mm Magnet: with magnet Fixed type: CB Seal material: NBR Tooth type: G tooth
Specifications
1. Model: SCT32X125X500SCBNG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/8
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer gasket: TPU/7. Cylinder: Aluminum alloy/8.O-ring: NBR/9. Piston O: NBR/10. Wear pad: wear resistant material/11. Magnet: plastic/12. Buffer O: NBR/13. Pipe wall O order: NBR/14. Connection seat: aluminum alloy/15. Muffler/16. Piston: Aluminum alloy/17. Hexagon Socket Screw: Carbon Steel/18. Rear cover: Aluminum alloy/19. Strut: carbon steel/20. Strut Nut: Carbon Steel
Type of sealing ring :P-SCT32N-R1 TPU material P-SCT32-R1 NBR Material P-SCT32N-R2 Fluorine rubber material ， Installation accessories :F-SC32LB Axial mounting F-SC32FA Flange connecting plate F-SC32CA Single-ear fixing seat F-SC32CB Binaural mount ， Piston rod end joint :F-M10X125I I Connector F-M10X125Y Y connector F-M10X125F Floating joint F-M10X125U fisheye joint
Click to download Airtac product catalog
Product Features
1. Yadke standard cylinder;
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability.
4. The piston rod can be positioned in multiple positions during the entire movement.
5. The cylinder buffer adjustment is stable.
6. Various specifications of the cylinder and installation accessories for selection.
7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.
