SCF Series Cylinder with Valve

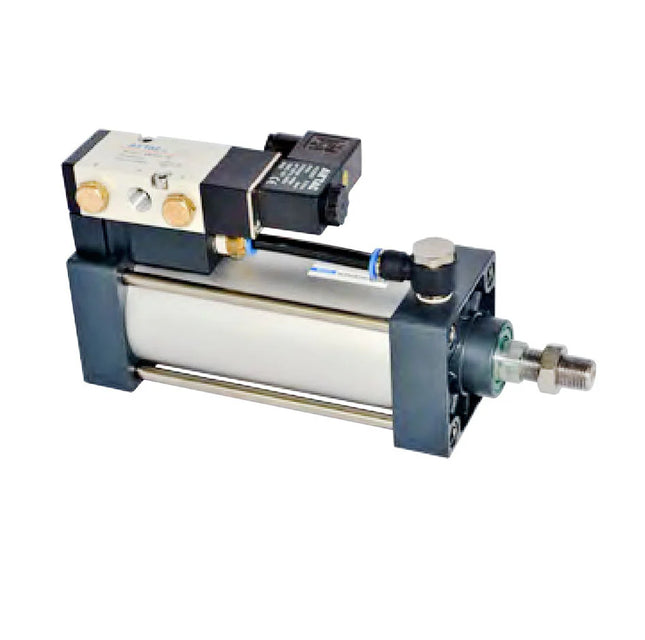

Integrated Solenoid Valve | Standard Double Acting Pneumatic Cylinder
Product Features
- Integrated Design: Smartly combines a standard pneumatic cylinder with a directional control solenoid valve into one compact unit. Bore sizes 32, 40, and 50mm match with the 4M210 valve, while 63, 80, and 100mm match with the 4M310 valve.
- Simplified Control & Piping: Offers direct one-to-one control right at the actuator. This eliminates the need for separate control valve installation and complex air tube routing between panels and cylinders.
- Space & Time Saving: Drastically saves installation time and mechanical space, making it highly ideal for decentralized automation use in large-scale systems.
- Versatile Mounting: Shares the standard cylinder mounting footprint, meaning a wide range of mounting accessories (foot, flange, clevis) are readily available for simple integration.
Technical Specifications
1. Cylinder General Specifications
| Acting Type | Double Acting |
| Operating Fluid | Air (Filtered by 40μm filter element or better) |
| Operating Pressure Range | 0.15 ~ 1.0 MPa (22 ~ 145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Ambient & Fluid Temp. | -20 ~ 70°C (No freezing) |
| Speed Range | 30 ~ 800 mm/s |
2. Cylinder Specific Parameters
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| Port Size (Cylinder) | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 |
| Cushion Stroke (mm) | 21 | 21 | 21 | 21 | 28 | 29 |
3. Solenoid Valve General Specifications
| Actuation | Internal Pilot |
| Position / Way | 5 Port 2 Position (5/2 Way) |
| Valve Pressure Range | 0.15 ~ 0.8 MPa (21 ~ 114 psi) |
| Standard Voltages | AC220V, AC110V, AC24V, DC24V, DC12V |
| Electrical Entry | DIN Terminal or Grommet (Lead wire) |
4. Valve Specific Parameters (Matched by Bore)
| Applicable Bore Size | Valve Series | Valve Model Options | Valve Port Size (In/Ex) |
|---|---|---|---|
| 32, 40, 50 | 4M210 Series | 4M210-06 4M210-08 |
In=Ex=PT1/8 In=PT1/4, Ex=PT1/8 |
| 63, 80, 100 | 4M310 Series | 4M310-08 4M310-10 |
In=Ex=PT1/4 In=PT3/8, Ex=PT1/4 |
Stroke Specifications
| Bore (mm) | Mounting Type | Standard Stroke (mm) | Max. Stroke |
|---|---|---|---|
| 32 | Standard | 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 1000 |
| With TC Trunnion | 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | ||
| 40, 50 | Standard | 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1200 |
| With TC Trunnion | 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | ||
| 63, 80, 100 | Standard | 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 |
| With TC Trunnion | 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 |
Note: Maximum allowable stroke for all models is up to 2000mm. For non-standard or extreme strokes, please contact our engineering team.
Product Ordering Code
Example: SCF 50 X 1000 S - 06 A I G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | SCF: Standard Double Acting Cylinder with Integrated Valve |
| 2 | Bore Size | 32, 40, 50, 63, 80, 100 (mm) |
| 3 | Stroke | Refer to the Stroke Range table (e.g., 1000) |
| 4 | Magnet Code |
Blank: No Magnet S: With Built-in Magnet |
| 5 |
Mounting Type [Note 1] |
Blank: Standard (Basic) LB: Axial Foot | FA: Front Flange | FB: Rear Flange CA: Single Clevis | CB: Double Clevis | TC: Center Trunnion |
| 6 | Valve Port Size | 06: 1/8" | 08: 1/4" | 10: 3/8" |
| 7 | Voltage | A: AC220V | B: DC24V | C: AC110V | E: AC24V | F: DC12V |
| 8 | Electrical Entry |
Blank: DIN Terminal (Standard) I: Grommet (Lead Wire) |
| 9 | Thread Type |
Blank: PT Thread G: G Thread |
[Note 1] Cylinder mounting accessories are common and interchangeable with the SAU series.
