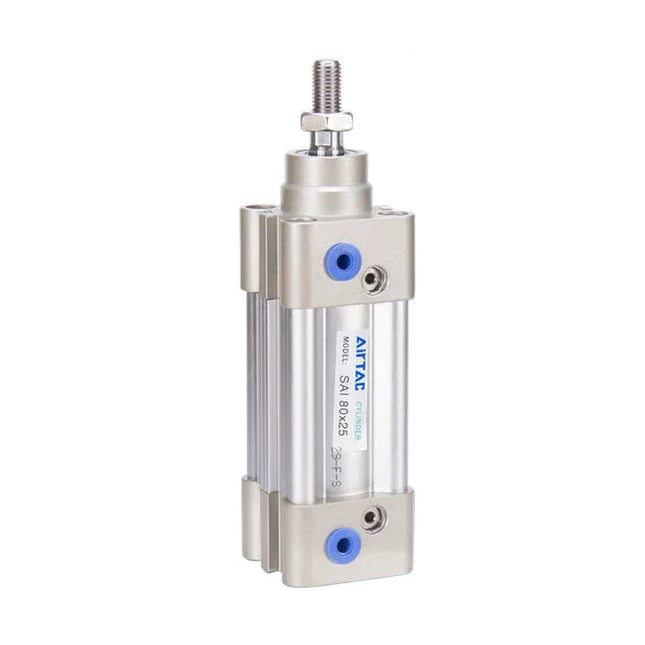

SAIL Series ISO15552 Standard Cylinder (Locking Type)

Locking Cylinder: Available in Front Cover Locking Type and Rear Cover Locking Type.
Unlocking Method: Automatic and Manual.

Bore Size (mm)	40	50	63	80	100	125	160
Action	Double Acting
Fluid	Air (Filtered 40μm or better)
Mounting	Basic, FA, FB, CA, CB, CR, LB, TC, FTC, TCM1, TCM2
Operating Pressure	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Proof Pressure	1.5MPa (215psi) (15bar)
Temperature	-20~70°C
Speed Range	30~800 mm/s					30~500 mm/s
Stroke Tolerance	0~250: +1.0/0 251~1000: +1.5/0 1001~1500: +2.0/0
Cushion Type	Adjustable Cushion
Cushion Stroke	Non-Locking End: Refer to standard cushion stroke
Cushion Stroke	20mm	20mm	21mm	22.5mm	24mm	24mm	28mm
Port Size [Note 1]	PT1/4		PT3/8		PT1/2		PT3/4

Note: [1] PT thread and G thread are available.

Bore Size (mm)	Standard Stroke (mm)	Max Stroke	Allowable Stroke
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Note: Please contact the company for other special strokes.

No.	Item	Code	Description
1	Model	SAIL	Standard Double Acting Locking Type (SAI)
2	Lock Position	B	Rear Cover Locking Type
2	Lock Position	F	Front Cover Locking Type
3	Bore Size	40~200	40, 50, 63, 80, 100, 125, 160, 200
4	Stroke	-	Refer to Stroke Table
5	Magnet	Blank	No Magnet
5	Magnet	S	With Magnet
6	Mounting	Blank	Standard (No bracket)
6	Mounting	LB, FA, FB, CA, CB, CR, FTC, TC	Mounting accessories
7	Thread Type	Blank	PT Thread
7	Thread Type	G	G Thread

Notes:
1. CR mounting is used with CB.
2. FTC and TC mountings are used with TCM1, TCM2.
