Description

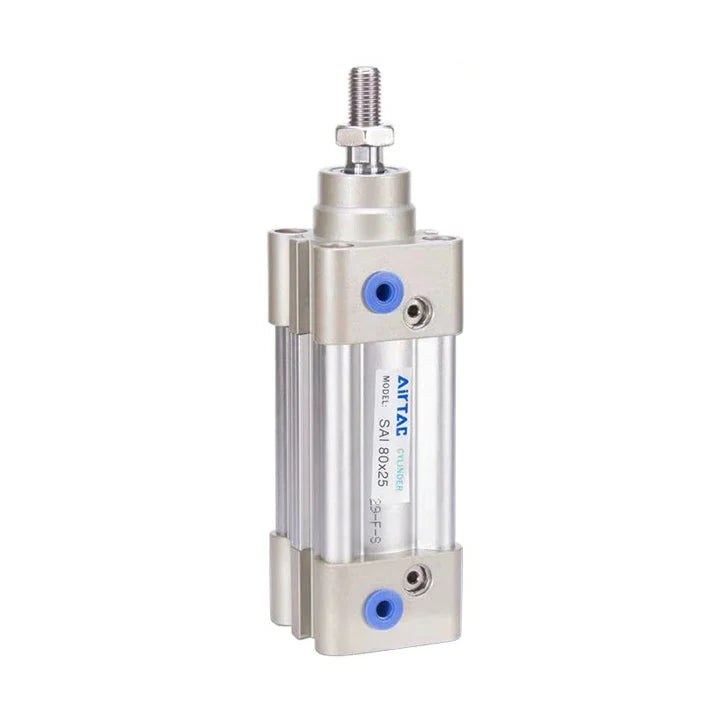

Specifications: Standard double action with lock type (SAI) Lockset Location: Rear Cover with Lock Type Bore: 63mm Travel: 999mm Magnet: with magnet Fixed type: CB Tooth type: G tooth
Specifications
1. Model: SAILB63X999SCBG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke (mm): no locking end 30, Attached lock end 21, Nozzle caliber: PT3/8
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: Aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Plunger: carbon steel/12. Wear ring: wear resistant material/13. Magnet: plastic (below 100), rubber (other)/14. Buffer gasket: TPU/15. Lock combination/16. Back cover: Aluminum alloy/17. Strut Nut: Carbon Steel
Installation accessories :F-SI63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SAI63TC Middle Trunnion Bracket F-SI63FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint
Click to download Airtac product catalog
Product Features
1. Cylinder with lock: front cover with lock type and rear cover with lock type.
2. Unlock mode: automatic and manual.
