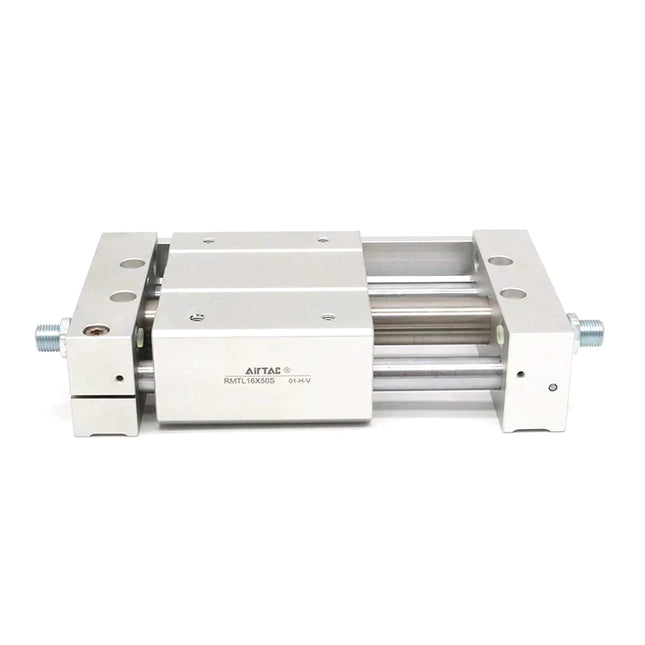

RMTL Series Magnetically Coupled Rodless Cylinder (Precision Guide Type)
Features
- Magnetically coupled rodless cylinder structure: No mechanical connection between the piston and the slider, ensuring excellent sealing performance.
- The movement of the piston is transmitted to the external slider through magnetic coupling force. No piston rod is required, saving installation space compared to standard cylinders. The maximum stroke is larger than standard cylinders.
- Both ends of the cylinder are equipped with fixed cushioning devices, ensuring smooth reversing motion without impact and avoiding mechanical damage. External hydraulic shock absorbers can be selected for better cushioning effects.
- The piston chamber and the slider are separated to prevent dust and dirt from entering the system, extending the service life of the cylinder.
- Dual guide rod structure provides high guiding precision and can withstand certain lateral or eccentric loads.
Specifications
| Bore Size (mm) | 10 | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|
| Acting Type | Double Acting | |||||
| Fluid | Air (to be filtered by 40μm filter element) | |||||
| Operating Pressure | 0.2~0.7MPa (30~100psi) (2.0~7bar) | |||||
| Proof Pressure | 1.2MPa (175psi) (12.0bar) | |||||
| Temperature (°C) | -20~70 | |||||
| Speed Range (mm/s) | 50~500 | |||||
| Stroke Tolerance | 0~250: +1.0/0 | 251~1000: +1.5/0 | 1001~: +2.0/0 | |||||
| Cushion Type | Fixed Cushion; Hydraulic Shock Absorber (Optional) | |||||
| Safe Holding Force (N) | 55 | 140 | 220 | 345 | 560 | 880 |
| Port Size [Note 1] | M5 x 0.8 | PT1/8 | PT1/4 | |||
[Note 1] PT thread, G thread and NPT thread are available.
Stroke Table
| Bore Size | Standard Stroke (mm) | Max. Stroke (mm) |
|---|---|---|
| 10 | 50, 100, 150, 200, 250, 300 | 500 |
| 16 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | 750 |
| 20 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750, 800 | 1000 |
| 25 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750, 800 | 1500 |
| 32 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750, 800 | 1500 |
| 40 | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750, 800, 900, 1000 | 1500 |
Note: Contact the company for other special strokes.
Ordering Code
RMTL - 20 x 100 - S - □ - □
| No. | Item | Code Description |
|---|---|---|
| ① | Series | RMTL: Magnetically Coupled Rodless Cylinder (Precision Guide Rod Type) |
| ② | Bore Size | 10, 16, 20, 25, 32, 40 (mm) |
| ③ | Stroke | Refer to Stroke Table |
| ④ | Magnet |
Blank: No Magnet S: With Magnet |
| ⑤ | Cushion |
Blank: 2 Adjusting Screws (Standard) A: 2 Hydraulic Shock Absorbers [Note 1] |
| ⑥ | Thread [Note 2] |
Blank: M5 or PT Thread G: G Thread T: NPT Thread |
[Note 1] When selecting hydraulic shock absorber cushion (A), two adjusting screws are attached together.
[Note 2] Blank indicates Metric thread or PT thread. Φ10, Φ16 cylinders only have Metric thread (M5). If G or NPT thread is required (for larger sizes), please add G or T code.
