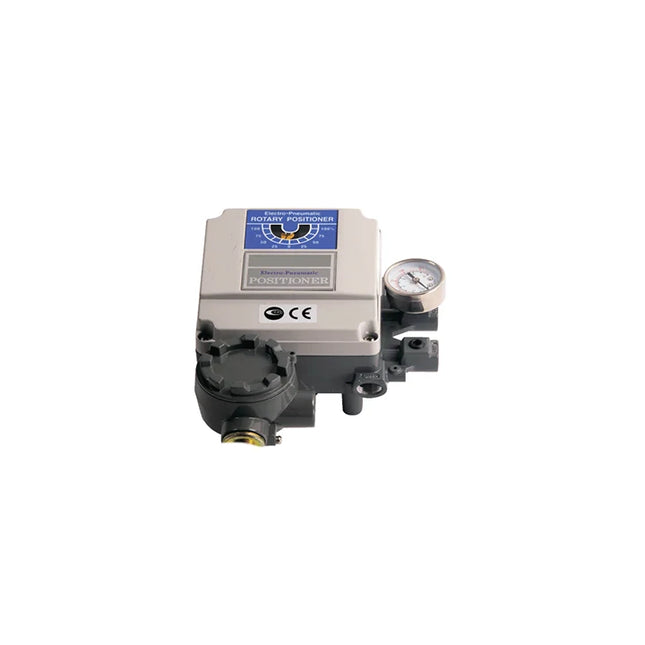

NT Series Electro-Pneumatic Positioner
Features
- Precise Control: Receives 4~20mA DC current signal from a controller to precisely control valve position via pneumatic actuator.
- Versatile Action: Direct and Reverse action, as well as Single and Double acting modes, can be easily switched without replacing parts.
- Economic: Low air consumption design.
- Split Range: Supports 1/2 split range control without replacing internal parts.
- Compact Design: Small structure suitable for connecting small actuators; features anti-vibration design.
General Specifications
| Item | NT-1000R (Rotary) | NT-1000L (Linear) |
|---|---|---|
| Input Signal | 4 ~ 20mA DC | |
| Impedance | 250 ± 15 Ω | |
| Supply Pressure | 0.14 ~ 0.7 MPa | |
| Stroke / Angle | 0 ~ 90° | 10 ~ 150 mm |
| Air Connection | PT(NPT) 1/4 | |
| Gauge Connection | PT(NPT) 1/8 | |
| Power Connection | PF1/2 (G1/2) | |
| Explosion Proof | Exd mIIBT5 / Exd mIICT5 / Exia BT6 | |
| Protection Class | IP66 | |
| Ambient Temp. |
Standard: -20 ~ 70°C Explosion Proof: -20 ~ 60°C |
|
Performance Specifications
| Item | Single Acting | Double Acting |
|---|---|---|
| Linearity | ±1% F.S. | ±2% F.S. |
| Hysteresis | ±1% F.S. | |
| Sensitivity | ±0.2% F.S. | ±0.5% F.S. |
| Repeatability | ±0.5% F.S. | |
Note: Values above are for standard models. Explosion-proof models may vary slightly (e.g., Sensitivity ±0.5% F.S.).
Ordering Code
NT - 1000R S n 5 3 1 S 0
| No. | Item | Options / Description |
|---|---|---|
| ① | Series |
NT-1000R: Rotary Positioner (Angle stroke) NT-1000L: Linear Positioner (Straight stroke) |
| ② | Acting Type |
S: Single Acting D: Double Acting |
| ③ | Explosion Proof |
n: None (Standard) m: Exd mIIBT5 c: Exd mIICT5 i: Exia BT6 |
| ④ | Feedback Lever |
For Rotary (NT-1000R): 1: M6×40L, 2: M6×63L, 3: M8×40L, 4: M8×63L, 5: NAMUR Standard For Linear (NT-1000L): 1: 8~35mm, 2: 20~40mm, 3: 30~70mm, 4: 60~100mm, 5: 110~150mm |
| ⑤ | Orifice |
1: Φ1 2: Φ2 3: None |
| ⑥ | Connection |
1: PT Thread 2: NPT Thread |
| ⑦ | Ambient Temp |
S: -20°C ~ 60°C (Standard) H: -20°C ~ 120°C (High Temp) L: -40°C ~ 70°C (Low Temp) |
| ⑧ | Accessories |
0: None 1: +PTM (Internal) 2: +PTM (External) 3: +L/S (Internal) 4: +L/S (External) 5: +PTM + L/S (Internal) |
