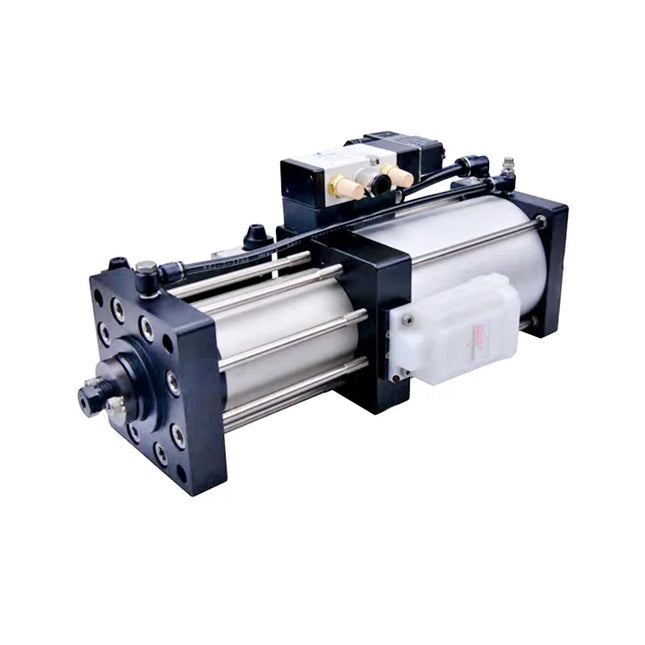

NPM Series Knife Cylinder (Hydro-Pneumatic)
Features
- Superior Sealing: Special sealing materials ensure excellent sealing performance of the hydraulic cylinder.
- Durability: The hydraulic cylinder tube undergoes special treatment, greatly enhancing wear resistance and corrosion resistance.
- Air Blow Function: Equipped with an active spindle air blowing function for cleaning.
Specifications
| Model | 3.5T | 4.5T | 6.0T |
|---|---|---|---|
| Acting Type | Hydraulic Side: Single Acting / Pneumatic Side: Double Acting | ||
| Fluid | Air (filtered by 40μm filter element) | ||
| Operating Pressure | 0.5MPa ~ 0.8MPa (72~115psi) (5~8bar) | ||
| Cylinder Proof Pressure | 1.0MPa (143psi) (10bar) | ||
| Temperature (°C) | -5~60 | ||
| Port Size | PT3/8 | ||
| Output at 0.6MPa | 3.5 T | 4.5 T | 5.7 T |
| Weight | 7 Kg | 7.5 Kg | 9.5 Kg |
Theoretical Output Force (Ton)
| Model | Air Pressure (MPa) | ||||
|---|---|---|---|---|---|
| 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | |
| NPM35T (63X13) | 2.5 | 3.2 | 3.8 | 4.5 | 5.1 |
| NPM45T (63X13/15) | 3.2 | 3.8 | 4.6 | 5.4 | 6.2 |
| NPM60T (70X15) | 3.8 | 4.8 | 5.7 | 6.7 | 7.6 |
Note: Data derived from the Theoretical Output Curve provided in the catalog.
Ordering Code
NPM 35T 63x13 A □ □
| No. | Item | Code Description |
|---|---|---|
| ① | Series | NPM: Knife Cylinder |
| ② | Output Force |
35T: 3.5 Ton Output 45T: 4.5 Ton Output 60T: 6.0 Ton Output |
| ③ |
Specs (Hyd. Bore X Stroke) |
63X13: Hyd. Bore 63mm; Stroke 13mm 63X15: Hyd. Bore 63mm; Stroke 15mm 70X15: Hyd. Bore 70mm; Stroke 15mm |
| ④ | Voltage |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| ⑤ | Electrical Entry |
Blank: DIN Terminal I: Lead Wire |
| ⑥ | Micro Switch |
Blank: No Micro Switch L: 2 Micro Switches |
Note: There are 4 main body specifications. Micro switch, voltage, and electrical entry are selectable. The solenoid valve model used is 4M310.
