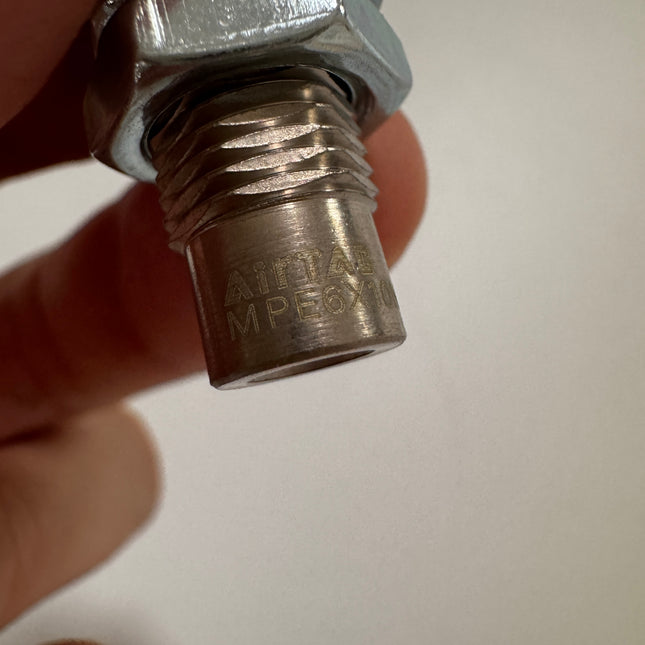

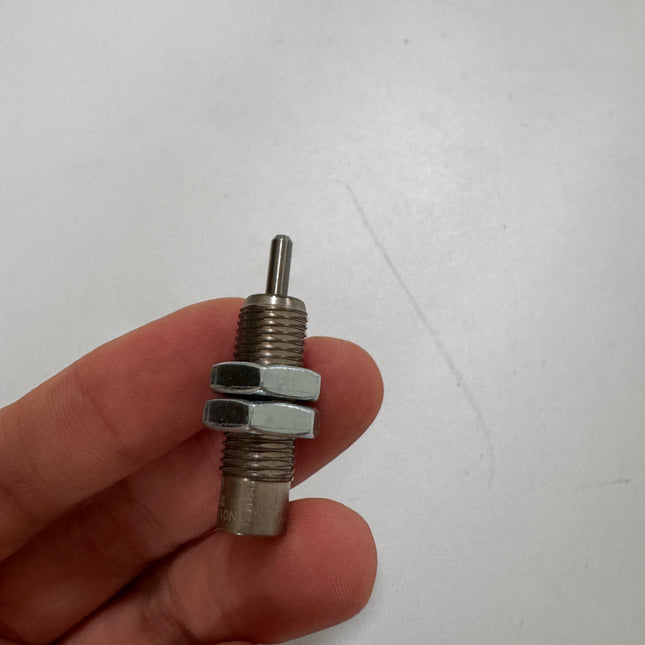

MPE Series Threaded Cylinder
Product Features
- 1. Compact Design: Compact structure, small volume, light weight, and space-saving.
- 2. Integrated Installation: Multiple cylinders can be integrated into a block/manifold, providing flexible installation and saving installation space.
- 3. Accessory-Free: No mounting accessories are required (direct threaded mounting).
- 4. Variety: Cylinders of various specifications are available for customers to choose from.
Specifications
| Bore Size (mm) | 6 | 8 | 10 | 12 | 16 |
| Action | Single Acting (Push Type) | ||||
| Fluid | Air (to be filtered by 40µm filter element) | ||||
| Operating Pressure | 0.2~0.7 MPa (28~100 psi) | 0.15~0.7 MPa (22~100 psi) | |||
| Proof Pressure | 1.2 MPa (175 psi) | ||||
| Mounting Type | Standard, Embedded (Flush) Installation | ||||
| Temperature | -20~70 °C | ||||
| Speed (mm/s) | 50~500 | ||||
| Stroke Tolerance | +1.0 / 0 | ||||
| Cushion Type | None (No Cushion) | ||||
| Port Size | M5 x 0.8 | ||||
Standard & Max Stroke
| Bore (mm) | Standard Stroke (mm) | Max Stroke (mm) |
|---|---|---|
| 6 | 5, 10, 15 | 15 |
| 8 | 5, 10, 15 | 15 |
| 10 | 5, 10, 15 | 15 |
| 12 | 5, 10, 15 | 15 |
| 16 | 5, 10, 15 | 15 |
Note: Please contact the company for other special strokes.
Ordering Code Guide
Model Example:
MPE 16 x 15 N| No. | Item | Content Description |
|---|---|---|
| 1 | Model |
MPE: Standard Threaded Cylinder (Single Acting - Push) MPEF: Embedded/Flush Mounting Threaded Cylinder (Single Acting - Push) [Note 1] |
| 2 | Bore Size | 6, 8, 10, 12, 16 mm |
| 3 | Stroke | Refer to the "Stroke" tab (Standard: 5, 10, 15) |
| 4 | Rod Thread |
Blank: External Thread (Male) N: No Thread |
[Note 1] Single Acting Push Type:
The piston rod extends when air enters, and retracts by spring force when air is exhausted.
