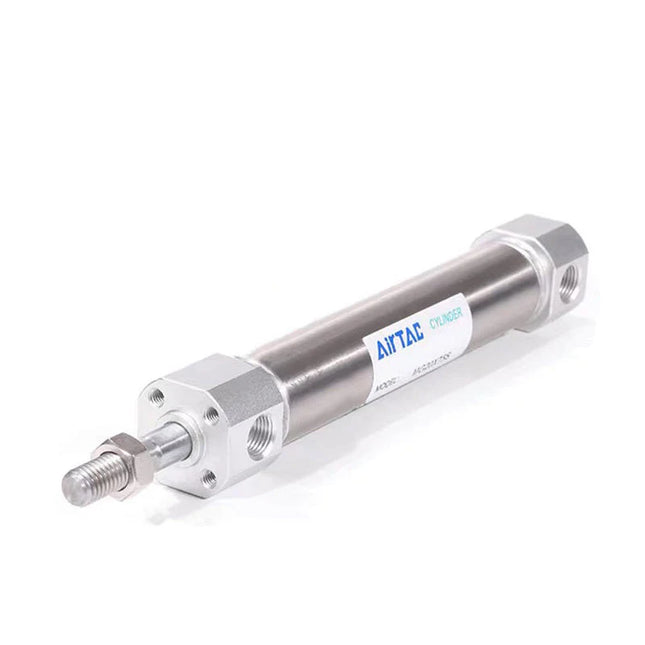

Stainless Steel Mini Cylinder - MG Series
Product Features
- 1. JIS standard implemented.
- 2. Piston seal adopts heterogeneous two-way seal structure. It has compact dimensions and the function of oil storage.
- 3. The front and rear covers have fixed anti-collision pads (bumpers), which can reduce the impact of cylinder reversal.
- 4. The front/rear cover and stainless steel body adopt a riveted rolling package structure (crimped), ensuring a reliable connection.
- 5. The cylinder body uses high-precision stainless steel tubing with high strength and corrosion resistance.
- 6. A variety of cylinder mounting accessories are available for customers to choose from.
Specifications
| Bore Size (mm) | 20 | 25 | 32 | 40 | 50 | 63 |
|---|---|---|---|---|---|---|
| Acting Type | MSG/MTG (Single Acting) | - | ||||
| MG/MGD (Double Acting) | - | |||||
| MGC/MGCD (Double Acting Adjustable Cushion) | ||||||
| Fluid | Air (filtered to 40μm or better) | |||||
| Operating Pressure |
Double Acting: 0.15~1.0MPa (22~145psi) (1.5~10.0bar) Single Acting: 0.2~1.0MPa (28~145psi) (2.0~10.0bar) |
|||||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||||
| Temperature | -20 ~ 70 °C | |||||
| Speed Range | Double Acting: 30~800 mm/s | Single Acting: 50~800 mm/s | |||||
| Stroke Tolerance | 0~150: +1.00 | >150: +1.50 | |||||
| Cushion Type | Adjustable Cushion, Anti-collision Pad (Bumper) | Adjustable Cushion | ||||
|
Port Size [Note 1] |
Adjustable Cushion Type: | |||||
| M5 × 0.8 | PT1/8 | PT1/4 | ||||
|
Port Size |
Anti-collision Pad Type (Bumper): | |||||
| PT1/8 | - | |||||
[Note 1] PT thread, G thread, and NPT thread are available. For sensor selection, please refer to the accessories catalog.
Standard & Long Stroke Table
| Bore (mm) | Standard Stroke (mm) | Long Stroke | Max. Stroke | Allowable Stroke | |
|---|---|---|---|---|---|
| MG MGC |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200 | 201~500 | 500 | 800 |
| 25 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 | 301~500 | 500 | 800 | |
| 32 | |||||
| 40 | |||||
| 50 | |||||
| 63 | |||||
| MGD MGCD |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 | - | 300 | - |
| 25 | |||||
| 32 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 | - | 500 | ||
| 40 | |||||
| 50 | |||||
| 63 | |||||
| MSG MTG |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | - | - | - |
| 25 | |||||
| 32 | |||||
| 40 | |||||
Note: Please contact the company for other special strokes.
Ordering Code Guide
MG 20 x 100 S FA - □
| No. | Item | Description |
|---|---|---|
| 1 | Model |
MG: Mini Cylinder (Double Acting) MGC: Mini Cylinder (Double Acting Adj. Cushion) MSG: Mini Cylinder (Single Acting Push) [Note 1] MTG: Mini Cylinder (Single Acting Pull) MGD: Mini Cylinder (Double Shaft Double Acting) MGCD: Mini Cylinder (Double Shaft Adj. Cushion) |
| 2 | Bore Size |
MG/MSG/MTG/MGD: 20, 25, 32, 40 MGC/MGCD: 20, 25, 32, 40, 50, 63 |
| 3 | Stroke | Refer to Stroke Table |
| 4 | Magnet |
Blank: No Magnet S: With Magnet |
| 5 | Mounting [Note 2] |
Blank: No Accessory FA: Front Flange LB: Axial Foot (Bracket) CB: Double Rear Pivot SDB: Pivot Clevis (must use with CB) |
| 6 | Thread Type [Note 3] |
Blank: PT Thread G: G Thread T: NPT Thread |
[Note 1]
Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] Please refer to P102~103 for mounting accessories. SDB accessory cannot be used alone, it must be used with CB.
[Note 3] When port size is M5, this code is blank.
