Stainless Steel Mini Cylinder - MG Series

•

  View options

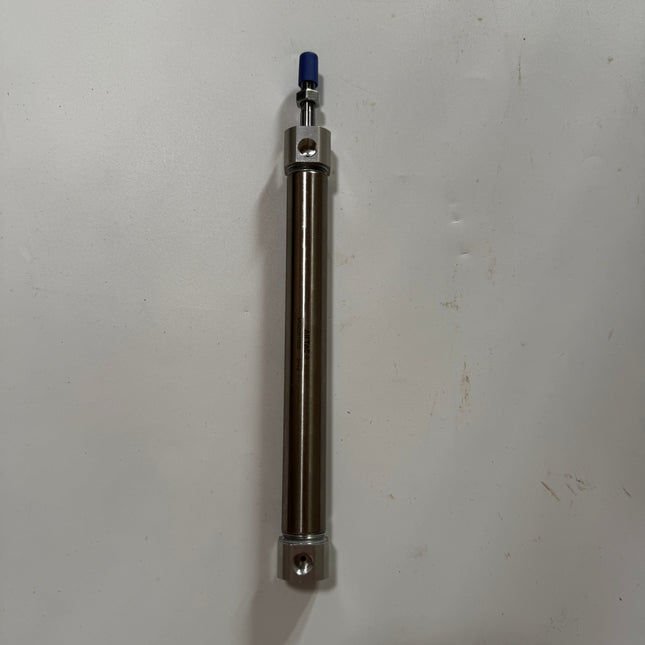

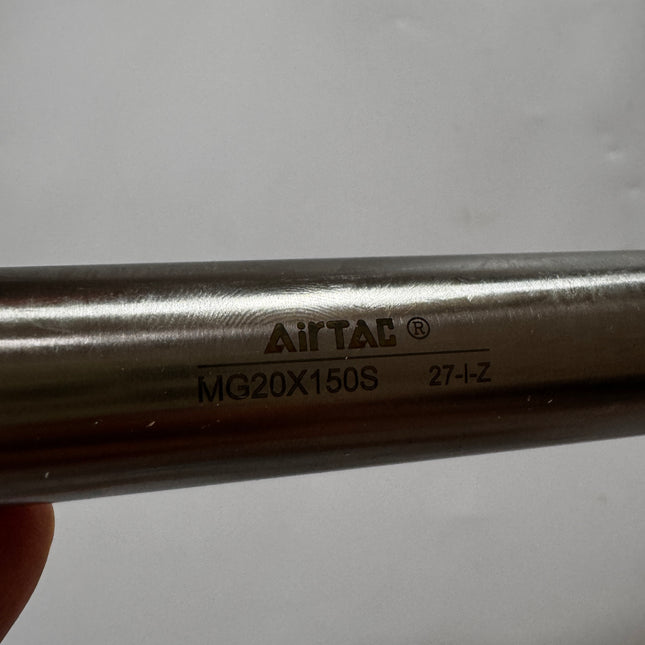

  Airtac MG series: double-acting stainless-steel mini cylinder - MG20X150S

  Specifications: MG20X150S — AirTAC MG stainless steel mini cylinder, double acting, single rod, 20 mm bore and 150 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X150 Stroke: 150 mm S Magnetic piston No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MG20X150S Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 150 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 20 mm bore, 150 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 106 mm AB 35 mm AC 69 mm B — body dimension in the drawing 24 mm R — outside-body dimension in the drawing 26.5 mm K — mounting-hole/thread detail M4 × 0.7, depth 7 KB 14 mm EA 16.5 mm Overall length from the printed formula 256 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG20LB F-MG20LB: foot bracket for MG series, 20 mm bore. Optional; not implied by this model code. F-MG20FA F-MG20FA: front flange for MG series, 20 mm bore. Optional; not implied by this model code. F-MG20SDB F-MG20SDB: rear pivot bracket for MG series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG20CB F-MG20CB: rear clevis for MG series, 20 mm bore. Optional; not implied by this model code. F-ACQ20I F-ACQ20I: rod-end eye joint for MG series, 20 mm bore. Optional; not implied by this model code. F-ACQ20Y F-ACQ20Y: rod-end fork joint for MG series, 20 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Optional cylinder-port connections If you use the 6 mm OD tubing in the circuit reference in this description, choose a straight connection or a speed controller at each cylinder port as needed. The two listed parts are alternatives at the same connection point, not a pair to install together. Keep the two cylinder chamber lines separate. PC601: PT1/8 male × 6 mm tube ODStraight cylinder-to-tube connection; no speed adjustment PTL601A: PT1/8 male × 6 mm tube OD; A-type flow directionCylinder-port meter-out speed control, replacing the straight fitting at that port The A-type controller meters air leaving the cylinder through its threaded end to the tube and allows free flow in the reverse direction. Its recommended 0.08 N·m cap-rotation torque is not the torque for screwing it into the cylinder. Seal the PT tapered thread correctly. These standard gray fittings accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Stay within the working limits of the cylinder, tubing and every connected part. Check tube insertion and wrench clearance, and order the selected accessories separately.Weight Reference 218 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 201–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $44.91

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X40SDBT

  Specifications: MG40X40SDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm No S code Nonmagnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X40SDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 40 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X40SDBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 705.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $75.62

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X300SSDBT

  Specifications: MG40X300SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 300 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X300 Stroke: 300 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X300SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 300 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 300 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 430 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1302.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $135.00

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X75SCBT

  Specifications: MG40X75SCBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 75 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X75 Stroke: 75 mm S Magnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X75SCBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 75 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 75 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 205 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 729 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $84.89

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X150SSDBT

  Specifications: MG40X150SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 150 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X150 Stroke: 150 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X150SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 150 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 150 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 280 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 964.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $100.97

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X25SSDBT

  Specifications: MG40X25SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 25 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X25 Stroke: 25 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X25SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 25 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 25 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 155 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 683.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $74.99

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X30SSDBT

  Specifications: MG40X30SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 30 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X30 Stroke: 30 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X30SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 30 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 30 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 160 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 694.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $78.17

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X25SCBT

  Specifications: MG40X25SCBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 25 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X25 Stroke: 25 mm S Magnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X25SCBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 25 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 25 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 155 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 617 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $74.99

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X100SSDBT

  Specifications: MG40X100SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 100 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X100 Stroke: 100 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X100SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 100 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 100 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 230 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 852.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $89.95

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X300SCBT

  Specifications: MG40X300SCBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 300 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X300 Stroke: 300 mm S Magnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X300SCBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 300 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 300 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 430 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1236 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $135.00

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X15SSDBT

  Specifications: MG40X15SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 15 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X15 Stroke: 15 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X15SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 15 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 15 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 145 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 660.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $74.06

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X300SDBT

  Specifications: MG40X300SDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 300 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X300 Stroke: 300 mm No S code Nonmagnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X300SDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 300 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 300 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 430 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X300SDBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1290.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $131.36

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X175SDBT

  Specifications: MG40X175SDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 175 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X175 Stroke: 175 mm No S code Nonmagnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X175SDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 175 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 175 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 305 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X175SDBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1008.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $105.71

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X150SCBT

  Specifications: MG40X150SCBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 150 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X150 Stroke: 150 mm S Magnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X150SCBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 150 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 150 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 280 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 898 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $100.97

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X20SDBT

  Specifications: MG40X20SDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 20 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X20 Stroke: 20 mm No S code Nonmagnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X20SDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 20 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 20 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 150 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X20SDBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 660.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $71.19

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X20SSDBT

  Specifications: MG40X20SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 20 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X20 Stroke: 20 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X20SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 20 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 20 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 150 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 672.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $74.56

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X40SCBT

  Specifications: MG40X40SCBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm S Magnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X40SCBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 40 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 651 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $79.13

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X40SSDBT

  Specifications: MG40X40SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X40SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 40 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 717.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $79.13

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X75CBT

  Specifications: MG40X75CBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 75 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X75 Stroke: 75 mm No S code Nonmagnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X75CBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 75 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 75 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 205 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X75CBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 717 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $81.54

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X30SDBT

  Specifications: MG40X30SDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 30 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X30 Stroke: 30 mm No S code Nonmagnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X30SDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 30 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 30 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 160 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X30SDBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 682.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $74.69

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X250CBT

  Specifications: MG40X250CBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 250 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X250 Stroke: 250 mm No S code Nonmagnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X250CBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 250 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 250 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 380 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X250CBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1111 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $120.04

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X40CBT

  Specifications: MG40X40CBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm No S code Nonmagnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X40CBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 40 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X40CBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 639 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $75.62

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X250SSDBT

  Specifications: MG40X250SSDBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 250 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X250 Stroke: 250 mm S Magnetic piston SDB rear pivot bracket T NPT thread Technical Specifications Parameter Details Model MG40X250SSDBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 250 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model SDB — rear pivot bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 250 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 380 mm Drawing length relation A + stroke SDB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details CD 14 mm CZ 49 mm TE 10 mm TF 6.5 mm TH 40 mm TT 3 mm TV 62.5 mm TW 56 mm TX 30 mm TY 30 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Matches the mounting code selected in this model. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. For this magnetic MG cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Optional magnetic sensor order codes CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 CMSG-H — high-temperature reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W EMSG — miniature two-wire sensorsA smaller G-profile sensor for magnetic MG, with two-wire operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 For CMSG reed options, maximum limits are 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 versions have a maximum 2.5 V drop at 100 mA DC. H versions have no residual voltage or indicator LED. Two-wire DMSG/EMSG operate at 2.5–100 mA, up to 2.8 W and 1,000 Hz. Maximum consumption is 3 mA, residual voltage 3.5 V and leakage current 0.06 mA. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption is 5 mA, residual voltage 0.7 V and leakage current 0.01 mA. Sensor direct-lead endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 mean M8/M12 male connectors with 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 have 1/2/3 m leads. Female-cable endings 020/030/050/100 mean 2/3/5/10 m. Lead length is independent of cylinder stroke. Match the female cable to the male connector size and wire count; direct-lead sensors need no mating cable. B pinout is 1 brown (+), 4 blue (−), 3 unused; C is 1 brown (+), 3 blue (−), 4 black output. Verify the cable’s electrical, temperature and environmental ratings. A05 is flex-resistant robotics cable; A06 is oil-resistant flex cable. Both have a recommended minimum bend radius of 19 mm and use direct leads only, without NPN/PNP, M8/M12 or W options; A05-CMSG also excludes H. W denotes waterproof: DMSG-W is direct-lead only; listed EMSG-W also offers connectors. Check connector sealing separately. Ordinary, W, A05 and A06 sensors operate at −10 to +70°C; CMSG-H at −10 to +125°C. The cylinder remains limited to +70°C: use the common operating range. Ordinary/H/A05 are IP64; W/A06 are IP68. These are sensor ratings, not cylinder, connector or assembly ratings. Observe both current and load-capacity limits; controller inputs must tolerate the residual voltage and leakage. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. CMS has no protection circuit; DMS/EMS include reverse-polarity and surge protection. Insulate and complete wiring before energizing; separate it from power/high-voltage wiring. Tighten sensor screws to 0.15–0.20 N·m, never above 0.25 N·m; band and cylinder fasteners need their own specifications. Set detection at the actuation-range centre. Avoid impact, cable tension and flexing caused by motion; inspect fixings, cables and indication periodically. Keep non-waterproof sensors dry; avoid prolonged immersion even with waterproof types. Verify oil/chemical compatibility. Avoid explosive atmospheres, aggressive chemicals, rapid temperature changes, welding interference and magnetic debris. Protect industry cables against unsuitable heat, dust, water and oil, and shield oil-resistant versions from weld spatter. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 1189.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected SDB mount adds an approximate 197.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $123.55

  View options

•

  View options

  Airtac MG series: double-acting stainless-steel mini cylinder - MG40X150CBT

  Specifications: MG40X150CBT — AirTAC MG stainless steel mini cylinder, double acting, single rod, 40 mm bore and 150 mm stroke. NPT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MG stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X150 Stroke: 150 mm No S code Nonmagnetic piston CB rear clevis T NPT thread Technical Specifications Parameter Details Model MG40X150CBT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 150 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Mounting code in this model CB — rear clevis Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MG drawing for 40 mm bore, 150 mm stroke in the 2022 cylinder catalog, printed page 100. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 130 mm AB 50 mm AC 78 mm B — body dimension in the drawing 44 mm R — outside-body dimension in the drawing 47.5 mm K — mounting-hole/thread detail M6 × 1, depth 12 KB 26 mm EA 28.5 mm Overall length from the printed formula 280 mm Drawing length relation A + stroke CB mounting reference from printed page 103; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details C 26 mm CD 14 mm CZ 49 mm L 22 mm RR 18 mm TT 3 mm TV 63 mm TZ 69.5 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MG40LB F-MG40LB: foot bracket for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40FA F-MG40FA: front flange for MG series, 40 mm bore. Optional; not implied by this model code. F-MG40SDB F-MG40SDB: rear pivot bracket for MG series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. Requires the matching CB rear clevis; SDB alone is not the complete pivot connection. F-MG40CB F-MG40CB: rear clevis for MG series, 40 mm bore. Matches the mounting code selected in this model. F-ACQ32I F-ACQ32I: rod-end eye joint for MG series, 40 mm bore. Optional; not implied by this model code. F-ACQ32Y F-ACQ32Y: rod-end fork joint for MG series, 40 mm bore. Optional; not implied by this model code. This MG40X150CBT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Cylinder-port connection matching Match each 1/8 NPT cylinder port with an NPT fitting and the exact metric tube OD used in the circuit. PT and G threads do not mate directly with NPT, and similarly sized inch tubing is not interchangeable with the metric tubing in the circuit reference in this description. If you choose an inch-tube circuit instead of the metric reference, order these NPT1/8 male options separately. Use either a connector or a controller at each port. Match the listed inch OD along the branch and at both tube ends; do not fit metric tubing to these inch sockets. Straight connection: No speed adjustmentNPC5/32-1/8 (5/32 in), NPC1/4-1/8 (1/4 in), NPC5/16-1/8 (5/16 in), NPC3/8-1/8 (3/8 in) Cylinder-port meter-out control: Speed adjustmentNPTL5/32-1/8A (5/32 in), NPTL1/4-1/8A (1/4 in), NPTL5/16-1/8A (5/16 in) Type A restricts flow from the cylinder port to the tube; reverse flow is free. Maximum knob-rotation torque is 0.08 N·m, not thread-tightening torque. Use soft nylon or polyurethane tubing. Fitting limits are 0–1 MPa and −20 to +70°C; stay within every connected part’s limits. Check tube insertion, thread sealing and clearance. Weight Reference 886 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected CB mount adds an approximate 131 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube Stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers Aluminum alloy O-rings NBR Bumper TPU Wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 175, 200, 250, 300 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The catalog separately lists a long-stroke construction range of 301–500 mm. It is distinct from the standard-stroke list above; use the long-stroke dimensions and weights for that range. The separately printed maximum and permissible strokes are 500 and 800 mm respectively. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $97.60

  View options

Show more products
