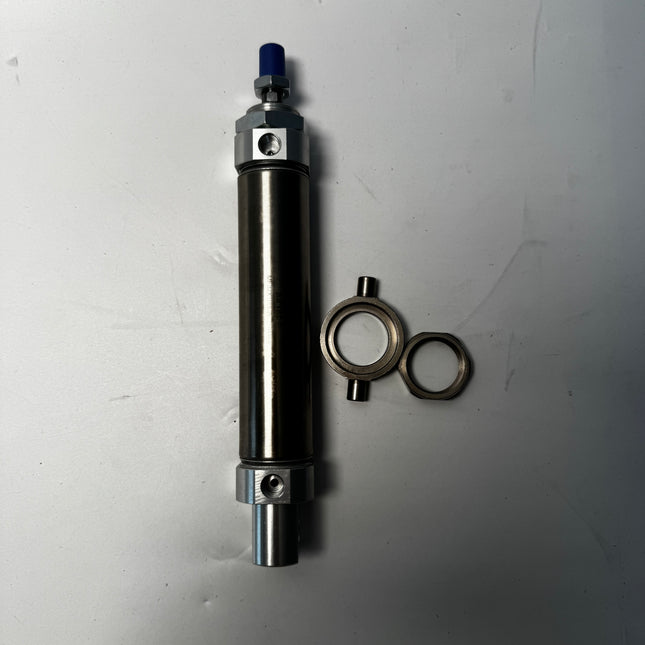

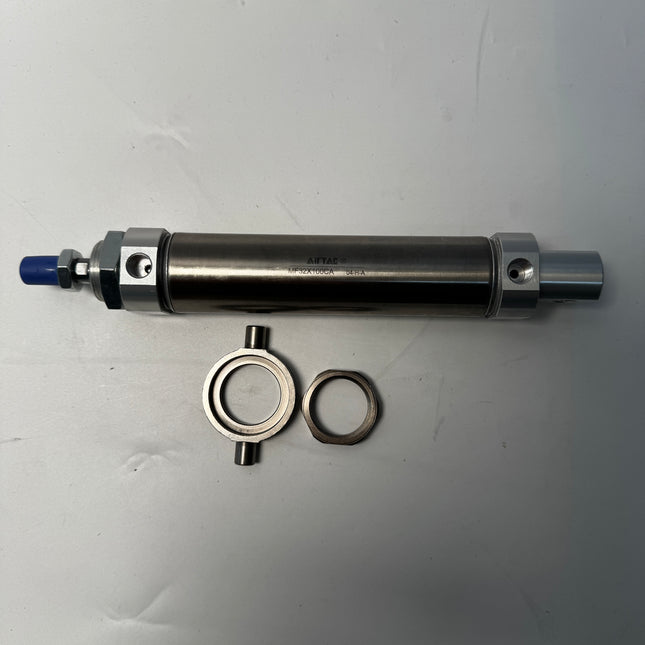

Stainless Steel Mini Cylinder - MF Series
Product Features
- 1. JIS standard implemented.
- 2. Piston seal adopts heterogeneous two-way seal structure. It has compact dimensions and the function of oil storage.
- 3. The front and rear covers have fixed anti-collision pads (bumpers), which can reduce the impact of cylinder reversal.
- 4. Various types of rear covers available, making cylinder installation more convenient.
- 5. The front/rear cover and stainless steel body adopt a riveted rolling package structure (crimped), ensuring a reliable connection.
- 6. The cylinder body uses high-precision stainless steel tubing with high strength and corrosion resistance.
- 7. With the same bore and stroke, the MF series cylinder is shorter in length compared to ISO6432 standard cylinders.
- 8. A variety of cylinder mounting accessories are available for customers to choose from.
Specifications
| Bore Size (mm) | 20 | 25 | 32 | 40 |
|---|---|---|---|---|
| Acting Type | Double Acting, Double Acting Adjustable Cushion, Single Acting Push, Single Acting Pull | |||
| Fluid | Air (filtered to 40μm or better) | |||
| Operating Pressure |
Double Acting: 0.15~1.0MPa (22~145psi) Single Acting: 0.2~1.0MPa (28~145psi) |
|||
| Proof Pressure | 1.5MPa (215psi) (15bar) | |||
| Temperature (°C) | -20 ~ 70 | |||
| Speed Range (mm/s) | Double Acting: 30~800 | Single Acting: 50~800 | |||
| Stroke Tolerance | 0~150: +1.00 | >150: +1.50 | |||
| Cushion Type | MFC, MFCD, MFCJ: Adjustable Cushion | Others: Anti-collision pad (Bumper) | |||
| Port Size [Note 1] | PT1/8 | PT1/4 | ||
[Note 1] PT thread, G thread, and NPT thread are available.
Standard Stroke Table
| Bore (mm) | Standard Stroke (mm) | Max. Stroke | Allowable Stroke | |
|---|---|---|---|---|
| MF MFC |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | 800 |
| 25 | ||||
| 32 | ||||
| 40 | ||||
| MFD MFCD MFJ MFCJ |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300 | 300 | - |
| 25 | ||||
| 32 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 500 | ||
| 40 | ||||
| MSF MTF |
20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | - | - |
| 25 | ||||
| 32 | ||||
| 40 | ||||
Note: Please contact the company for other special strokes.
Ordering Code
MF 32 x 50 S CM - □
| No. | Item | Applicable Model | Description |
|---|---|---|---|
| 1 | Model | All |
MF: Mini Cylinder (Double Acting) MFC: Mini Cylinder (Double Acting Adj. Cushion) MSF: Mini Cylinder (Single Acting Push) [Note 1] MTF: Mini Cylinder (Single Acting Pull) MFD: Double Shaft Double Acting MFCD: Double Shaft Adj. Cushion MFJ: Double Shaft Adj. Stroke MFCJ: Double Shaft Adj. Stroke & Cushion |
| 2 | Bore Size | All | 20, 25, 32, 40 (mm) |
| 3 | Stroke | All | Refer to Stroke Table |
| 4 | Adjustable Stroke |
MFJ, MFCJ (Others: No Code) |
10, 20, 30, 40, 50, 75, 100 (mm) |
| 5 | Magnet | All |
Blank: No Magnet S: With Magnet |
| 6 | Rear Cover Type |
MF, MFC, MSF, MTF MFD, MFCD, MFJ, MFCJ |
CA: Pivot Type (Tail) U: Flat Type (Tail) CM: Round Type (Tail) No Code (Blank) |
| 7 | Mounting Type [Note 2] |
MF, MFC, MSF, MTF MFD, MFCD, MFJ, MFCJ |
Blank: No Accessory FA: Front Flange SDB: Rear Pivot (Clevis) LB: Axial Foot (Bracket) TC: Center Trunnion Blank: No Accessory FA: Front Flange LB: Axial Foot TC: Center Trunnion (No SDB for double shaft models) |
| 8 | Thread Type | All |
Blank: PT Thread G: G Thread T: NPT Thread |
[Note 1]
Single Acting Push: Piston rod extends when air is supplied; retracts by spring force.
Single Acting Pull: Piston rod retracts when air is supplied; extends by spring force.
[Note 2] "Blank" indicates no mounting accessory installed.
