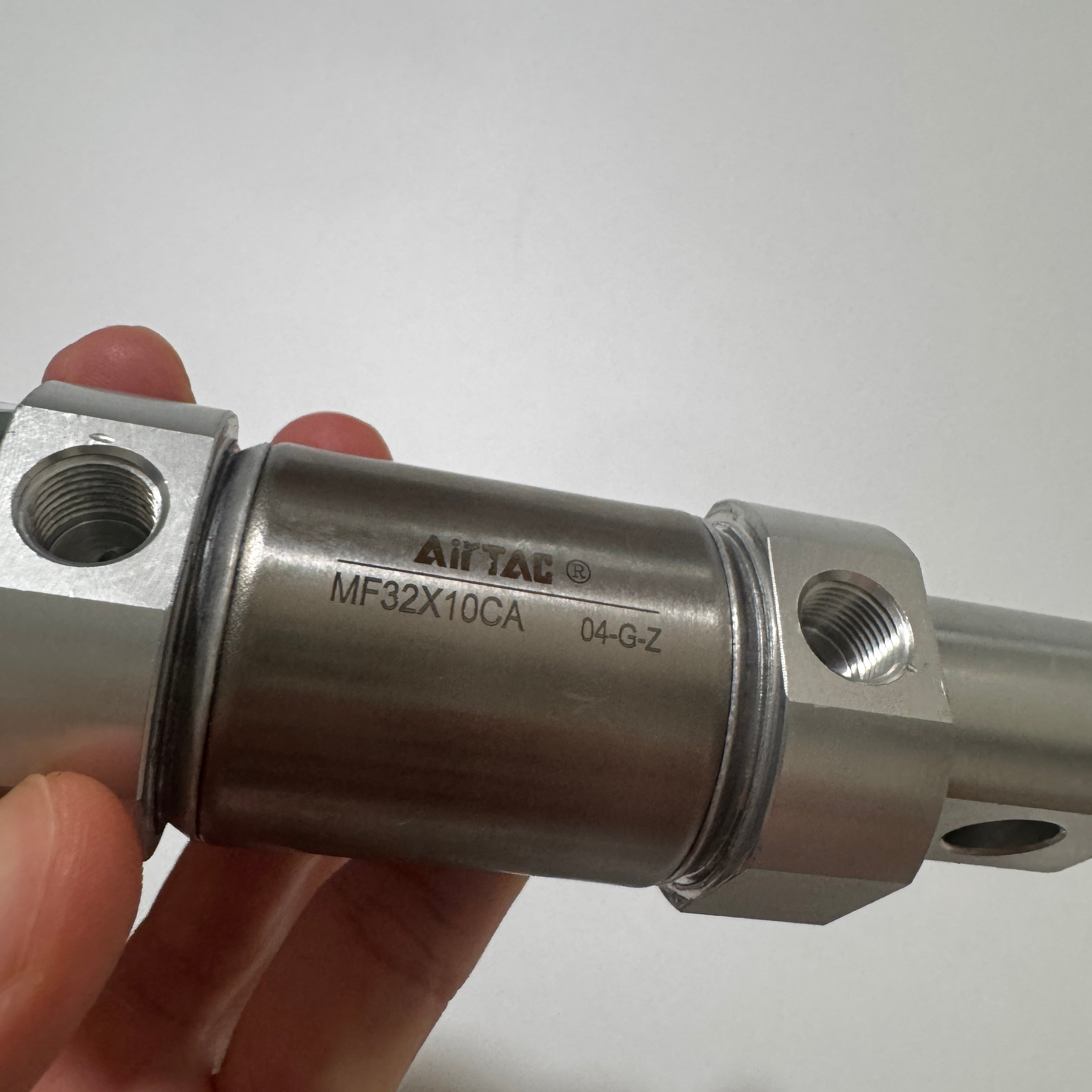

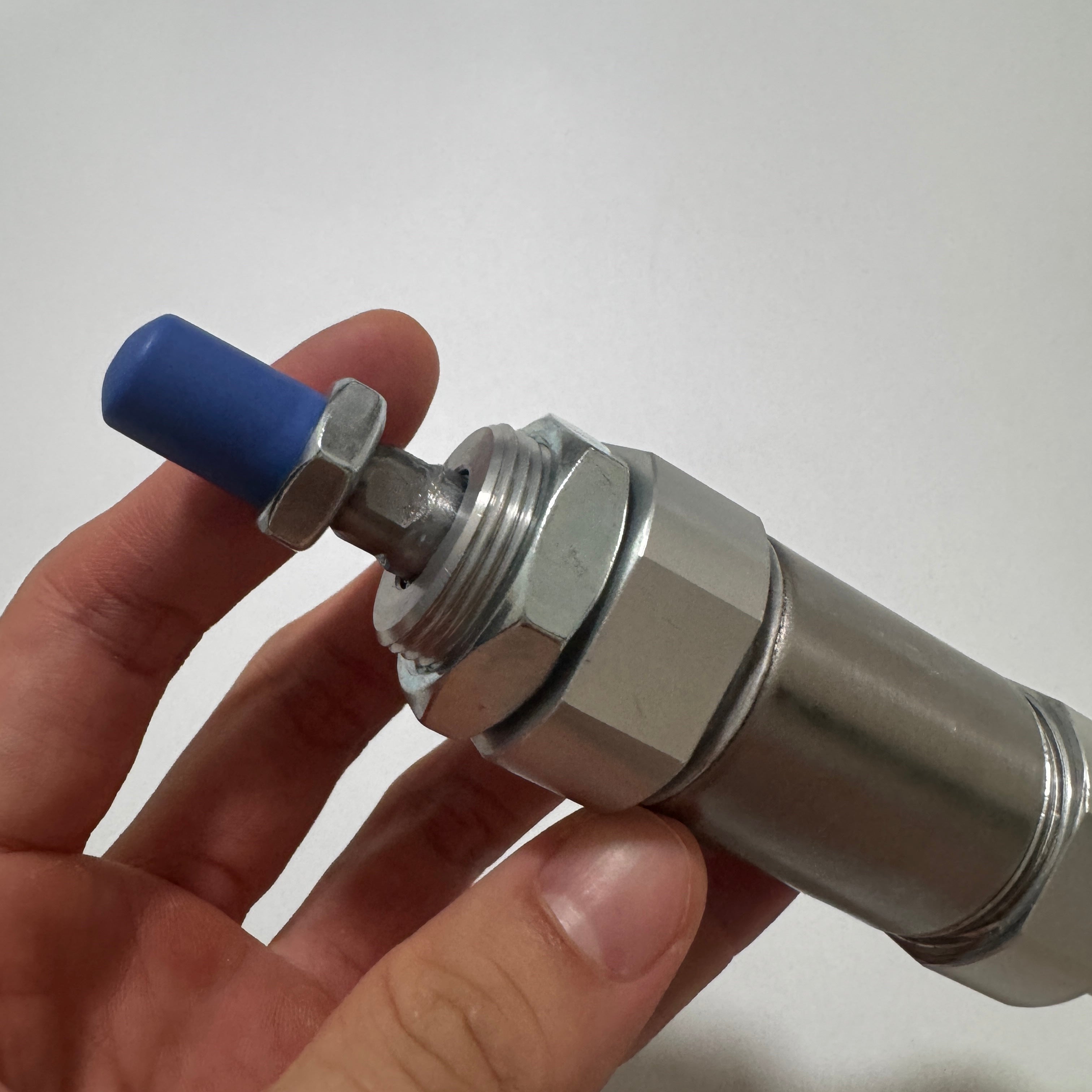

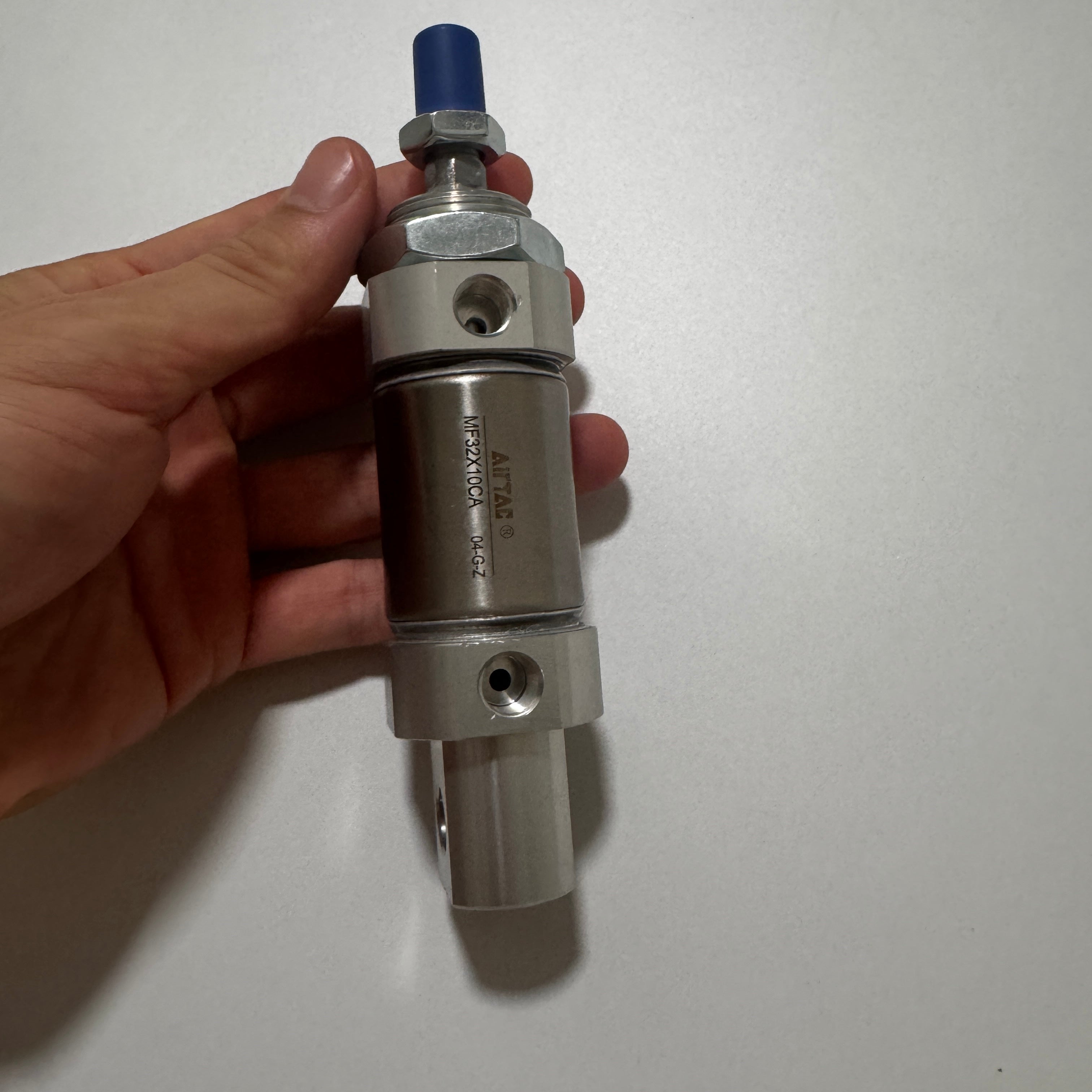

Airtac MF series: double-acting stainless-steel mini cylinder - MF32X10CA

Photos are for reference only. Not all models have pictures.

Description

Specifications: MF32X10CA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 32 mm bore and 10 mm stroke. PT1/8 port; nonmagnetic piston.

Product Catalog

Download Airtac Product Catalog (PDF)

Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)

Download 2022 mounting brackets (PDF)

Download 2022 rod-end joints and sensor mounts (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
MF stainless steel mini cylinder; double acting, single rod
32 Cylinder bore: 32 mm
X10 Stroke: 10 mm
No S code Nonmagnetic piston
CA pivot-eye rear cover
No thread suffix PT pipe thread (catalog default)

Technical Specifications

Parameter Details
Model MF32X10CA
Product type stainless steel mini cylinder
Operation double acting, single rod
Bore 32 mm
Stroke 10 mm
Piston-rod diameter 12 mm
Rod-end thread M10 × 1.25
Working medium Air filtered to 40 µm or finer
Operating pressure 0.15–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to +70 °C
Piston speed 30–800 mm/s
Port PT1/8
Cushioning Bumper
Magnetic piston Not included; no S code
Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm

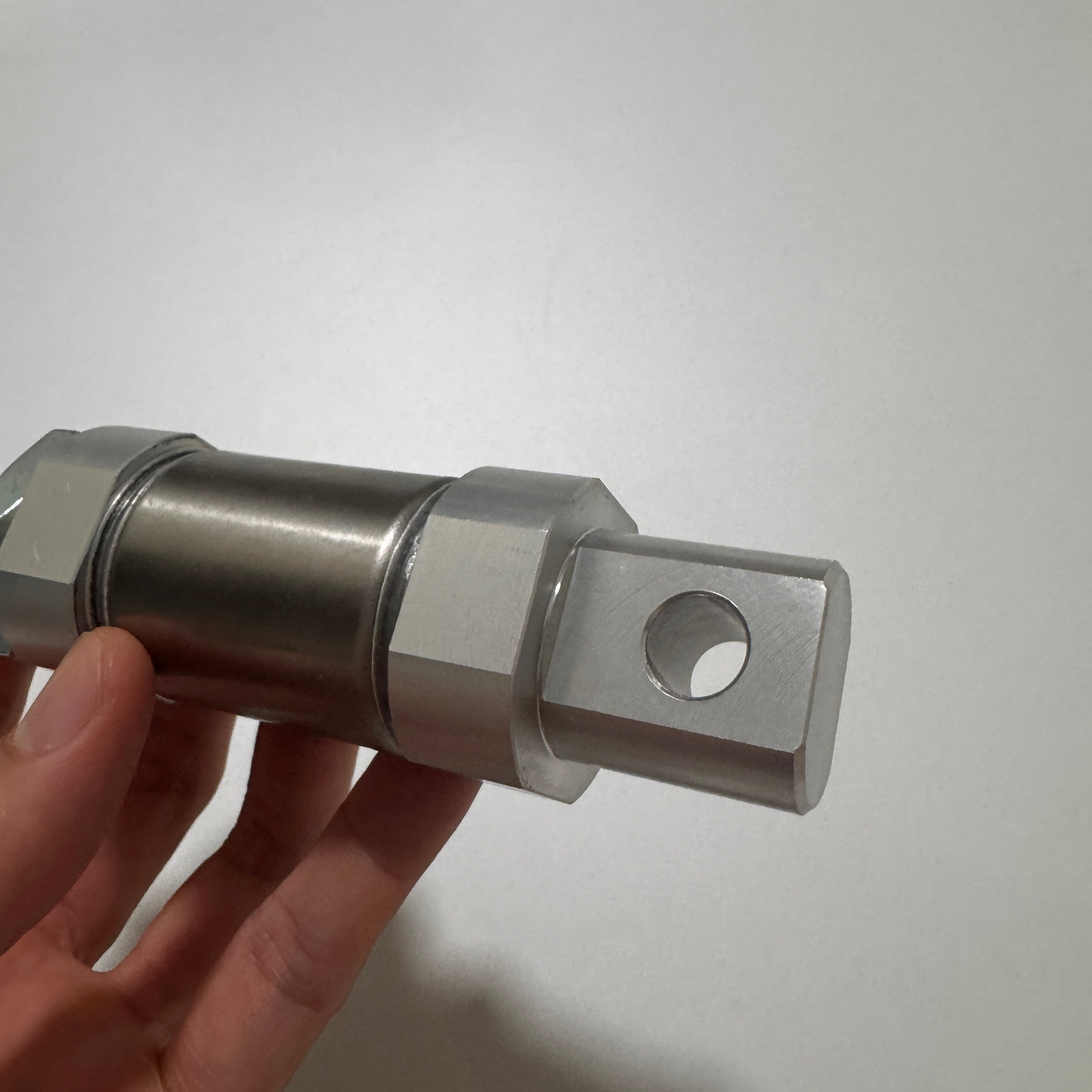

Rear cover pivot-eye rear cover

Features and Operation

  • Alternating the supply and exhaust at the two cylinder ports drives extension and retraction.
  • The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis.

External and Mounting Dimensions

The following symbols refer to the MF drawing for 32 mm bore, 10 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height.

Parameter Details
A — base length before the stroke term 136 mm
AB 45 mm
AC 64 mm
B — body dimension in the drawing 34.5 mm
R — outside-body dimension in the drawing 37.5 mm
G 32 mm
EA 20.5 mm
Overall length from the printed formula 146 mm
Drawing length relation A + stroke

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Compatible Accessories and Sensors

Accessory code Purpose and compatibility
F-MF32LB F-MF32LB: foot bracket for MF series, 32 mm bore. Optional; not implied by this model code.
F-MF32FA F-MF32FA: front flange for MF series, 32 mm bore. Optional; not implied by this model code.
F-MF32TC F-MF32TC: trunnion bracket for MF series, 32 mm bore. Optional; not implied by this model code.
F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin.
F-MF25I F-MF25I: rod-end eye joint for MF series, 32 mm bore. Optional; not implied by this model code.
F-MF25Y F-MF25Y: rod-end fork joint for MF series, 32 mm bore. Optional; not implied by this model code.
F-M10X125F F-M10X125F: floating joint for MF series, 32 mm bore. Optional; not implied by this model code.
F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 32 mm bore. Optional; not implied by this model code.

This MF32X10CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet.

Weight Reference

288 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails.

Force Reference

Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load.

Internal Components and Materials

Component Catalog material
Tube SUS304 stainless steel
Piston rod S45C, hard-chromed and ground
Front / rear covers and piston Aluminum alloy
O-rings NBR
Bumper TPU
Guide bush and wear ring Wear-resistant material

Series Ordering Reference

Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder.

Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row.

Selection, Installation and Use

  • Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism.
  • Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder.
  • Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod.
  • Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit.
  • Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication.
  • Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used.

Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.
