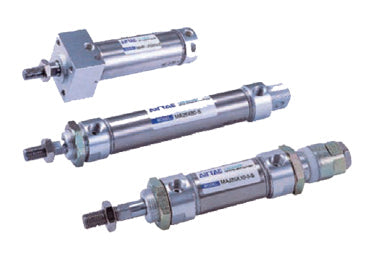

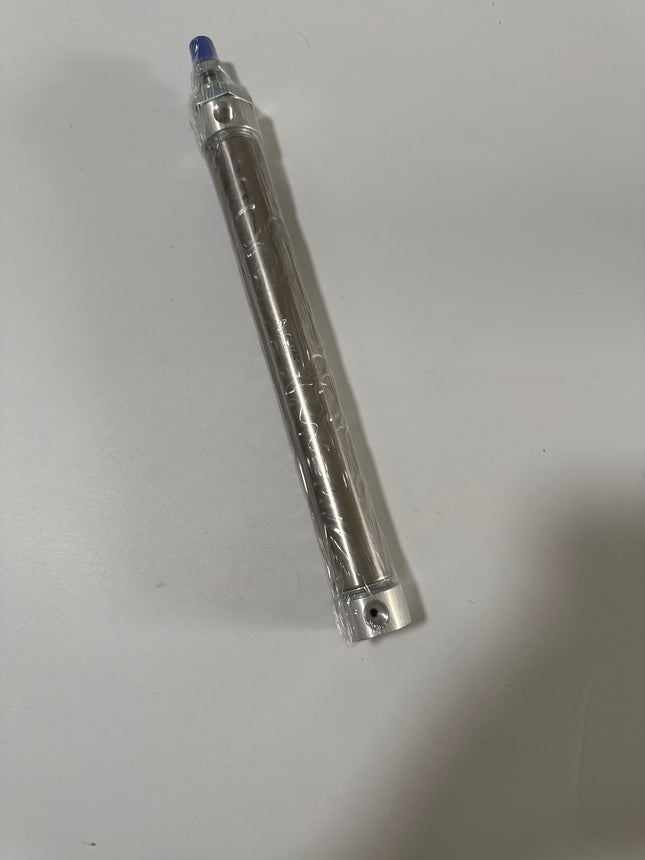

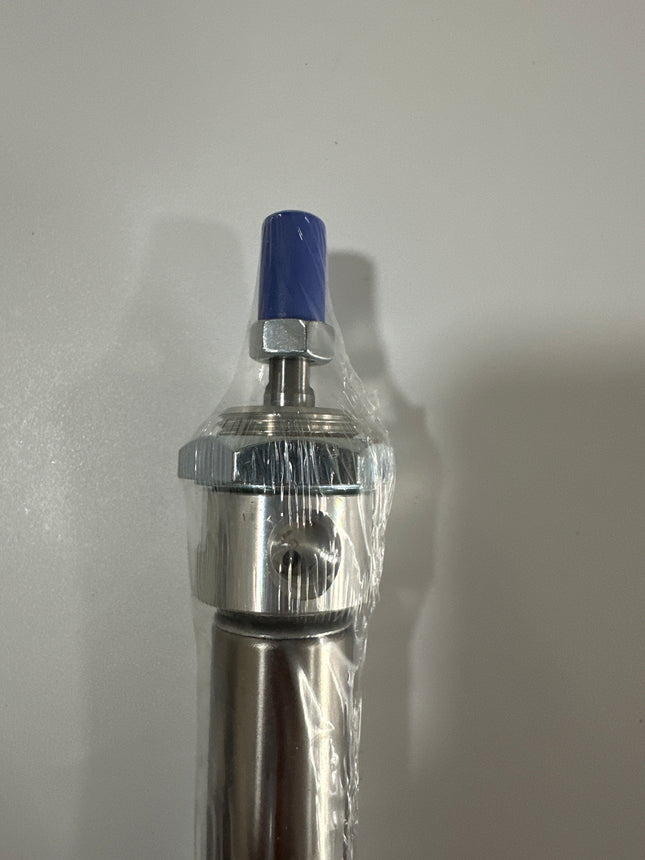

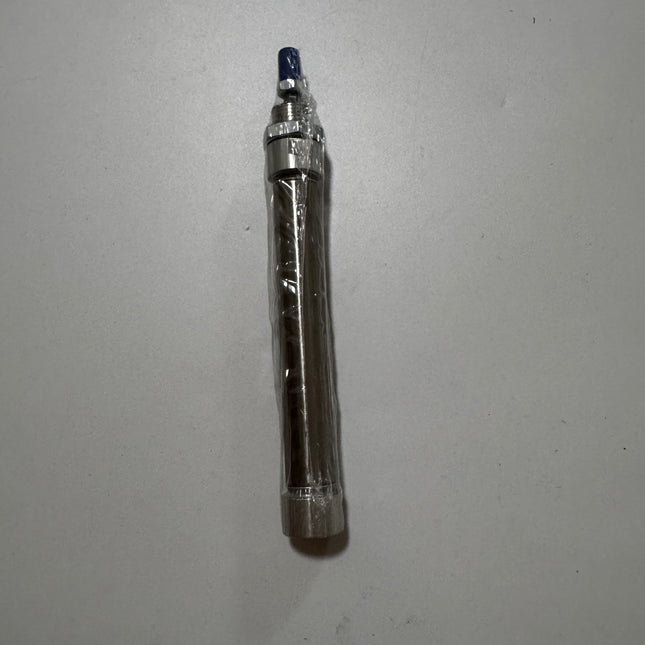

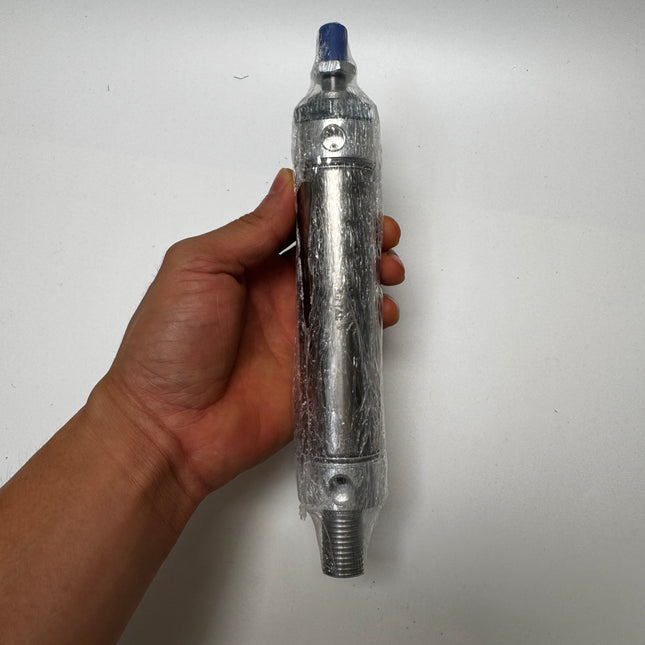

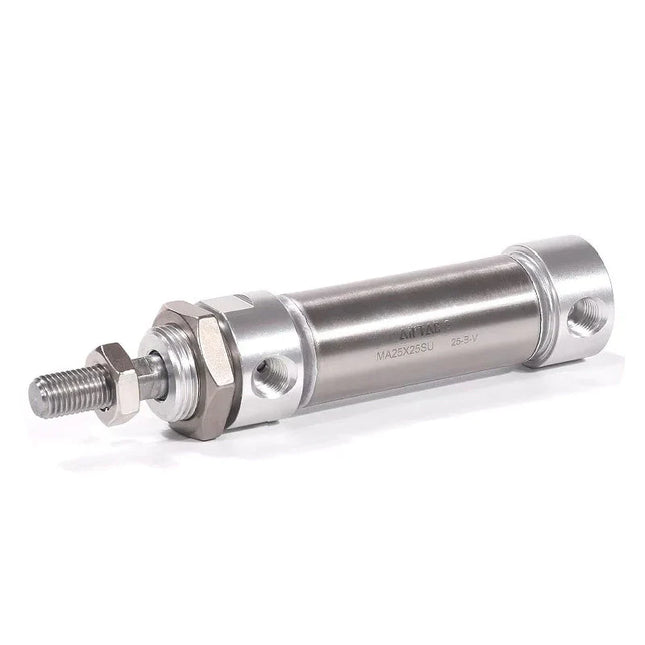

Specifications: MA25X175SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 175 mm stroke. PT1/8 port; magnetic piston.
Product Catalog
Download Airtac Product Catalog (PDF)
Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)
Download 2022 mounting brackets (PDF)
Download 2022 rod-end joints and sensor mounts (PDF)
Download 2022 cylinder installation and weight tables (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

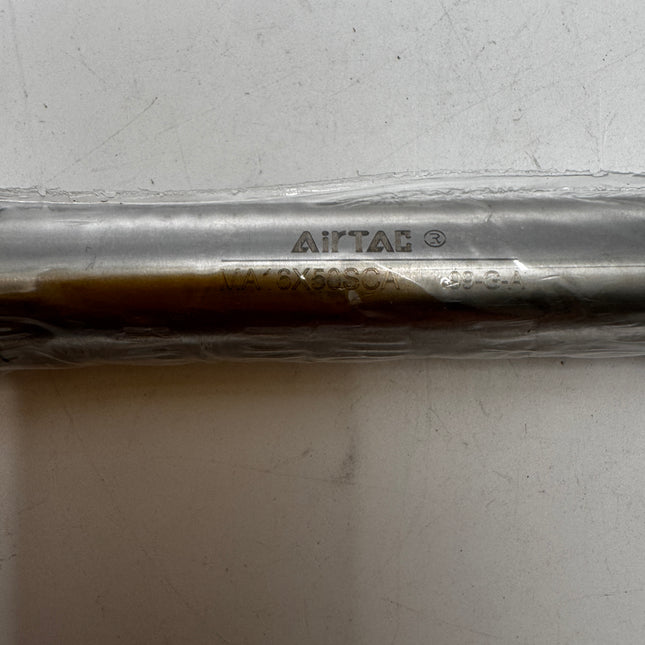

Model Code Explained
Code
Meaning
MA
stainless steel mini cylinder; double acting, single rod
25
Cylinder bore: 25 mm
X175
Stroke: 175 mm
S
Magnetic piston
U
flat rear cover with radial air port
No thread suffix
PT pipe thread (catalog default)
Technical Specifications
Parameter
Details
Model
MA25X175SU
Product type
stainless steel mini cylinder
Operation
double acting, single rod
Bore
25 mm
Stroke
175 mm
Piston-rod diameter
10 mm
Rod-end thread
M10 × 1.25
Working medium
Air filtered to 40 µm or finer
Operating pressure
0.15–1.0 MPa
Proof pressure
1.5 MPa
Operating temperature
−20 to +70 °C
Piston speed
30–800 mm/s
Port
PT1/8
Cushioning
Bumper
Magnetic piston
Included (S)
Stroke tolerance
+1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm
Rear cover
flat rear cover with radial air port
Features and Operation
Alternating the supply and exhaust at the two cylinder ports drives extension and retraction.
The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis.
External and Mounting Dimensions
The following symbols refer to the MA drawing for 25 mm bore, 175 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height.
Parameter
Details
A — base length before the stroke term
120 mm
AB
44 mm
AC
76 mm
B — body dimension in the drawing
30 mm
M — body mounting thread
M22 × 1.5
G
29 mm
EA
22 mm
Overall length from the printed formula
295 mm
Drawing length relation
A + stroke
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

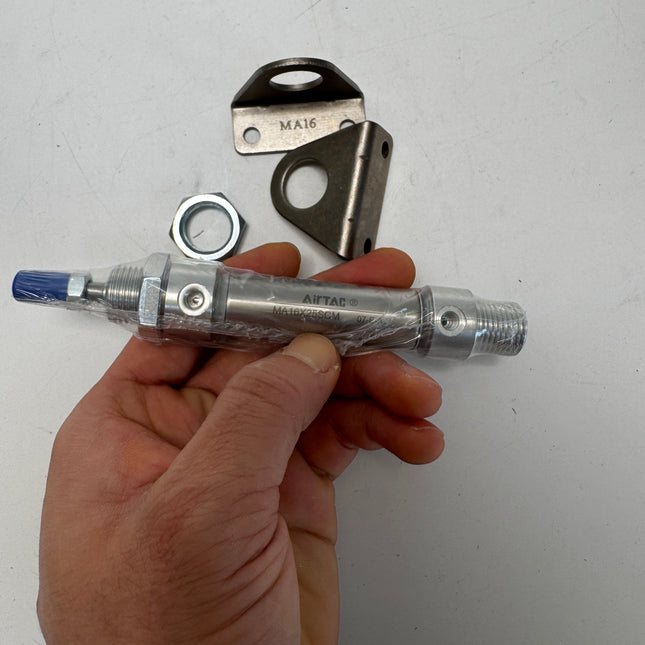

Compatible Accessories and Sensors
Accessory code
Purpose and compatibility
F-MA20LB
F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code.
F-MA20FA
F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code.
F-MA20SDB
F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin.
F-MA25I
F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code.
F-MA25Y
F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code.
F-M10X125F
F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code.
F-M10X125U
F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code.
For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code.
Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles.
Weight Reference
391 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails.
Force Reference
Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load.
Internal Components and Materials
Component
Catalog material
Piston rod
S45C, hard-chromed and ground
Tube
Stainless steel
Front / rear covers and piston
Aluminum alloy
Rod nut
Stainless steel or carbon steel, as shown in the component drawing
Front-cover nut
Carbon steel
Front-cover and piston O-rings
NBR
Bumper pad
TPU
Wear ring
Wear-resistant material
Magnet
Plastic magnet
Series Ordering Reference
Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder.
The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected.
Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row.
Selection, Installation and Use
Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism.
Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder.
Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod.
Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit.
Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication.
Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used.
Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.
Matching Accessory Codes and Conditions
All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution.
Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output.
MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed.
Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter.
Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication.
Item
Complete codes and use
CMSG two-wire reed sensors
5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030
CMSG-H high-temperature reed sensors
5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H
A05-CMSG flexible-cable reed sensors
5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
DMSG two-wire electronic sensors
10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030
DMSG two-wire waterproof direct-lead sensors
10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W
DMSG NPN three-wire electronic sensors
5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030
DMSG NPN three-wire waterproof direct-lead sensors
5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
DMSG PNP three-wire electronic sensors
5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030
DMSG PNP three-wire waterproof direct-lead sensors
5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
A05-DMSG robotics/flex-resistant electronic sensors
10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100
A06-DMSG oil-resistant flex-resistant electronic sensors
10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
EMSG miniature two-wire electronic sensors
10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030
EMSG-W miniature waterproof electronic sensors
10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W
A05-EMSG miniature flexible-cable electronic sensors
10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100
A06-EMSG miniature oil-resistant flex-resistant electronic sensors
10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
M8 2-wire mating female cables
B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100
M8 3-wire mating female cables
C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100
M12 2-wire mating female cables
B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100
M12 3-wire mating female cables
C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100
Optional Connections and Air Preparation
C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately.
Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube.
Use
Size / complete codes
C
two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU
U
two female PT1/8 ports: GAFR20006S
Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options.
MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability.
Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment.
Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply.
PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction.
Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings.
At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding.
PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction.
PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability.
ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff.
GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports.
GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator.
US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone.
Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference.
Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.
