Stainless Steel Mini Cylinder - MA Series

•

  View options

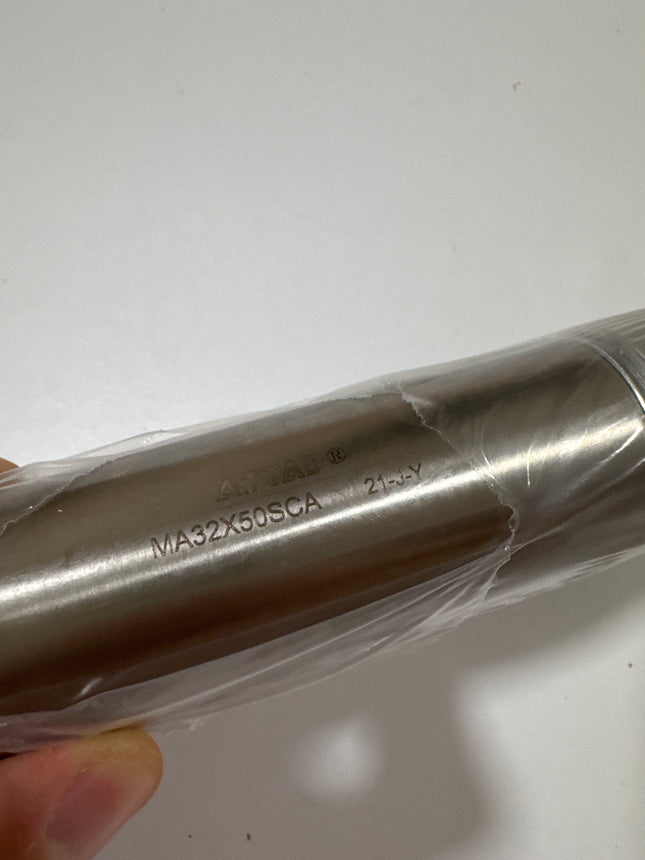

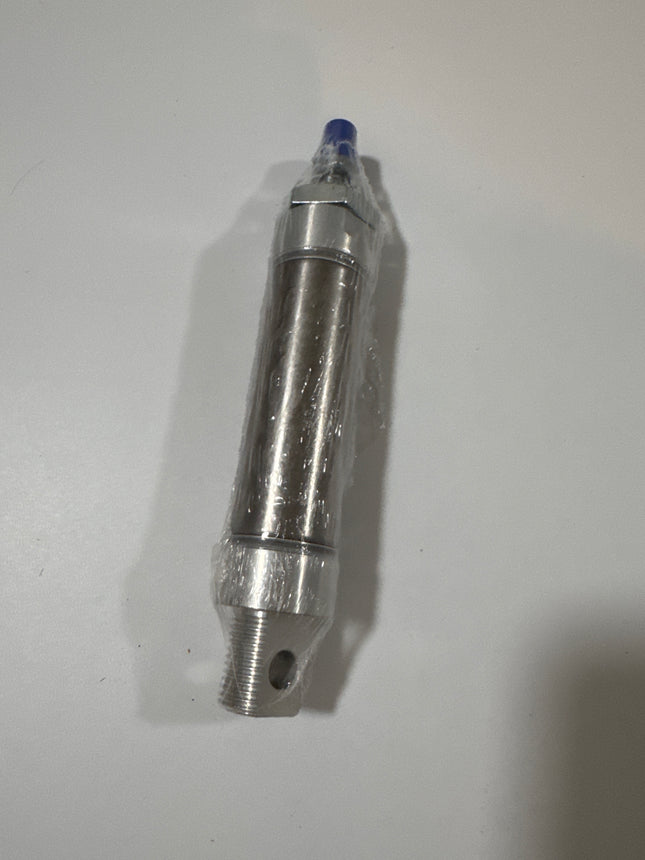

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X50SCA

  Specifications: MA32X50SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X50SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 50 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 147 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 197 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 380 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $58.64

  View options

•

  View options

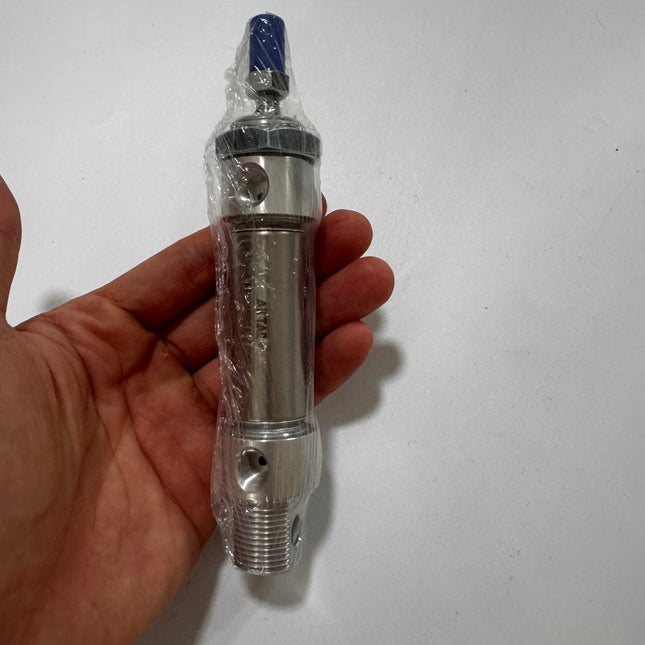

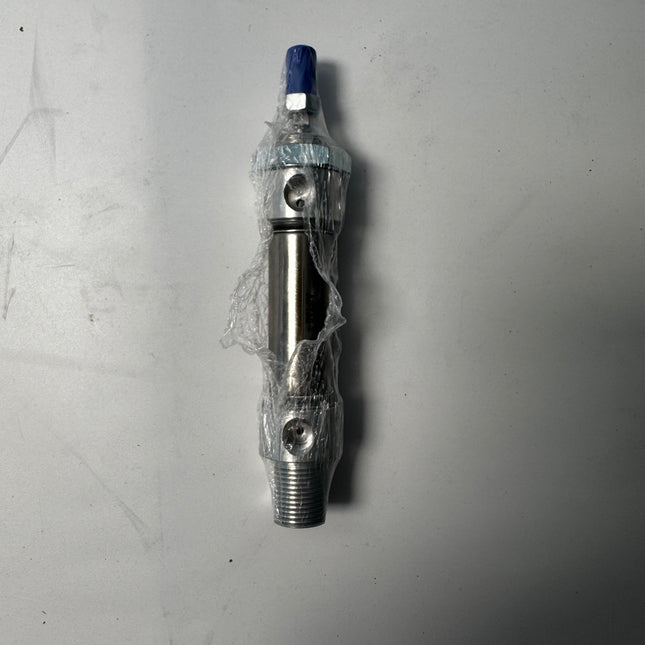

  Airtac MA series: double-acting stainless-steel mini cylinder - MA20X15SCA

  Specifications: MA20X15SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 20 mm bore and 15 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X15 Stroke: 15 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA20X15SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 15 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 20 mm bore, 15 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 137 mm AB 40 mm AC 76 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 152 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MA series, 20 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 172 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $39.76

  View options

•

  View options

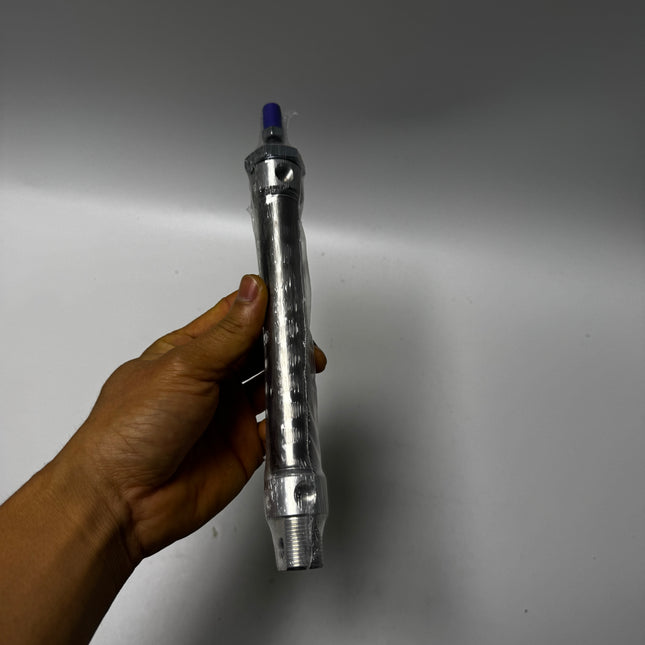

  Airtac MA series: double-acting stainless-steel mini cylinder - MA20X100SCA

  Specifications: MA20X100SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 20 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X100 Stroke: 100 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA20X100SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 100 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 20 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 137 mm AB 40 mm AC 76 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 237 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MA series, 20 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 237 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $46.91

  View options

•

  View options

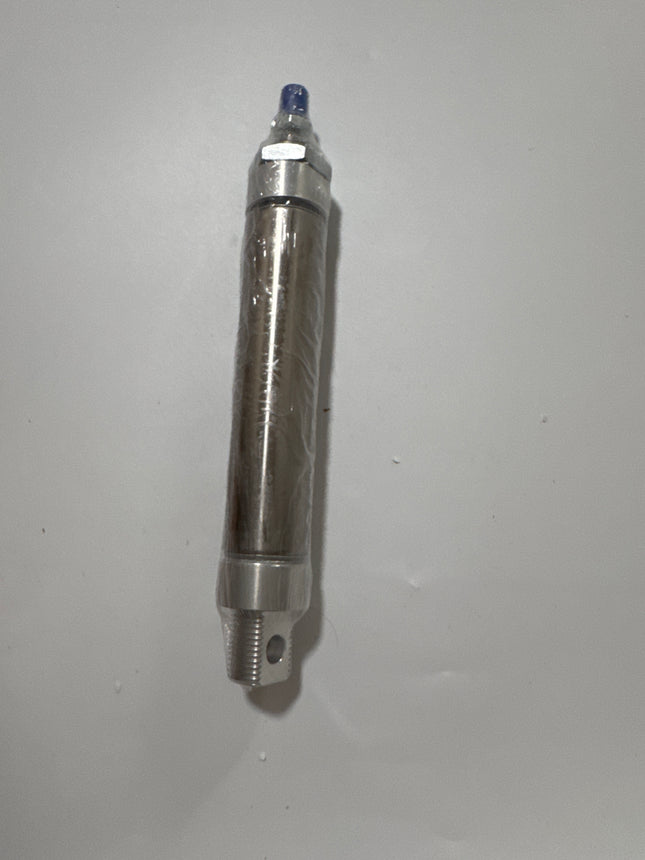

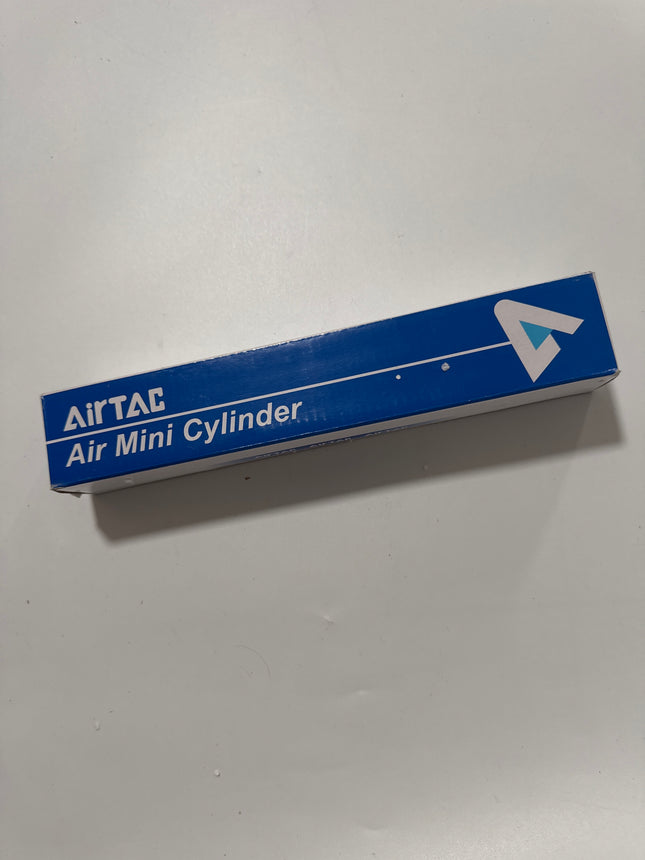

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X100SCA

  Specifications: MA32X100SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X100 Stroke: 100 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X100SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 100 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 147 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 247 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 458 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $70.14

  View options

•

  View options

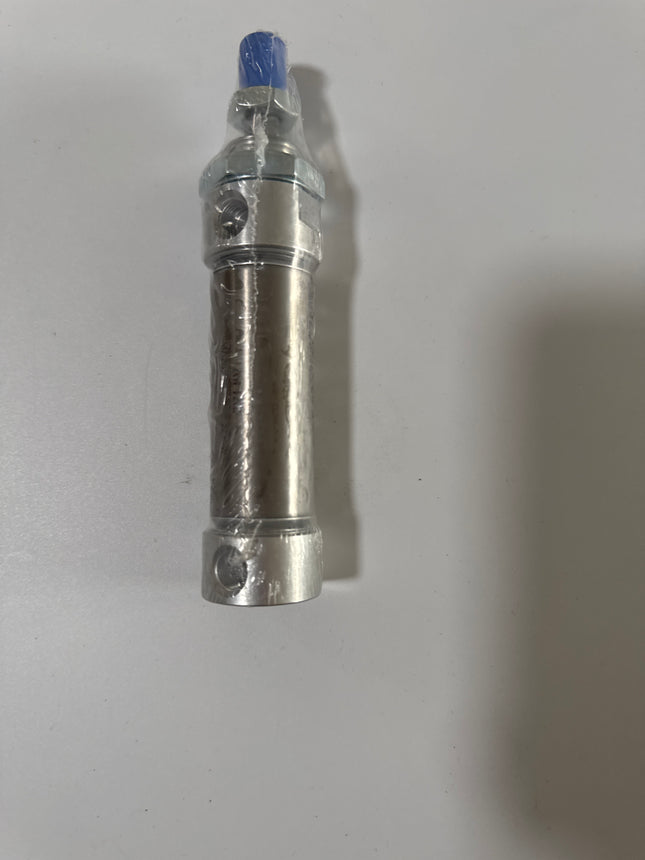

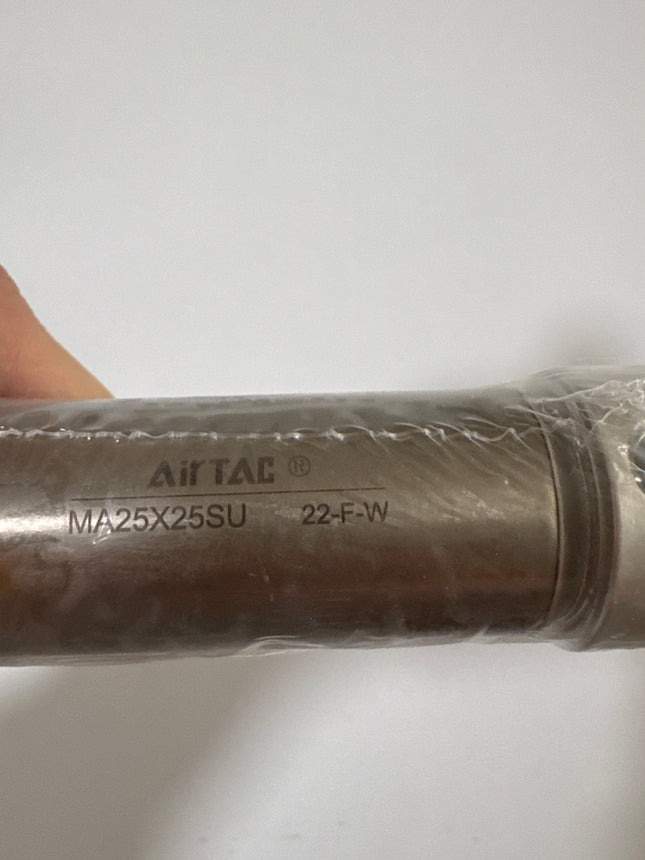

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X25SU

  Specifications: MA25X25SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 25 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X25 Stroke: 25 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA25X25SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 25 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 25 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 145 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 226 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $44.42

  View options

•

  View options

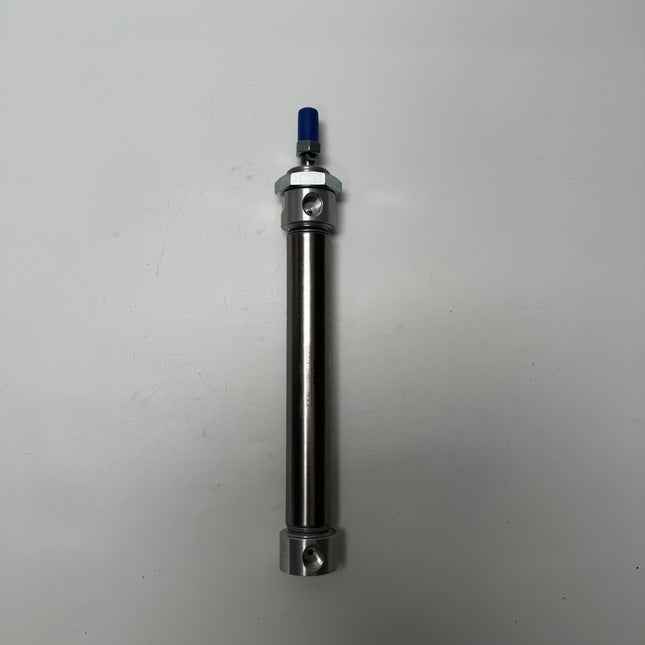

  Airtac MA series: double-acting stainless-steel mini cylinder - MA20X100SU

  Specifications: MA20X100SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 20 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X100 Stroke: 100 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA20X100SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 100 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 20 mm bore, 100 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 116 mm AB 40 mm AC 76 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 216 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MA series, 20 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 223 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $46.33

  View options

•

  View options

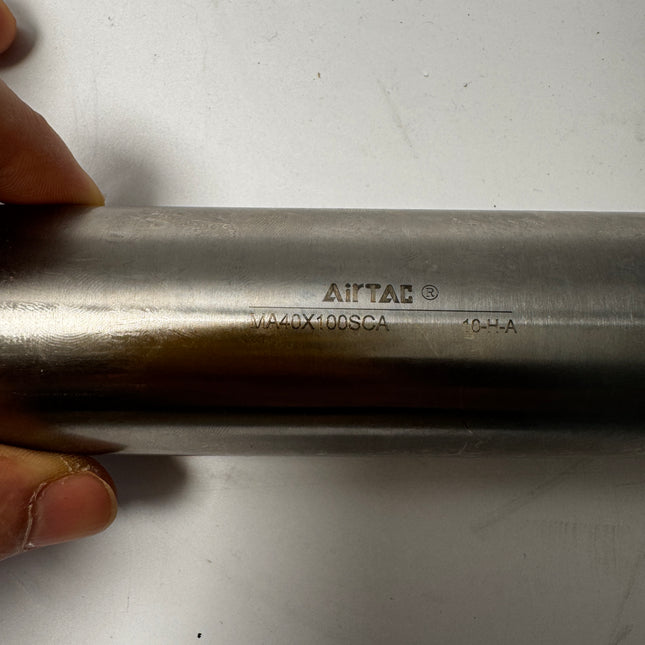

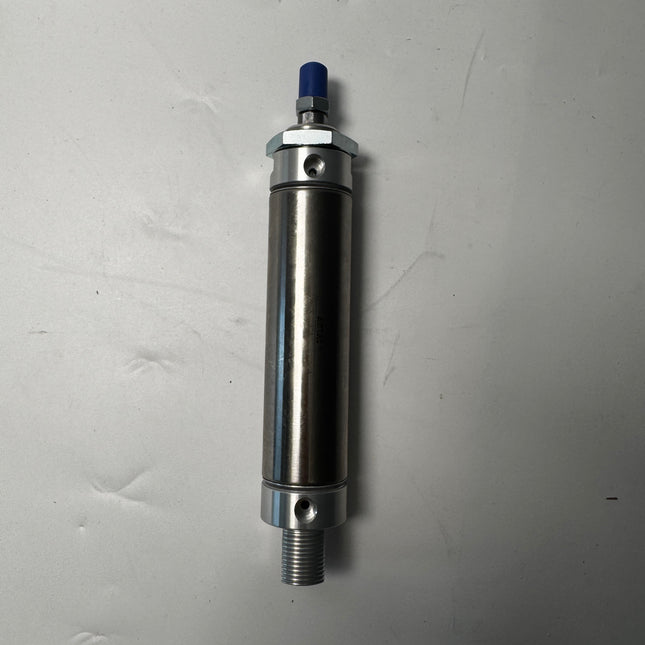

  Airtac MA series: double-acting stainless-steel mini cylinder - MA40X100SCA

  Specifications: MA40X100SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 40 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X100 Stroke: 100 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA40X100SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 100 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 40 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 149 mm AB 46 mm AC 76 mm B — body dimension in the drawing 41.5 mm M — body mounting thread M30 × 2 G 41 mm EA 24 mm Overall length from the printed formula 249 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MA series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MA series, 40 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 705 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $92.80

  View options

•

  View options

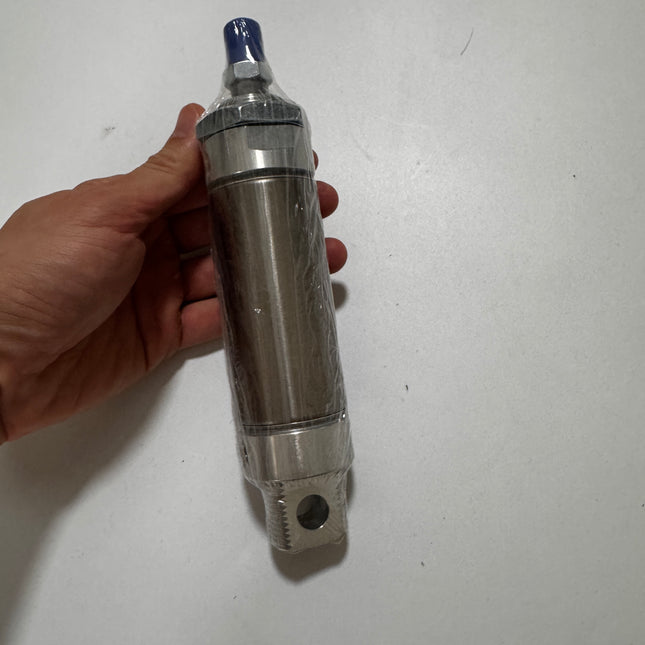

  Airtac MA series: double-acting stainless-steel mini cylinder - MA40X50SCA

  Specifications: MA40X50SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 40 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA40X50SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 50 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 40 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 149 mm AB 46 mm AC 76 mm B — body dimension in the drawing 41.5 mm M — body mounting thread M30 × 2 G 41 mm EA 24 mm Overall length from the printed formula 199 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MA series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MA series, 40 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 583 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $81.41

  View options

•

  View options

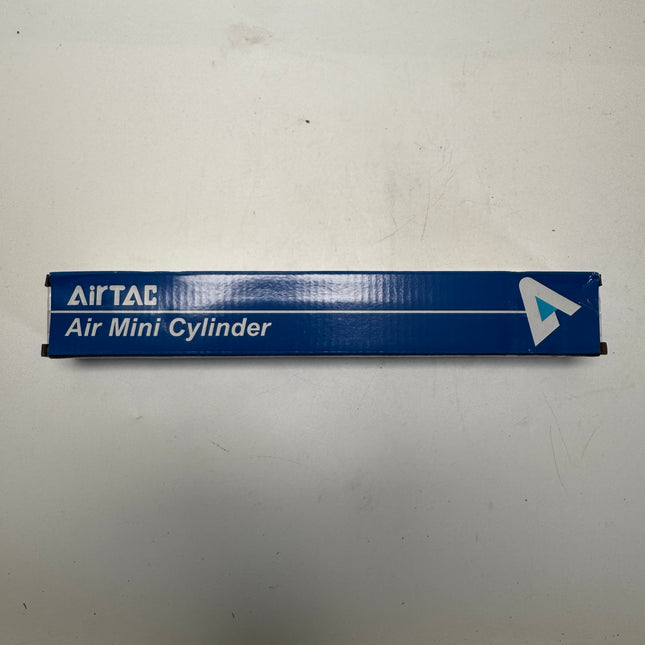

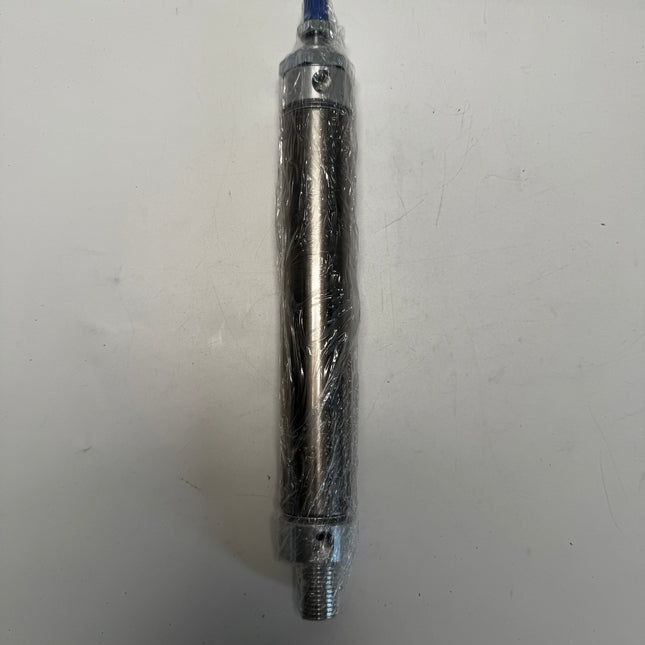

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X150SCA

  Specifications: MA32X150SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 150 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X150 Stroke: 150 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X150SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 150 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 150 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 147 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 297 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 535 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $79.73

  View options

•

  View options

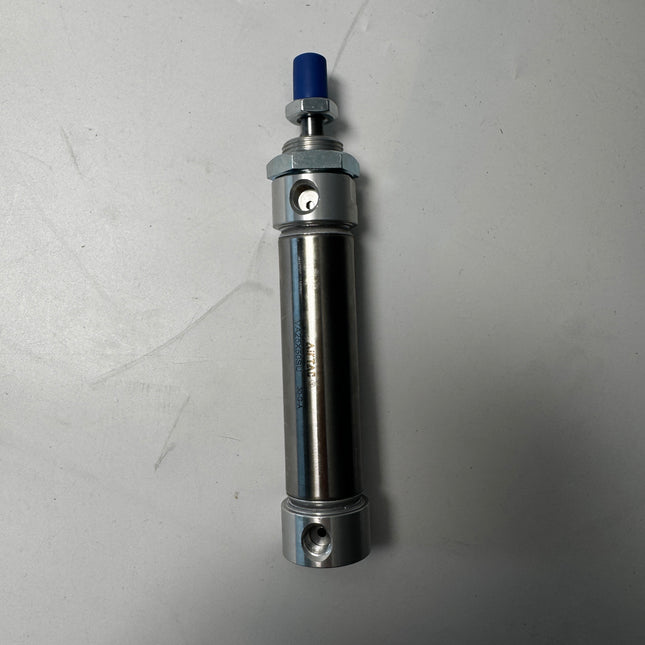

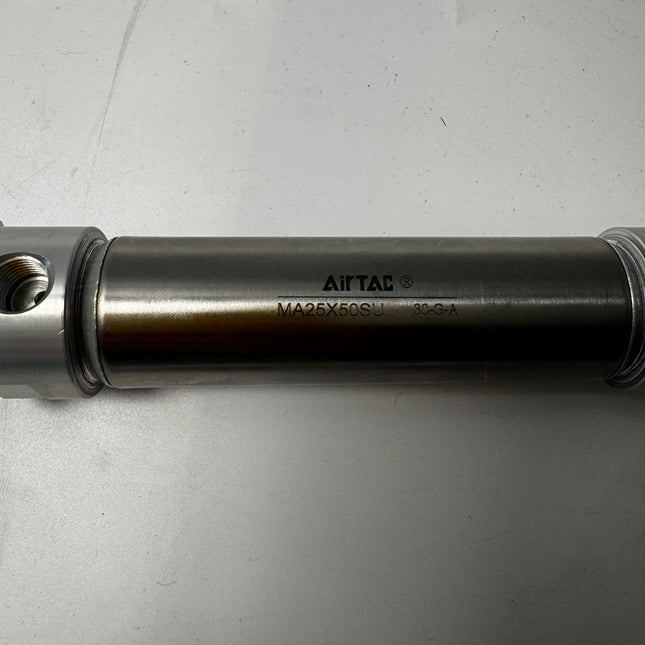

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X50SU

  Specifications: MA25X50SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA25X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 50 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 253 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $47.84

  View options

•

  View options

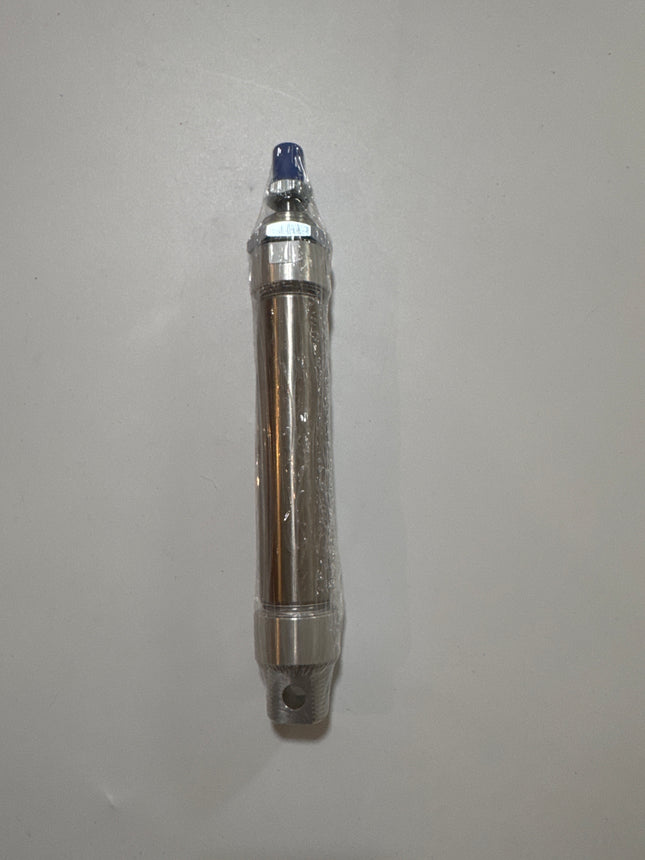

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X75SCAG

  Specifications: MA25X75SCAG — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 75 mm stroke. G1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X75 Stroke: 75 mm S Magnetic piston CA pivot-eye rear cover G G thread Technical Specifications Parameter Details Model MA25X75SCAG Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 75 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port G1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 75 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 216 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 296 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent G1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; GAFR upstream filter-regulator; GBB male-to-male thread adapter; GBKC straight locknut tube connector; GBPC metal male straight connector; GPC male straight connector; GPEB male branch tee connector; GPED male run tee connector; GPH male swivel elbow connector; GPHF male swivel elbow with an independent female branch; GPHW double swivel elbow connector; GPKD male threaded multiple-outlet connector; GPL male elbow connector; GPLL extended male elbow connector; GPSA/PSA tube-side one-way speed controller; GPSS threaded one-way speed controller; GPTL push-lock speed controller; GPYB male Y branch connector; GPZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female G1/8 ports: ASC10006Gmale G1/8 ↔ male G1/8: GBB0101male G1/4 ↔ male G1/8: GBB0102male G3/8 ↔ male G1/8: GBB01034 × 2.5: GBKC0425-01,UE95A040025100MBU,US98A040025100MBU6 × 4: GBKC0604-01,UE95A060040100MBU,US98A060040100MBU8 × 5: GBKC0805-01,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: GBKC0806-0110: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPSA10,GPSA10D,GPYB1001,GPYB1001D,PSA10,PSA10-S,PSA10D,PSA10D-S4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPSA4,GPSA4D,GPYB401,GPYB401D,PSA4,PSA4-S,PSA4D,PSA4D-S6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPSA6,GPSA6D,GPSS601A,GPSS601AD,GPSS601B,GPSS601BD,GPTL601A,GPTL601AD,GPTL601B,GPTL601BD,GPYB601,GPYB601D,GPZB601,GPZB601D,PSA6,PSA6-S,PSA6D,PSA6D-S8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPSA8,GPSA8D,GPSS801A,GPSS801AD,GPSS801B,GPSS801BD,GPTL801A,GPTL801AD,GPTL801B,GPTL801BD,GPYB801,GPYB801D,GPZB801,GPZB801D,PSA8,PSA8-S,PSA8D,PSA8D-S12: GPC1201,GPC1201D,GPL1201,GPL1201D,GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801Dmain 6 / branch 4: GPKD6-401,GPKD6-401D10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female G1/8 ports: GAFR20006SG Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match G1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two G1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two G1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; G gauge bar/MPa. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $51.38

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X100SCA

  Specifications: MA25X100SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X100 Stroke: 100 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA25X100SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 100 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 241 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 323 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $54.53

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X25SCA

  Specifications: MA25X25SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 25 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X25 Stroke: 25 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA25X25SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 25 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 25 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 166 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 241 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $45.02

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA25X50SCA

  Specifications: MA25X50SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 25 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA25X50SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 50 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 25 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 76 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 22 mm Overall length from the printed formula 191 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 25 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 268 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $48.44

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA20X75SCA

  Specifications: MA20X75SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 20 mm bore and 75 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X75 Stroke: 75 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA20X75SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 75 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 20 mm bore, 75 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 137 mm AB 40 mm AC 76 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 212 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MA series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MA series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MA series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MA series, 20 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 218 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $44.63

  View options

•

  View options

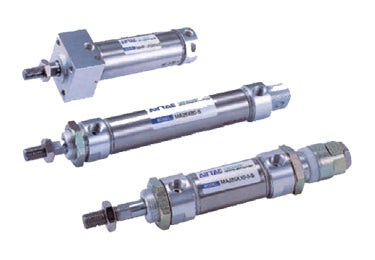

  Airtac MA series: double-acting stainless-steel mini cylinder - MA16X10SCA

  Specifications: MA16X10SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 16 mm bore and 10 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 16 Cylinder bore: 16 mm X10 Stroke: 10 mm S Magnetic piston CA pivot-eye rear cover No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model MA16X10SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 16 mm Stroke 10 mm Piston-rod diameter 6 mm Rod-end thread M6 × 1.0 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 16 mm bore, 10 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 38 mm AC 60 mm B — body dimension in the drawing 21 mm M — body mounting thread M16 × 1.5 G 22 mm EA 16 mm Overall length from the printed formula 124 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA16LB F-MA16LB: foot bracket for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16FA F-MA16FA: front flange for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16SDB F-MA16SDB: rear pivot bracket for MA series, 16 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA16I F-MA16I: rod-end eye joint for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16Y F-MA16Y: rod-end fork joint for MA series, 16 mm bore. Optional; not implied by this model code. F-M6X100F F-M6X100F: floating joint for MA series, 16 mm bore. Optional; not implied by this model code. F-M6X100U F-M6X100U: spherical rod-end joint for MA series, 16 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 94 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 86.4 N, using bore 16 mm and rod diameter 6 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent M5×0.8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. No U air-treatment or M5 threaded ASC is assigned. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. M5 means M5×0.8, not #10-32 UNF. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): BKC/GBKC straight locknut tube connector; BPC/GBPC metal male straight connector; BPOC metal male round-head straight connector; GPC/PC male straight connector; GPEB/PEB male branch tee connector; GPED/PED male run tee connector; GPH/PH male swivel elbow connector; GPHF/PHF male swivel elbow with an independent female branch; GPL/PL male elbow connector; GPLL/PLL extended male elbow connector; GPSA/PSA tube-side one-way speed controller; GPSS/PSL/PSS threaded one-way speed controller; GPYB/PYB male Y branch connector; POC male round-head straight connector; PTL push-lock speed controller; UE/US polyurethane tube. Use Size / complete codes C 4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M5,UE95A040025100MBU,US98A040025100MBU4: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPSA4,GPSA4D,GPSS4M5A,GPSS4M5AD,GPSS4M5B,GPSS4M5BD,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL4M5A,PSL4M5A-S,PSL4M5AD,PSL4M5AD-S,PSL4M5B,PSL4M5B-S,PSL4M5BD,PSL4M5BD-S,PSS4M5A,PSS4M5A-S,PSS4M5AD,PSS4M5AD-S,PSS4M5B,PSS4M5B-S,PSS4M5BD,PSS4M5BD-S,PTL4M5A-M,PTL4M5A-MS,PTL4M5AD-M,PTL4M5AD-MS,PTL4M5B-M,PTL4M5B-MS,PTL4M5BD-M,PTL4M5BD-MS,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPSA6,GPSA6D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL6M5A,PSL6M5A-S,PSL6M5AD,PSL6M5AD-S,PSL6M5B,PSL6M5B-S,PSL6M5BD,PSL6M5BD-S,PTL6M5A-M,PTL6M5A-MS,PTL6M5AD-M,PTL6M5AD-MS,PTL6M5B-M,PTL6M5B-MS,PTL6M5BD-M,PTL6M5BD-MS,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M4; male RA M5×0.8 / female RB M5×0.8: GPHF4M5,GPHF4M5D,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S6; male RA M5×0.8 / female RB M5×0.8: GPHF6M5,GPHF6M5D,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S3.2 × 2: UE95A032020100MBU,US98A032020100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match metric M5×0.8 and its specified mating seat/seal, not #10-32 UNF. No sealing-tape or pipe-taper substitution is inferred. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.05 N·m for M5, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 3.2×2, 4×2.5, 6×4; minimum bend radii US98A 8/10/15 mm, UE95A 8/8/12 mm respectively. 3.2 mm requires the listed mini 3.2 mm socket, never a 1/8-inch substitute. Locknuts also require accepted ID. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $29.46

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA16X50SU

  Specifications: MA16X50SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 16 mm bore and 50 mm stroke. M5 × 0.8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 16 Cylinder bore: 16 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix Metric port as listed; no pipe-thread suffix Technical Specifications Parameter Details Model MA16X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 16 mm Stroke 50 mm Piston-rod diameter 6 mm Rod-end thread M6 × 1.0 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port M5 × 0.8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 16 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 98 mm AB 38 mm AC 60 mm B — body dimension in the drawing 21 mm M — body mounting thread M16 × 1.5 G 22 mm EA 16 mm Overall length from the printed formula 148 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA16LB F-MA16LB: foot bracket for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16FA F-MA16FA: front flange for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16SDB F-MA16SDB: rear pivot bracket for MA series, 16 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA16I F-MA16I: rod-end eye joint for MA series, 16 mm bore. Optional; not implied by this model code. F-MA16Y F-MA16Y: rod-end fork joint for MA series, 16 mm bore. Optional; not implied by this model code. F-M6X100F F-M6X100F: floating joint for MA series, 16 mm bore. Optional; not implied by this model code. F-M6X100U F-M6X100U: spherical rod-end joint for MA series, 16 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 16 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS16. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 108 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 100.5 N; retraction 86.4 N, using bore 16 mm and rod diameter 6 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 16 mm bore the general catalog lists effective area 0.5 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 4 mm OD × 2.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent M5×0.8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. No U air-treatment or M5 threaded ASC is assigned. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. M5 means M5×0.8, not #10-32 UNF. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): BKC/GBKC straight locknut tube connector; BPC/GBPC metal male straight connector; BPOC metal male round-head straight connector; GPC/PC male straight connector; GPEB/PEB male branch tee connector; GPED/PED male run tee connector; GPH/PH male swivel elbow connector; GPHF/PHF male swivel elbow with an independent female branch; GPL/PL male elbow connector; GPLL/PLL extended male elbow connector; GPSA/PSA tube-side one-way speed controller; GPSS/PSL/PSS threaded one-way speed controller; GPYB/PYB male Y branch connector; POC male round-head straight connector; PTL push-lock speed controller; UE/US polyurethane tube. Use Size / complete codes C 4 × 2.5: BKC0425-M5,BKC0425-M5-S,GBKC0425-M5,UE95A040025100MBU,US98A040025100MBU4: BPC4M5,BPOC4M5,GBPC4M5,GPC4M5-M,GPC4M5D-M,GPEB4M5,GPEB4M5D,GPED4M5,GPED4M5D,GPH4M5,GPH4M5D,GPL4M5,GPL4M5-M,GPL4M5D,GPL4M5D-M,GPLL4M5,GPLL4M5D,GPSA4,GPSA4D,GPSS4M5A,GPSS4M5AD,GPSS4M5B,GPSS4M5BD,GPYB4M5,GPYB4M5D,PC4M5,PC4M5-M,PC4M5-S,PC4M5D,PC4M5D-M,PC4M5D-S,PEB4M5,PEB4M5-S,PEB4M5D,PEB4M5D-S,PED4M5,PED4M5-S,PED4M5D,PED4M5D-S,PH4M5,PH4M5-S,PH4M5D,PH4M5D-S,PL4M5,PL4M5-M,PL4M5-S,PL4M5D,PL4M5D-M,PL4M5D-S,PLL4M5,PLL4M5-S,PLL4M5D,PLL4M5D-S,POC4M5,POC4M5-S,POC4M5D,POC4M5D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL4M5A,PSL4M5A-S,PSL4M5AD,PSL4M5AD-S,PSL4M5B,PSL4M5B-S,PSL4M5BD,PSL4M5BD-S,PSS4M5A,PSS4M5A-S,PSS4M5AD,PSS4M5AD-S,PSS4M5B,PSS4M5B-S,PSS4M5BD,PSS4M5BD-S,PTL4M5A-M,PTL4M5A-MS,PTL4M5AD-M,PTL4M5AD-MS,PTL4M5B-M,PTL4M5B-MS,PTL4M5BD-M,PTL4M5BD-MS,PYB4M5,PYB4M5-S,PYB4M5D,PYB4M5D-S6: BPC6M5,BPOC6M5,GBPC6M5,GPC6M5,GPC6M5-M,GPC6M5D,GPC6M5D-M,GPEB6M5,GPEB6M5D,GPED6M5,GPED6M5D,GPH6M5,GPH6M5D,GPL6M5,GPL6M5-M,GPL6M5D,GPL6M5D-M,GPLL6M5,GPLL6M5D,GPSA6,GPSA6D,GPYB6M5,GPYB6M5D,PC6M5,PC6M5-M,PC6M5-S,PC6M5D,PC6M5D-M,PC6M5D-S,PEB6M5,PEB6M5-S,PEB6M5D,PEB6M5D-S,PED6M5,PED6M5-S,PED6M5D,PED6M5D-S,PH6M5,PH6M5-S,PH6M5D,PH6M5D-S,PL6M5,PL6M5-M,PL6M5-S,PL6M5D,PL6M5D-M,PL6M5D-S,PLL6M5,PLL6M5-S,PLL6M5D,PLL6M5D-S,POC6M5,POC6M5-S,POC6M5D,POC6M5D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL6M5A,PSL6M5A-S,PSL6M5AD,PSL6M5AD-S,PSL6M5B,PSL6M5B-S,PSL6M5BD,PSL6M5BD-S,PTL6M5A-M,PTL6M5A-MS,PTL6M5AD-M,PTL6M5AD-MS,PTL6M5B-M,PTL6M5B-MS,PTL6M5BD-M,PTL6M5BD-MS,PYB6M5,PYB6M5-S,PYB6M5D,PYB6M5D-S3.2: GPC3.2M5-M,GPC3.2M5D-M,GPL3.2M5-M,GPL3.2M5D-M,PC3.2M5-M,PC3.2M5D-M,PL3.2M5-M,PL3.2M5D-M4; male RA M5×0.8 / female RB M5×0.8: GPHF4M5,GPHF4M5D,PHF4M5,PHF4M5-S,PHF4M5D,PHF4M5D-S6; male RA M5×0.8 / female RB M5×0.8: GPHF6M5,GPHF6M5D,PHF6M5,PHF6M5-S,PHF6M5D,PHF6M5D-S3.2 × 2: UE95A032020100MBU,US98A032020100MBU6 × 4: UE95A060040100MBU,US98A060040100MBU Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match metric M5×0.8 and its specified mating seat/seal, not #10-32 UNF. No sealing-tape or pipe-taper substitution is inferred. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.05 N·m for M5, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 3.2×2, 4×2.5, 6×4; minimum bend radii US98A 8/10/15 mm, UE95A 8/8/12 mm respectively. 3.2 mm requires the listed mini 3.2 mm socket, never a 1/8-inch substitute. Locknuts also require accepted ID. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $32.20

  View options

•

  View options

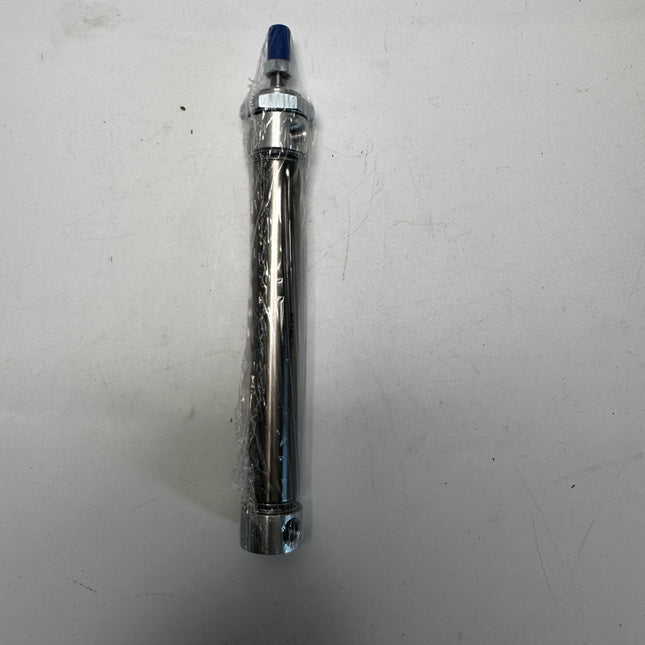

  Airtac MA Series: Compound Cylinder - MA20X110SU

  Specifications: Mini cylinder (compound type) Bore: 20mm Stroke: 110mm Magnet: with magnet Rear cover type: horizontal tail type Fixed type: no installation accessories Tooth type: PT tooth Specifications 1. Model: MA20X110SU 2. Action type: double action type, working medium: air (filtered by filter screen above 40μm) 3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar) 4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~150+0/1.0＞150+0/1.5 5. Buffer type: anti-collision pad, nozzle caliber: PT1/8 6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG Internal structure and main parts material: 1. nut: stainless steel, carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover O Order: NBR/4. Front cover nut: carbon steel/5. Front cover: Aluminum alloy/6. Anti-collision gasket: TPU/7. Cylinder: Stainless steel/8. Piston: Aluminum alloy/9. Piston O: NBR/10. Magnet: plastic/11. Wear pad (ring): wear-resistant material/12. Rear cover: Aluminum alloy Installation accessories :F-MA20LB Axial mounting F-MA20FA Flange connecting plate F-MA20SDB Rear Hinge Mount ， Piston rod end joint :F-MA20I I Connector F-MA20Y Y connector F-M8X125F Floating joint F-M8X125U fisheye joint Click to download Airtac product catalog Product Features 1. Yadke standard cylinder; 2. The piston adopts special-shaped two-way sealing structure, small size and oil storage function; 3. The front and rear covers are equipped with fixed anti-collision pads, which can reduce the reversing impact of the cylinder; 4. The rear cover has various forms, which makes the installation of the cylinder more convenient; 5. The front and rear covers and stainless steel cylinder body adopt riveted roller package structure, reliable connection; 6. The cylinder body adopts high-precision stainless steel pipe, high strength and corrosion resistance; 7. There are a variety of specifications of the cylinder and installation accessories to choose from; 8. All cylinders of this series are attached with magnetism.

  Read more less

  $47.70

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA40X40SU

  Specifications: MA40X40SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA40X40SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 40 mm bore, 40 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 122 mm AB 46 mm AC 76 mm B — body dimension in the drawing 41.5 mm M — body mounting thread M30 × 2 G 41 mm EA 24 mm Overall length from the printed formula 162 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MA series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MA series, 40 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 372 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $72.83

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA40X50SU

  Specifications: MA40X50SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 40 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA40X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 50 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 40 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 122 mm AB 46 mm AC 76 mm B — body dimension in the drawing 41.5 mm M — body mounting thread M30 × 2 G 41 mm EA 24 mm Overall length from the printed formula 172 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MA series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MA series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MA series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MA series, 40 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 396 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $73.79

  View options

•

  View options

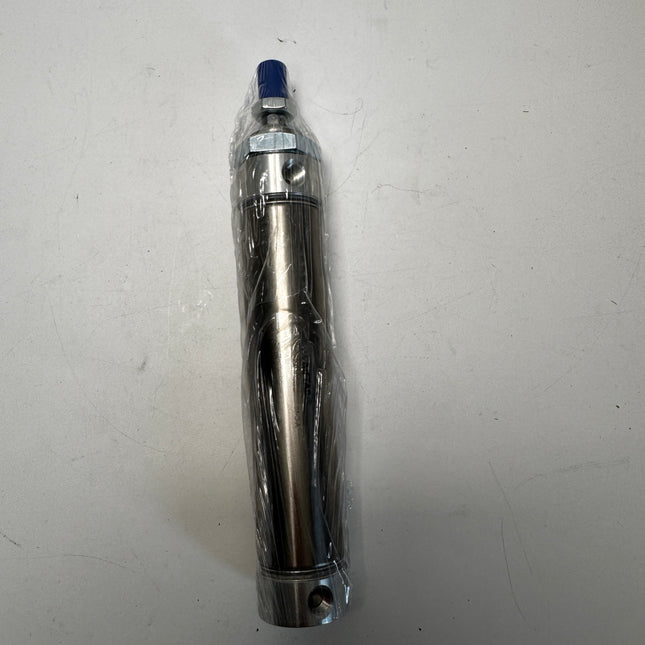

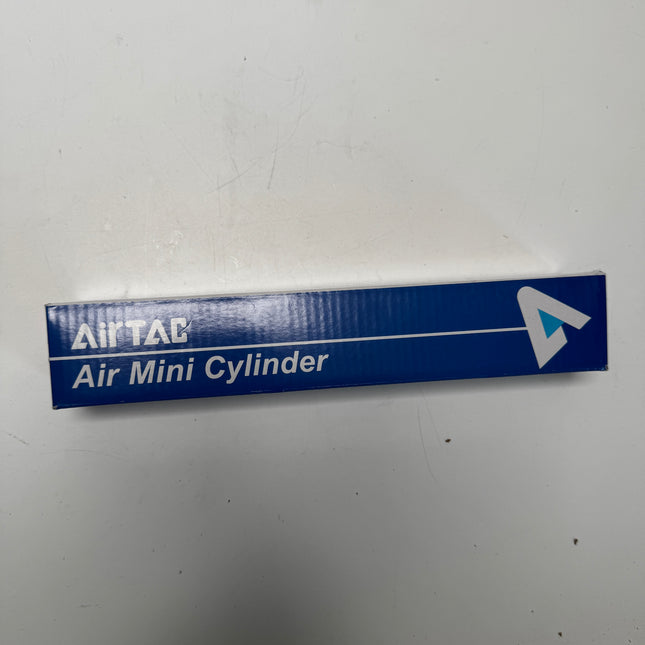

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X100SU

  Specifications: MA32X100SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X100 Stroke: 100 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X100SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 100 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 100 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 220 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 437 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $69.29

  View options

•

  View options

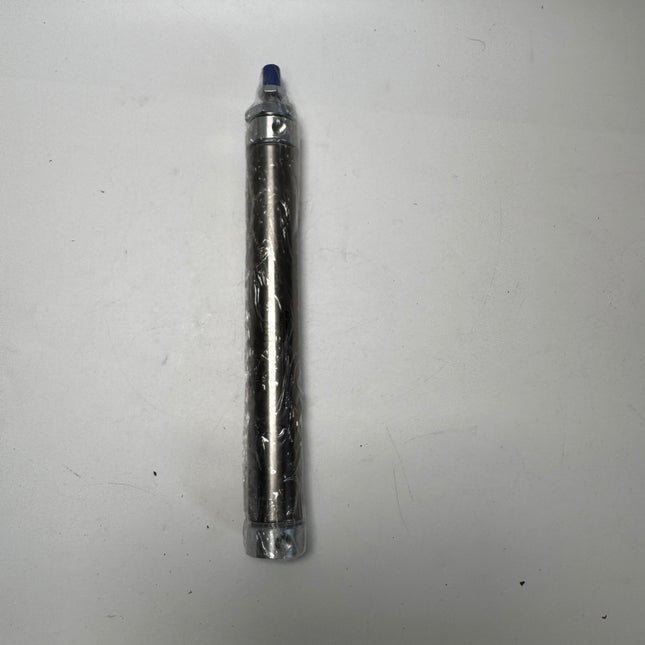

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X200SU

  Specifications: MA32X200SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 200 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X200 Stroke: 200 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X200SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 200 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 200 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 320 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 592 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $88.23

  View options

•

  View options

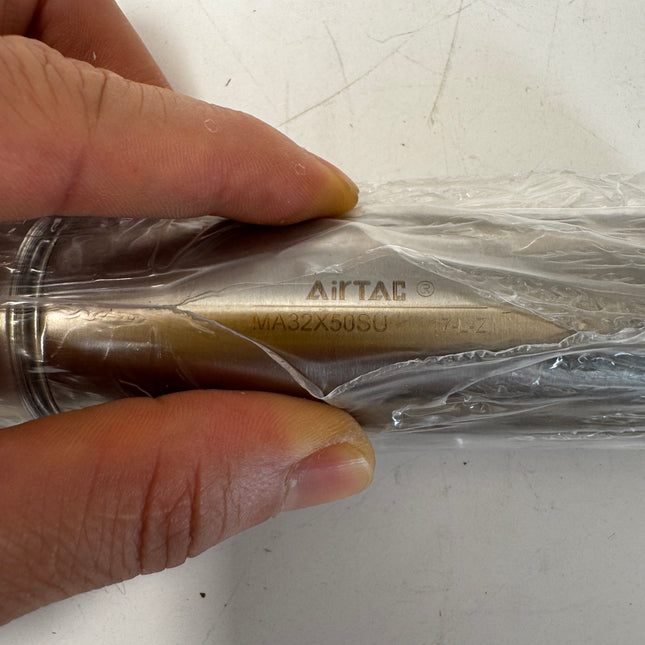

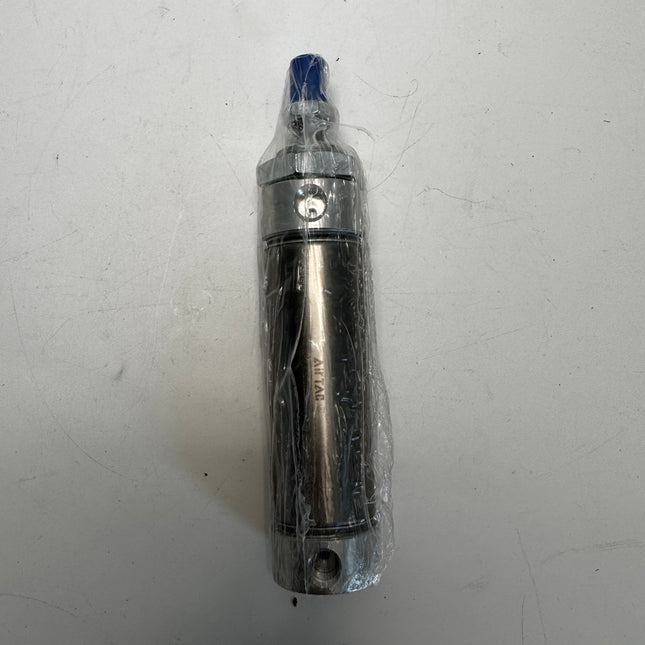

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X50SU

  Specifications: MA32X50SU — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 50 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 170 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 359 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $57.76

  View options

•

  View options

  Airtac MA series: double-acting stainless-steel mini cylinder - MA32X75SCA

  Specifications: MA32X75SCA — AirTAC MA stainless steel mini cylinder, double acting, single rod, 32 mm bore and 75 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MA stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X75 Stroke: 75 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MA32X75SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 75 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MA drawing for 32 mm bore, 75 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 106. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 147 mm AB 44 mm AC 76 mm B — body dimension in the drawing 35 mm M — body mounting thread M24 × 2 G 32 mm EA 22 mm Overall length from the printed formula 222 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MA series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MA series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MA series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MA series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MA series, 32 mm bore. Optional; not implied by this model code. For this magnetic MA cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 419 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube Stainless steel Front / rear covers and piston Aluminum alloy Rod nut Stainless steel or carbon steel, as shown in the component drawing Front-cover nut Carbon steel Front-cover and piston O-rings NBR Bumper pad TPU Wear ring Wear-resistant material Magnet Plastic magnet Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. The MA-family ordering pages specify magnetic construction for these models. The S code identifies the piston magnet; switches are separately selected. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load. Matching Accessory Codes and Conditions All sensors are G-profile: CMSG reed, DMSG solid-state, EMSG miniature solid-state corresponding to DMSG; the current MA table lists all three. Require this MA's S magnetic piston and the bore-specific stainless-cylinder band identified above. Select sensors, bands and cables separately; S includes none. Confirm band, space, stroke arrangement and sensing position before ordering. No E/H/J-profile or tie-rod bracket substitution. Sensor direct 020/030/050/100: 2/3/5/10 m; M08/M12 male M8/M12: 0.5 m; M08010/M08020/M08030 and M12010/M12020/M12030: 1/2/3 m. Length is independent of stroke. Female leads only for matching male connectors, never direct leads: B two-wire, C three-wire; female 020/030/050/100: 2/3/5/10 m. Pins: B 1 brown+, 4 blue−, 3 unused; C 1 brown+, 3 blue−, 4 black output. MA: −20 to +70°C; ordinary/W/industry sensors: −10 to +70°C, limiting installation to −10 to +70°C or stricter component ratings. H alone: −10 to +125°C, no LED; MA stays ≤70°C. Check female-cable electrical, temperature and environmental ratings. A05 robotics/flex-resistant; A06 oil-resistant/flex-resistant; both direct-only, no NPN/PNP, M8/M12 or added W; A05-CMSG no H. Industry bend radius: recommended 19 mm. DMS-W excludes quick connectors; EMS-W permits them as listed. Waterproof/oil-resistant sensors confer no cylinder/band/assembly waterproofing, immersion rating or universal oil compatibility. No prolonged immersion of waterproof sensors; keep other sensors dry. Avoid explosive atmospheres, strong magnetic fields, aggressive chemicals, excessive shock, rapid temperature changes, welding interference and magnetic debris. Protect industry sensors from unsuitable temperature/dust/water/oil; confirm actual oil/environment suitability and shield oil-resistant versions from weld spatter. Before power-on check voltage/polarity, controller input/load, allowable current, switching capacity, residual voltage, leakage current and pins; reed/two-wire electronic/NPN/PNP are not equivalent. Sensor fixing: 0.15–0.20 N·m, max 0.25; not band/cylinder-mount/rod-joint torque—follow their instructions. Centre sensor in verified actuation range. Avoid impact, cable tension and repeated flexing with cylinder motion; insulate, separate from power/high-voltage wiring, connect before energizing; periodically inspect fixing/cables/indication. Item Complete codes and use CMSG two-wire reed sensors 5–240 V AC/DC; two-wire; IP64.CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030 CMSG-H high-temperature reed sensors 5–240 V AC/DC; two-wire; IP64; H.CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H A05-CMSG flexible-cable reed sensors 5–240 V AC/DC; two-wire; IP64; A05.A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100 DMSG two-wire electronic sensors 10–28 V DC; two-wire; IP64.DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030 DMSG two-wire waterproof direct-lead sensors 10–28 V DC; two-wire; W, IP68; direct only.DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W DMSG NPN three-wire electronic sensors 5–30 V DC; NPN three-wire; IP64.DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030 DMSG NPN three-wire waterproof direct-lead sensors 5–30 V DC; NPN three-wire; W, IP68; direct only.DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W DMSG PNP three-wire electronic sensors 5–30 V DC; PNP three-wire; IP64.DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030 DMSG PNP three-wire waterproof direct-lead sensors 5–30 V DC; PNP three-wire; W, IP68; direct only.DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W A05-DMSG robotics/flex-resistant electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100 A06-DMSG oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100 EMSG miniature two-wire electronic sensors 10–28 V DC; two-wire; IP64.EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030 EMSG-W miniature waterproof electronic sensors 10–28 V DC; two-wire; W, IP68; direct or male M8/M12. Verify connector sealing.EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W,EMSG-M08-W,EMSG-M08010-W,EMSG-M08020-W,EMSG-M08030-W,EMSG-M12-W,EMSG-M12010-W,EMSG-M12020-W,EMSG-M12030-W A05-EMSG miniature flexible-cable electronic sensors 10–28 V DC; two-wire; IP64; A05.A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100 A06-EMSG miniature oil-resistant flex-resistant electronic sensors 10–28 V DC; two-wire; IP68; A06.A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100 M8 2-wire mating female cables B pinout; match an M8 two-wire male sensor.F-ECM08B020,F-ECM08B030,F-ECM08B050,F-ECM08B100 M8 3-wire mating female cables C pinout; match an M8 three-wire male sensor.F-ECM08C020,F-ECM08C030,F-ECM08C050,F-ECM08C100 M12 2-wire mating female cables B pinout; match an M12 two-wire male sensor.F-ECM12B020,F-ECM12B030,F-ECM12B050,F-ECM12B100 M12 3-wire mating female cables C pinout; match an M12 three-wire male sensor.F-ECM12C020,F-ECM12C030,F-ECM12C050,F-ECM12C100 Optional Connections and Air Preparation C = either independent PT1/8 female cylinder working port, each alternating supply/exhaust. Select/order each separately; route supply/exhaust through the directional valve; never join chambers. U = optional air treatment before the directional valve, not a third cylinder port. Tube-side/inline items need their own matched connections. No silencer/plug is assigned to active cylinder ports. Tube OD is in mm unless stated otherwise; compression and tubing sizes show OD × ID. Current options are selected and ordered separately. Code-prefix uses (match the longest listed family prefix): ASC separate inline threaded one-way flow controller; BB male-to-male thread adapter; BKC straight locknut tube connector; BPC metal male straight connector; BPOC metal male round-head straight connector; GAFR upstream filter-regulator; GPSA/PSA tube-side one-way speed controller; PC male straight connector; PEB male branch tee connector; PED male run tee connector; PH male swivel elbow connector; PHF male swivel elbow with an independent female branch; PHW double swivel elbow connector; PKD male threaded multiple-outlet connector; PL male elbow connector; PLL extended male elbow connector; POC male round-head straight connector; PSL/PSS threaded one-way speed controller; PTL push-lock speed controller; PYB male Y branch connector; PZB triple swivel elbow connector; UE/US polyurethane tube. Use Size / complete codes C two female PT1/8 ports: ASC10006male PT1/8 ↔ male PT1/8: BB0101,BB0101-Smale PT1/4 ↔ male PT1/8: BB0102,BB0102-Smale PT3/8 ↔ male PT1/8: BB0103,BB0103-S4 × 2.5: BKC0425-01,BKC0425-01-S,UE95A040025100MBU,US98A040025100MBU6 × 4: BKC0604-01,BKC0604-01-S,UE95A060040100MBU,US98A060040100MBU8 × 5: BKC0805-01,BKC0805-01-S,UE95A080050100MBU,US98A080050100MBU8 × 5.5 or 6: BKC0806-01,BKC0806-01-S10: BPC1001,GPSA10,GPSA10D,PC1001,PC1001-S,PC1001D,PC1001D-S,PEB1001,PEB1001-S,PEB1001D,PEB1001D-S,PED1001,PED1001-S,PED1001D,PED1001D-S,PL1001,PL1001-S,PL1001D,PL1001D-S,PLL1001,PLL1001-S,PLL1001D,PLL1001D-S,POC1001,POC1001-S,POC1001D,POC1001D-S,PSA10,PSA10-S,PSA10D,PSA10D-S,PYB1001,PYB1001-S,PYB1001D,PYB1001D-S4: BPC401,BPOC401,GPSA4,GPSA4D,PC401,PC401-M,PC401-S,PC401D,PC401D-M,PC401D-S,PEB401,PEB401-S,PEB401D,PEB401D-S,PED401,PED401-S,PED401D,PED401D-S,PH401,PH401-S,PH401D,PH401D-S,PHW401,PHW401-S,PHW401D,PHW401D-S,PL401,PL401-M,PL401-S,PL401D,PL401D-M,PL401D-S,PLL401,PLL401-S,PLL401D,PLL401D-S,POC401,POC401-S,POC401D,POC401D-S,PSA4,PSA4-S,PSA4D,PSA4D-S,PSL401A,PSL401A-S,PSL401AD,PSL401AD-S,PSL401B,PSL401B-S,PSL401BD,PSL401BD-S,PTL401A-M,PTL401A-MS,PTL401AD-M,PTL401AD-MS,PTL401B-M,PTL401B-MS,PTL401BD-M,PTL401BD-MS,PYB401,PYB401-S,PYB401D,PYB401D-S6: BPC601,BPOC601,GPSA6,GPSA6D,PC601,PC601-M,PC601-S,PC601D,PC601D-M,PC601D-S,PEB601,PEB601-S,PEB601D,PEB601D-S,PED601,PED601-S,PED601D,PED601D-S,PH601,PH601-S,PH601D,PH601D-S,PHW601,PHW601-S,PHW601D,PHW601D-S,PL601,PL601-M,PL601-S,PL601D,PL601D-M,PL601D-S,PLL601,PLL601-S,PLL601D,PLL601D-S,POC601,POC601-S,POC601D,POC601D-S,PSA6,PSA6-S,PSA6D,PSA6D-S,PSL601A,PSL601A-S,PSL601AD,PSL601AD-S,PSL601B,PSL601B-S,PSL601BD,PSL601BD-S,PSS601A,PSS601A-S,PSS601AD,PSS601AD-S,PSS601B,PSS601B-S,PSS601BD,PSS601BD-S,PTL601A,PTL601A-M,PTL601A-MS,PTL601A-S,PTL601AD,PTL601AD-M,PTL601AD-MS,PTL601AD-S,PTL601B,PTL601B-M,PTL601B-MS,PTL601B-S,PTL601BD,PTL601BD-M,PTL601BD-MS,PTL601BD-S,PYB601,PYB601-S,PYB601D,PYB601D-S,PZB601,PZB601-S,PZB601D,PZB601D-S8: BPC801,BPOC801,GPSA8,GPSA8D,PC801,PC801-S,PC801D,PC801D-S,PEB801,PEB801-S,PEB801D,PEB801D-S,PED801,PED801-S,PED801D,PED801D-S,PH801,PH801-S,PH801D,PH801D-S,PHW801,PHW801-S,PHW801D,PHW801D-S,PL801,PL801-S,PL801D,PL801D-S,PLL801,PLL801-S,PLL801D,PLL801D-S,POC801,POC801-S,POC801D,POC801D-S,PSA8,PSA8-S,PSA8D,PSA8D-S,PSL801A,PSL801A-S,PSL801AD,PSL801AD-S,PSL801B,PSL801B-S,PSL801BD,PSL801BD-S,PSS801A,PSS801A-S,PSS801AD,PSS801AD-S,PSS801B,PSS801B-S,PSS801BD,PSS801BD-S,PTL801A,PTL801A-S,PTL801AD,PTL801AD-S,PTL801B,PTL801B-S,PTL801BD,PTL801BD-S,PYB801,PYB801-S,PYB801D,PYB801D-S,PZB801,PZB801-S,PZB801D,PZB801D-S12: GPSA12,GPSA12D,PC1201,PC1201-S,PC1201D,PC1201D-S,PL1201,PL1201-S,PL1201D,PL1201D-S,PSA12,PSA12-S,PSA12D,PSA12D-S4; male RA PT1/8 / female RB PT1/8: PHF401,PHF401-S,PHF401D,PHF401D-S6; male RA PT1/8 / female RB PT1/8: PHF601,PHF601-S,PHF601D,PHF601D-S8; male RA PT1/8 / female RB PT1/8: PHF801,PHF801-S,PHF801D,PHF801D-Smain 6 / branch 4: PKD6-401,PKD6-401-S,PKD6-401D,PKD6-401D-S10 × 6.5: UE95A100065100MBU,US98A100065100MBU12 × 8: UE95A120080100MBU,US98A120080100MBU U two female PT1/8 ports: GAFR20006S Thread fit does not establish flow, quantities, clearance or speed: check load, stroke, tube length and operating point. Original 500 mm/s examples remain sizing references, not supplied or verified direct-fit parts; abbreviated controls omit tube OD, A/B direction and full options. MA is double-acting, single-rod: 0.15–1 MPa, −20–70°C, air filtered to 40 µm or finer. Use the lowest working-pressure rating and temperature-range intersection; 1.5 MPa proof is not working pressure. Keep original alignment, load-support, bumper and lubrication precautions. These routes are for positive-pressure air; component 10 Torr ratings do not establish tube or assembly vacuum suitability. Match PT1/8, gender, taper/parallel form and sealing seat; PT/G/NPT are not interchangeable and no gasket/sealant inclusion is assumed. Exclude sealant from air paths. Use body flats; support tube/components and leave wrench access/full rod travel. Swivels orient connections; they are not for continuous rotation. Isolate stored pressure and restrain loads before installation/removal. Check actual seals, lubricant/additives and environment. Push-ins need exact OD; locknuts also need accepted ID and suitable wall. Match every branch/unequal end, never approximate inch/metric sizes. Cut square, reject oval/damaged tube, insert, retain and leak-test per instructions. For locknuts: cap onto tube, tube into body, tighten cap; loosen before removal. A push-in release-button procedure does not apply. PHF/GPHF: male RA mates to the cylinder; female RB needs a separate matched connection/seal in that same chamber circuit. Never leave RB open, attach soft tube directly, close it arbitrarily or bridge chambers. Match both thread-adapter ends and genders. D colour and ordinary/mini/material suffixes imply neither uniform internals nor copper-free construction; a stainless cylinder tube does not mean all-stainless construction. Plastic push-ins/direct and tube-side controls: ≤1 MPa, −20–70°C. BPC/BPOC/GBPC metal push-ins: ≤0.9 MPa; BKC/listed metal adapters: ≤1 MPa. Both metal groups: 0–150°C, reduced with PU to 0–70°C or narrower. Material names do not override ratings. At the cylinder, A meters threaded-end→tube exhaust with free reverse flow (meter-out); B meters tube→thread inlet with free exhaust (meter-in). Follow actual arrows, chamber, load and circuit, not valve-port interpretation. Start restricted, open slowly, test both strokes and never force stops. Closed flow controls are not zero-leak safety isolation or load holding. PTL/GPTL push-lock recommended cap-rotation torque: 0.08 N·m for 1/8, not pipe torque. PSL/PSS/GPSS and PSA/GPSA use their own locks. Where listed, mini PTL-MS has no separate internal-material table. Where listed, standard PTL-S combines SUS304, aluminum and polymers. S does not promise all-SUS304 or copper-free construction. PSA/GPSA and listed -S types need separate exact-OD tube fittings; they are not male cylinder connections. Follow check/throttle symbols in each chamber line and keep free reverse flow; no A/B option or symmetric reverse-installation guarantee is inferred. Before combining restrictions verify pressure loss, exhaust response and motion stability. ASC: separate one-way inline control, two PT1/8 female ports needing matched male connections. Follow P/A and check/throttle symbols for the chosen chamber. Rated 0.05–0.95 MPa, −20–70°C, ≤40 µm filtered air; this cylinder line must stay within 0.15–0.95 MPa. Not a regulator, guaranteed speed setting or safety shutoff. GAFR S: optional 40 µm filter-regulator before the directional valve, two PT1/8 female ports needing matched male connections. Follow IN→OUT; check supply flow/pressure loss. The listed type has no reverse-flow valve: never insert it into a bidirectional chamber line or directly join female ports. GAFR: inlet ≤1 MPa, adjustment 0.15–0.9 MPa, −5–70°C nonfreezing. Maintain required cylinder pressure under load. Defaults: PC bowl, differential/manual drain, bracket, round snap-in gauge; PT/NPT gauge MPa/psi. Check bowl/environment compatibility. Filtration does not guarantee dew point or require a lubricator. US98A/UE95A examples: standard-pressure blue 100 m coils, 1 MPa at 23°C; apply PU temperature derating. US −20–70°C, UE −40–70°C. No supplied tube or installed length is implied. Other colours/lengths or lower-pressure thin-wall tubes need separate rating, wall/retention and installation checks, not OD alone. Exact mm OD×ID: 4×2.5, 6×4, 8×5, 10×6.5, 12×8; minimum bends US98A 10/15/20/25/35 mm, UE95A 8/12/17/20/30 mm respectively. Match the selected socket; locknuts also require accepted ID. The listed complete tube codes do not cover every ID listed in each fitting reference. Keep bends clear of connectors; support tube without kinks, flattening or tension. Observe PU restrictions on acids, alkalis, organic solvents, seawater, corrosive gases, prolonged sunlight and excess heat; verify lubricant/additives. Catalog codes do not promise production, stock or delivery; independently approve proposed alternatives dimensionally and operationally.

  Read more less

  $65.29

  View options
