LSQH Series Quiet Self-Lubricating Linear Guide

Built-in Lubrication Reservoir | Maintenance Free | Low Noise

Features & Tech
Set Ordering Codes
Component Ordering
Accessories (Fittings)

Product Features & Self-Lubricating Structure

The LSQH series represents a technological advancement in linear motion, featuring a built-in, high-capacity oil tank structure (designated by Code E). This design provides exceptional long-term, maintenance-free operation while significantly reducing running noise.

Maintenance Free: Engineered for long-term continuous use in normal industrial environments without the need for manual grease replenishment or extra maintenance.
Cost & Space Saving: Completely eliminates the need for expensive external forced-lubrication piping or automatic lubrication systems, saving both cost and installation space.
Clean Environment: The optimized capillary oil application system delivers precise lubrication directly to the raceways, drastically reducing oil leakage and preventing environmental contamination.
Quiet Operation: Features an optimized ball circulation path and resin return tubes that significantly dampen the collision noise of steel balls, resulting in smooth and quiet motion.
Dust Proof Protection: Comes standard with built-in end seals and scrapers to effectively keep dust out and lock lubrication in.
Complete Interchangeability: The mounting dimensions are 100% compatible and interchangeable with the standard LSH series. The integrated self-lube block allows for easy mounting and dismounting without losing components.

1. Assembled Set Ordering (Single Rail)

Example: LSQH 20 H N 1 X220 S20 A H - AM8 - B - T - E

No.	Item	Options / Description
1	Series	LSQH: Quiet Self-Lubricating Linear Guide
2	Surface Treat.	Blank: Natural \| BB: Black Chrome Plating
3	Width	15, 20, 25, 30, 35 mm
4	Block Type	H: Square \| F1/F2/F3: Flange types
5	Spec	N: Standard \| L: Long (Note: Size 15 has no L type)
6	Block Qty	1, 2, 3...: Quantity of blocks per rail
7	Rail Length	Length in mm (e.g., 220)
8	Hole Pitch	S: Standard (Equal ends) \| Value: Custom end distance (e.g., S20)
9	Preload	A: No Preload \| B: Light \| C: Medium \| D: Heavy
10	Accuracy	N: Normal \| H: High \| P: Precision
11	Fitting	See Accessories Tab 4 (e.g., M4, M6, AM8)
12	Packaging	Blank: Assembled \| B: Packed Separately
13	Rail Lock	Blank: Upper Locking \| T: Lower Locking
14	Self-Lube	E: Self-Lubricating Type Reservoir included

2. Jointed Rail Ordering

Used for rails longer than the maximum single piece length (approx. 4000mm). "T" indicates the joint mark.

Example: LSQH 20 H N 1 X 2970 T 2940 ...

Individual Component Ordering

1. Block Only Ordering (BK)

Example: LSQH 20 BK - H N - H - D - AM8 - E

Item	Options & Description
Model Code	LSQH: Quiet Series
Width	15, 20, 25, 30, 35
Component	BK: Block Only
Type	H: Square \| F1/F2/F3: Flange
Spec	N: Standard \| L: Long
Accuracy	N, H, P
Assembly Code	D, E, SB... (Preload Match Code. See catalog for details)
Fitting	Optional (e.g., M6, AM8)
Self-Lube	E: Self-Lubricating Type

2. Rail Only Ordering (RL)

Important: LSQH series blocks use the standard LSH Series Rails. When ordering the rail separately, you must use the LSH model code.

Example: LSH 15 RL X 4000 - H - D - T

Item	Options & Description
Model Code	LSH + Width + RL (Rail Only)
Joint / Length	X: Jointed \| Blank: Single. Followed by Length in mm.
Accuracy	N, H, P
Assembly Code	D, E... (Must match block Preload code)
Mounting	Blank: Upper Locking \| T: Lower Locking

Grease Fittings & Adapters

Applicable Size	Code	Description	Shape
15	M4	M4 Thread Nipple	Straight
	AM6	Adapter: M4 male to M6 female	Straight
	LM6	Adapter: M4 male to M6 female	L-Shape
20 ~ 35	M6	M6 Thread Nipple	Straight
	A01	Adapter: M6 to PT1/8	Straight
	AM8	Adapter: M6 to M8	Straight
	L01	Adapter: M6 to PT1/8	L-Shape
	LM8	Adapter: M6 to M8	L-Shape
	SM6	M6 Direct Nipple (Short Type)	Straight

Show previous products

View options

Airtac LSQH Series-Linear Slide-Slider - LSQHB35BK-F3N-H-SA-M6

Specifications: silent linear slide Slider table: black chrome plated slider Slide width: 34mm slider code: slider Slider type: flange type up and down locking type Slider specifications: standard type Accuracy class: high Group Code: SA Nozzle/tubing joint specification: M6 nozzle Click to download Airtac product catalog Product Features 1. Low noise design. The special holding chain realizes accurate uniform distribution and equal interval arrangement of steel balls, prevents metal noise caused by disordered collision, significantly suppresses high-frequency sharp noise, and detects the frequency. Belly is most sensitive to human body at 1000-3000Hz. After strict testing in the full speed domain, the overall sound intensity is reduced by about 5 decibels compared with the standard series, improving the acoustic environment quality. 2. Oil storage and self-moistening design. Maintain a specific interval in the middle of the chain to build an oil storage area to accurately meet the lubrication needs of steel balls. When running to the direction turning part, the lubricating oil is automatically and evenly replenished, reducing the frequency and workload of manual oil replenishment. Conventional very light loads require no additional maintenance, reducing full life cycle costs. 3. High rate design. The spacing part of the holding chain is designed to eliminate the friction between the steel balls, and the steel balls are in circular line contact with the holding chain, which greatly reduces the friction resistance. High-speed movement with less energy loss, heat control, so that the guide has excellent high-speed performance, for high-speed mechanical systems to provide accurate and stable linear motion guidance, expand high-speed automated production lines and other fields of application. 4. Ride smoothness improvement. The friction resistance of the traditional non-holding chain guide rail fluctuates sharply during the initial operation of the steel ball impact, and the stability is poor. Keep the chain connected with the steel balls, the steel balls start almost synchronously when the slider moves, no round-trip collision, maintain stable motion inertia, reduce the range of friction resistance, ensure smooth and smooth movement, improve the smoothness and stability index, and provide reliable support for high-precision motion control.

Read more less

$104.41

View options
View options

Airtac LSQH Series-Linear Slide-Slider - LSQHB35BK-F3N-H-SG-A01

Specifications: silent linear slide Slider table: black chrome plated slider Slide width: 34mm slider code: slider Slider type: flange type up and down locking type Slider specifications: standard type Accuracy class: high Group code: SG Nozzle/tubing joint specification: M6 to PT1/8, straight-through type Click to download Airtac product catalog Product Features 1. Low noise design. The special holding chain realizes accurate uniform distribution and equal interval arrangement of steel balls, prevents metal noise caused by disordered collision, significantly suppresses high-frequency sharp noise, and detects the frequency. Belly is most sensitive to human body at 1000-3000Hz. After strict testing in the full speed domain, the overall sound intensity is reduced by about 5 decibels compared with the standard series, improving the acoustic environment quality. 2. Oil storage and self-moistening design. Maintain a specific interval in the middle of the chain to build an oil storage area to accurately meet the lubrication needs of steel balls. When running to the direction turning part, the lubricating oil is automatically and evenly replenished, reducing the frequency and workload of manual oil replenishment. Conventional very light loads require no additional maintenance, reducing full life cycle costs. 3. High rate design. The spacing part of the holding chain is designed to eliminate the friction between the steel balls, and the steel balls are in circular line contact with the holding chain, which greatly reduces the friction resistance. High-speed movement with less energy loss, heat control, so that the guide has excellent high-speed performance, for high-speed mechanical systems to provide accurate and stable linear motion guidance, expand high-speed automated production lines and other fields of application. 4. Ride smoothness improvement. The friction resistance of the traditional non-holding chain guide rail fluctuates sharply during the initial operation of the steel ball impact, and the stability is poor. Keep the chain connected with the steel balls, the steel balls start almost synchronously when the slider moves, no round-trip collision, maintain stable motion inertia, reduce the range of friction resistance, ensure smooth and smooth movement, improve the smoothness and stability index, and provide reliable support for high-precision motion control.

Read more less

$104.41

View options
View options

Airtac LSQH Series-Linear Slide-Slider - LSQHB35BK-F3N-H-SF-AM8

Specifications: silent linear slide Slider table: black chrome plated slider Slide width: 34mm slider code: slider Slider type: flange type up and down locking type Slider specifications: standard type Accuracy class: high Group code: SF Nozzle/tubing joint specification: M6 to M8, straight-through type Click to download Airtac product catalog Product Features 1. Low noise design. The special holding chain realizes accurate uniform distribution and equal interval arrangement of steel balls, prevents metal noise caused by disordered collision, significantly suppresses high-frequency sharp noise, and detects the frequency. Belly is most sensitive to human body at 1000-3000Hz. After strict testing in the full speed domain, the overall sound intensity is reduced by about 5 decibels compared with the standard series, improving the acoustic environment quality. 2. Oil storage and self-moistening design. Maintain a specific interval in the middle of the chain to build an oil storage area to accurately meet the lubrication needs of steel balls. When running to the direction turning part, the lubricating oil is automatically and evenly replenished, reducing the frequency and workload of manual oil replenishment. Conventional very light loads require no additional maintenance, reducing full life cycle costs. 3. High rate design. The spacing part of the holding chain is designed to eliminate the friction between the steel balls, and the steel balls are in circular line contact with the holding chain, which greatly reduces the friction resistance. High-speed movement with less energy loss, heat control, so that the guide has excellent high-speed performance, for high-speed mechanical systems to provide accurate and stable linear motion guidance, expand high-speed automated production lines and other fields of application. 4. Ride smoothness improvement. The friction resistance of the traditional non-holding chain guide rail fluctuates sharply during the initial operation of the steel ball impact, and the stability is poor. Keep the chain connected with the steel balls, the steel balls start almost synchronously when the slider moves, no round-trip collision, maintain stable motion inertia, reduce the range of friction resistance, ensure smooth and smooth movement, improve the smoothness and stability index, and provide reliable support for high-precision motion control.

Read more less

$104.41

View options
View options

Airtac LSQH Series-Linear Slide-Slider - LSQHB35BK-F3N-H-SC-A01

Specifications: silent linear slide Slider table: black chrome plated slider Slide width: 34mm slider code: slider Slider type: flange type up and down locking type Slider specifications: standard type Accuracy class: high Group code: SC Nozzle/tubing joint specification: M6 to PT1/8, straight-through type Click to download Airtac product catalog Product Features 1. Low noise design. The special holding chain realizes accurate uniform distribution and equal interval arrangement of steel balls, prevents metal noise caused by disordered collision, significantly suppresses high-frequency sharp noise, and detects the frequency. Belly is most sensitive to human body at 1000-3000Hz. After strict testing in the full speed domain, the overall sound intensity is reduced by about 5 decibels compared with the standard series, improving the acoustic environment quality. 2. Oil storage and self-moistening design. Maintain a specific interval in the middle of the chain to build an oil storage area to accurately meet the lubrication needs of steel balls. When running to the direction turning part, the lubricating oil is automatically and evenly replenished, reducing the frequency and workload of manual oil replenishment. Conventional very light loads require no additional maintenance, reducing full life cycle costs. 3. High rate design. The spacing part of the holding chain is designed to eliminate the friction between the steel balls, and the steel balls are in circular line contact with the holding chain, which greatly reduces the friction resistance. High-speed movement with less energy loss, heat control, so that the guide has excellent high-speed performance, for high-speed mechanical systems to provide accurate and stable linear motion guidance, expand high-speed automated production lines and other fields of application. 4. Ride smoothness improvement. The friction resistance of the traditional non-holding chain guide rail fluctuates sharply during the initial operation of the steel ball impact, and the stability is poor. Keep the chain connected with the steel balls, the steel balls start almost synchronously when the slider moves, no round-trip collision, maintain stable motion inertia, reduce the range of friction resistance, ensure smooth and smooth movement, improve the smoothness and stability index, and provide reliable support for high-precision motion control.

Read more less

$104.41

View options
View options

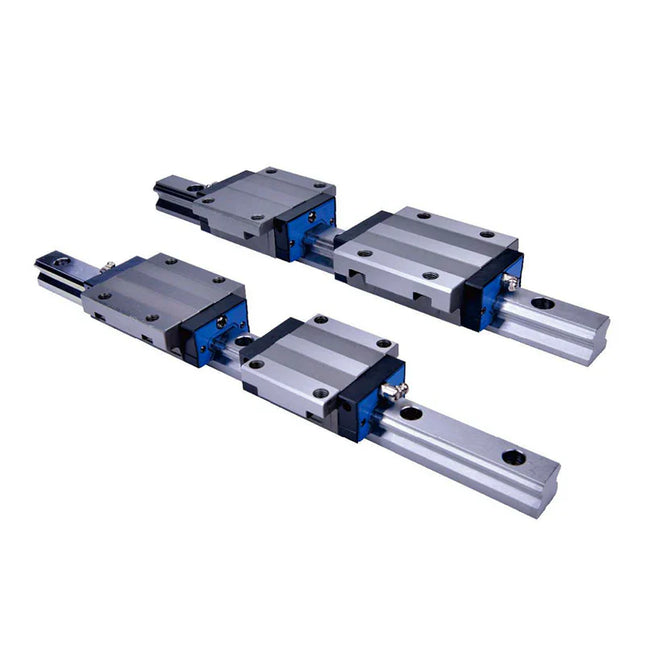

Airtac LSQH Series-Linear Slide-Slider - LSQHB35BK-F3N-H-SB-SM6
