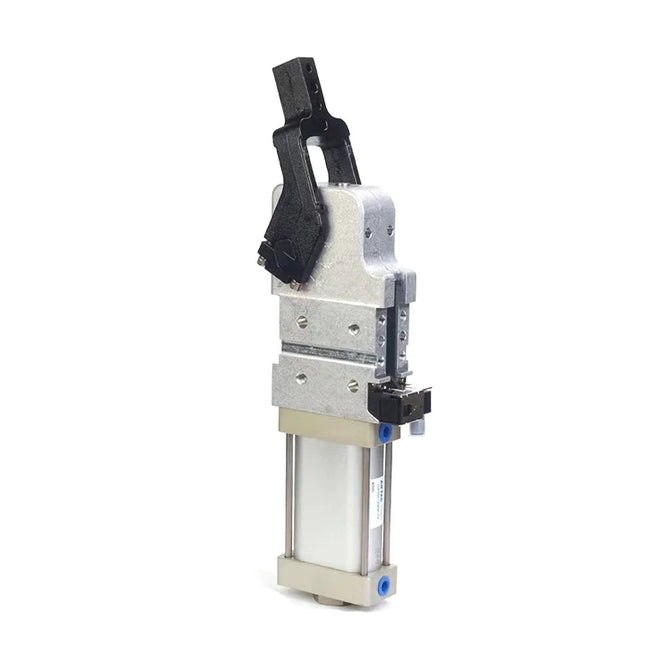

JCK Series Power Welding Clamp Cylinder
High-Torque Toggle Linkage Clamping System
Product Features
- Toggle Linkage Mechanism: Provides exceptionally high clamping torque (up to 800 N.m for Φ80) suitable for heavy-duty automotive and industrial welding applications.
- Self-Locking Function: The advanced toggle mechanism ensures the clamp remains securely locked in the clamped position even if supply air pressure is completely lost, greatly enhancing operational safety.
- Oval Piston Design: Utilizes a space-saving oval piston structure that minimizes the cylinder's width profile while maximizing effective force transfer.
- Manual Operation Option: Available with manual override handles (mountable on the Left or Right side) for easy setup, fixture adjustments, or emergency operation.
- Multiple Opening Angles: Supports a wide range of standard opening angles from 15° up to 135° to accommodate various complex workpiece geometries.
- Flexible Arm Mounting: Clamp arms can be mounted horizontally (standard) or vertically, with Left, Right, or Center mounting positions available to suit specific tooling setups.
Technical Specifications
| Bore Size (Oval) | JCK40 | JCK50 | JCK63 | JCK80 |
|---|---|---|---|---|
| Clamping Torque (at 0.5MPa) | 120 N.m | 160 N.m | 380 N.m | 800 N.m |
| Acting Type | Double Acting | |||
| Operating Fluid | Air (Filtered by 40μm filter element) | |||
| Operating Pressure Range | 0.3 ~ 0.8 MPa (43 ~ 116 psi) | |||
| Proof Pressure | 1.2 MPa (175 psi) | |||
| Ambient & Fluid Temp. (°C) | -10 ~ 60°C (No freezing) | |||
| Opening Angle (θ) | 15°, 30°, 45°, 60°, 75°, 90°, 105°, 120°, 135° | |||
| Min. Cycle Time (s) | Clamping: 1.0s / Opening: 1.0s | |||
| Cushion | Air Cushion | |||
| Weight (at 120° angle) [Note 1] | Standard: 2.2kg Manual: 2.5kg |
Standard: 4.0kg Manual: 4.5kg |
Standard: 5.5kg Manual: 6.0kg |
Standard: 13.0kg |
| Port Size [Note 2] | PT1/8" | PT1/4" | ||
[Note 1] Weight includes the standard 15mm offset clamping arm.
[Note 2] PT threads are standard; G and NPT threads are optional upon request.
[Note 2] PT threads are standard; G and NPT threads are optional upon request.
Accessories Selection Guide
Ordering Note: In the accessory model codes below, the "□" symbol should be replaced with your desired opening angle (e.g., 15, 30, 45, 90, 135).
| Accessory Type | For JCK40 | For JCK50 | For JCK63 | For JCK80 |
|---|---|---|---|---|
|
Adjustment Screw (For fine-tuning clamp angle) |
F-JCK40□X15LM F-JCK40□X45LM F-JCK40□X75LM F-JCK40□X105LM |
F-JCK50□X30LM F-JCK50□X45LM F-JCK50□X90LM F-JCK50□X120LM |
F-JCK63□X30LM F-JCK63□X60LM F-JCK63□X90LM F-JCK63□X135LM |
F-JCK80□X30LM F-JCK80□X45LM F-JCK80□X90LM F-JCK80□X135LM |
|
Clamp Arm AM1/AM2 = 15mm offset AM3/AM4 = 45mm offset R/C/L = Mount position |
F-JCK40□AM1R/C/L F-JCK40□AM2R/C/L F-JCK40□AM3R/C/L F-JCK40□AM4R/C/L |
F-JCK50□AM1R/C/L F-JCK50□AM2R/C/L F-JCK50□AM3R/C/L F-JCK50□AM4R/C/L |
F-JCK63□AM1R/C/L F-JCK63□AM2R/C/L F-JCK63□AM3R/C/L F-JCK63□AM4R/C/L |
F-JCK80□AM1R/C/L F-JCK80□AM2R/C/L F-JCK80□AM3R/C/L F-JCK80□AM4R/C/L |
Sensor Specifications (DS1 Series)
| Item | Data / Parameters |
|---|---|
| Operating Range | 2 mm |
| Voltage Range | 10 ~ 30V DC |
| Output Type | N.O. (Normally Open), PNP or NPN available |
| Max. Output Current | 150 mA |
| LED Indicators | Clamping state: Red LED / Opening state: Yellow LED / Power ON: Green LED |
Product Ordering Code
Example: JCK V 63 X 120 AM1 R HL K G
| No. | Item | Code Description |
|---|---|---|
| 1 | Series | JCK: Power Welding Clamp Cylinder |
| 2 | Arm Installation Direction |
Blank: Horizontal Installation (Standard) V: Vertical Installation |
| 3 | Bore Size (Oval) | 40, 50, 63, 80 (mm equivalent) |
| 4 | Opening Angle | 15, 30, 45, 60, 75, 90, 105, 120, 135 (Degrees) |
| 5 | Clamp Arm Specs |
Blank: No Arm provided AM1: Offset 15mm AM2: Offset 15mm (Different hole structure) AM3: Offset 45mm AM4: Offset 45mm (Different hole structure) |
| 6 | Clamp Arm Position |
R: Right Side C: Center Mount L: Left Side |
| 7 | Manual Handle |
Blank: Standard Type (No manual handle) HL: Handle on Left Side HR: Handle on Right Side |
| 8 | Sensor Type |
Blank: No Sensor K: PNP Type Electrical Sensor KN: NPN Type Electrical Sensor KA: Pneumatic Output Sensor |
| 9 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
