HFZ Series Air Gripper (Guide Track Parallel Style - Ball Bearing Type)
Features
- Ball Bearing Guide: Equipped with a linear guide track and ball bearings for high precision, smooth movement, and high rigidity.
- Multiple Acting Types: Available in Double Acting (Standard), Single Acting Normally Open, and Single Acting Normally Closed.
- Wide Range of Bore Sizes: Available from Φ6 to Φ40.
- Versatile Mounting: Four jaw installation types available: Standard, Side Mount, Through Hole Mount, and Bottom Mount.
- Built-in Magnet: All series come standard with a built-in magnet for sensor mounting.
Effective Gripping Force (N) [at 0.5MPa]
| Bore Size (mm) | 6 | 10 | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|---|---|
| HFZ (Double Acting) | |||||||
| Closing | 3.3 | 11 | 34 | 45 | 69 | 160 | 255 |
| Opening | 6.1 | 17 | 45 | 68 | 102 | 195 | 320 |
| HFTZ (Single Acting Normally Open) | |||||||
| Closing | 1.9 | 7 | 27 | 35 | 55 | 133 | 220 |
| HFSZ (Single Acting Normally Closed) | |||||||
| Opening | 3.7 | 13 | 38 | 59 | 87 | 163 | 270 |
Note: The gripping force in the table is the value at operating pressure of 0.5MPa and gripping point L=20mm.
Stroke & Weight Specifications
| Bore Size (mm) | Opening/Closing Stroke (Both Sides) (mm) | Weight (g) [Standard / Others] | ||
|---|---|---|---|---|
| HFZ (Double) | HFTZ (N.O.) | HFSZ (N.C.) | ||
| 6 | 3 | 25 | 26 | 26 |
| 10 | 4 | 56 | 57 | 57 |
| 16 | 6 | 124 | 125 | 125 |
| 20 | 10 | 236 | 238 | 238 |
| 25 | 14 | 428 | 430 | 430 |
| 32 | 22 | 729 | 778 | 778 |

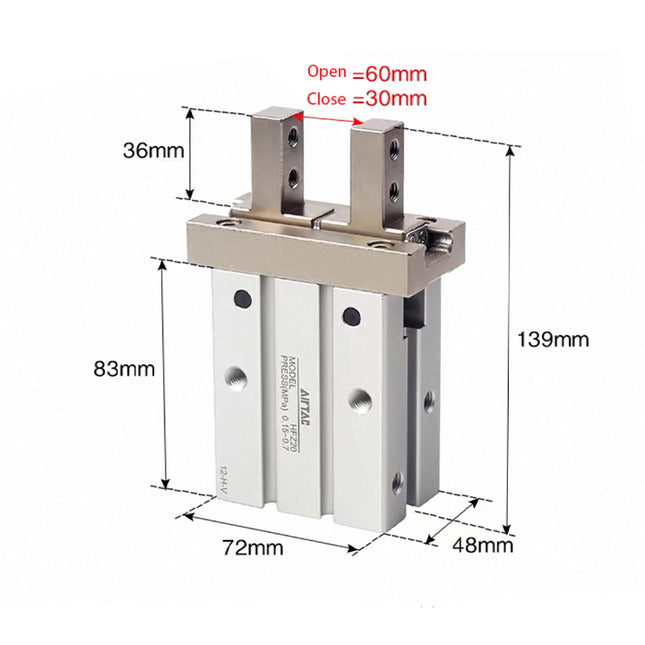

| 40 | 30 | 1268 | 1365 | 1365 |

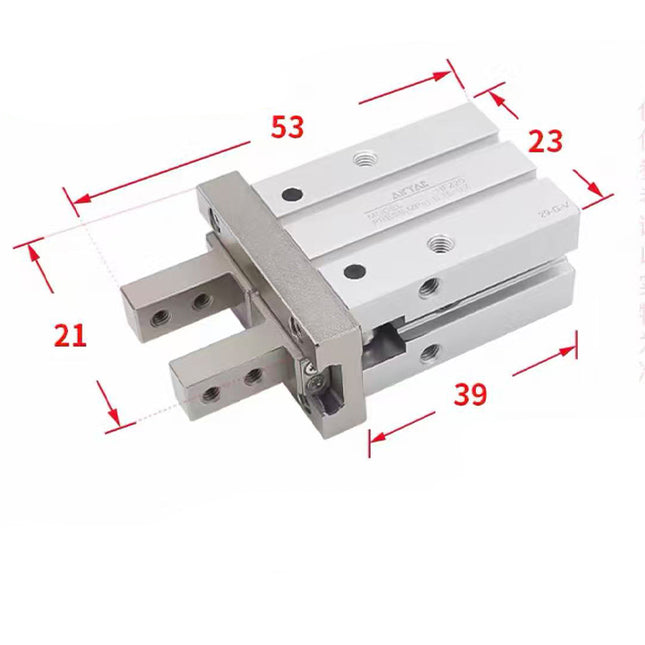

Note: F Type (Bottom Mount) weight for size 6 is 24g.
Ordering Code
HFZ 20 □
| No. | Item | Code Description |
|---|---|---|
| ① | Series |
HFZ: Standard Double Acting HFSZ: Single Acting Normally Closed HFTZ: Single Acting Normally Open |
| ② | Bore Size | 6, 10, 16, 20, 25, 32, 40 (mm) |
| ③ | Jaw Type |
Blank: Standard Type B: Side Installation Type N: Through Hole Installation Type F: Bottom Installation Type |
Note: All HFZ series are equipped with magnets. Sensors need to be ordered separately.
