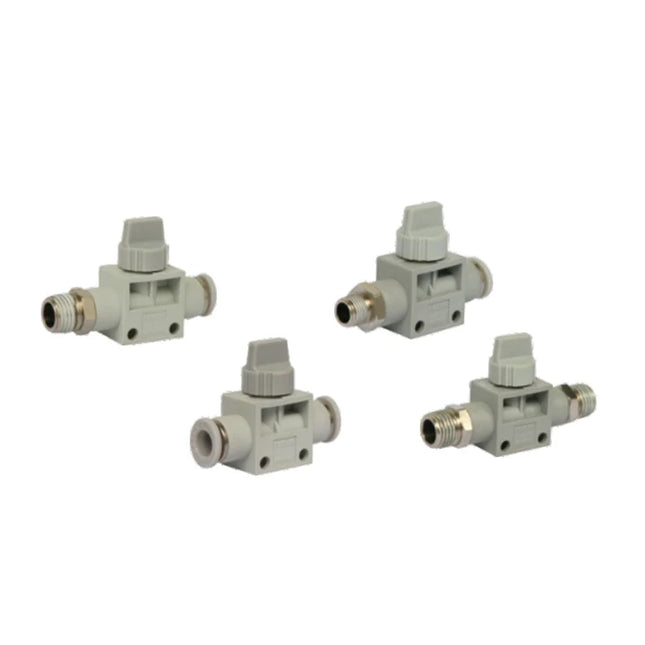

Manual Hand Valve Series
Two-way & Three-way Pneumatic Control Valves
Product Features
- Direct Manual Control: Provides quick, reliable, and easy manual on/off control of air pressure for various pneumatic devices and air lines.
- 3-Way Functionality (Standard): When switched to the closed position, the 3-way valve safely exhausts residual downstream pressure from the output side. This is crucial for safe maintenance, tool changes, or cylinder repair.
- 2-Way Functionality (Optional): A standard on/off inline control valve designed without the exhaust function for simple shut-off applications.
- Flexible Flow Directions: Available in multiple fitting configurations to match any piping setup: Tube-to-Tube, Thread-to-Thread, and Tube-to-Thread.
- Compact & Ergonomic: The space-saving design allows for easy installation in tight spaces, featuring a smooth-turning knob for effortless operation.
Technical Specifications
| Specification Item | Description / Parameters |
|---|---|
| Operating Fluid | Air |
| Operating Pressure Range | 0 ~ 1.02 MPa (0 ~ 145 psi) |
| Proof Pressure | 1.53 MPa (218 psi) |
| Ambient & Fluid Temperature | 0 ~ 60°C (No freezing) |
| Applicable Tubing Material | Nylon or Polyurethane (PU) Tube |
Product Ordering Code
Example: AHVFF 06-06 B
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code (Flow Type) |
AHVSF: Tube Input → Thread Output AHVFF: Tube Input → Tube Output AHVFS: Thread Input → Tube Output AHVSS: Thread Input → Thread Output |
| 2 | Input Size |
Tube O.D: 04 (Φ4), 06 (Φ6), 08 (Φ8), 10 (Φ10), 12 (Φ12) Thread (PT): 01 (1/8"), 02 (1/4"), 03 (3/8"), 04 (1/2") |
| 3 | Output Size |
Tube O.D: 04 (Φ4), 06 (Φ6), 08 (Φ8), 10 (Φ10), 12 (Φ12) Thread (PT): 01 (1/8"), 02 (1/4"), 03 (3/8"), 04 (1/2") (Note: Input and Output sizes are usually matched based on the Model Code) |
| 4 | Valve Type |
Blank: 3-Way Valve (With residual pressure exhaust function) B: 2-Way Valve (Standard On/Off without exhaust) |
