Airtac AHV series: two-way thread-to-tube hand valve - AHVFS04-10B

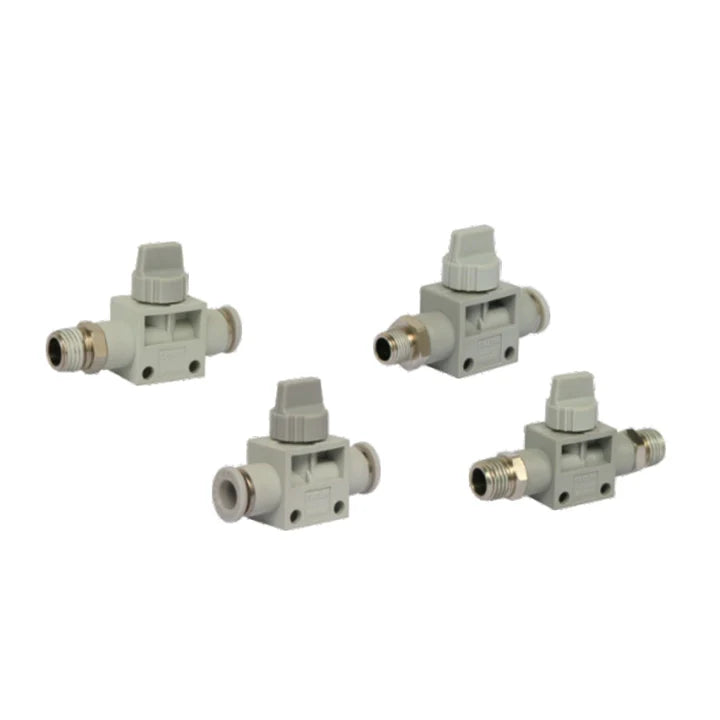

Photos are for reference only. Not all models have pictures.

Description

Specifications: AHVFS04-10B — two-way thread-to-tube hand valve; inlet PT 1/2 male thread; outlet 10 mm tube outside diameter.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
AHVFS thread-to-tube hand valve
04 Inlet: PT 1/2 male thread
10 Outlet: 10 mm tube outside diameter
B two-way switching

Technical Specifications

Parameter Details
Product / order model AHVFS04-10B
Operation two-way hand-operated shut-off valve
Inlet connection PT 1/2 male thread
Outlet connection 10 mm tube outside diameter
Fluid Air
Working pressure 0–1.02 MPa (catalog also prints 0–145 psi)
Proof pressure 1.53 MPa (catalog also prints 218 psi)
Working temperature 0–60 °C
Applicable tubing Nylon or polyurethane tubing; match the push-in connection by tube outside diameter.

Features and Operation

The manual actuator opens or closes the air passage. The two-way symbol shows supply-to-outlet shut-off without a separate exhaust path.

Compatible Connections and Application

This AHVFS valve is selected by its own inlet and outlet interfaces: PT 1/2 male thread at the inlet, and 10 mm tube outside diameter at the outlet. The catalog does not assign it exclusively to a named cylinder or solenoid-valve series. Connect it only to tubing and mating ports with these exact interfaces and suitable pressure/temperature ratings. A common nominal thread size does not make PT, G and NPT threads interchangeable.

External and Mounting Dimensions

Parameter Details
Inlet interface PT 1/2 male thread
Outlet interface 10 mm tube outside diameter
Drawing scope The supplied page shows connection diagrams and size combinations, but does not publish numeric overall length, body height, mounting-hole spacing or mounting-hole diameter.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Ordering and Port Identification

Order AHVFS04-10B for a PT 1/2 male thread inlet and 10 mm tube outside diameter outlet. The dedicated ordering-code diagram defines the first size code as the inlet and the second size code as the outlet. For AHVFS, air flows from the threaded side to the push-in tube side. This description uses that inlet-to-outlet ordering rule consistently; identify the physical ports by their connection form and flow marking.

Series Ordering Options

AHVSF uses a tube inlet and threaded outlet; AHVFS uses a threaded inlet and tube outlet; AHVFF has two push-in tube connections; AHVSS has two threaded connections. No suffix denotes three-way switching, while B denotes two-way switching. These are alternative order configurations, not additional ports or supplied accessories for this item.

Weight Reference

60.1 g. Unmeasured reference estimate, not an official net weight for the current product. Packaging excluded; verify the supplied item before freight settlement.
