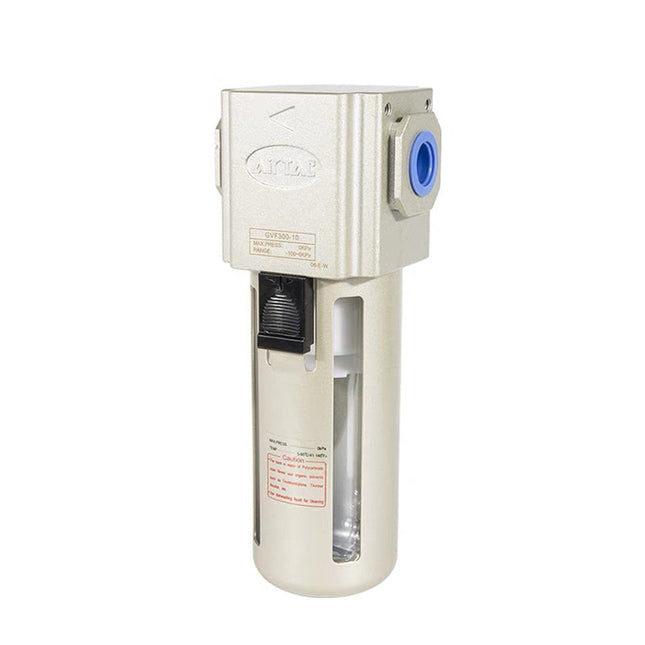

Vacuum Filter
Product Features
- The unique diversion structure causes the airflow that passes through to rotate, which more effectively separates the liquid from the gas and reliably filters solid particles.
- It has low pressure loss, high water separation efficiency, and a large water bowl capacity.
- Filtering precision of 5μm and 40μm are optional.
- Bowl material options are PC, metal, or nylon, which can satisfy the needs of different environments.
- An optional fixed bracket can be selected for installation.
Specifications
| Model | GVF200-06 | GVF200-08 | GVF300-08 | GVF300-10 | GVF300-15 | |
|---|---|---|---|---|---|---|
| Working Medium | Air | |||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | |
| Filter Precision | 40μm or 5μm | |||||
| Operating Pressure Range | -100–0kPa | |||||
| Proof Pressure | 0.5MPa | |||||
| Operating Temperature Range | -5–70°C (No freezing) | |||||
| Water Bowl Capacity | 25CC | 45CC | ||||
| Body Material | PC, Nylon, Metal | |||||
| Weight (g) (PC/Metal Bowl) |
220/225g | 210g/215g | 370g/380g | 360g/375g | 350g/360g | |
| Flow Rate (L/min ANR) [Note 2] | 5μm | 80 | 100 | 150 | 200 | |
| 40μm | 100 | 160 | 200 | 280 | ||
Note 1: G and NPT thread types are available.
Note 2: Flow rate at initial pressure drop of 4kPa.
Note 2: Flow rate at initial pressure drop of 4kPa.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Body Material |
|
| 3 | Port Size |
|
| 4 | Bracket Code |
|
| 5 | Filter Precision |
|
| 6 | Thread Code |
|
