Product Information

F.R.L. Combination

Product Features
Product Ordering Code

Product Features

In addition to the standard PC bowl of the GA200 series, this series also has the characteristic of being lightweight.
The short-type PC bowl saves installation space and is suitable for compact environments.
The filter drain method is semi-automatic + manual drain.

Product Ordering Code

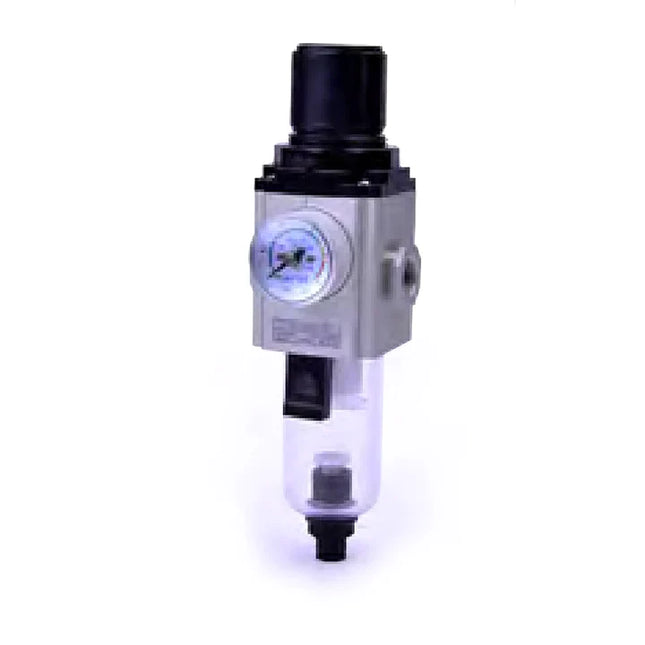

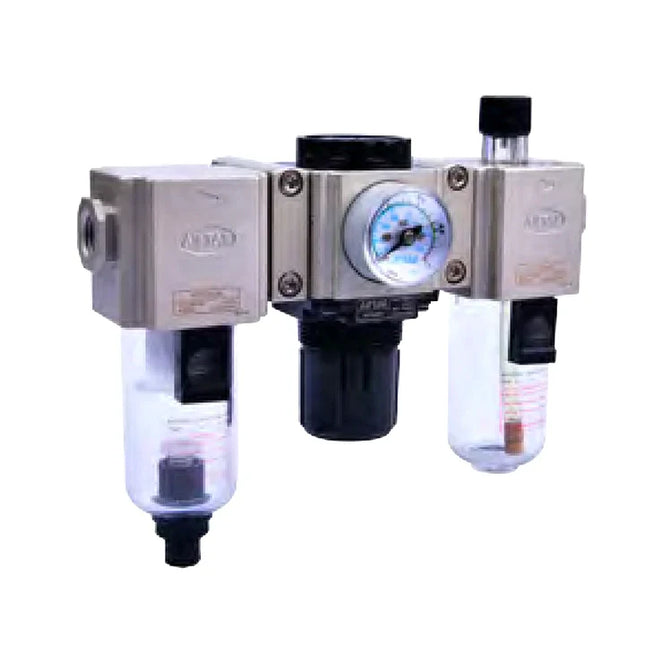

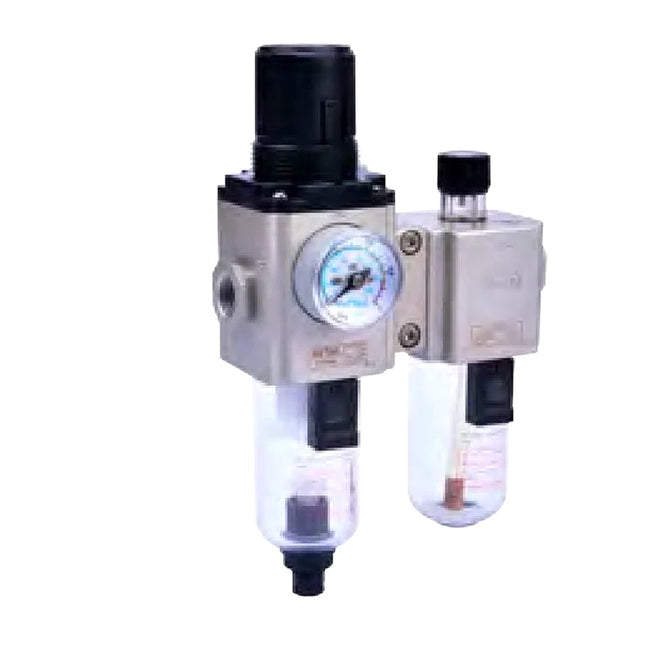

GTC, GTFC, GTFR Series

Position	Description	Options & Values
1	Series Code	GTC200: GT200 Series Equipment Adjustment Package GTFC200: GT200 Series Filter Regulator Lubricator GTFR200: GT200 Series Filter Regulator
2	Port Size	06: 1/8" 08: 1/4"
3	Model Type Code	S: Standard L: Low Pressure Type [Note 1]
4	Bracket Code	Blank: With Bracket J: Without Bracket
5	Pressure Gauge Code	Blank: With Pressure Gauge N: Without Pressure Gauge
6	Filter Precision	Blank: 40μm W: 5μm
7	Thread Code	Blank: PT thread (MPa/psi) G: G thread (bar/MPa) T: NPT thread (psi/bar)
8	Overflow Code	Blank: With overflow K: Without overflow

Note 1: The adjustable range for the low-pressure model is 0.15–0.4MPa (20–58psi).

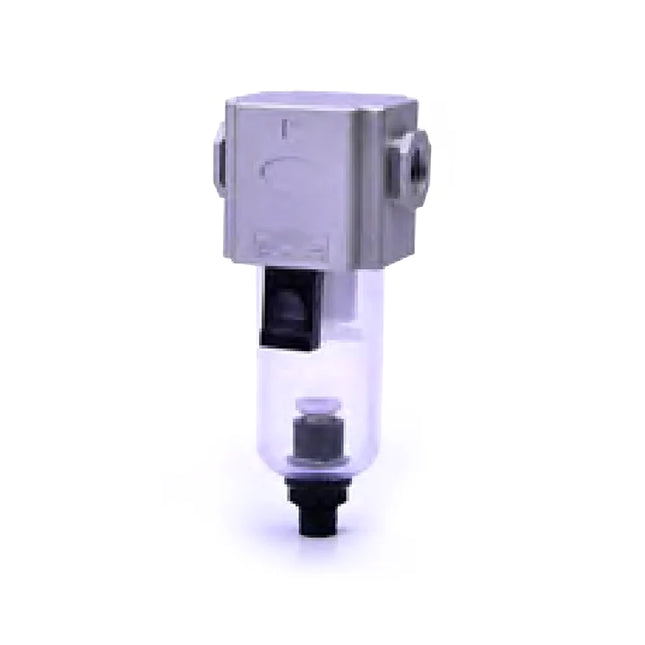

GTF Series

Position	Description	Options & Values
1	Series Code	GTF200: GT200 Series Filter
2	Port Size	06: 1/8" 08: 1/4"
3	Bracket Code	Blank: With Bracket J: Without Bracket
4	Filter Precision	Blank: 40μm W: 5μm
5	Thread Code	Blank: PT thread G: G thread T: NPT thread

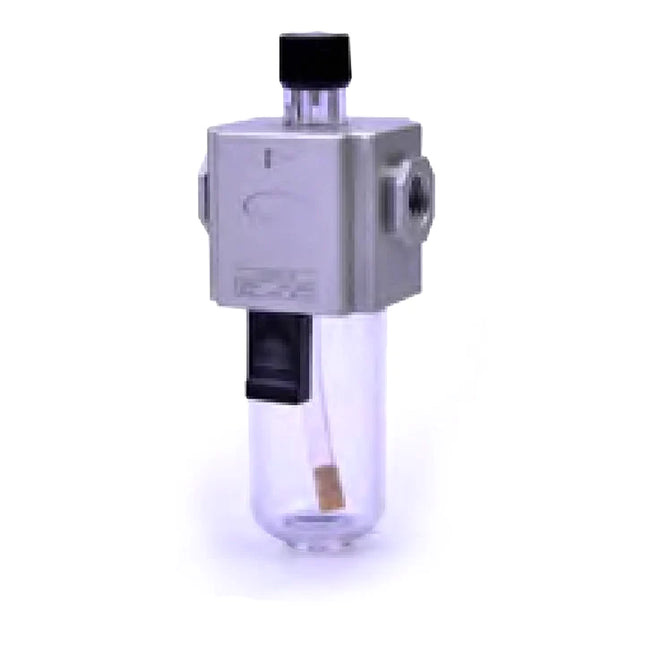

GTL Series

Position	Description	Options & Values
1	Series Code	GTL200: GT200 Series Lubricator
2	Port Size	06: 1/8" 08: 1/4"
3	Bracket Code	Blank: With Bracket J: Without Bracket
4	Thread Code	Blank: PT thread G: G thread T: NPT thread
