Pressure Gauge Product Information

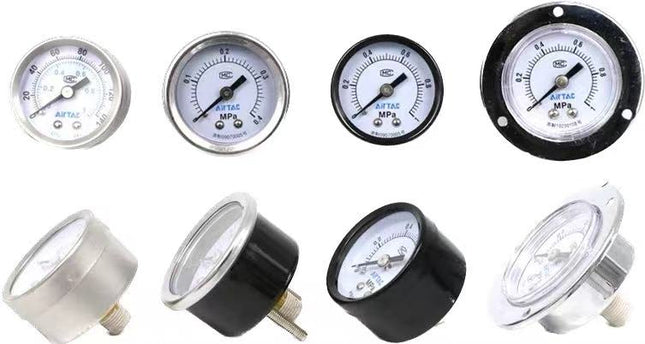

Pressure Gauge

Product Features
Specifications
Product Ordering Code

Product Features

Responsive, sensitive, and low pressure drop.
The dial markings are clear, and a variety of pressure units are available for selection.
A variety of installation accessories are available for selection.
A variety of connection port sizes are available.

Specifications

Model		GS-30	GS-40, GF-40, GU-40	GS-50, GF-50, GU-50	GF-60, GU-60
Working Medium		Air
Port Size		PT1/16	PT1/8	PT1/4	PT1/4
Operating Temperature Range		-40–70°C
Accuracy Class		2.5 grade
Pressure Unit & Indication Range	M	0–1.0MPa (Standard); 0–0.4MPa (Low Pressure)
	B	0–10 bar (Standard); 0–4 bar (Low Pressure)
	P	0–140psi (Standard); 0–60psi (Low Pressure)
	Z	0–10kgf/cm² and 0–140psi (Dual scale display) (Standard) 0–4kgf/cm² and 0–60psi (Dual scale display) (Low Pressure)
Main Component Material		Casing: SPCC; Dial: Brass

Model		GP-30	GP-40
Working Medium		Air
Port Size		PT1/8	PT1/8
Operating Temperature Range		-40–70°C
Accuracy Class		2.5 grade
Pressure Unit & Indication Range	P	0–1.0MPa & 0–140psi (Standard) 0–0.4MPa & 0–60psi (Medium Pressure) 0–0.2MPa & 0–30psi (Low Pressure)
	G	0–10bar & 0–1.0MPa (Standard) 0–4bar & 0–0.4MPa (Medium Pressure) 0–2bar & 0–0.2MPa (Low Pressure)
	T	0–10bar & 0–140psi (Standard) 0–4bar & 0–60psi (Medium Pressure) 0–2bar & 0–30psi (Low Pressure)
Main Component Material		Casing: Stainless Steel; Dial: Aluminum

Product Ordering Code

GS/GF/GU Series

Position	Description	Options & Values
1	Accessory Code	F: Accessory
2	Series Code	G: Pressure Gauge

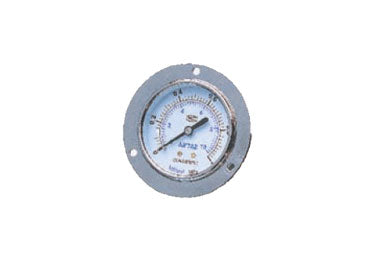

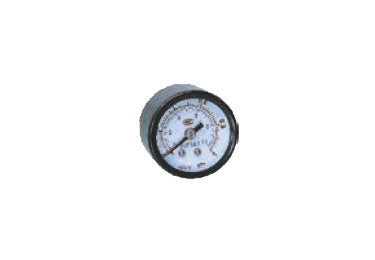

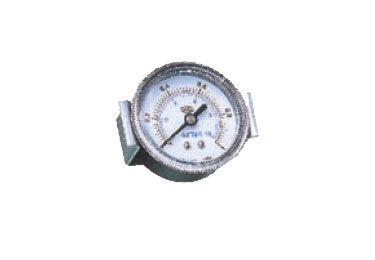

3	Mounting Style Code	S: Standard Mount F: Panel Mount U: U-shaped Mount
4	Dial Specification Code	30: Outer Dia. 30 40: Outer Dia. 40 50: Outer Dia. 50 60: Outer Dia. 60
5	Max Display Pressure Value	04: 0.4MPa 10: 1.0MPa
6	Pressure Scale Unit and Thread	M: MPa (PT Thread) P: psi (NPT Thread) B: bar (G Thread) Z: kgf/cm² & psi (PT Thread)

GP Series

Position	Description	Options & Values
1	Accessory Code	F: Accessory
2	Series Code	G: Pressure Gauge
3	Mounting Style Code	P: Stainless Steel Casing
4	Dial Specification Code	30: Outer Dia. 30 40: Outer Dia. 40
5	Max Display Pressure Value	02: 0.2MPa 04: 0.4MPa 10: 1.0MPa
6	Pressure Scale Unit and Thread	G: MPa & bar (G Thread) P: MPa & psi (PT Thread) T: bar & psi (NPT Thread)
