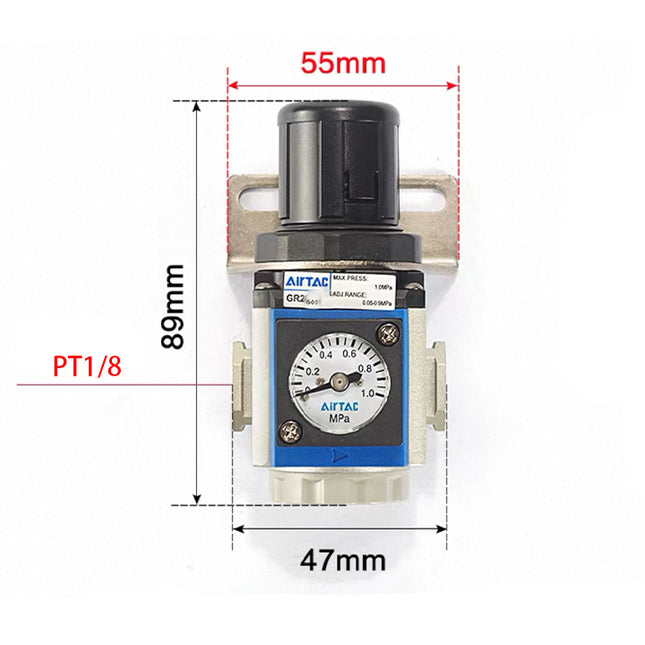

GR Series Regulator

Embedded Gauge | Balanced Design | Self-locking Mechanism
  • Product Features
  • Specifications
  • Ordering Code

Product Features

  • Embedded Gauge: Features an innovative embedded square pressure gauge design that significantly saves installation space and prevents physical damage. (An external round gauge is also available as an option). The scale is clear and easy to read.
  • Self-locking Mechanism: Equipped with a reliable press-in self-locking knob that prevents accidental or vibration-induced changes to the pressure setting.
  • Balanced Design: The internal pressure adjustment mechanism adopts a balanced design, ensuring highly stable pressure regulation, minimal drift, and excellent flow characteristics.
  • Flexible Installation: Can be conveniently installed directly on a panel or surface-mounted using the optional fixing bracket.
  • Low Pressure Option: In addition to the standard model, a dedicated low-pressure type is available (Max. adjustable pressure 0.4 MPa) for sensitive pneumatic applications.

Technical Specifications

General Specifications

Working Medium Compressed Air
Standard Pressure Adjusting Range 0.05 ~ 0.9 MPa (7 ~ 130 psi)
Low Pressure Range (L Type) 0.05 ~ 0.4 MPa
Max Operating Pressure 1.0 MPa (145 psi)
Proof Pressure 1.5 MPa (215 psi)
Operating Temperature Range -20 ~ 70°C (No freezing)

Model Specific Parameters

Series Model Port Size [Note] Weight (g)
GR200 PT 1/8", PT 1/4" 160
GR300 PT 1/4", PT 3/8", PT 1/2" 350
GR400 PT 3/8", PT 1/2" 720
GR600 PT 3/4", PT 1" 1700
[Note] PT threads are standard. G and NPT thread types are available upon request.

Product Ordering Code

Example: GR200 08 L F 1 G K
No. Item Options & Description
1 Series Code GR200 / GR300 / GR400 / GR600
2 Port Size 06: 1/8"  |  08: 1/4"  |  10: 3/8"
15: 1/2"  |  20: 3/4"  |  25: 1"
3 Type Code Blank: Standard Type (0.05~0.9 MPa)
L: Low Pressure Type (0.05~0.4 MPa)
4 Bracket Code Blank: Includes Mounting Bracket
J: Without Bracket (Standard configuration for some regions)
5 Pressure Gauge Code Blank: With Gauge
N: Without Gauge
6 Gauge Shape F: Square Gauge (Embedded)
C: Circular Gauge (External)
7 Scale Unit 1: MPa
2: psi
3: bar
8 Thread Type Blank: PT Thread
G: G Thread
T: NPT Thread
9 Check Valve (Backflow) Blank: No Check Valve
K: With Check Valve
  • Airtac GR series: pressure regulating valve - GR20008C2 Airtac GR series: pressure regulating valve - GR20008C2 - 2

    View options

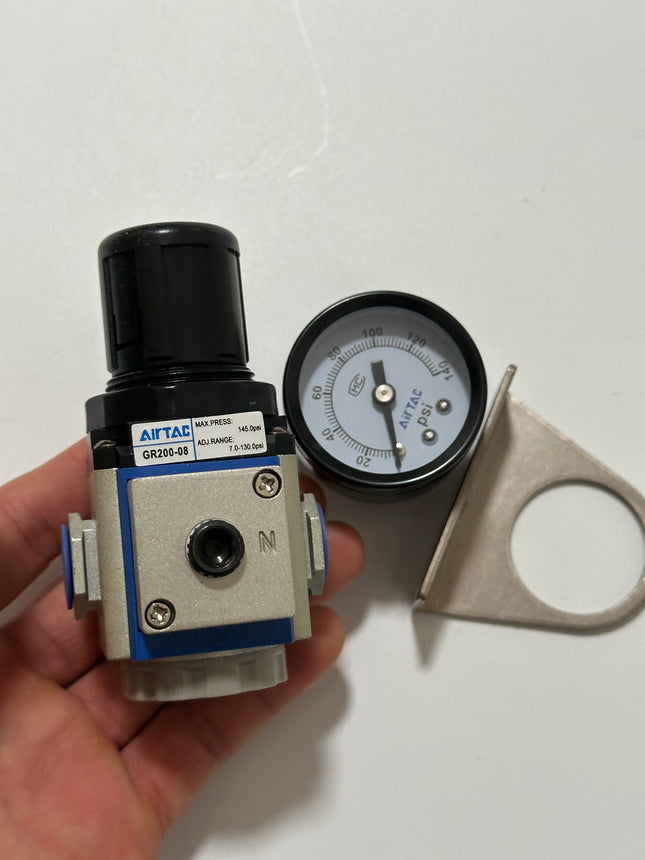

    Airtac GR series: pressure regulator - GR20008C2

    Specifications: GR20008C2 is an AirTAC pressure regulator with PT 1/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR200 G200 pressure regulator 08 PT 1/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included Blank gauge-supply code Pressure gauge included C Circular pressure gauge 2 psi pressure-gauge scale Blank thread code PT 1/4 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR20008C2 Product function pressure regulator Working medium Air Main inlet and outlet PT 1/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Circular gauge; psi Mounting bracket Included: blank bracket code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 160 g for the GR200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/4 at inlet and outlet Front horizontal references 55; 34; 47 (mm unless a thread is stated) Knob diameter Ø28 (mm unless a thread is stated) Front vertical references 89; 83; 15.5; 5.5 (mm unless a thread is stated) Side horizontal references 62; 30; 32 (mm unless a thread is stated) Mounting thread M30×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 1500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $32.74

    View options

  • Airtac GR series: pressure regulating valve - GR20006C1 Airtac GR series: pressure regulating valve - GR20006C1 - 2

    View options

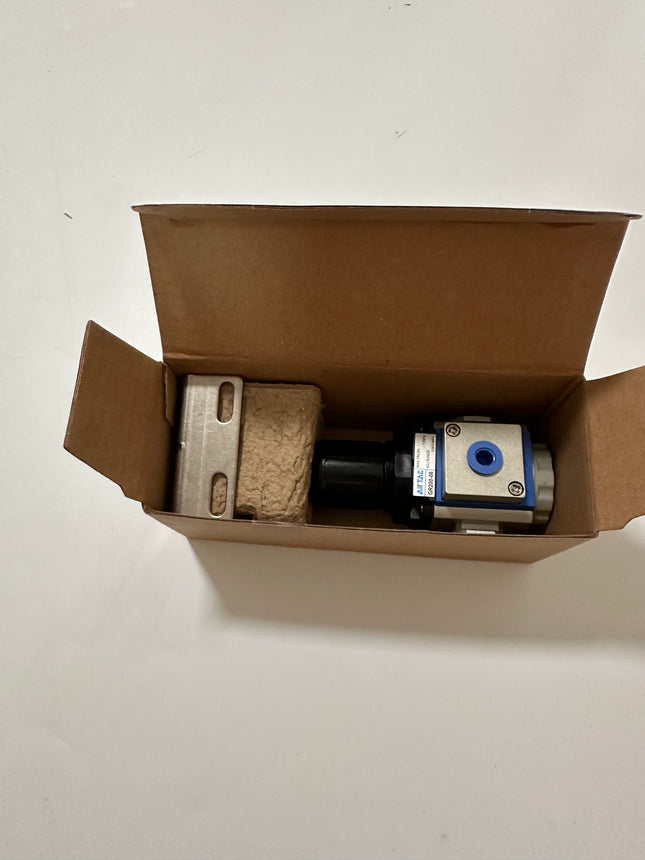

    Airtac GR series: pressure regulator - GR20006C1

    Specifications: GR20006C1 is an AirTAC pressure regulator with PT 1/8 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR200 G200 pressure regulator 06 PT 1/8 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included Blank gauge-supply code Pressure gauge included C Circular pressure gauge 1 MPa pressure-gauge scale Blank thread code PT 1/8 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR20006C1 Product function pressure regulator Working medium Air Main inlet and outlet PT 1/8 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Circular gauge; MPa Mounting bracket Included: blank bracket code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 160 g for the GR200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/8 at inlet and outlet Front horizontal references 55; 34; 47 (mm unless a thread is stated) Knob diameter Ø28 (mm unless a thread is stated) Front vertical references 89; 83; 15.5; 5.5 (mm unless a thread is stated) Side horizontal references 62; 30; 32 (mm unless a thread is stated) Mounting thread M30×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 1500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $32.74

    View options

  • Airtac GR series: pressure regulating valve - GR20008F1 Airtac GR series: pressure regulating valve - GR20008F1 - 2

    View options

    Airtac GR series: pressure regulator - GR20008F1

    Specifications: GR20008F1 is an AirTAC pressure regulator with PT 1/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR200 G200 pressure regulator 08 PT 1/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included Blank gauge-supply code Pressure gauge included F Square pressure gauge 1 MPa pressure-gauge scale Blank thread code PT 1/4 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR20008F1 Product function pressure regulator Working medium Air Main inlet and outlet PT 1/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Square gauge; MPa Mounting bracket Included: blank bracket code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 160 g for the GR200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/4 at inlet and outlet Front horizontal references 55; 34; 47 (mm unless a thread is stated) Knob diameter Ø28 (mm unless a thread is stated) Front vertical references 89; 83; 15.5; 5.5 (mm unless a thread is stated) Side horizontal references 62; 30; 32 (mm unless a thread is stated) Mounting thread M30×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 1500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $32.74

    View options

  • Airtac GR series: pressure regulating valve - GR20008F2K Airtac GR series: pressure regulating valve - GR20008F2K - 2

    View options

    Airtac GR series: pressure regulator - GR20008F2K

    Specifications: GR20008F2K is an AirTAC pressure regulator with PT 1/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR200 G200 pressure regulator 08 PT 1/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included Blank gauge-supply code Pressure gauge included F Square pressure gauge 2 psi pressure-gauge scale Blank thread code PT 1/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR20008F2K Product function pressure regulator Working medium Air Main inlet and outlet PT 1/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Square gauge; psi Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 160 g for the GR200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/4 at inlet and outlet Front horizontal references 55; 34; 47 (mm unless a thread is stated) Knob diameter Ø28 (mm unless a thread is stated) Front vertical references 89; 83; 15.5; 5.5 (mm unless a thread is stated) Side horizontal references 62; 30; 32 (mm unless a thread is stated) Mounting thread M30×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 1500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $47.68

    View options

  • Airtac GR series: pressure regulating valve - GR20008LJF3T Airtac GR series: pressure regulating valve - GR20008LJF3T - 2

    View options

    Airtac GR series: pressure regulator - GR20008LJF3T

    Specifications: GR20008LJF3T is an AirTAC pressure regulator with NPT 1/4 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR200 G200 pressure regulator 08 NPT 1/4 L Lower-pressure type, maximum adjustable pressure 0.4 MPa J No bracket Blank gauge-supply code Pressure gauge included F Square pressure gauge 3 bar pressure-gauge scale T NPT 1/4 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR20008LJF3T Product function pressure regulator Working medium Air Main inlet and outlet NPT 1/4 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Square gauge; bar Mounting bracket Not included: J code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 160 g for the GR200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1/4 at inlet and outlet Front horizontal references 55; 34; 47 (mm unless a thread is stated) Knob diameter Ø28 (mm unless a thread is stated) Front vertical references 89; 83; 15.5; 5.5 (mm unless a thread is stated) Side horizontal references 62; 30; 32 (mm unless a thread is stated) Mounting thread M30×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 1500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $31.65

    View options

  • Airtac GR series: pressure regulating valve - GR60025LJC3GK Airtac GR series: pressure regulating valve - GR40015JF2T

    View options

    Airtac GR series: pressure regulator - GR40015JF2T

    Specifications: GR40015JF2T is an AirTAC pressure regulator with NPT 1/2 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure with the pressure gauge specified below. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR400 G400 pressure regulator 15 NPT 1/2 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket Blank gauge-supply code Pressure gauge included F Square pressure gauge 2 psi pressure-gauge scale T NPT 1/2 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR40015JF2T Product function pressure regulator Working medium Air Main inlet and outlet NPT 1/2 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Square gauge; psi Mounting bracket Not included: J code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 720 g for the GR400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Supplied in the shape and scale specified above. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1/2 at inlet and outlet A 80 mm AB 72 mm AC 52 mm B 90 mm BA 50 mm BC 40 mm C 140.5 mm D M55×2.0 (mm unless a thread is stated) K 8.5 mm KA 55 mm KB 11 mm KC 53 mm P: main process connection NPT 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 7500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $55.21

    View options

  • Airtac GR series: pressure regulating valve - GR60025JNT

    View options

    Airtac GR series: pressure regulator - GR60025JNT

    Specifications: GR60025JNT is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket N No pressure gauge T NPT 1 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025JNT Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $61.24

    View options

  • Airtac GR series: pressure regulating valve - GR60020NK

    View options

    Airtac GR series: pressure regulator - GR60020NK

    Specifications: GR60020NK is an AirTAC pressure regulator with PT 3/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 PT 3/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included N No pressure gauge Blank thread code PT 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020NK Product function pressure regulator Working medium Air Main inlet and outlet PT 3/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60020LJNGK

    View options

    Airtac GR series: pressure regulator - GR60020LJNGK

    Specifications: GR60020LJNGK is an AirTAC pressure regulator with G 3/4 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 G 3/4 L Lower-pressure type, maximum adjustable pressure 0.4 MPa J No bracket N No pressure gauge G G 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020LJNGK Product function pressure regulator Working medium Air Main inlet and outlet G 3/4 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options

  • Airtac GR series: pressure regulating valve - GR60025JN

    View options

    Airtac GR series: pressure regulator - GR60025JN

    Specifications: GR60025JN is an AirTAC pressure regulator with PT 1 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 PT 1 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket N No pressure gauge Blank thread code PT 1 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025JN Product function pressure regulator Working medium Air Main inlet and outlet PT 1 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $61.24

    View options

  • Airtac GR series: pressure regulating valve - GR60025LJNT

    View options

    Airtac GR series: pressure regulator - GR60025LJNT

    Specifications: GR60025LJNT is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 L Lower-pressure type, maximum adjustable pressure 0.4 MPa J No bracket N No pressure gauge T NPT 1 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025LJNT Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $61.24

    View options

  • Airtac GR series: pressure regulating valve - GR40010LNGK

    View options

    Airtac GR series: pressure regulator - GR40010LNGK

    Specifications: GR40010LNGK is an AirTAC pressure regulator with G 3/8 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR400 G400 pressure regulator 10 G 3/8 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge G G 3/8 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR40010LNGK Product function pressure regulator Working medium Air Main inlet and outlet G 3/8 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 720 g for the GR400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston POM 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap POM 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat POM 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/8 at inlet and outlet A 80 mm AB 72 mm AC 52 mm B 90 mm BA 50 mm BC 40 mm C 140.5 mm D M55×2.0 (mm unless a thread is stated) K 8.5 mm KA 55 mm KB 11 mm KC 53 mm P: main process connection G 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 7500 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $64.12

    View options

  • Airtac GR series: pressure regulating valve - GR60020NTK

    View options

    Airtac GR series: pressure regulator - GR60020NTK

    Specifications: GR60020NTK is an AirTAC pressure regulator with NPT 3/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 NPT 3/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included N No pressure gauge T NPT 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020NTK Product function pressure regulator Working medium Air Main inlet and outlet NPT 3/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60025LNTK

    View options

    Airtac GR series: pressure regulator - GR60025LNTK

    Specifications: GR60025LNTK is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge T NPT 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025LNTK Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60025JNTK

    View options

    Airtac GR series: pressure regulator - GR60025JNTK

    Specifications: GR60025JNTK is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket N No pressure gauge T NPT 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025JNTK Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options

  • Airtac GR series: pressure regulating valve - GR60020LNK

    View options

    Airtac GR series: pressure regulator - GR60020LNK

    Specifications: GR60020LNK is an AirTAC pressure regulator with PT 3/4 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 PT 3/4 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge Blank thread code PT 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020LNK Product function pressure regulator Working medium Air Main inlet and outlet PT 3/4 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60020LNGK

    View options

    Airtac GR series: pressure regulator - GR60020LNGK

    Specifications: GR60020LNGK is an AirTAC pressure regulator with G 3/4 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 G 3/4 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge G G 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020LNGK Product function pressure regulator Working medium Air Main inlet and outlet G 3/4 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60020LNT

    View options

    Airtac GR series: pressure regulator - GR60020LNT

    Specifications: GR60020LNT is an AirTAC pressure regulator with NPT 3/4 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 NPT 3/4 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge T NPT 3/4 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020LNT Product function pressure regulator Working medium Air Main inlet and outlet NPT 3/4 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $64.12

    View options

  • Airtac GR series: pressure regulating valve - GR60025NGK

    View options

    Airtac GR series: pressure regulator - GR60025NGK

    Specifications: GR60025NGK is an AirTAC pressure regulator with G 1 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 G 1 Blank type code Standard type, maximum adjustable pressure 0.9 MPa Blank bracket code Bracket included N No pressure gauge G G 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025NGK Product function pressure regulator Working medium Air Main inlet and outlet G 1 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $79.05

    View options

  • Airtac GR series: pressure regulating valve - GR60020JNTK

    View options

    Airtac GR series: pressure regulator - GR60020JNTK

    Specifications: GR60020JNTK is an AirTAC pressure regulator with NPT 3/4 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 20 NPT 3/4 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket N No pressure gauge T NPT 3/4 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60020JNTK Product function pressure regulator Working medium Air Main inlet and outlet NPT 3/4 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/4 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options

  • Airtac GR series: pressure regulating valve - GR60025JNK

    View options

    Airtac GR series: pressure regulator - GR60025JNK

    Specifications: GR60025JNK is an AirTAC pressure regulator with PT 1 inlet and outlet connections. It provides 0.05–0.9 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 PT 1 Blank type code Standard type, maximum adjustable pressure 0.9 MPa J No bracket N No pressure gauge Blank thread code PT 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025JNK Product function pressure regulator Working medium Air Main inlet and outlet PT 1 Adjustable pressure range 0.05–0.9 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options

  • Airtac GR series: pressure regulating valve - GR60025LJNGK

    View options

    Airtac GR series: pressure regulator - GR60025LJNGK

    Specifications: GR60025LJNGK is an AirTAC pressure regulator with G 1 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 G 1 L Lower-pressure type, maximum adjustable pressure 0.4 MPa J No bracket N No pressure gauge G G 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025LJNGK Product function pressure regulator Working medium Air Main inlet and outlet G 1 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options

  • Airtac GR series: pressure regulating valve - GR60025LNT

    View options

    Airtac GR series: pressure regulator - GR60025LNT

    Specifications: GR60025LNT is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 L Lower-pressure type, maximum adjustable pressure 0.4 MPa Blank bracket code Bracket included N No pressure gauge T NPT 1 main connections Blank reverse-flow code No reverse-flow valve Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025LNT Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Included: blank bracket code Reverse-flow option Not included: blank code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $64.12

    View options

  • Airtac GR series: pressure regulating valve - GR60025LJNTK

    View options

    Airtac GR series: pressure regulator - GR60025LJNTK

    Specifications: GR60025LJNTK is an AirTAC pressure regulator with NPT 1 inlet and outlet connections. It provides 0.05–0.4 MPa adjustable pressure and is supplied without a pressure gauge. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GR600 G600 pressure regulator 25 NPT 1 L Lower-pressure type, maximum adjustable pressure 0.4 MPa J No bracket N No pressure gauge T NPT 1 main connections K Reverse-flow valve included Product Features The pressure-adjustment mechanism uses a balanced design for stable regulation and low drift. The push-in self-locking knob helps prevent accidental changes to the setting. Technical Specifications Parameter Details Current model GR60025LJNTK Product function pressure regulator Working medium Air Main inlet and outlet NPT 1 Adjustable pressure range 0.05–0.4 MPa Proof pressure 1.5 MPa Maximum inlet pressure 1.0 MPa Temperature range −20 to 70 °C Pressure gauge Not included Mounting bracket Not included: J code Reverse-flow option Included: K code Weight Reference Catalog reference weight: 1700 g for the GR600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Pressure regulator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Pressure gauge Not supplied for this N configuration; a gauge in the drawing is a dimensional reference. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Valve cap POM 2. O-ring NBR 3. Regulator body Aluminum alloy 4. Regulating piston Brass 5. O-ring NBR 6. Main diaphragm Rubber-coated SUS304 7. Fixed ring cap Aluminum alloy 8. Adjusting spindle 08A 9. Adjusting hex nut 08A 10. Pressure knob POM 11. Spring SWC 12. Adjusting seat Aluminum alloy 13. Feedback tube POM 14. Regulating plug Rubber-coated free-cutting steel 15. O-ring NBR 16. Spring Stainless steel Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 90; 66; 13 (mm unless a thread is stated) Knob diameter Ø64 (mm unless a thread is stated) Front vertical references 191.5; 73.5; 11 (mm unless a thread is stated) Side horizontal references 118; 70; 48 (mm unless a thread is stated) Mounting thread M68×1.5 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GR600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 15000 L/min and pressure labels through 0.6 MPa. Flow-graph condition Inlet pressure 0.7 MPa Pressure-characteristic graph Inlet-pressure scale 0–1.0 MPa; secondary-pressure scale 0.18–0.22 MPa, around the illustrated 0.20 MPa setting. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Gauge options Blank supply code includes a gauge; N omits it. F specifies square and C circular; scales 1/2/3 specify MPa/psi/bar. Reverse-flow option Blank omits the reverse-flow valve; K includes it. Pressure type Standard: maximum adjustable pressure 0.9 MPa; L: maximum 0.4 MPa. The lower limit depends on the current product and drain arrangement. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes The push-in lock is part of the pressure-adjustment mechanism; lock the setting after adjustment. The plotted regulation characteristic is shown around the catalog setpoint and does not replace the selected pressure-range limit. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 245–246.

    Read more

    $76.04

    View options
