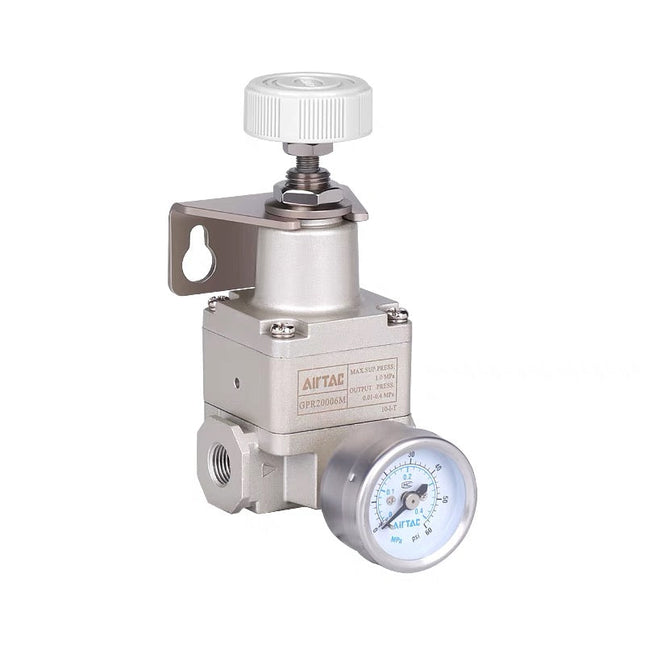

GPR Series Precision Regulator
High Responsiveness | Superior Flow Characteristics
Product Features
- High Precision: Offers a wide pressure adjustment range with exceptional responsiveness, sensitivity (within 0.2% F.S.), and repeatability (within ±0.5% F.S.).
- Excellent Characteristics: Delivers highly stable pressure and superior flow characteristics, making it ideal for delicate tension control and precision balancing applications.
- Flexible Installation: Extremely easy to install. It can be mounted independently using the included bracket, or seamlessly integrated and combined with our modular GAF series air filters.
- Multiple Configurations: Designed to accommodate various application needs; in addition to standard panel installation, specialized medium and low-pressure types are available.
Critical Application Note: Precision regulators have highly sensitive internal mechanisms. If water droplets, oil, or dust are present in the upstream air supply, it may cause immediate malfunction. A 5μm filter (like our GAF series) MUST be installed upstream. Additionally, a mist separator (our GFF series) is highly recommended for oil degreasing.
Technical Specifications
General Specifications
| Working Medium | Clean Compressed Air |
| Maximum Input Pressure | 1.0 MPa (145 psi) |
| Sensitivity | Within 0.2% F.S. (Full Scale) |
| Repeatability | Within ±0.5% F.S. (Full Scale) |
| Usable Temperature Range | -20 ~ 70°C (No freezing) |
Model Specific Parameters
| Series Model | Port Size [Note 1] |
Set Pressure Range (Low / Med / High) |
Max. Air Consumption (ANR) |
Product Weight (g) |
|---|---|---|---|---|
| GPR20006 | PT 1/8" |
Low (L): 0.005 ~ 0.2 MPa Med (M): 0.01 ~ 0.4 MPa High (H): 0.01 ~ 0.8 MPa |
≤ 4 L/min | 144 |
| GPR30008 | PT 1/4" | ≤ 4 L/min | 336 | |
| GPR40008 | PT 1/4" |
Low (L): 0.01 ~ 0.2 MPa Med (M): 0.01 ~ 0.4 MPa High (H): 0.01 ~ 0.8 MPa |
≤ 9.5 L/min | 717 |
| GPR40010 | PT 3/8" | |||
| GPR40015 | PT 1/2" | ≤ 11.5 L/min |
[Note 1] PT threads are standard. G and NPT thread types are available upon request.
Product Ordering Code
Example: GPR300 08 M J N T
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
GPR200: 200 Series Precision Regulator GPR300: 300 Series Precision Regulator GPR400: 400 Series Precision Regulator |
| 2 | Port Size | 06: 1/8" | 08: 1/4" | 10: 3/8" | 15: 1/2" |
| 3 | Set Pressure Range |
L: Low Pressure Type (0.005/0.01 ~ 0.2 MPa) M: Medium Pressure Type (0.01 ~ 0.4 MPa) H: High Pressure Type (0.01 ~ 0.8 MPa) |
| 4 | Bracket Code |
Blank: Includes Mounting Bracket J: Without Bracket |
| 5 | Pressure Gauge Code |
Blank: Includes Pressure Gauge N: Without Pressure Gauge |
| 6 | Thread Code |
Blank: PT Thread (Scale: MPa/psi) G: G Thread (Scale: bar/MPa) T: NPT Thread (Scale: psi/bar) |
