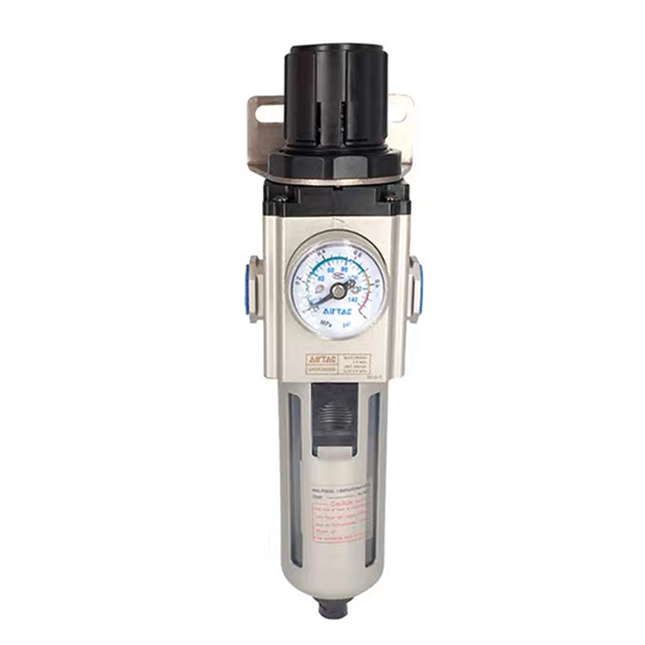

Precision Filter Regulator Product Information

Precision Filter Regulator

Product Features
Specifications
Product Ordering Code

Product Features

The mounting bracket is interchangeable with the clasp, saving installation space. The dial is multifunctional, allowing for clear and precise readings.
It features a self-locking pressure mechanism, which prevents pressure changes due to external interference.
The pressure regulation knob uses a gentle-slope design, making pressure adjustment smoother and the feel better.
In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).
The unique diversion structure causes the airflow to rotate, which effectively separates the liquid from the gas and reliably filters solid particles.
Filtration precision options include 0.3μm and 0.01μm.
Three drain types are available: semi-automatic & manual, and automatic.
Bowl material options are PC, metal, or nylon, which can satisfy the needs of different environments.
A variety of mounting brackets are available for selection.

Specifications

Model		GPFR200-06	GPFR200-08	GPFR300-08	GPFR300-10	GPFR400-10	GPFR400-15
Working Medium		Air
Port Size [Note 1]		PT1/8	PT1/4	PT1/4	PT3/8	PT3/8	PT1/2
Filter Precision		0.3μm or 0.01μm
Pressure Regulation Range		0.15–0.9MPa (20–130psi)
Max Operating Pressure		1.0MPa (145Psi)
Proof Pressure		1.5MPa (215Psi)
Operating Temperature Range		-5–70°C (No freezing)
Rated Flow [Note 2]	M Type	150L/min		330L/min		820L/min
Rated Flow [Note 2]	D Type	90L/min		180L/min		450L/min
Water Bowl Capacity		25CC		60CC		100CC
Weight		310g		500g		910g

Note 1: G and NPT thread types are available.
Note 2: Inlet pressure: 0.7MPa, outlet pressure: 0.5MPa. The rated flow rate changes with the inlet pressure. When the rated flow rate exceeds the above values, the oil mist will flow out to the secondary side. Please take note.

Product Ordering Code

Position	Description	Options & Values
1	Series Code	GPFR200: GP200 Series GPFR300: GP300 Series GPFR400: GP400 Series
2	Body Material	Blank: PC Bowl C: Metal Bowl N: Nylon Bowl
3	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
4	Drain Type	Blank: Semi-automatic + Manual Drain A: Automatic Drain
5	Model Type	S: Standard L: Low Pressure Type [Note 1]
6	Bracket Code	Blank: With Bracket J: Without Bracket
7	Pressure Gauge	Blank: With Round Pressure Gauge N: Without Pressure Gauge
8	Filter Precision	M: 0.3μm D: 0.01μm
9	Thread Code	Blank: PT thread (MPa/psi) G: G thread (bar/MPa) T: NPT thread (psi/bar)

Note 1: The adjustable range for the low-pressure model is 0.4MPa (58psi).
