GL Series Lubricator

Linear Oil Distribution | Non-stop Refilling | Low Mist Flow

Product Features
Specifications
Ordering Code

Product Features

Stable Adjustment: The specialized drip nozzle structure adopts a precise gap seal form, ensuring oil adjustment is significantly more stable, reliable, and consistent.
Linear Oil Distribution: The intuitive oil adjustment ring requires only a single turn from fully closed to fully open, providing a highly linear distribution of oil quantity. Users can easily and roughly calculate the oil supply volume based purely on the scale position.
Low Mist Flow Rate: Engineered with a unique drip nozzle structure that effectively creates negative pressure at the oil outlet, ensuring reliable oil misting even at low minimum flow rates.
Non-stop Refilling: Features a high-convenience design allowing users to refill the oil bowl safely without needing to stop or depressurize the main air supply (Gas non-stop refilling). It also boasts a generously sized oil bowl capacity.
Flexible Installation: Can be seamlessly installed directly into the pneumatic line or securely surface-mounted using the optional dedicated fixing bracket.

Technical Specifications

General Specifications

Working Medium	Compressed Air
Operating Pressure Range	0.05 ~ 1.0 MPa (7 ~ 145 psi)
Proof Pressure	1.5 MPa (215 psi)
Operating Temperature Range	-5 ~ 70°C (No freezing)
Recommended Lubricating Oil	ISO VG 32 or equivalent turbine oil

Model Specific Parameters

Series Model	Port Size [Note]	Oil Bowl Capacity (CC)	Weight (g)
GL200	PT 1/8", PT 1/4"	25	130
GL300	PT 1/4", PT 3/8", PT 1/2"	75	360
GL400	PT 3/8", PT 1/2"	160	670
GL600	PT 3/4", PT 1"	380	1300

[Note] PT threads are standard. G and NPT thread types are available upon request.

Product Ordering Code

Example: GL200 08 J G

No.	Item	Options & Description
1	Series Code	GL200 / GL300 / GL400 / GL600
2	Port Size	06: 1/8" \| 08: 1/4" \| 10: 3/8" 15: 1/2" \| 20: 3/4" \| 25: 1"
3	Bracket Code	Blank: Includes Mounting Bracket J: Without Bracket (Standard for certain configurations)
4	Thread Type	Blank: PT Thread G: G Thread T: NPT Thread

View options

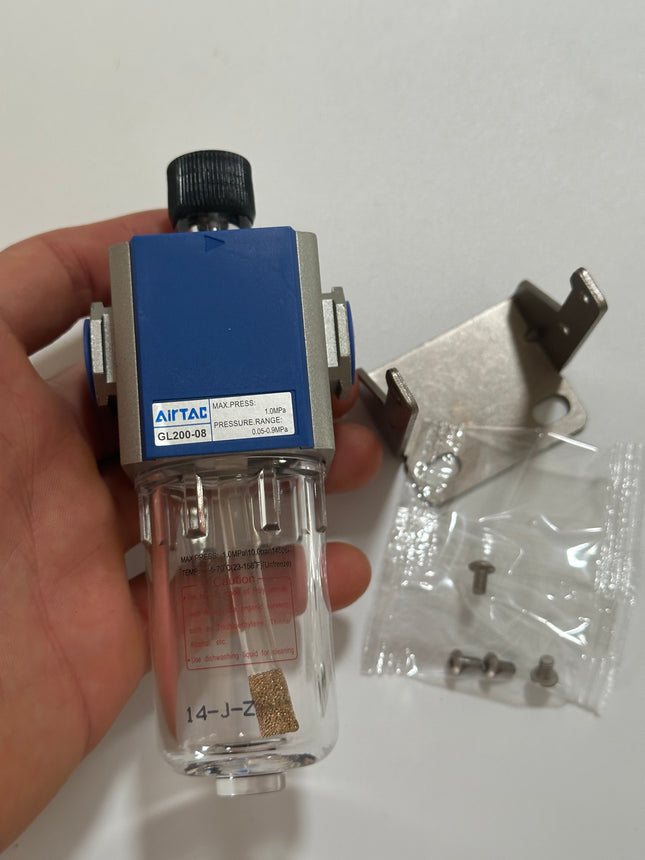

Airtac GL series: air lubricator - GL20008

Specifications: GL20008 is an AirTAC lubricator with PT 1/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL200 G200 lubricator 08 PT 1/4 Blank bracket code Bracket included Blank thread code PT 1/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL20008 Product function lubricator Working medium Air Main inlet and outlet PT 1/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 25 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material PC Weight Reference Catalog reference weight: 130 g for the GL200 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/4 at inlet and outlet Front horizontal references 47; 27; 8.4 (mm unless a thread is stated) Front vertical references 119; 80; 23; 5.5 (mm unless a thread is stated) Side horizontal references 50; 30; 40 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL200 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 3500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$22.33

View options
View options

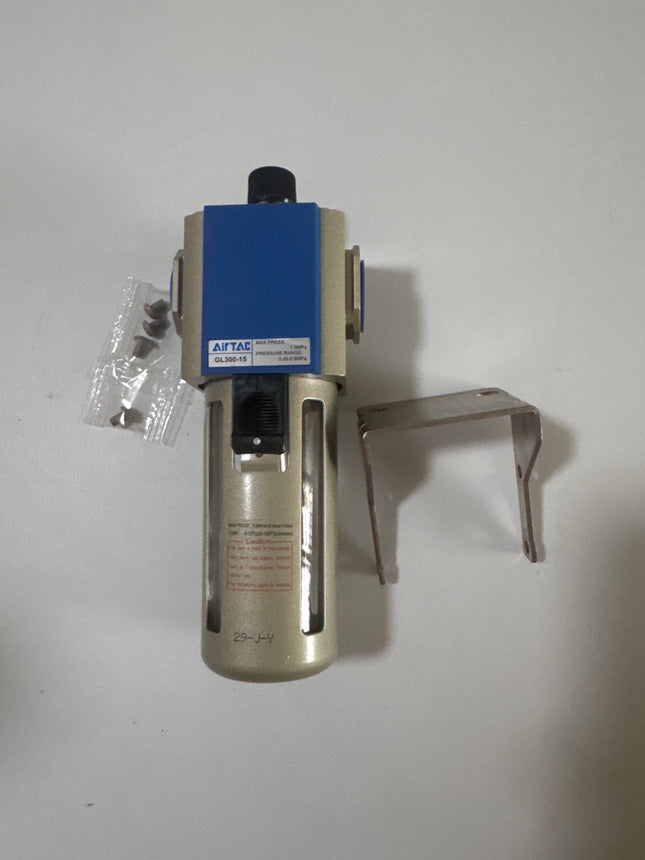

Airtac GL series: air lubricator - GL30015

Specifications: GL30015 is an AirTAC lubricator with PT 1/2 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL300 G300 lubricator 15 PT 1/2 Blank bracket code Bracket included Blank thread code PT 1/2 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL30015 Product function lubricator Working medium Air Main inlet and outlet PT 1/2 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 75 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material PC Weight Reference Catalog reference weight: 360 g for the GL300 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/2 at inlet and outlet A 60 mm B 68 mm BA 41 mm BC 53.5 mm C 169 mm K 6.5 mm KA 40 mm KB 8 mm KC 27 mm PA 125 mm P: main process connection PT 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL300 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 6000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$29.73

View options
View options

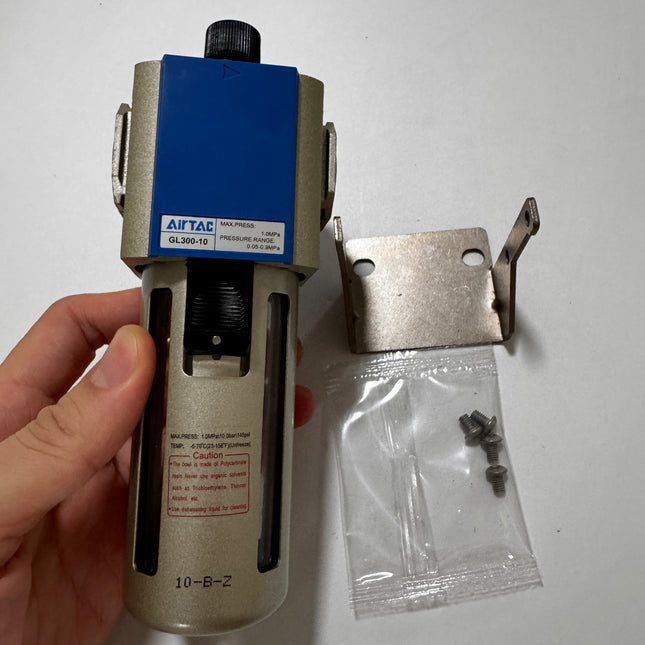

Airtac GL series: air lubricator - GL30010

Specifications: GL30010 is an AirTAC lubricator with PT 3/8 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL300 G300 lubricator 10 PT 3/8 Blank bracket code Bracket included Blank thread code PT 3/8 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL30010 Product function lubricator Working medium Air Main inlet and outlet PT 3/8 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 75 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material PC Weight Reference Catalog reference weight: 360 g for the GL300 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/8 at inlet and outlet A 60 mm B 68 mm BA 41 mm BC 53.5 mm C 169 mm K 6.5 mm KA 40 mm KB 8 mm KC 27 mm PA 125 mm P: main process connection PT 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL300 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 6000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$29.73

View options
View options

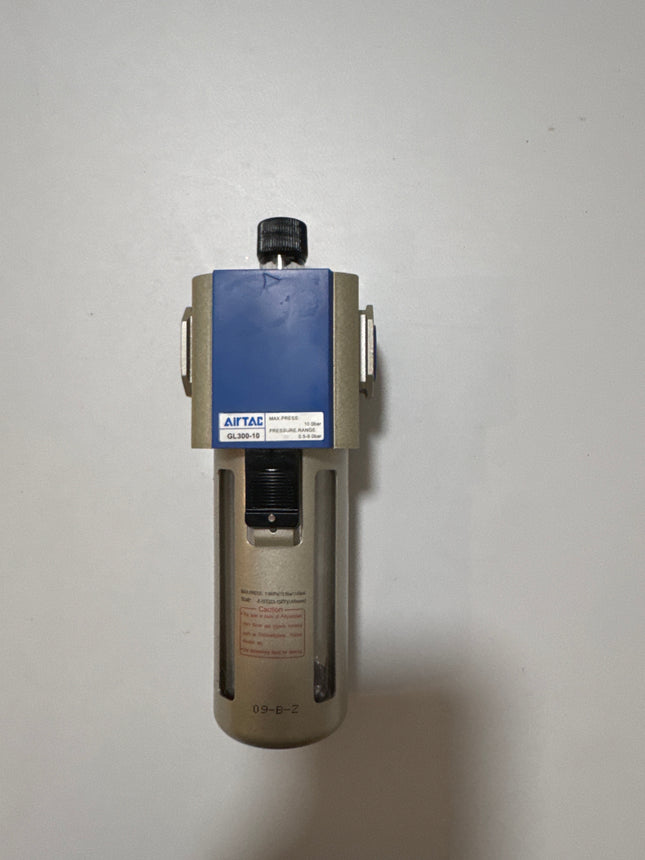

Airtac GL series: air lubricator - GL30010JG

Specifications: GL30010JG is an AirTAC lubricator with G 3/8 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL300 G300 lubricator 10 G 3/8 J No bracket G G 3/8 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL30010JG Product function lubricator Working medium Air Main inlet and outlet G 3/8 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 75 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 360 g for the GL300 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/8 at inlet and outlet A 60 mm B 68 mm BA 41 mm BC 53.5 mm C 169 mm K 6.5 mm KA 40 mm KB 8 mm KC 27 mm PA 125 mm P: main process connection G 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL300 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 6000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$28.36

View options
View options

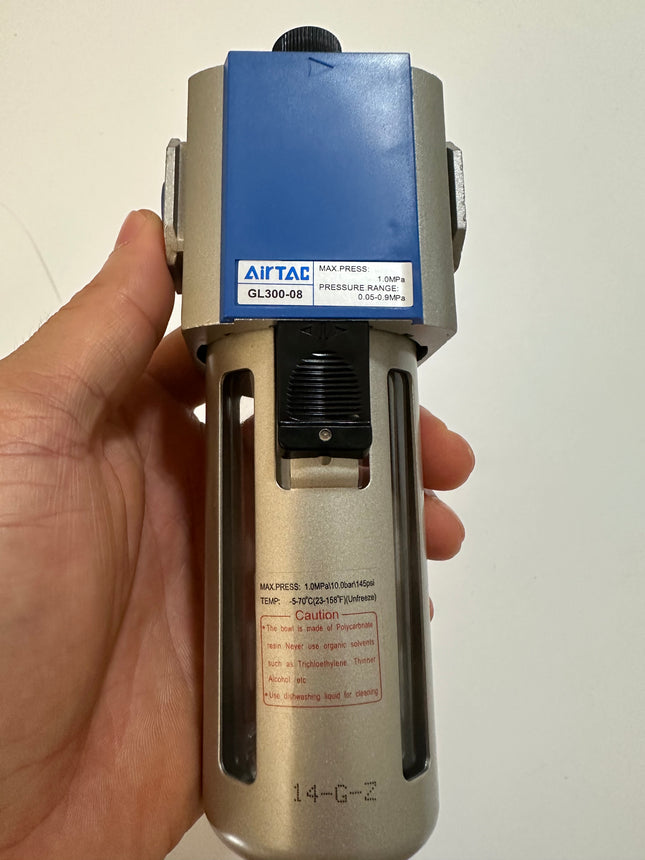

Airtac GL series: air lubricator - GL30008J

Specifications: GL30008J is an AirTAC lubricator with PT 1/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL300 G300 lubricator 08 PT 1/4 J No bracket Blank thread code PT 1/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL30008J Product function lubricator Working medium Air Main inlet and outlet PT 1/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 75 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 360 g for the GL300 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/4 at inlet and outlet A 60 mm B 68 mm BA 41 mm BC 53.5 mm C 169 mm K 6.5 mm KA 40 mm KB 8 mm KC 27 mm PA 125 mm P: main process connection PT 1/4 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL300 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 6000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$28.36

View options
View options

Airtac GL series: air lubricator - GL60025JT

Specifications: GL60025JT is an AirTAC lubricator with NPT 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 NPT 1 J No bracket T NPT 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025JT Product function lubricator Working medium Air Main inlet and outlet NPT 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60025JG

Specifications: GL60025JG is an AirTAC lubricator with G 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 G 1 J No bracket G G 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025JG Product function lubricator Working medium Air Main inlet and outlet G 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60025J

Specifications: GL60025J is an AirTAC lubricator with PT 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 PT 1 J No bracket Blank thread code PT 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025J Product function lubricator Working medium Air Main inlet and outlet PT 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60020JT

Specifications: GL60020JT is an AirTAC lubricator with NPT 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 NPT 3/4 J No bracket T NPT 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020JT Product function lubricator Working medium Air Main inlet and outlet NPT 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60020JG

Specifications: GL60020JG is an AirTAC lubricator with G 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 G 3/4 J No bracket G G 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020JG Product function lubricator Working medium Air Main inlet and outlet G 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60020J

Specifications: GL60020J is an AirTAC lubricator with PT 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 PT 3/4 J No bracket Blank thread code PT 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020J Product function lubricator Working medium Air Main inlet and outlet PT 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$67.13

View options
View options

Airtac GL series: air lubricator - GL60025T

Specifications: GL60025T is an AirTAC lubricator with NPT 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 NPT 1 Blank bracket code Bracket included T NPT 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025T Product function lubricator Working medium Air Main inlet and outlet NPT 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL60025G

Specifications: GL60025G is an AirTAC lubricator with G 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 G 1 Blank bracket code Bracket included G G 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025G Product function lubricator Working medium Air Main inlet and outlet G 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL60025

Specifications: GL60025 is an AirTAC lubricator with PT 1 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 25 PT 1 Blank bracket code Bracket included Blank thread code PT 1 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60025 Product function lubricator Working medium Air Main inlet and outlet PT 1 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL60020T

Specifications: GL60020T is an AirTAC lubricator with NPT 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 NPT 3/4 Blank bracket code Bracket included T NPT 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020T Product function lubricator Working medium Air Main inlet and outlet NPT 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL60020G

Specifications: GL60020G is an AirTAC lubricator with G 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 G 3/4 Blank bracket code Bracket included G G 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020G Product function lubricator Working medium Air Main inlet and outlet G 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL60020

Specifications: GL60020 is an AirTAC lubricator with PT 3/4 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL600 G600 lubricator 20 PT 3/4 Blank bracket code Bracket included Blank thread code PT 3/4 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL60020 Product function lubricator Working medium Air Main inlet and outlet PT 3/4 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 380 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material Aluminum alloy for the 600 body size Weight Reference Catalog reference weight: 1300 g for the GL600 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl Aluminum alloy 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM 20. Level-indicator guard SPCC 21. Level-indicator seal NBR 22. Level-indicator inner cover PC Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/4 at inlet and outlet Front horizontal references 99; 66; 13 (mm unless a thread is stated) Front vertical references 256; 194.5; 50; 11 (mm unless a thread is stated) Side horizontal references 114.5; 70; 89 (mm unless a thread is stated) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL600 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 12500 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$71.65

View options
View options

Airtac GL series: air lubricator - GL40015JT

Specifications: GL40015JT is an AirTAC lubricator with NPT 1/2 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 15 NPT 1/2 J No bracket T NPT 1/2 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40015JT Product function lubricator Working medium Air Main inlet and outlet NPT 1/2 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1/2 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection NPT 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40015JG

Specifications: GL40015JG is an AirTAC lubricator with G 1/2 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 15 G 1/2 J No bracket G G 1/2 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40015JG Product function lubricator Working medium Air Main inlet and outlet G 1/2 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 1/2 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection G 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40015J

Specifications: GL40015J is an AirTAC lubricator with PT 1/2 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 15 PT 1/2 J No bracket Blank thread code PT 1/2 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40015J Product function lubricator Working medium Air Main inlet and outlet PT 1/2 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 1/2 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection PT 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40010JT

Specifications: GL40010JT is an AirTAC lubricator with NPT 3/8 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 10 NPT 3/8 J No bracket T NPT 3/8 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40010JT Product function lubricator Working medium Air Main inlet and outlet NPT 3/8 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 3/8 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection NPT 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40010JG

Specifications: GL40010JG is an AirTAC lubricator with G 3/8 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 10 G 3/8 J No bracket G G 3/8 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40010JG Product function lubricator Working medium Air Main inlet and outlet G 3/8 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection G 3/8 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection G 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40010J

Specifications: GL40010J is an AirTAC lubricator with PT 3/8 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 10 PT 3/8 J No bracket Blank thread code PT 3/8 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40010J Product function lubricator Working medium Air Main inlet and outlet PT 3/8 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Not included: J code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Not supplied for this J configuration; the illustrated bracket is optional reference geometry. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection PT 3/8 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection PT 3/8 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$40.28

View options
View options

Airtac GL series: air lubricator - GL40015T

Specifications: GL40015T is an AirTAC lubricator with NPT 1/2 inlet and outlet connections. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Product GL400 G400 lubricator 15 NPT 1/2 Blank bracket code Bracket included T NPT 1/2 main connections Product Features The oil-drip structure uses a clearance seal for stable oil adjustment. The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position. The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation. The catalog permits replenishing oil without interrupting the air supply. Technical Specifications Parameter Details Current model GL40015T Product function lubricator Working medium Air Main inlet and outlet NPT 1/2 Operating pressure range 0.05–1.0 MPa Proof pressure 1.5 MPa Temperature range −5 to 70 °C, non-freezing Oil-bowl capacity 160 cc Recommended lubricant ISO VG32 or equivalent Mounting bracket Included: blank bracket code Bowl material PC Weight Reference Catalog reference weight: 670 g for the GL400 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight. Included Configuration and Compatible Connections Parameter Details Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set. Mounting bracket Supplied under the blank bracket option. Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities. Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family. Internal Construction and Materials The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities. Drawing Reference Component / Material 1. Oil bowl PC 2. Spring Stainless steel 3. O-ring NBR 4. Lubricator body Aluminum alloy 5. Steel ball Stainless steel 6. Separator TPU 7. O-ring NBR 8. O-ring NBR 9. Scale dial POM 10. Drip tube PC 11. Oil-filling needle Brass 12. Set screw Medium-carbon steel or low-alloy steel 13. Adjusting ring POM 14. O-ring NBR 15. Adjustment sight dome PC 16. Injector body POM 17. O-ring NBR 18. O-ring NBR 19. Injector bottom cover POM Dimensions and Mounting Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code. Parameter Details Main connection NPT 1/2 at inlet and outlet A 80 mm B 85.5 mm BA 50 mm BC 71 mm C 190 mm K 8.5 mm KA 55 mm KB 11 mm KC 33.5 mm PA 142 mm P: main process connection NPT 1/2 For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Pressure and Flow Characteristics Parameter Details Applicable graph GL400 Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 10000 L/min and pressure labels through 0.6 MPa. Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF. Other Series Ordering Choices These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts. Parameter Details Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch. Thread choices Blank: PT; G: G thread; T: NPT. Bracket supply J means no bracket; blank means bracket supplied. Installation and Catalog Notes Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product. Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition. Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.

Read more less

$41.79

View options

You have seen 24 out of 54 products

Show more products
