Airtac GL series: air lubricator - GL30010

Photos are for reference only. Not all models have pictures.

Description

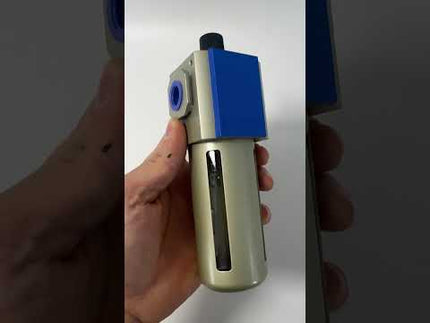

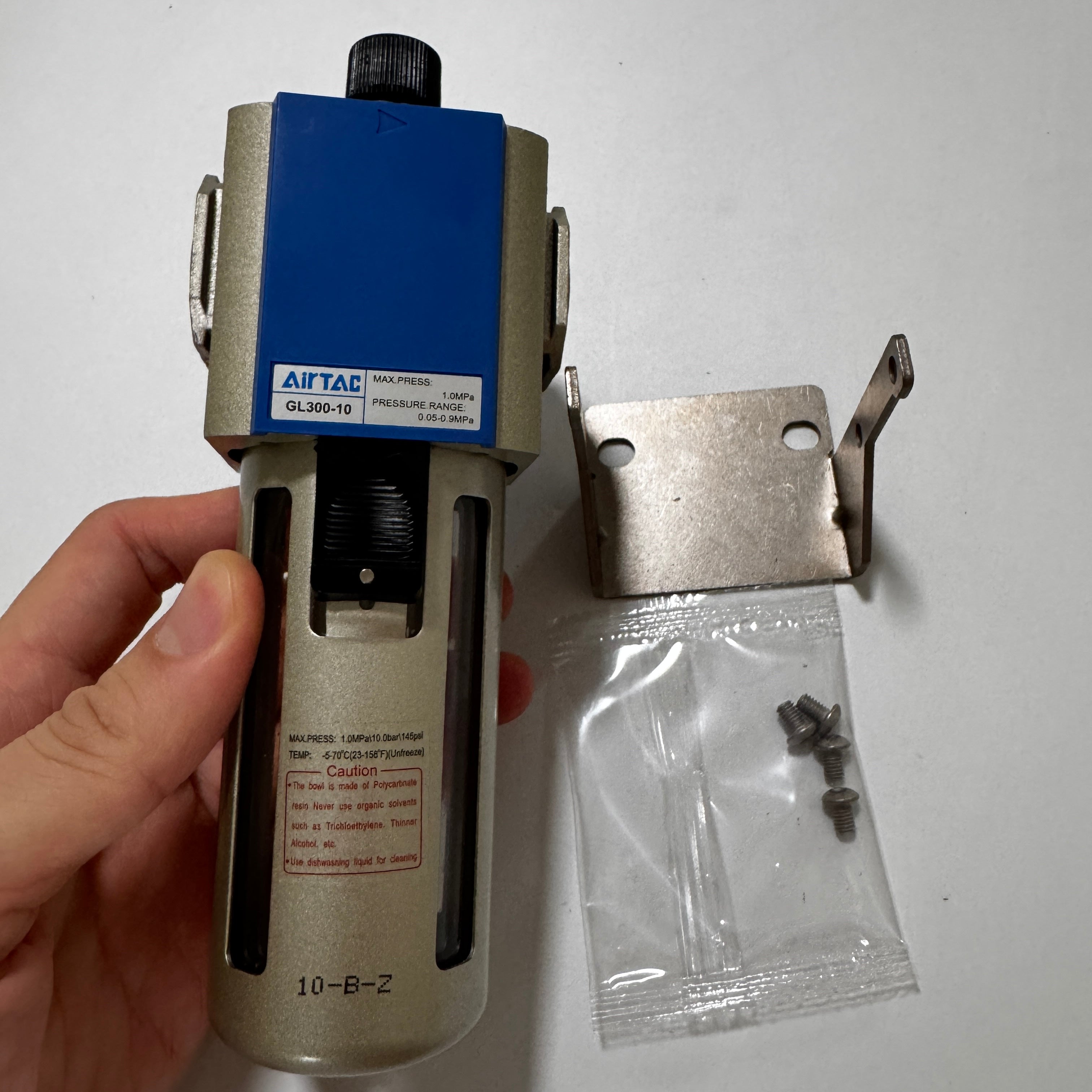

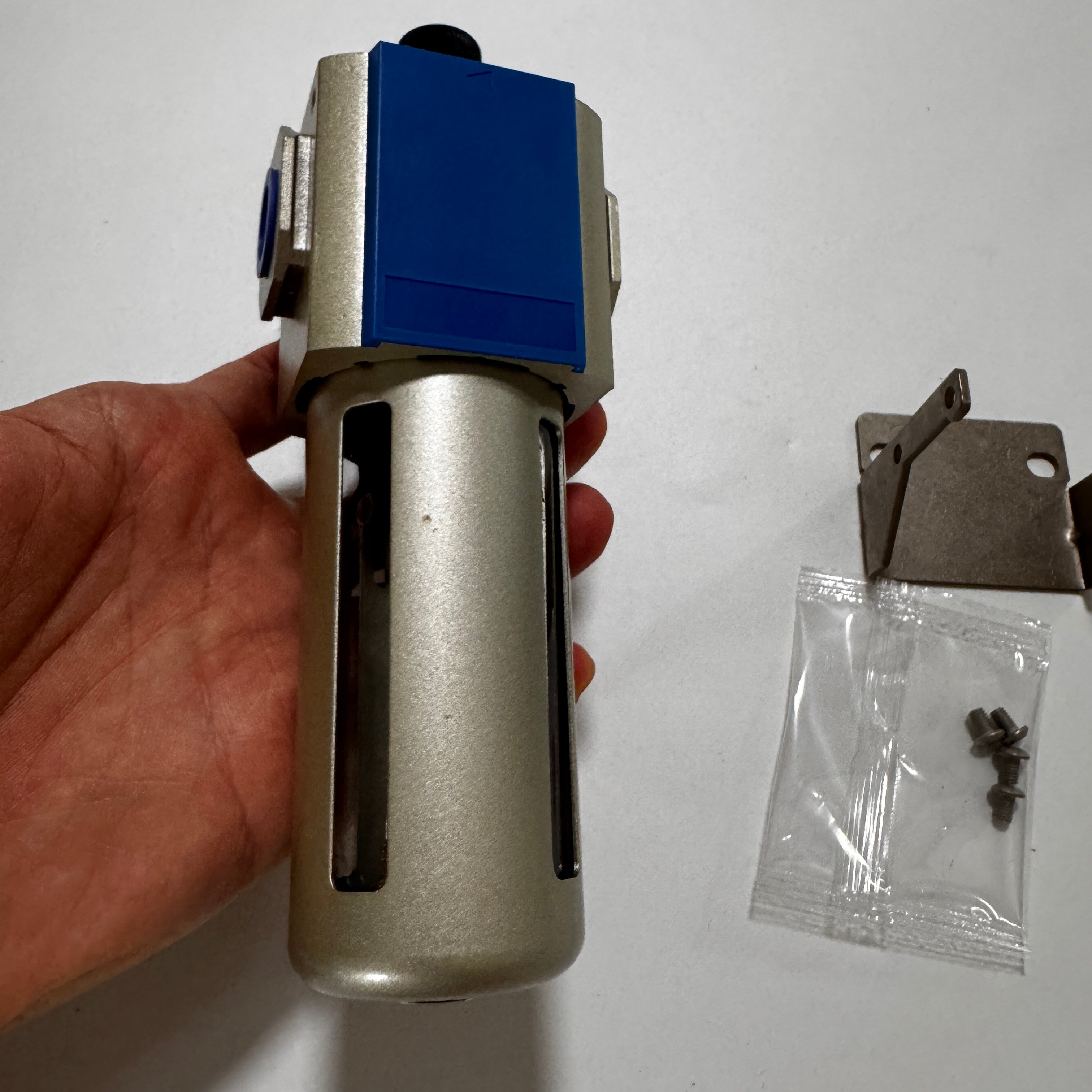

Specifications: GL30010 is an AirTAC lubricator with PT 3/8 inlet and outlet connections.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning for This Product
GL300 G300 lubricator
10 PT 3/8
Blank bracket code Bracket included
Blank thread code PT 3/8 main connections

Product Features

  • The oil-drip structure uses a clearance seal for stable oil adjustment.

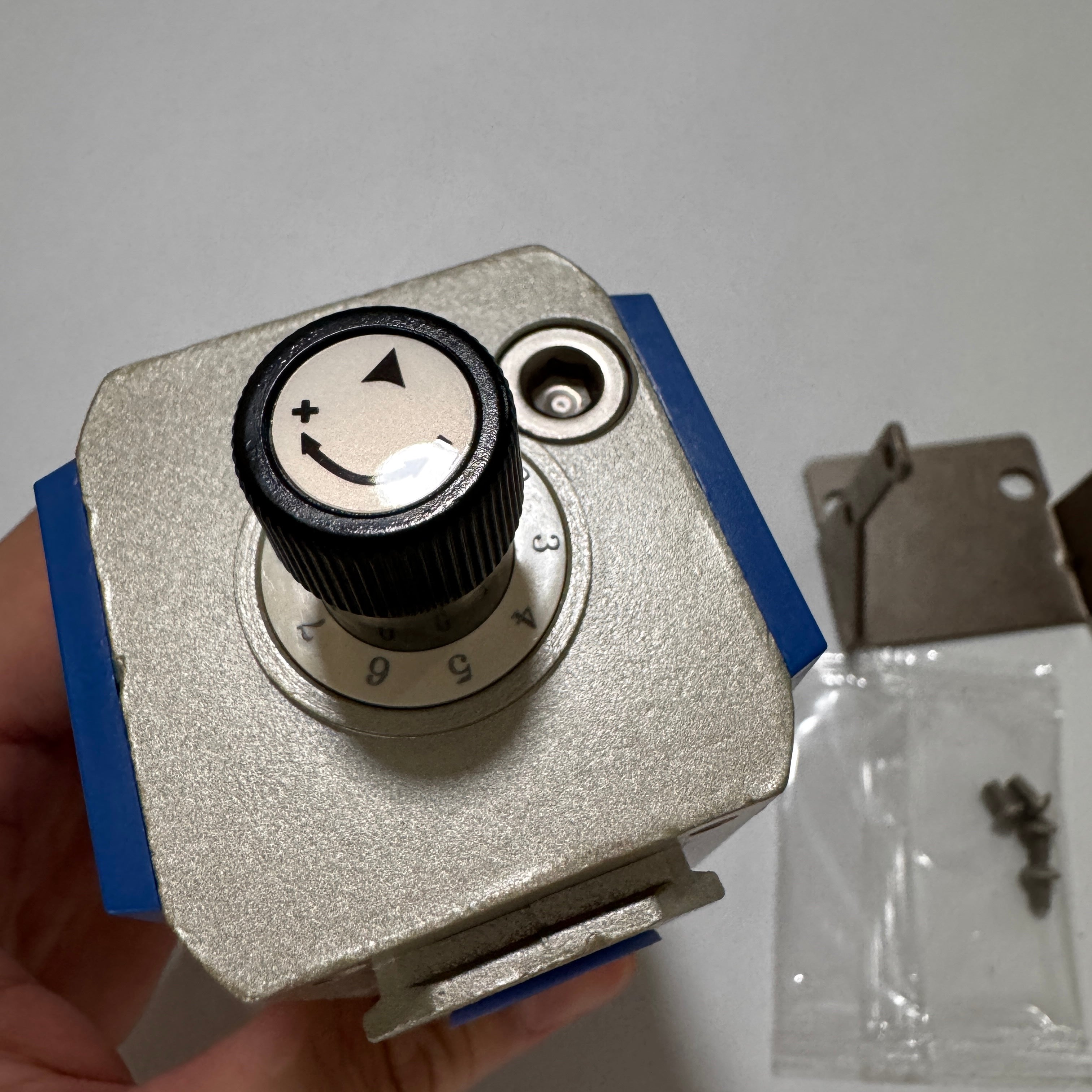

  • The adjusting ring turns through one revolution; oil delivery changes approximately linearly with ring position.
  • The special drip-nozzle structure creates negative pressure at the outlet and supports a low starting flow for mist formation.
  • The catalog permits replenishing oil without interrupting the air supply.

Technical Specifications

Parameter Details
Current model GL30010
Product function lubricator
Working medium Air
Main inlet and outlet PT 3/8

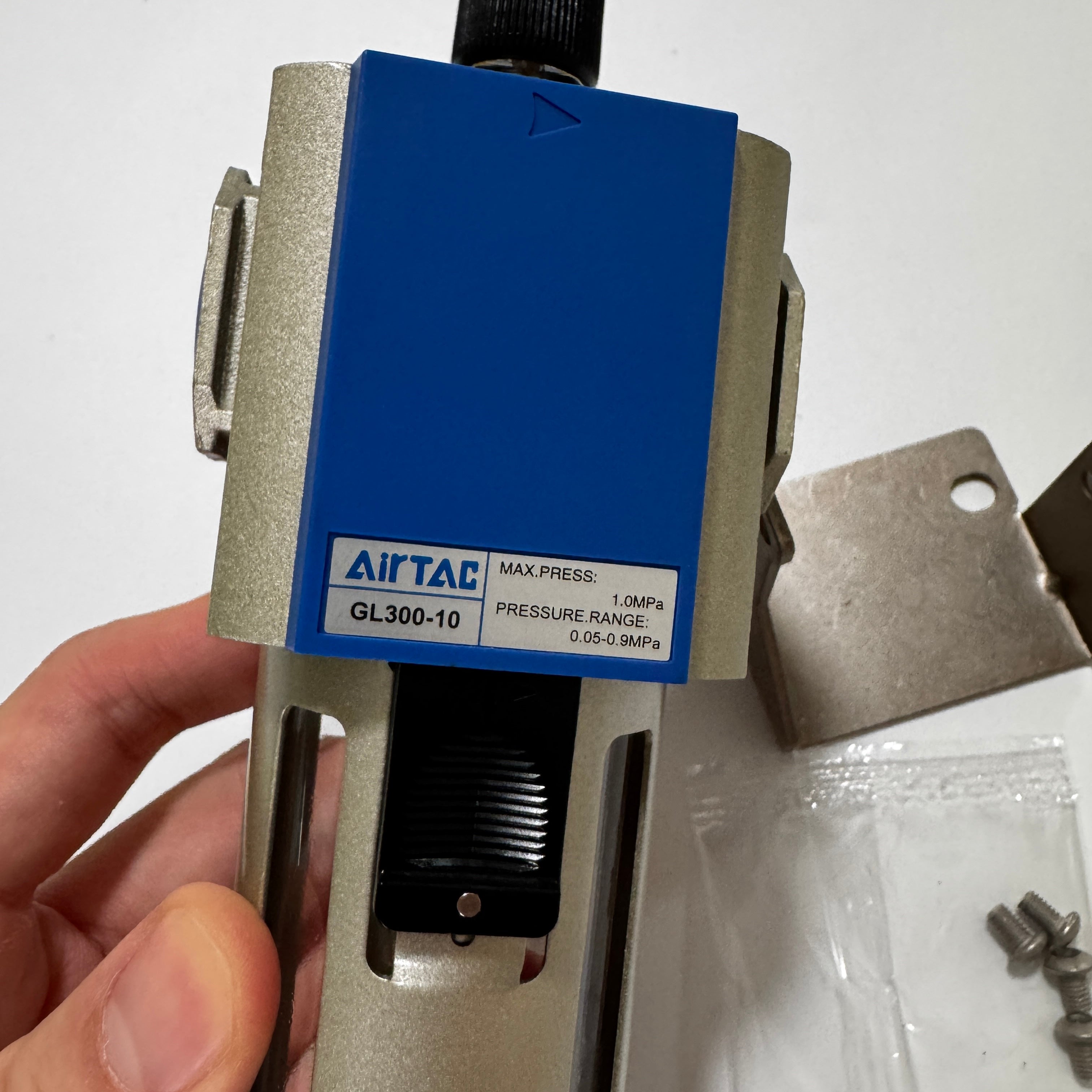

Operating pressure range 0.05–1.0 MPa
Proof pressure 1.5 MPa
Temperature range −5 to 70 °C, non-freezing
Oil-bowl capacity 75 cc
Recommended lubricant ISO VG32 or equivalent
Mounting bracket Included: blank bracket code

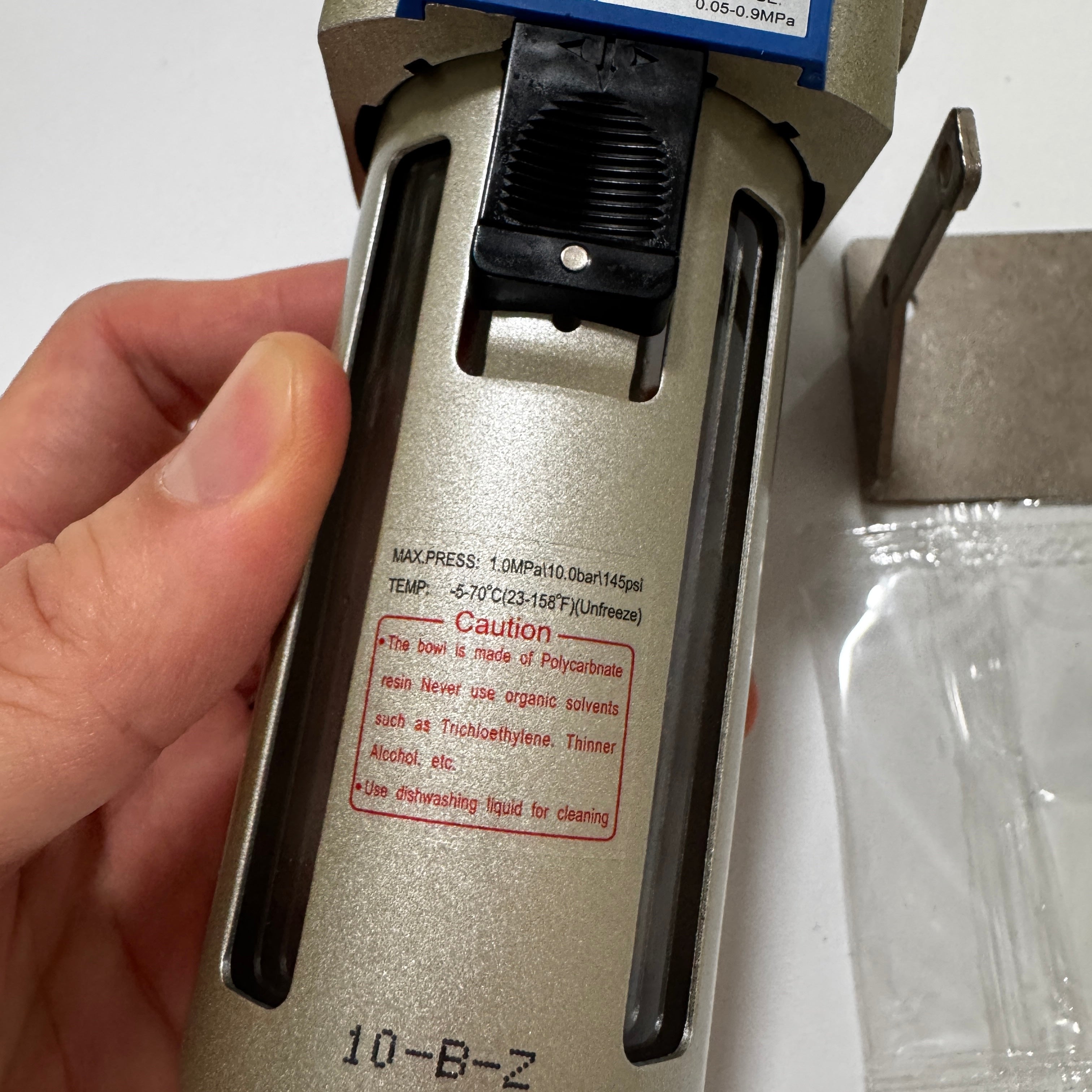

Bowl material PC

Weight Reference

Catalog reference weight: 360 g for the GL300 body family. The catalog does not assign a separate weight to every gauge, bracket, drain or thread option. Actual weight is subject to the supplied product; this is not an individual weighing or a packed shipping weight.

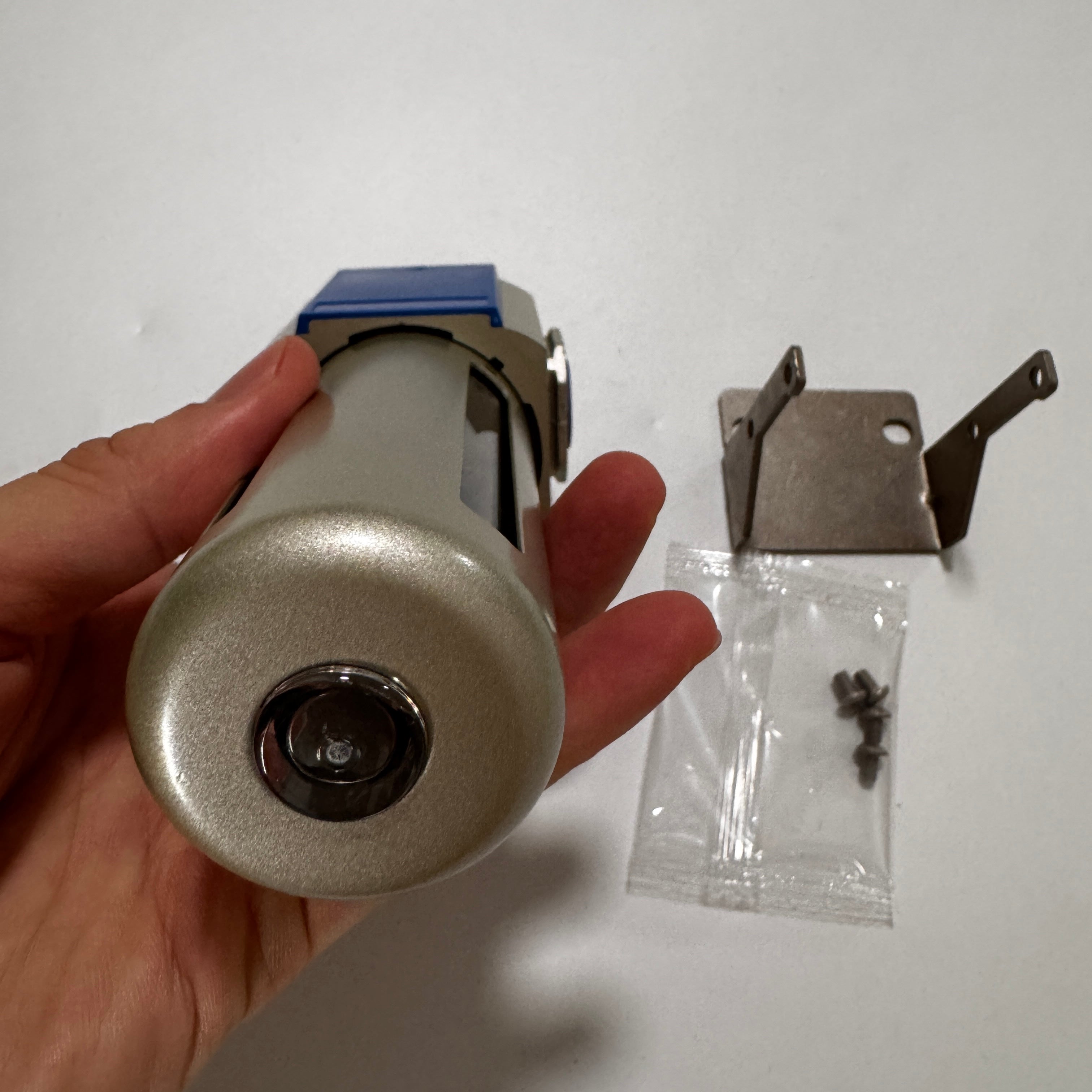

Included Configuration and Compatible Connections

Parameter Details
Supplied functional product Lubricator. This listing does not include a separate lubricator or a multi-unit air-preparation set.
Mounting bracket Supplied under the blank bracket option.
Replacement bowl, filter and service parts Use parts explicitly selected for this body family, size, bowl material and drain type. The construction numbers identify internal parts; they do not establish standalone ordering codes, service-kit contents or package quantities.
Application connection Match the inlet and outlet thread standard and nominal size to the pneumatic circuit. The catalog does not restrict this air-preparation product to one named directional-valve or cylinder family.

Internal Construction and Materials

The following numbered references follow the catalog construction drawing. They identify components, not separately supplied spare-part quantities.

Drawing Reference Component / Material
1. Oil bowl PC
2. Spring Stainless steel
3. O-ring NBR
4. Lubricator body Aluminum alloy
5. Steel ball Stainless steel
6. Separator TPU
7. O-ring NBR
8. O-ring NBR
9. Scale dial POM
10. Drip tube PC
11. Oil-filling needle Brass
12. Set screw Medium-carbon steel or low-alloy steel
13. Adjusting ring POM
14. O-ring NBR
15. Adjustment sight dome PC
16. Injector body POM
17. O-ring NBR
18. O-ring NBR
19. Injector bottom cover POM

Dimensions and Mounting

Drawing dimensions are in millimeters unless a thread or another unit is stated. Each local callout retains its original view and datum; separate values must not be added to create an unpublished overall size. Gauge and bracket geometry is shown only as reference when those items are omitted by the current code.

Parameter Details
Main connection PT 3/8 at inlet and outlet
A 60 mm
B 68 mm
BA 41 mm
BC 53.5 mm
C 169 mm
K 6.5 mm
KA 40 mm
KB 8 mm
KC 27 mm
PA 125 mm
P: main process connection PT 3/8

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Pressure and Flow Characteristics

Parameter Details
Applicable graph GL300
Flow graph Flow in L/min versus secondary/outlet pressure in MPa; printed flow labels extend through 6000 L/min and pressure labels through 0.6 MPa.
Reading the curves The graph axes and endpoints are plotting references, not rated flow claims. Read the actual curve at the required operating condition in the PDF.

Other Series Ordering Choices

These are catalog alternatives. They do not change the selected configuration identified above and are not additional supplied parts.

Parameter Details
Body and port choices 200: 1/8 and 1/4 inch; 300: 1/4, 3/8 and 1/2 inch; 400: 3/8 and 1/2 inch; 600: 3/4 and 1 inch.
Thread choices Blank: PT; G: G thread; T: NPT.
Bracket supply J means no bracket; blank means bracket supplied.

Installation and Catalog Notes

  • Use ISO VG32 or an equivalent lubricant, as stated in the catalog. The oil-bowl capacity above is a capacity specification, not a stated quantity of oil supplied with the product.
  • Select fittings, gauges and replacement parts for the stated version and interfaces. A matching nominal port size alone does not establish interchangeability with a different body series or catalog edition.

Source: the linked G Series catalog, PDF pages 1–2, printed pages 247–248.
