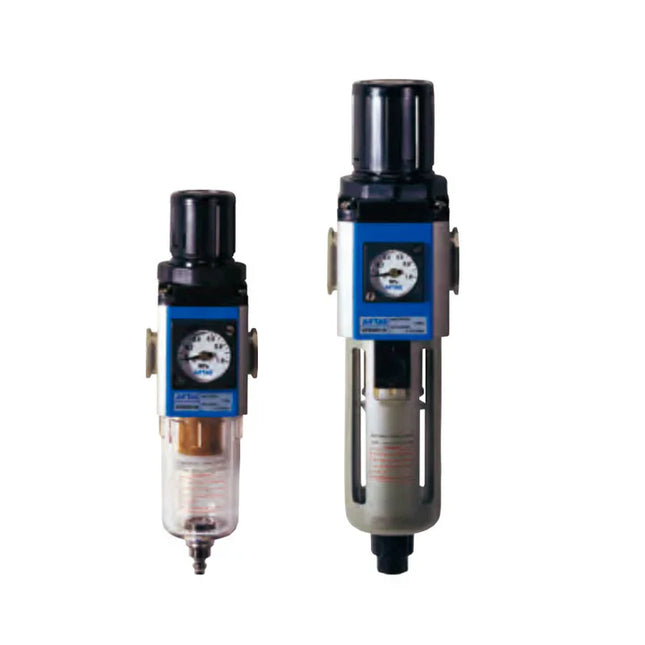

GFR Series Filter Regulator
Product Features
- Embedded Gauge: Features an embedded square pressure gauge to save installation space (external round gauge is optional). Easy to read scale.
- Self-locking Mechanism: The press-in self-locking mechanism prevents the set pressure from being changed by external interference.
- Balanced Design: The pressure adjustment mechanism adopts a balanced design for stable regulation, small drift, and good pressure characteristics.
- Low Pressure Option: In addition to the standard type, a low-pressure type is available (Max. adjustable pressure 0.4MPa).
- Unique Diversion: Unique diversion structure spins the flowing air to effectively separate liquid and reliably filter solid particles.
- Filter Grades: 5μm and 40μm filtering grades are available.
- Drain Options: Three drain types available: Manual, Differential, and Automatic drain.
- Bracket: Can be installed using a fixed bracket (optional).
Specifications
| Model | GFR200 | GFR300 | GFR400 | GFR600 |
|---|---|---|---|---|
| Fluid | Air | |||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4", 1" |
| Filtering Grade | 40μm or 5μm | |||
| Pressure Range |
Auto/Differential Drain: 0.15 ~ 0.9 MPa (20 ~ 130 psi) Manual Drain: 0.05 ~ 0.9 MPa (7 ~ 130 psi) |
|||
| Max Op. Pressure | 1.0 MPa (145 psi) | |||
| Proof Pressure | 1.5 MPa (215 psi) | |||
| Temperature | -5 ~ 70°C (No freezing) | |||
| Bowl Capacity | 10 CC | 40 CC | 80 CC | 230 CC |
| Weight (g) | 220 | 500 | 1030 | 2400 |
Product Ordering Code
Example: GFR200 08 M L F 1 W G K
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
GFR200: G200 Series GFR300: G300 Series GFR400: G400 Series GFR600: G600 Series |
| 2 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 3 | Drain Type |
Blank: Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Type Code |
Blank: Standard Type L: Low Pressure Type (0.4 MPa) |
| 5 | Bracket Code |
Blank: With Bracket J: No Bracket |
| 6 | Pressure Gauge |
Blank: With Gauge N: No Gauge |
| 7 | Gauge Shape |
F: Square Gauge C: Round Gauge |
| 8 | Scale Unit |
1: MPa 2: psi 3: bar |
| 9 | Filtering Grade |
Blank: 40μm W: 5μm |
| 10 | Thread Type |
Blank: PT G: G Thread T: NPT |
| 11 | Check Valve |
Blank: No Check Valve K: With Check Valve |
