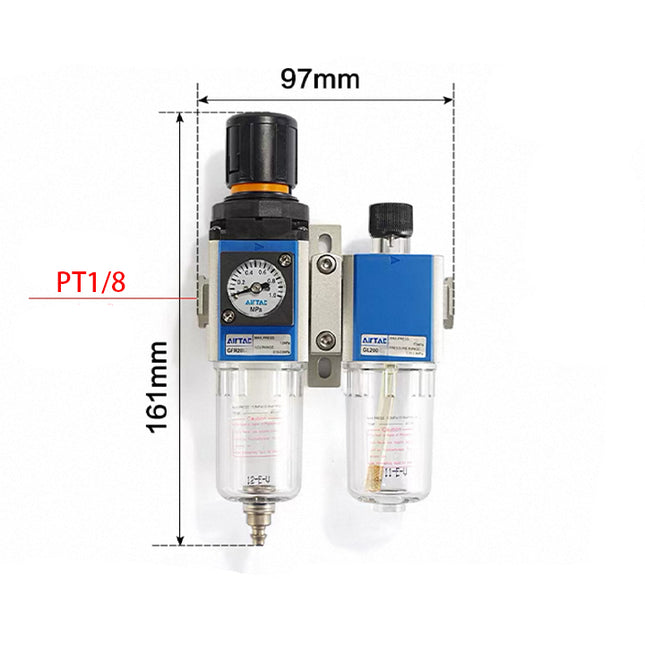

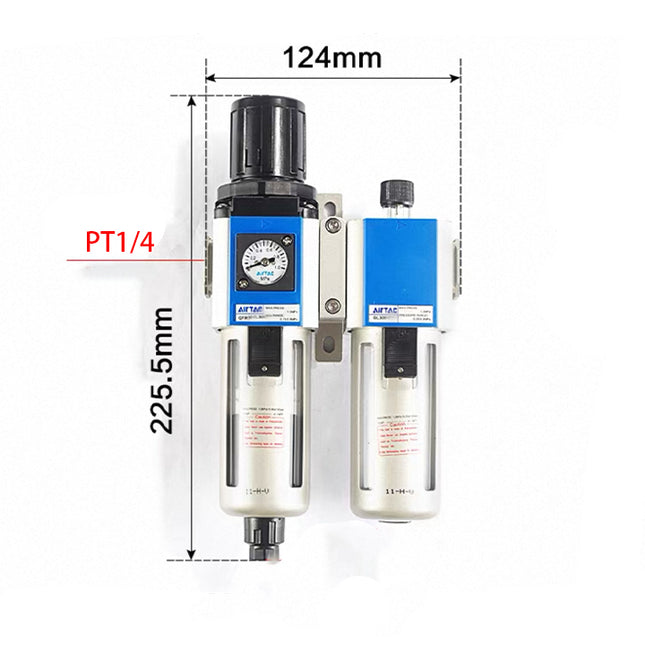

GFC Series Air Preparation Unit (FR.L. Combination)
Product Features
- Easy Installation: Quick and reliable fixed connection, convenient for installation and use.
- Stable Regulation: Stable pressure adjustment with high repeatability.
- High Efficiency: Highly efficient removal of water moisture and solid particles.
- Drain Options: Three drain types available: Manual, Differential, and Automatic drain.
Specifications
| Model | GFC200 | GFC300 | GFC400 | GFC600 |
|---|---|---|---|---|
| Fluid | Air | |||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4", 1" |
| Filtering Grade | 40μm or 5μm | |||
| Pressure Range |
Auto/Diff Drain: 0.15 ~ 0.9 MPa (20 ~ 130 psi) Manual Drain: 0.05 ~ 0.9 MPa (7 ~ 130 psi) |
|||
| Max Pressure | 1.0 MPa (145 psi) | |||
| Proof Pressure | 1.5 MPa (215 psi) | |||
| Temperature | -5 ~ 70°C (No freezing) | |||
| Filter Bowl | 10 CC | 40 CC | 80 CC | 230 CC |
| Lubricator Bowl | 25 CC | 75 CC | 160 CC | 380 CC |
| Recommended Oil | ISO VG 32 or equivalent | |||
| Weight (g) | 430 | 980 | 1950 | 4320 |
| Filter Regulator | GFR200 | GFR300 | GFR400 | GFR600 |
| Lubricator | GL200 | GL300 | GL400 | GL600 |
Product Ordering Code
Example: GFC200 08 M L F 1 W G K
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
GFC200: G200 Series GFC300: G300 Series GFC400: G400 Series GFC600: G600 Series |
| 2 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 3 | Drain Type |
Blank: Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Type Code |
Blank: Standard Type L: Low Pressure Type (0.4 MPa) |
| 5 | Pressure Gauge |
Blank: With Gauge N: No Gauge |
| 6 | Gauge Shape |
F: Square Gauge C: Round Gauge |
| 7 | Scale Unit |
1: MPa 2: psi 3: bar |
| 8 | Filtering Grade |
Blank: 40μm W: 5μm |
| 9 | Thread Type |
Blank: PT G: G Thread T: NPT |
| 10 | Check Valve |
Blank: No Check Valve K: With Check Valve |
