GF Series Air Filter

Product Features
Specifications
Ordering Code

Product Features

Unique Diversion: The unique diversion structure spins the flowing air to effectively separate liquid from gas and reliably filter solid particles.
High Efficiency: Features low pressure loss, high water separation efficiency, and a large capacity bowl.
Filtering Grades: 5μm and 40μm filtering grades are available to meet various precision needs.
Drain Options: Three drain types available: Manual, Differential, and Automatic drain for flexible maintenance.
Installation: Can be easily installed using a dedicated fixed bracket.

Specifications

Model	GF200	GF300	GF400	GF600
Fluid	Air
Port Size	1/8", 1/4"	1/4", 3/8", 1/2"	3/8", 1/2"	3/4", 1"
Filtering Grade	40μm or 5μm
Operating Pressure	Auto/Differential: 0.15~1.0MPa \| Manual: 0~0.9MPa
Proof Pressure	1.5 MPa (215 psi)
Temperature	-5 ~ 70°C (No freezing)
Bowl Capacity	10 CC	40 CC	80 CC	230 CC
Weight	135g	360g	680g	1440g

Product Ordering Code

Example: GF200 08 M W G

Ordering Key

No.	Item	Options / Description
1	Series Code	GF200, GF300, GF400, GF600
2	Port Size	06: 1/8", 08: 1/4", 10: 3/8", 15: 1/2", 20: 3/4", 25: 1"
3	Drain Type	Blank: Differential, M: Manual, A: Automatic Drain
4	Bracket	Blank: With Bracket, J: No Bracket
5	Filter Grade	Blank: 40μm, W: 5μm
6	Thread Type	Blank: PT, G: G Thread, T: NPT

Note: Standard configuration typically includes the bracket unless specified with "J".

Show previous products

View options

Airtac GF Series: Filters - GF40010AJ

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: automatic drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$53.87

View options
View options

Airtac GF Series: Filters - GF40010MJWT

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010MJWG

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010MJW

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010MJT

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010MJG

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010MJ

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: manual drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010JWT

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010JWG

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010JW

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 5μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010JT

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010JG

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40010J

Series: G400 Series Filter Nozzle caliber: 3/8" Drainage mode: differential pressure drainage type Bracket: without bracket (standard configuration) Filtration accuracy: 40μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$40.57

View options
View options

Airtac GF Series: Filters - GF40015AWT

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

Airtac GF Series: Filters - GF40015AWG

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

Airtac GF Series: Filters - GF40015AW

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

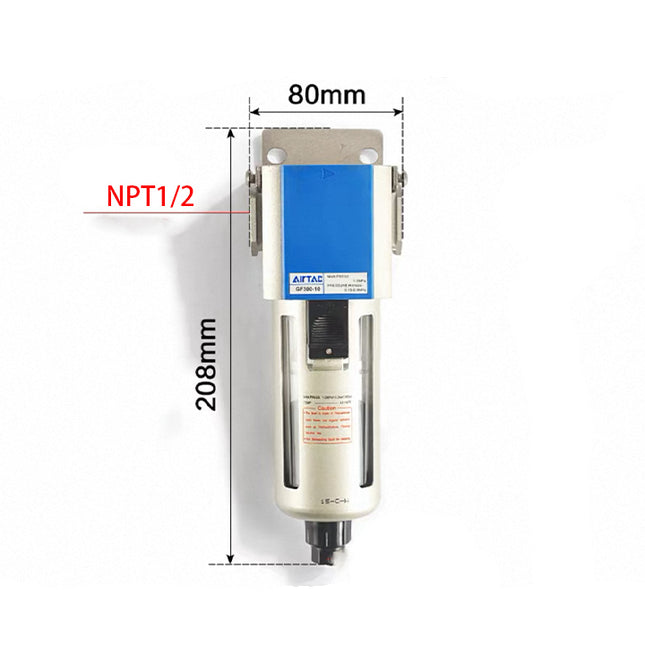

Airtac GF Series: Filters - GF40015AT

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

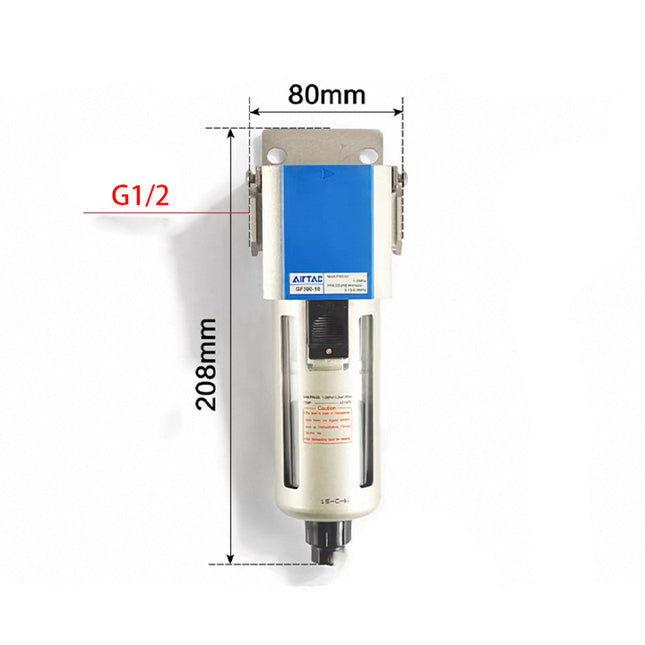

Airtac GF Series: Filters - GF40015AG

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

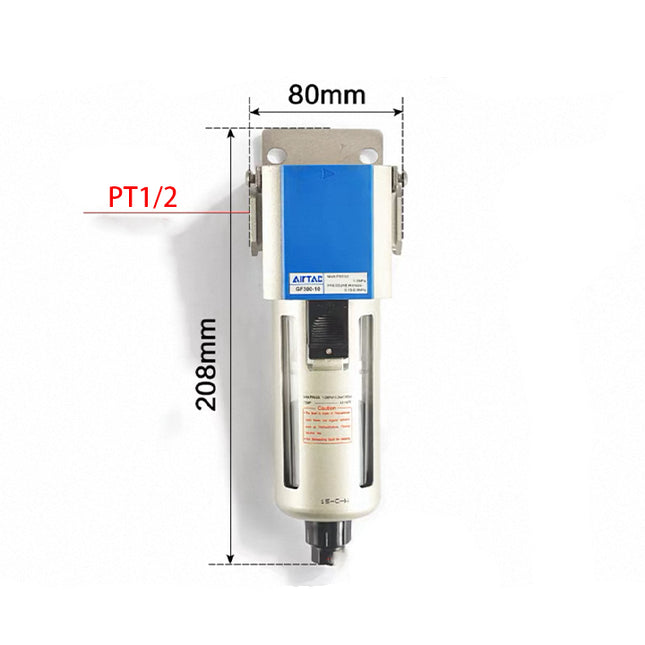

Airtac GF Series: Filters - GF40015A

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: automatic drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$55.33

View options
View options

Airtac GF Series: Filters - GF40015MWT

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: manual drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$42.03

View options
View options

Airtac GF Series: Filters - GF40015MWG

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: manual drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$42.03

View options
View options

Airtac GF Series: Filters - GF40015MW

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: manual drainage type Bracket: attached bracket Filtration accuracy: 5μm level Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$42.03

View options
View options

Airtac GF Series: Filters - GF40015MT

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: manual drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$42.03

View options
View options

Airtac GF Series: Filters - GF40015MG

Series: G400 Series Filter Nozzle caliber: 1/2" Drainage mode: manual drainage type Bracket: attached bracket Filtration accuracy: 40μm level Tooth type: G tooth Click to download Airtac product catalog Product Features 1. The unique flow guide structure, so that the gas flow through the appropriate rotation, so as to more effectively separate the liquid in the gas and reliably filter solid particles. 2. The pressure loss is small, the water separation efficiency is high, and the water cup capacity is large. 3. Filtering precision 5μm.40μm optional. 4. There are manual, differential pressure and automatic drainage and other three forms of drainage optional. 5. Optional use of fixed bracket installation.

Read more less

$42.03

View options
