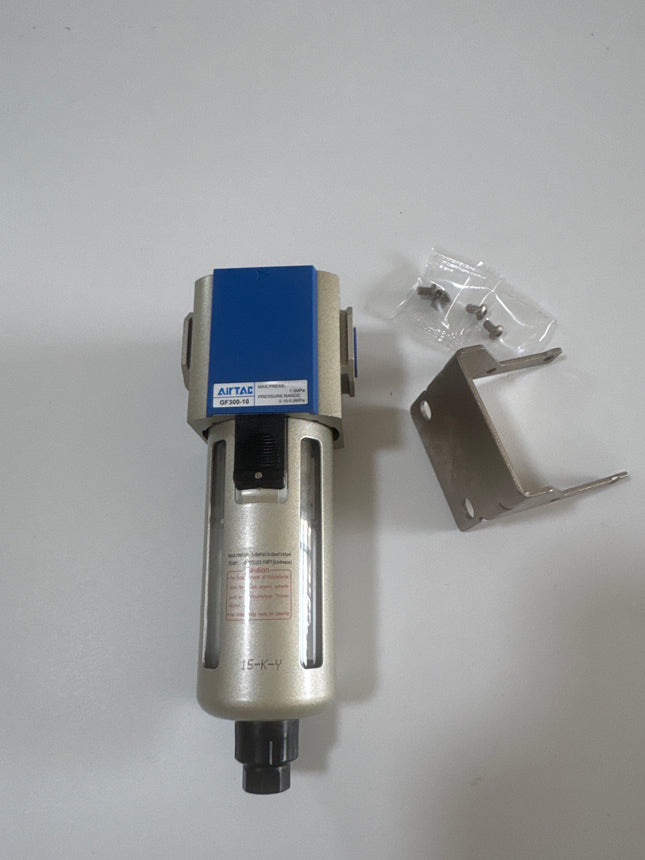

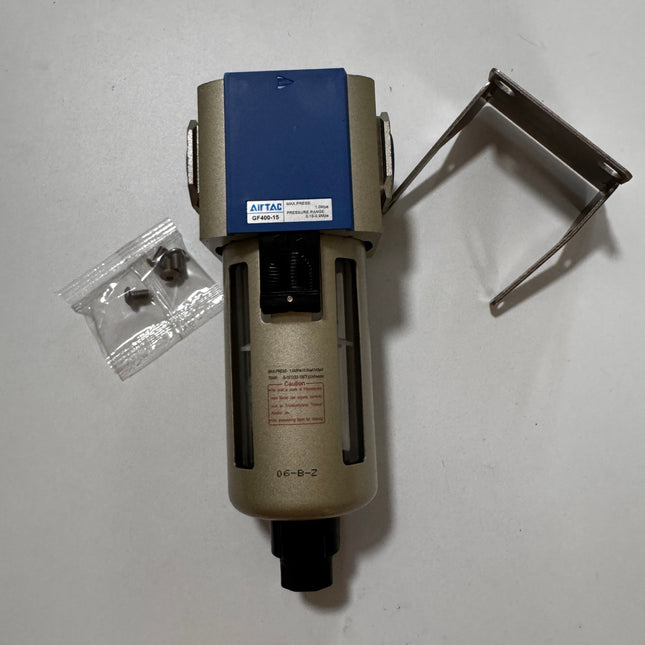

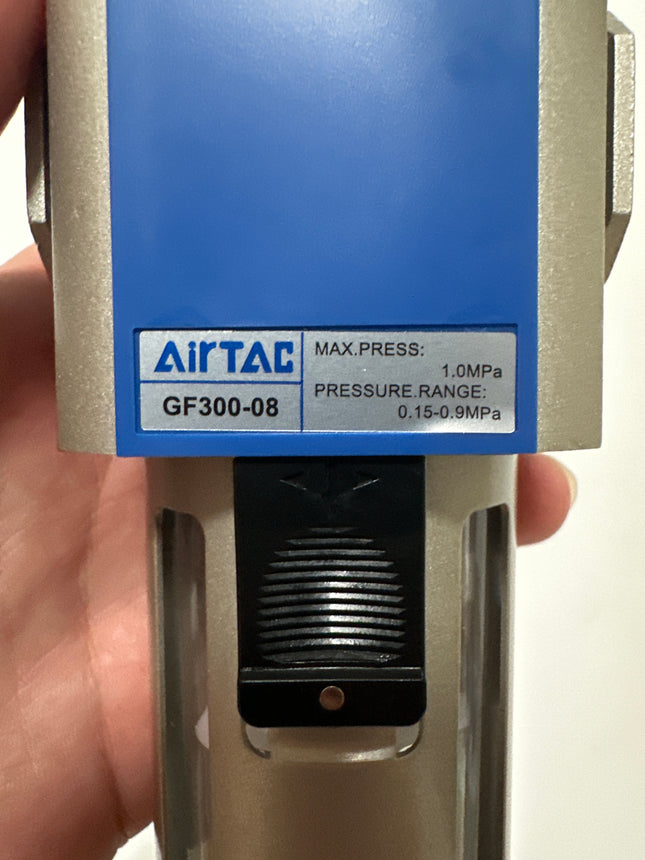

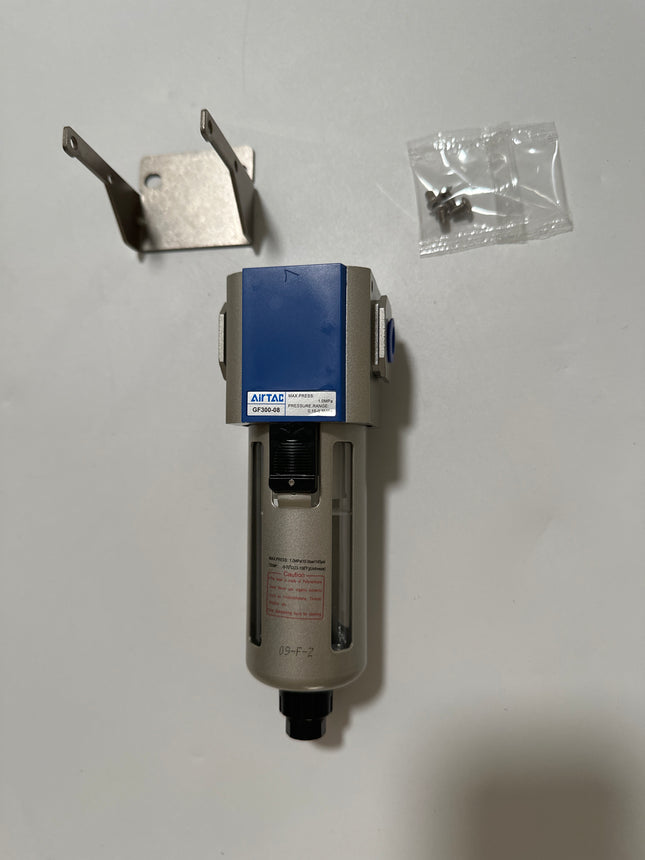

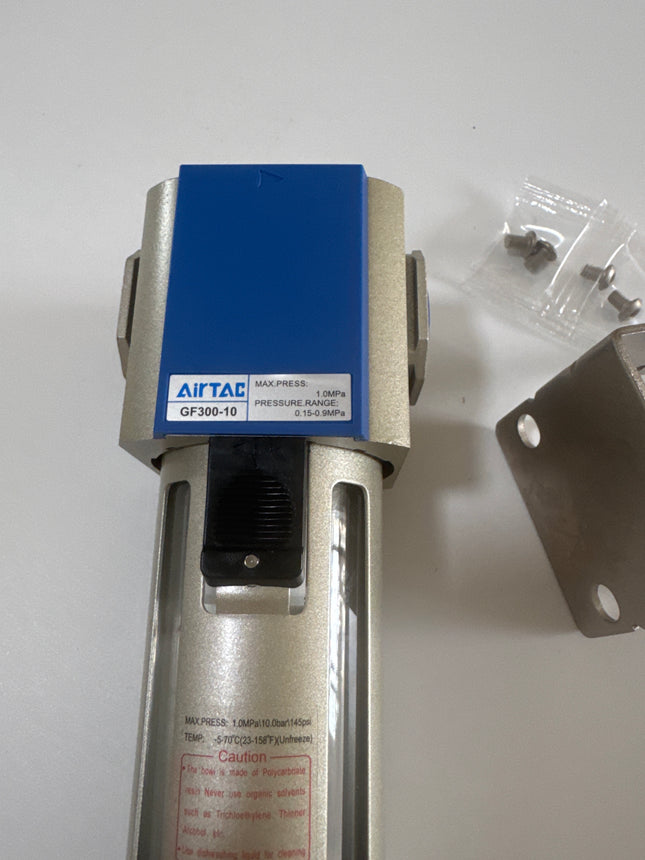

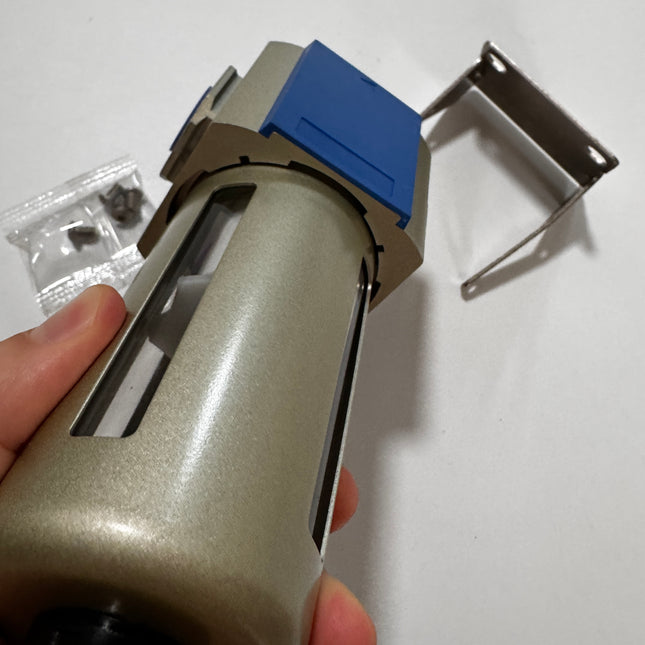

GF Series Air Filter
Product Features
- Unique Diversion: Unique diversion structure spins the flowing air to effectively separate liquid from gas and reliably filter solid particles.
- High Efficiency: Low pressure loss, high water separation efficiency, and large bowl capacity.
- Filter Options: 5μm and 40μm filtering grades are available.
- Drain Options: Three drain types available: Manual, Differential, and Automatic drain.
- Installation: Can be installed using a fixed bracket.
Specifications
| Model | GF200 | GF300 | GF400 | GF600 |
|---|---|---|---|---|
| Fluid | Air | |||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4", 1" |
| Filtering Grade | 40μm or 5μm | |||
| Pressure Range |
Auto/Differential Drain: 0.15 ~ 1.0 MPa (20 ~ 145 psi) Manual Drain: 0 ~ 0.9 MPa (0 ~ 145 psi) |
|||
| Proof Pressure | 1.5 MPa (215 psi) | |||
| Temperature | -5 ~ 70°C (No freezing) | |||
| Bowl Capacity | 10 CC | 40 CC | 80 CC | 230 CC |
| Weight | 135g | 360g | 680g | 1440g |
Product Ordering Code
Example: GF200 08 M W G
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
GF200: G200 Series GF300: G300 Series GF400: G400 Series GF600: G600 Series |
| 2 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 3 | Drain Type |
Blank: Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Bracket Code |
Blank: With Bracket J: No Bracket (Standard configuration) |
| 5 | Filtering Grade |
Blank: 40μm W: 5μm |
| 6 | Thread Type |
Blank: PT G: G Thread T: NPT |
