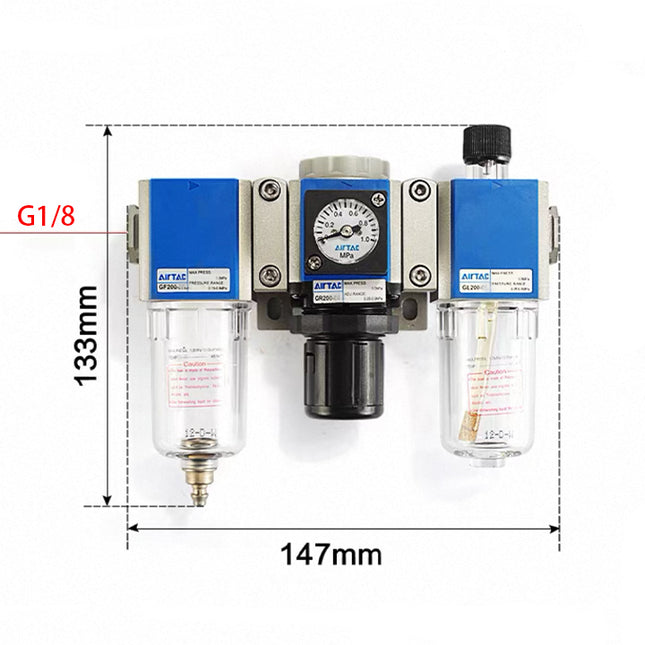

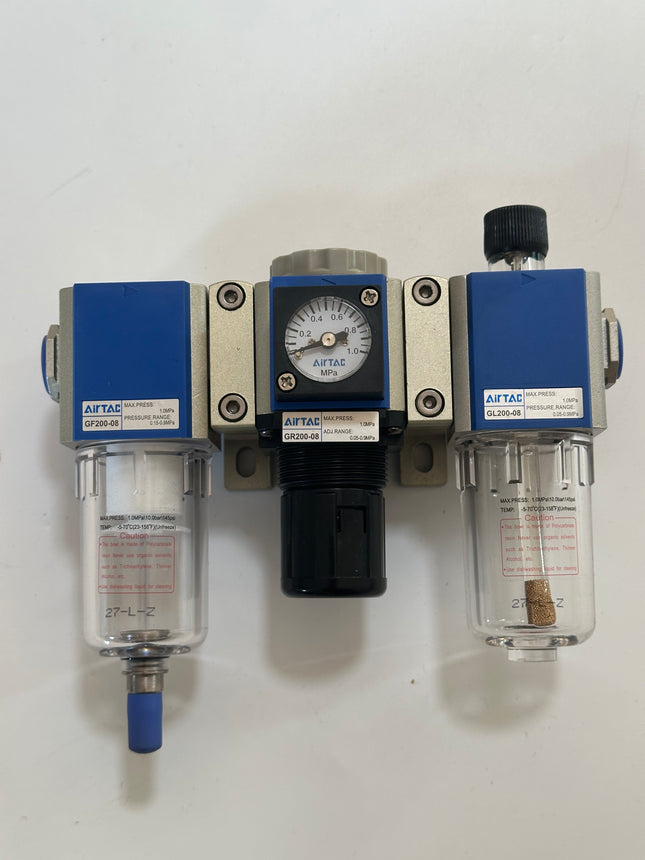

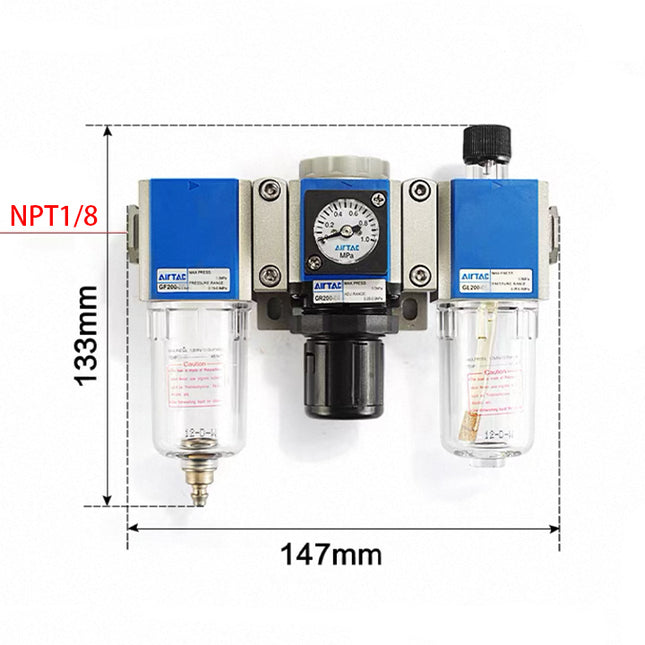

GC Series Air Preparation Unit (F.R.L. Combination)
Product Features
- Reliable Adjustment: The drip nozzle structure adopts a gap seal form, making oil adjustment more stable and reliable.
- Linear Oil Distribution: The oil adjustment ring rotates only one turn, providing a linear distribution of oil quantity based on scale position.
- Non-stop Refill: Oil can be refilled without stopping the air supply (Gas non-stop refilling).
- Low Mist Flow: Special drip nozzle structure creates negative pressure at the oil outlet, resulting in a low minimum fogging flow rate.
- Easy Installation: Quick and reliable fixed connection makes installation and usage convenient.
- High Precision: Stable pressure regulation with high repeatability.
- Efficient Filtration: Highly efficient removal of water moisture and solid particles.
- Drain Options: Three drain types available: Manual, Differential, and Automatic drain.
Specifications
| Model | GC200 | GC300 | GC400 | GC600 |
|---|---|---|---|---|
| Fluid | Air | |||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4", 1" |
| Filtering Grade | 40μm or 5μm | |||
| Pressure Range |
Auto/Diff Drain: 0.15 ~ 0.9 MPa (20 ~ 130 psi) Manual Drain: 0.05 ~ 0.9 MPa (7 ~ 130 psi) |
|||
| Max Pressure | 1.0 MPa (145 psi) | |||
| Proof Pressure | 1.5 MPa (215 psi) | |||
| Temperature | -5 ~ 70°C (No freezing) | |||
| Filter Bowl | 10 CC | 40 CC | 80 CC | 230 CC |
| Lubricator Bowl | 25 CC | 75 CC | 160 CC | 380 CC |
| Recommended Oil | ISO VG 32 or equivalent | |||
| Weight (g) | 580 | 1300 | 2360 | 5550 |
| Filter | GF200 | GF300 | GF400 | GF600 |
| Regulator | GR200 | GR300 | GR400 | GR600 |
| Lubricator | GL200 | GL300 | GL400 | GL600 |
Product Ordering Code
Example: GC200 08 M L F 1 W G K
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
GC200: G200 Series GC300: G300 Series GC400: G400 Series GC600: G600 Series |
| 2 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 3 | Drain Type |
Blank: Differential Drain M: Manual Drain A: Automatic Drain |
| 4 | Type Code |
Blank: Standard Type L: Low Pressure Type (0.4 MPa) |
| 5 | Pressure Gauge |
Blank: With Gauge N: No Gauge |
| 6 | Gauge Shape |
F: Square Gauge C: Round Gauge |
| 7 | Scale Unit |
1: MPa 2: psi 3: bar |
| 8 | Filtering Grade |
Blank: 40μm W: 5μm |
| 9 | Thread Type |
Blank: PT G: G Thread T: NPT |
| 10 | Check Valve |
Blank: No Check Valve K: With Check Valve |
