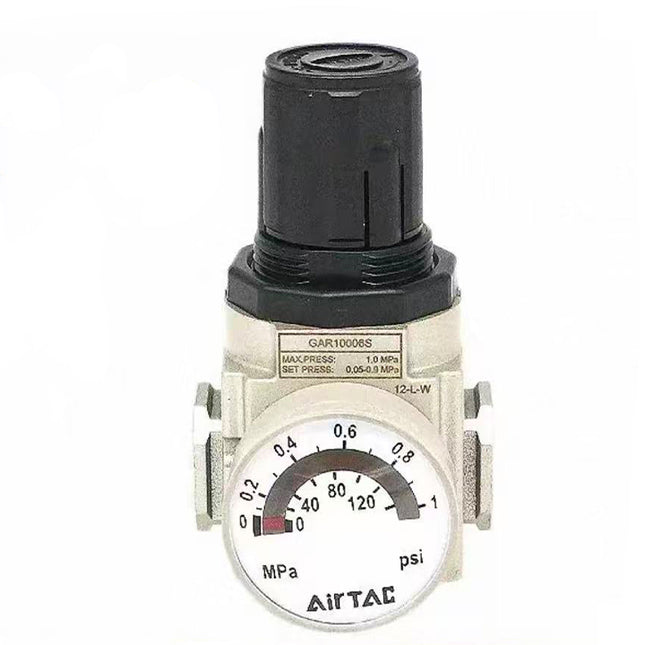

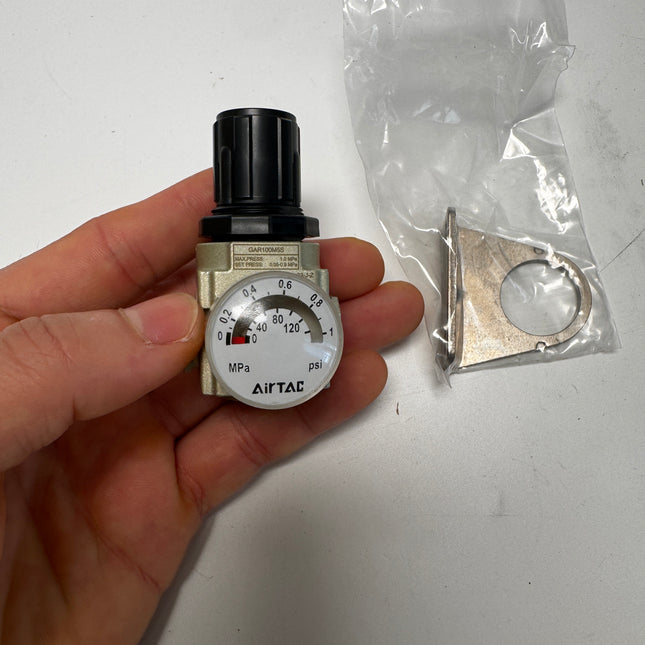

GAR Series Regulator
Product Features
- Embedded Gauge: Adopts an embedded square pressure gauge to save valuable installation space (an external round gauge is also available as an option).
- Self-locking Mechanism: A reliable press-in self-locking mechanism prevents accidental pressure setting changes caused by external interference or machine vibration.
- Balanced Design: The pressure adjustment mechanism uses a balanced design, ensuring stable regulation, minimal pressure drift, and excellent overall pressure characteristics.
- Installation Options: In addition to standard panel installation, the unit can be easily mounted using a dedicated fixing bracket.
- Low Pressure Variant: Besides the standard type, a specific low-pressure type is available (with a maximum adjustable pressure of 0.4MPa) for highly sensitive applications.
Specifications
| Model | GAR200 | GAR300 | GAR400 | GAR500 | GAR600 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4" | 3/4", 1" |
| Pressure Adjusting Range | 0.05 ~ 0.9 MPa (7 ~ 130 psi) | ||||
| Max Operating Pressure | 1.0 MPa (145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature Range | -20 ~ 70°C | ||||
| Weight (g) | 170 | 300 | 570 | 580 | 1390 |
Product Ordering Code
Example: GAR300 10 S W G K
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
GAR200: GA200 Series GAR300: GA300 Series GAR400: GA400 Series GAR500: GA500 Series GAR600: GA600 Series |
| 2 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 3 | Type Code |
S: Standard Type L: Low Pressure Type (0.15~0.4MPa) |
| 4 | Bracket Code |
Blank: With Bracket J: No Bracket |
| 5 | Pressure Gauge |
Blank: Circular Gauge (Internal) N: No Gauge |
| 6 | Thread Type |
Blank: PT G: G Thread T: NPT |
| 7 | Check Valve |
Blank: No Check Valve K: With Check Valve |
