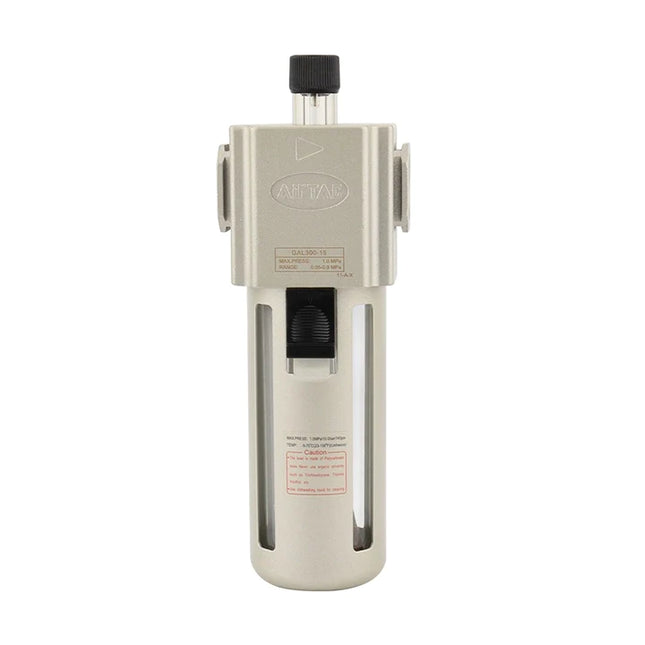

GAL Series Lubricator
Product Features
- Stable Adjustment: The oil drip structure uses a gap seal form, making the oil supply adjustment more stable and reliable.
- Linear Distribution: The oil supply adjustment ring can only rotate once, and the basic size of the oil drip is in a linear distribution. The amount of oil supplied can be calculated approximately based on the scale ring position.
- Low Mist Flow: Special oil drip nozzle structure produces negative pressure at the outlet, resulting in a low atomization flow rate.
- Non-stop Refill: Can be refilled with oil without stopping the air supply; features a large oil bowl capacity.
- Material Options: Bowl material options include PC, metal, or nylon, satisfying the needs of different working environments.
- Installation: An optional fixed bracket can be selected for easy and secure installation.
Specifications
| Model | GAL200 | GAL300 | GAL400 | GAL500 | GAL600 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size [Note 1] | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4" | 3/4", 1" |
| Pressure Range | 0.05 ~ 0.9 MPa (7 ~ 130 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -5 ~ 70°C (No freezing) | ||||
| Recommended Oil | ISO VG 32 or equivalent oil | ||||
| Bowl Capacity | 36 CC | 98 CC | 185 CC | 225 CC | 410 CC |
| Weight (g) | 200 | 370 | 660 | 700 | 1040 |
Note 1: G and NPT thread types are also available.
Product Ordering Code
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
GAL200: GA200 Series Lubricator GAL300: GA300 Series Lubricator GAL400: GA400 Series Lubricator GAL500: GA500 Series Lubricator GAL600: GA600 Series Lubricator |
| 2 | Body Material |
Blank: PC Bowl C: Metal Bowl N: Nylon Bowl |
| 3 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 4 | Bracket Code |
Blank: With Bracket J: Without Bracket |
| 5 | Thread Code |
Blank: PT thread G: G thread T: NPT thread |
