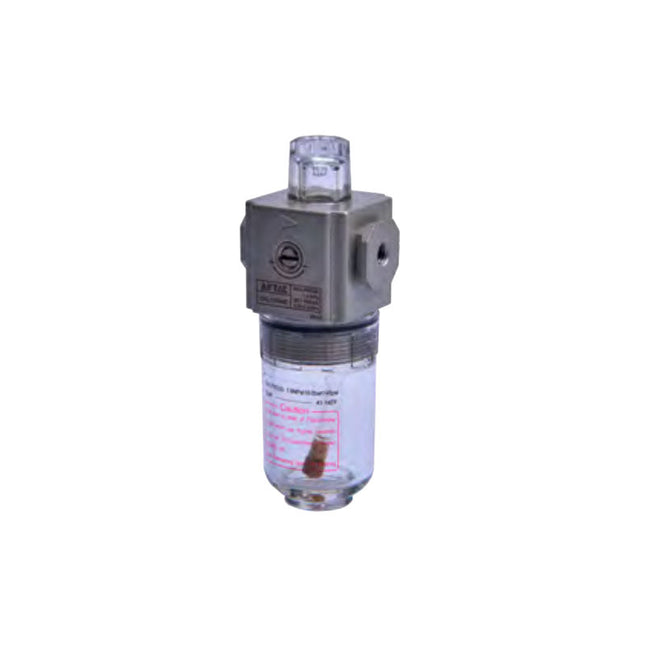

GAL Series Lubricator
Product Features
- Stable Adjustment: The drip nozzle structure uses a gap seal form, ensuring oil adjustment is more stable and reliable.
- Linear Distribution: The oil adjustment ring rotates only one turn, providing linear distribution of oil quantity. The flow rate can be roughly estimated by the scale position.
- Low Mist Flow: A special drip nozzle design creates negative pressure at the outlet, enabling a low minimum fogging flow rate.
- Non-stop Refill: Oil can be refilled without interrupting the air supply, and the unit features a large-capacity oil bowl.
- Material Options: Bowls are available in Polycarbonate (PC), Metal, and Nylon to suit different industrial environments.
- Easy Installation: Designed for convenient mounting using a dedicated fixing bracket.
Specifications
| Model | GAL200 | GAL300 | GAL400 | GAL500 | GAL600 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4" | 3/4", 1" |
| Pressure Range | 0.05 ~ 0.9 MPa (7 ~ 130 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -5 ~ 70°C (No freezing) | ||||
| Recommended Oil | ISO VG 32 or equivalent | ||||
| Bowl Capacity | 36 CC | 98 CC | 185 CC | 225 CC | 410 CC |
| Weight (g) | 200 | 370 | 660 | 700 | 1040 |
Product Ordering Code
Example: GAL300 10 G
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code | GAL200, GAL300, GAL400, GAL500, GAL600 |
| 2 | Bowl Material | Blank: PC Bowl, C: Metal Bowl, N: Nylon Bowl |
| 3 | Port Size | 06: 1/8", 08: 1/4", 10: 3/8", 15: 1/2", 20: 3/4", 25: 1" |
| 4 | Bracket Code | Blank: With Bracket, J: No Bracket |
| 5 | Thread Type | Blank: PT, G: G Thread, T: NPT |
Note: Always ensure you specify the H-class heat resistance for the solenoid coil if applicable in combined systems.
