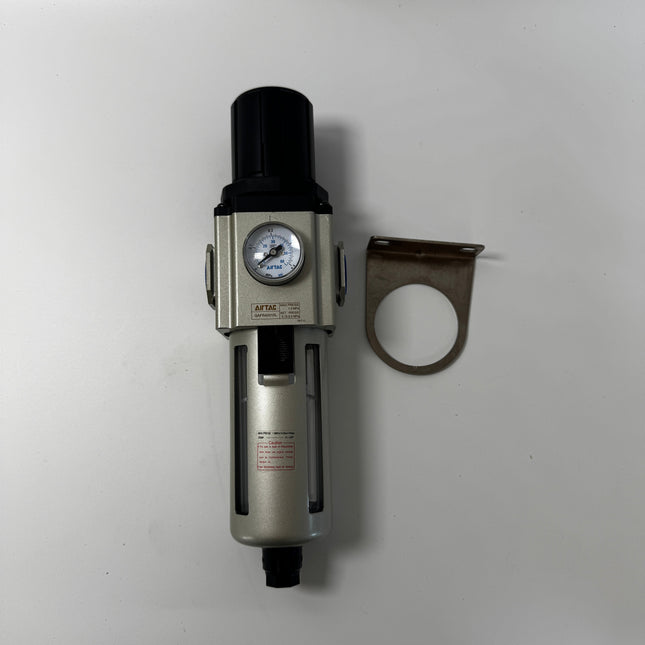

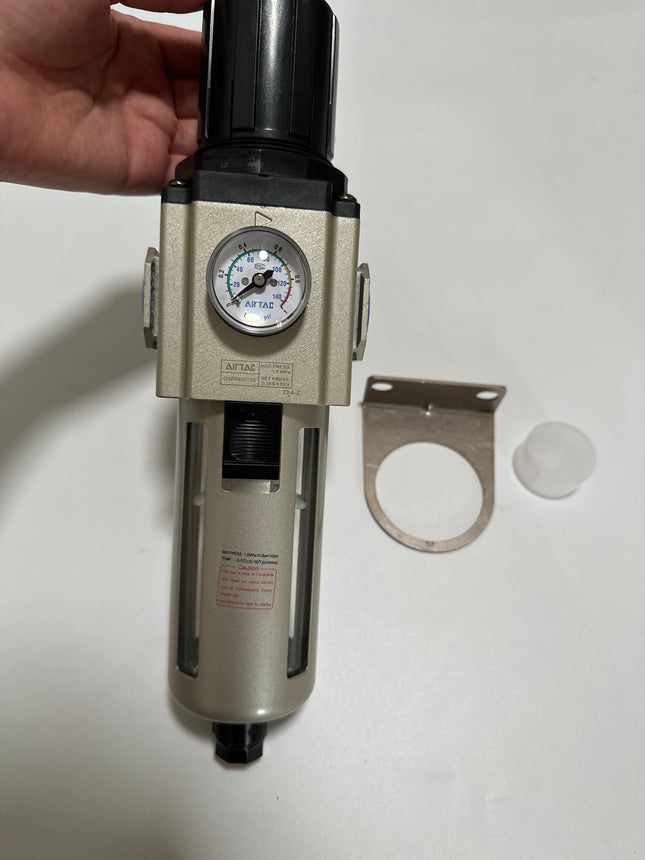

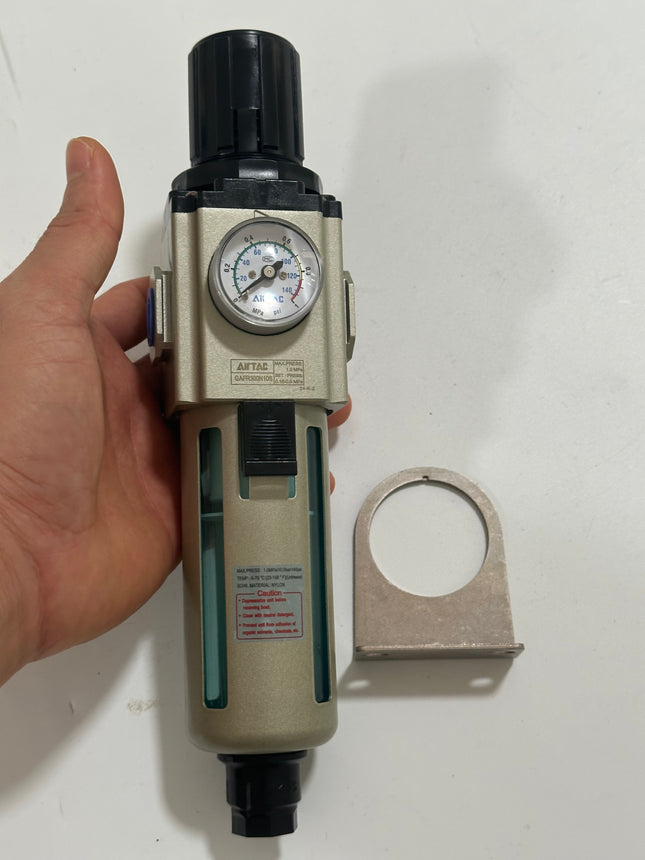

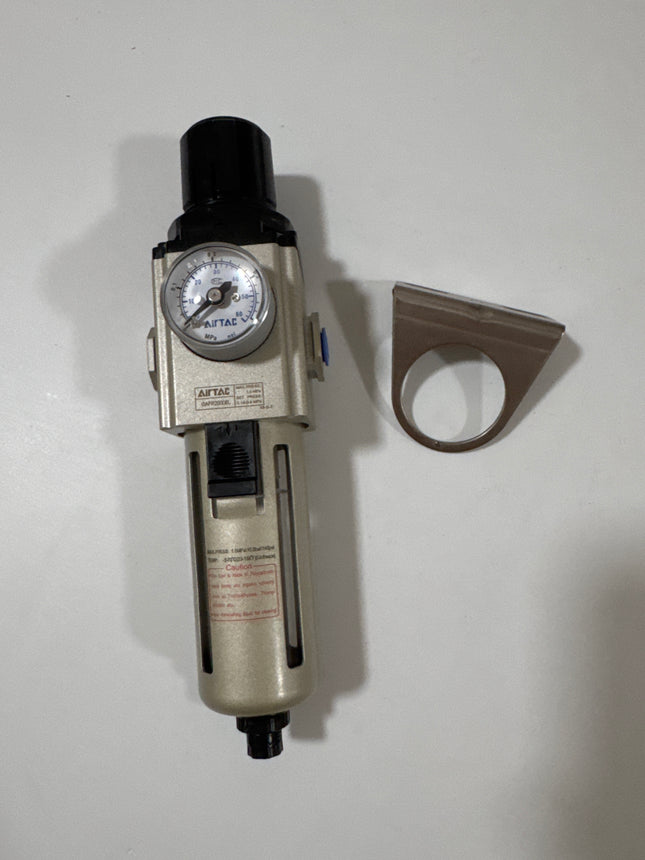

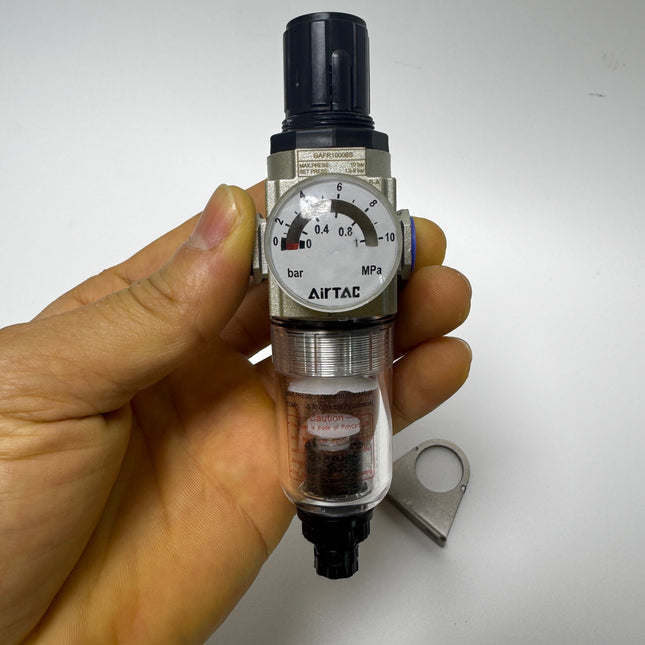

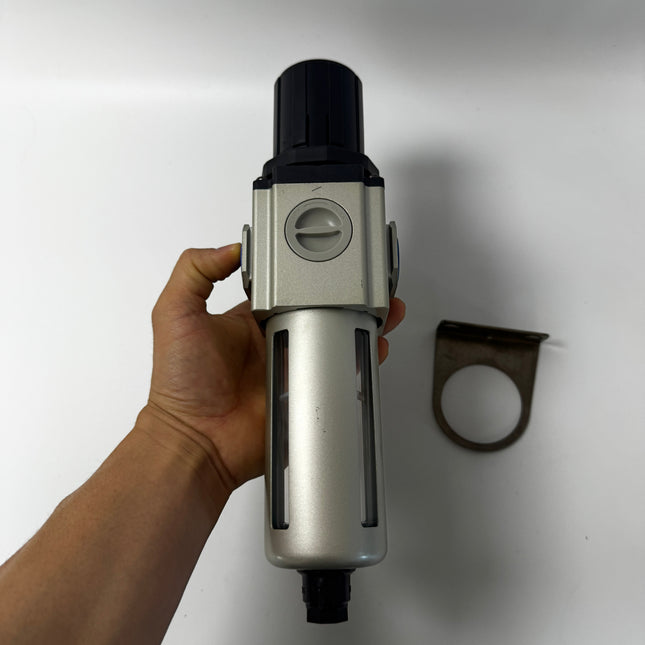

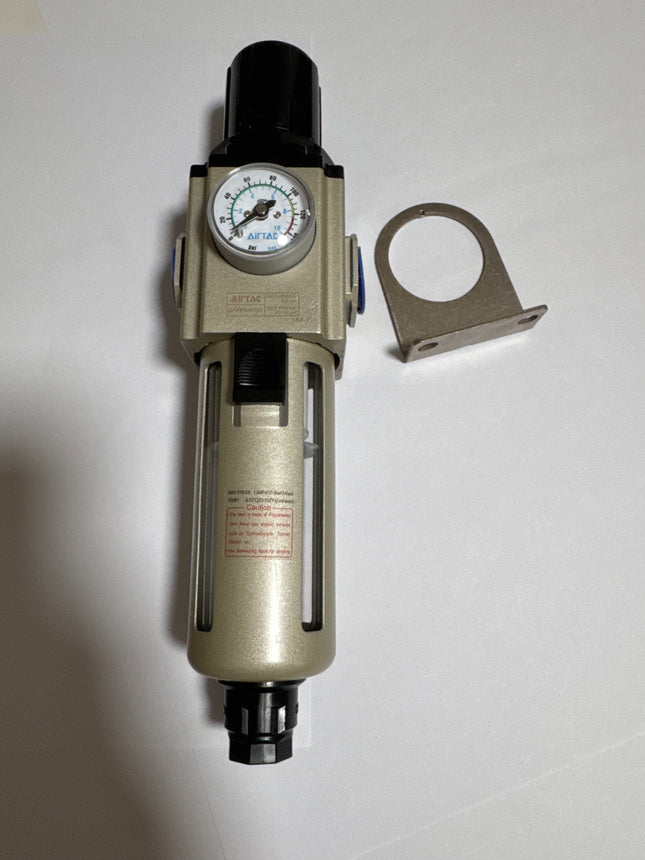

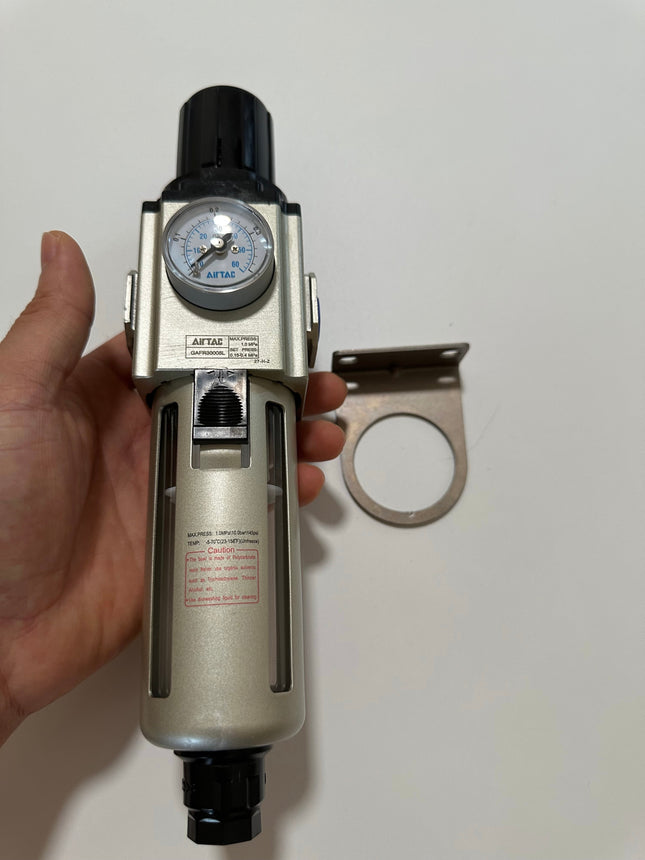

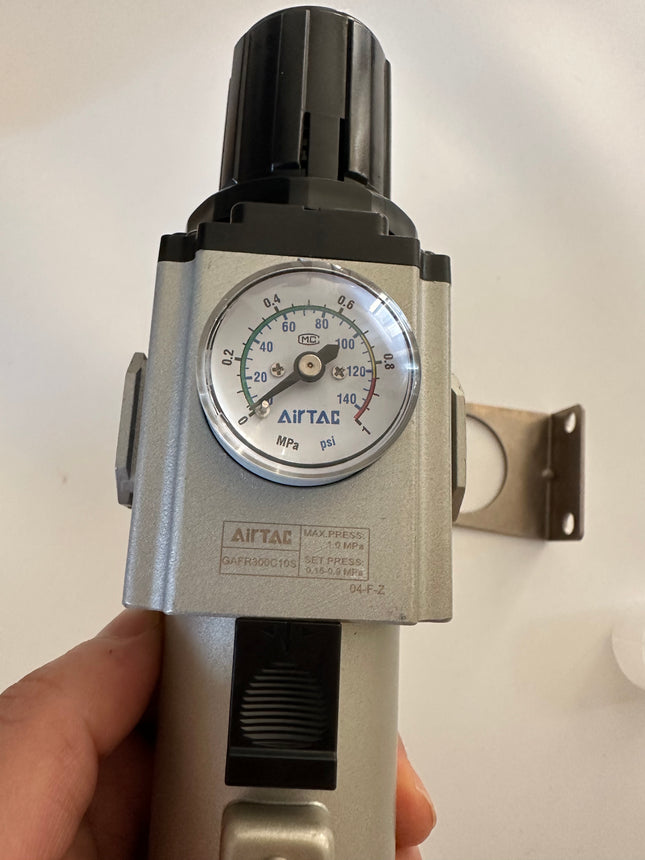

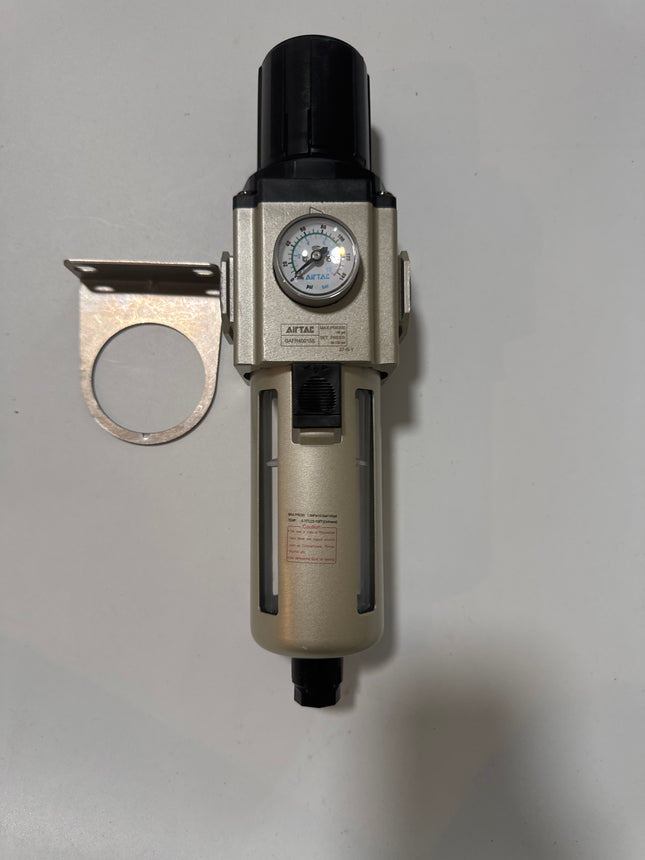

GAFR Series Filter Regulator
Product Features
- Space-saving Design: The mounting bracket is interchangeable with the clasp, saving installation space. It features a multifunctional dial for clear, precise readings.
- Self-locking Mechanism: Incorporates a press-in self-locking structure to prevent unintended pressure changes from external interference.
- Smooth Adjustment: The pressure regulation knob uses a gentle-slope design, offering a smoother feel and highly stable adjustment.
- Pressure Options: Available in standard and low-pressure types (maximum adjustable pressure of 0.4MPa).
- Unique Diversion: A specialized diversion structure rotates the airflow to effectively separate liquid and reliably filter solid particles.
- Filter Precision: Options for 5μm or 40μm filtering grades to meet different application needs.
- Drain Types: Choose from manual, semi-automatic, or fully automatic drain options.
- Bowl Materials: Available in PC, metal, or nylon to withstand varying industrial environments.
Specifications

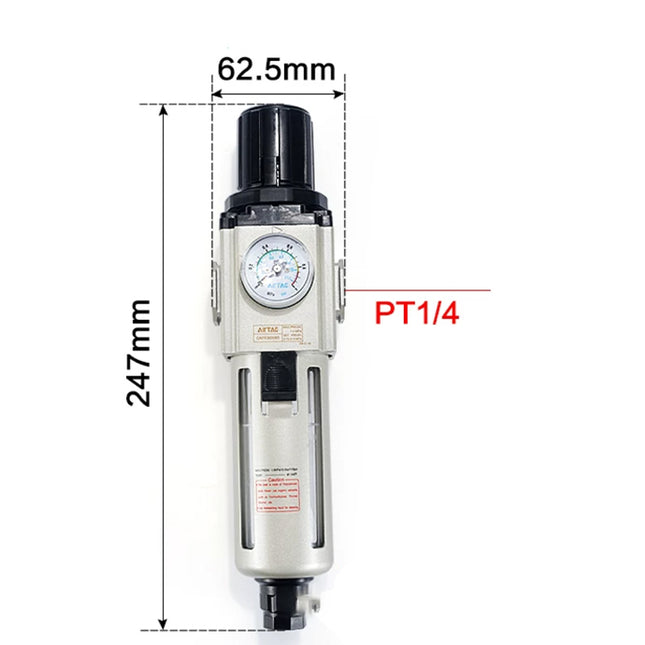

| Model | GAFR200 | GAFR300 | GAFR400 | GAFR500 | GAFR600 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size [Note 1] | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4" | 3/4", 1" |
| Filter Precision | 40μm or 5μm | ||||
| Regulation Range | 0.15 ~ 0.9 MPa (20 ~ 130 psi) | ||||
| Max Op. Pressure | 1.0 MPa (145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -5 ~ 70°C (No freezing) | ||||
| Bowl Capacity | 25 CC | 60 CC | 100 CC | 108 CC | 205 CC |
| Weight (g) | 290 | 500 | 880 | 950 | 1880 |
Note 1: G and NPT thread types are available.
Product Ordering Code
| No. | Item | Options & Values |
|---|---|---|
| 1 | Series Code |
GAFR200: GA200 Series GAFR300: GA300 Series GAFR400: GA400 Series GAFR500: GA500 Series GAFR600: GA600 Series |
| 2 | Body Material |
Blank: PC N: Nylon C: Metal |
| 3 | Port Size |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
| 4 | Drain Type |
Blank: Semi-automatic + Manual Drain A: Automatic Drain |
| 5 | Model Type |
S: Standard L: Low Pressure Type (0.15–0.4MPa) |
| 6 | Bracket Code |
Blank: With Bracket J: Without Bracket |
| 7 | Pressure Gauge |
Blank: With Round Pressure Gauge N: Without Pressure Gauge |
| 8 | Filter Precision |
Blank: 40μm W: 5μm |
| 9 | Thread Code |
Blank: PT thread (MPa/psi) G: G thread (bar/MPa) T: NPT thread (psi/bar) |
| 10 | Overflow Code |
Blank: With overflow K: Without overflow |
