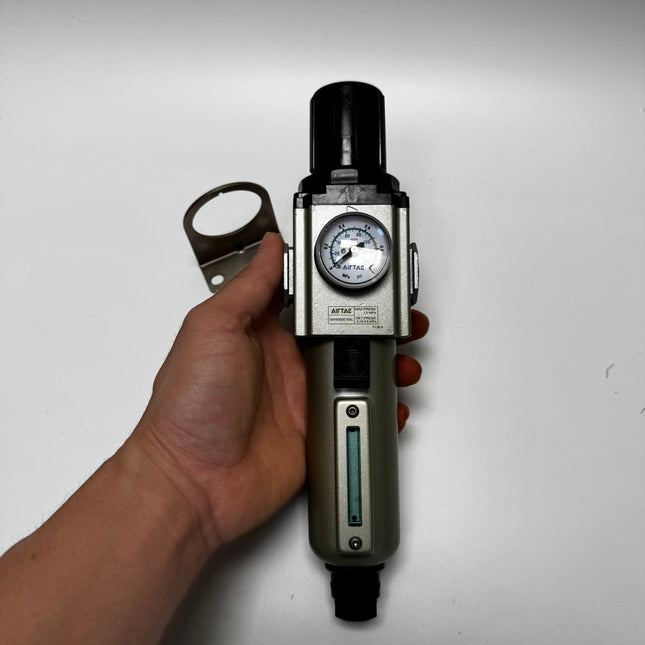

GAFR Series Filter Regulator
Product Features
- Embedded Gauge: Adopted an embedded square pressure gauge to save installation space (also supports an external round gauge).
- Self-locking: The press-in self-locking mechanism prevents pressure setting changes due to external interference.
- Balanced Design: The pressure adjustment mechanism utilizes a balanced design for stable adjustment, minimal drift, and excellent pressure characteristics.
- Compact & Low Pressure: In addition to the standard type, a low-pressure type is available (Max adjustable pressure 0.4MPa).
- Unique Diversion: The unique diversion structure spins the flowing air to effectively separate liquid and solid particles.
- Filter Grades: Available in 5μm and 40μm filter grades to suit varying cleanliness requirements.
- Drain Options: Offers Differential + Manual drain or fully Automatic drain types.
- Bowl Materials: PC, Metal, and Nylon bowls are available to adapt to different operational environments.
- Easy Installation: Can be easily installed using a dedicated fixing bracket.
Specifications
| Model | GAFR200 | GAFR300 | GAFR400 | GAFR500 | GAFR600 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | 1/8", 1/4" | 1/4", 3/8", 1/2" | 3/8", 1/2" | 3/4" | 3/4", 1" |
| Filtering Grade | 40μm or 5μm | ||||
| Pressure Range | 0.15 ~ 0.9 MPa (20 ~ 130 psi) | ||||
| Max Pressure | 1.0 MPa (145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature | -5 ~ 70°C (No freezing) | ||||
| Bowl Capacity | 25 CC | 60 CC | 100 CC | 108 CC | 205 CC |
| Weight (g) | 290 | 500 | 880 | 950 | 1880 |
Product Ordering Code
Example: GAFR300 10 S W G K
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code | GAFR200, GAFR300, GAFR400, GAFR500, GAFR600 |
| 2 | Bowl Material | Blank: PC Bowl, C: Metal Bowl, N: Nylon Bowl |
| 3 | Port Size | 06: 1/8", 08: 1/4", 10: 3/8", 15: 1/2", 20: 3/4", 25: 1" |
| 4 | Drain Type | Blank: Differential + Manual Drain, A: Automatic Drain |
| 5 | Type Code | S: Standard Type, L: Low Pressure Type (0.15~0.4MPa) |
| 6 | Bracket Code | Blank: With Bracket, J: No Bracket |
| 7 | Pressure Gauge | Blank: Circular Gauge (Internal), N: No Gauge |
| 8 | Filtering Grade | Blank: 40μm, W: 5μm |
| 9 | Thread Type | Blank: PT, G: G Thread, T: NPT |
| 10 | Check Valve | Blank: No Check Valve, K: With Check Valve |
Note: Ensure the selected pressure range matches your system requirements, especially when opting for the Low Pressure Type (L).
