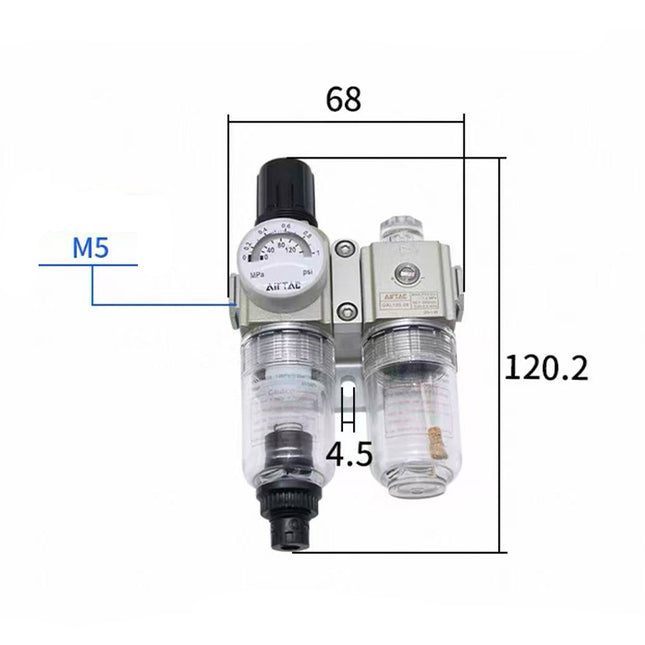

GAFC Series F.R.L. Combination
Air Filter, Regulator, and Lubricator Integrated Unit
Product Features
- Integrated Modularity: Combines a Filter-Regulator (GAFR) and a Lubricator (GAL) into a single, compact unit. Features a quick and reliable fixed connection method that is easy to install, maintain, and operate.
- Precision Regulation: The embedded regulator offers highly stable pressure control with excellent repeatability, ensuring consistent downstream air pressure regardless of supply fluctuations.
- Efficient Filtration: Delivers exceptional water separation and solid particle removal (available in standard 40μm or fine 5μm filtering precision) to protect sensitive pneumatic components.
- Flexible Drain Options: The filter bowl is available with three drainage types to suit your maintenance schedule: Manual, Semi-Automatic, or Fully Automatic drain.
- Material Choices: The protective bowls can be selected in standard Polycarbonate (PC), high-strength Nylon, or rugged Metal, ensuring the unit can safely withstand various industrial and chemical environments.
Technical Specifications
General Specifications
| Working Medium | Compressed Air |
| Filter Precision | Standard: 40μm | Optional: 5μm |
| Standard Pressure Regulation Range | 0.15 ~ 0.9 MPa (20 ~ 130 psi) |
| Low Pressure Range (L Type) [Note 1] | 0.15 ~ 0.4 MPa (20 ~ 58 psi) |
| Max Operating Pressure | 1.0 MPa (145 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Operating Temperature Range | -5 ~ 70°C (No freezing) |
| Recommended Lubricating Oil | ISO VG 32 or equivalent turbine oil |
Model Specific Parameters
| Combination Model | Port Size [Note 2] |
Water Bowl Capacity (CC) | Oil Bowl Capacity (CC) | Weight (g) | Components Structure (Filter-Regulator + Lubricator) |
|---|---|---|---|---|---|

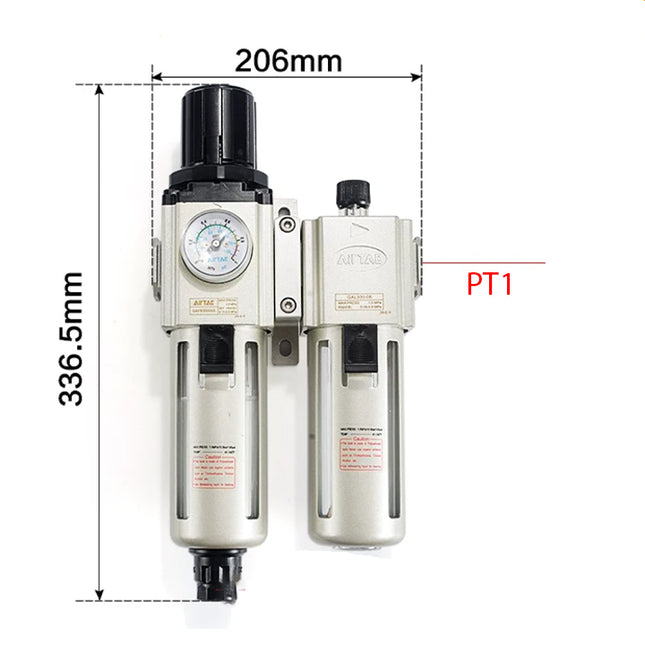

| GAFC200-06 | PT 1/8" | 25 | 36 | 590 | GAFR200-06 + GAL200-06 |
| GAFC200-08 | PT 1/4" | GAFR200-08 + GAL200-08 | |||
| GAFC300-08 | PT 1/4" | 60 | 98 | 1020 | GAFR300-08 + GAL300-08 |
| GAFC300-10 | PT 3/8" | GAFR300-10 + GAL300-10 | |||
| GAFC300-15 | PT 1/2" | GAFR300-15 + GAL300-15 | |||
| GAFC400-10 | PT 3/8" | 100 | 185 | 1810 | GAFR400-10 + GAL400-10 |
| GAFC400-15 | PT 1/2" | GAFR400-15 + GAL400-15 | |||
| GAFC500-20 | PT 3/4" | 108 | 225 | 1910 | GAFR500-20 + GAL500-20 |
| GAFC600-20 | PT 3/4" | 205 | 410 | 3430 | GAFR600-20 + GAL600-20 |
| GAFC600-25 | PT 1" | GAFR600-25 + GAL600-25 |
[Note 2] PT threads are standard. G and NPT thread types are available upon request.
Product Ordering Code
Example: GAFC300 C 10 A S N W T K
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code | GAFC200 / GAFC300 / GAFC400 / GAFC500 / GAFC600 |
| 2 | Bowl Material |
Blank: PC (Polycarbonate - Standard) N: Nylon (Better chemical resistance) C: Metal (For harsh environments) |
| 3 | Port Size |
06: 1/8" | 08: 1/4" | 10: 3/8" 15: 1/2" | 20: 3/4" | 25: 1" |
| 4 | Drain Type |
Blank: Semi-automatic + Manual Drain A: Automatic Drain |
| 5 | Pressure Range Type |
S: Standard Type (0.15~0.9 MPa) L: Low Pressure Type (0.15~0.4 MPa) |
| 6 | Pressure Gauge |
Blank: Includes Round Pressure Gauge N: Without Pressure Gauge |
| 7 | Filter Precision |
Blank: 40μm (Standard) W: 5μm (Fine) |
| 8 | Thread Code |
Blank: PT Thread (Scale: MPa/psi) G: G Thread (Scale: bar/psi) T: NPT Thread (Scale: psi/bar) |
| 9 | Relief Valve (Overflow) |
Blank: With overflow mechanism (Standard) K: Without overflow mechanism |
