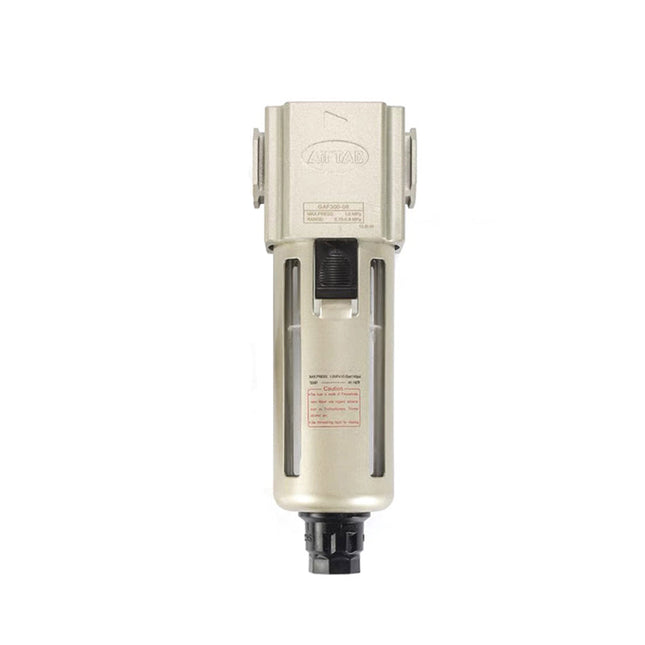

GAF Series Air Filter
High Efficiency Moisture & Particle Separation
Product Features
- Unique Diversion Structure: Engineered with a specialized internal deflector that forces incoming air to spin centrifugally. This effectively separates liquid moisture from the gas and reliably drops solid particles into the bowl.
- High Efficiency: Delivers excellent water separation efficiency with exceptionally low pressure loss. Features a large-capacity drain bowl to reduce maintenance frequency.
- Filter Precision: Available in a standard 40μm filtering grade for general pneumatic applications, or a fine 5μm grade for precision instrumentation.
- Flexible Drain Options: The filter bowl can be configured with either a standard Semi-automatic + Manual drain or a fully Automatic drain mechanism.
- Material Adaptability: Protective bowls are available in Polycarbonate (PC), strong Metal, or chemical-resistant Nylon to ensure safety across diverse environments.
- Easy Mounting: Can be installed directly inline or securely surface-mounted using the optional dedicated bracket.
Technical Specifications
General Specifications
| Working Medium | Compressed Air |
| Filtering Grade (Precision) | Standard: 40μm | Optional: 5μm |
| Operating Pressure Range | 0.15 ~ 0.9 MPa (20 ~ 130 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Operating Temperature Range | -5 ~ 70°C (No freezing) |
Model Specific Parameters
| Series Model | Port Size [Note] |
Bowl Capacity (CC) |
Weight (g) |
|---|---|---|---|

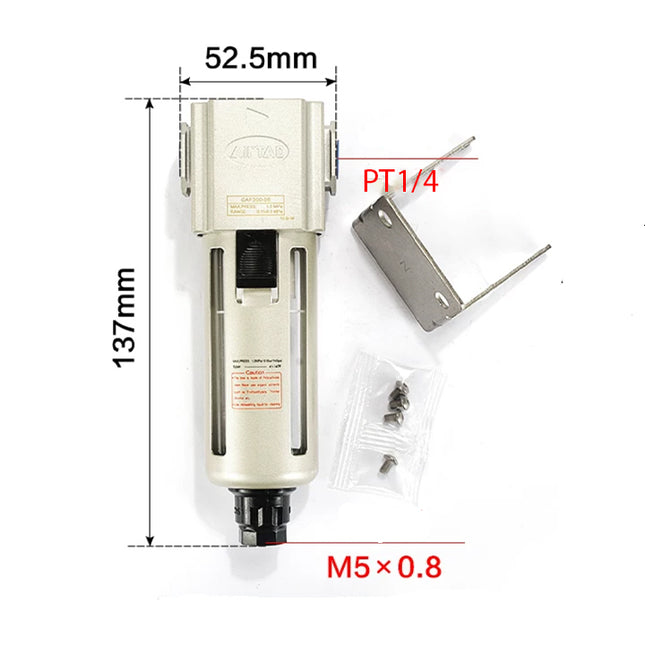

| GAF200 | PT 1/8", PT 1/4" | 25 | 200 |

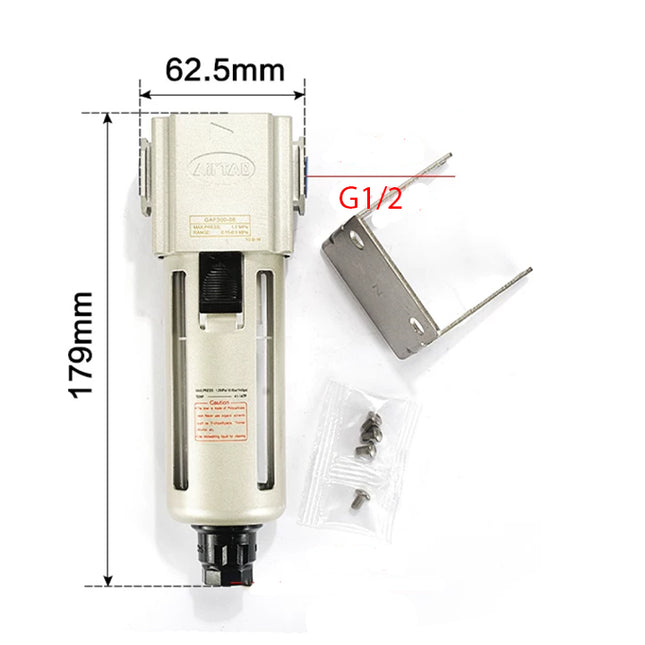

| GAF300 | PT 1/4", PT 3/8", PT 1/2" | 60 | 360 |
| GAF400 | PT 3/8", PT 1/2" | 100 | 640 |
| GAF500 | PT 3/4" | 108 | 680 |

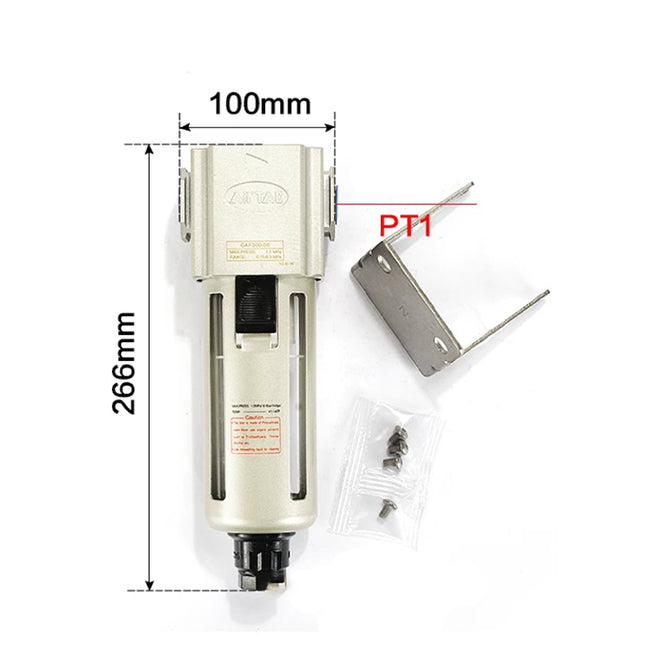

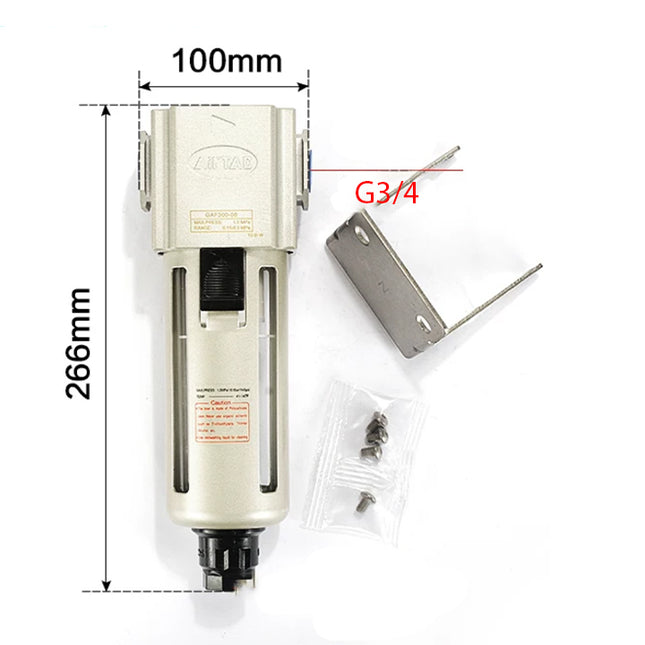

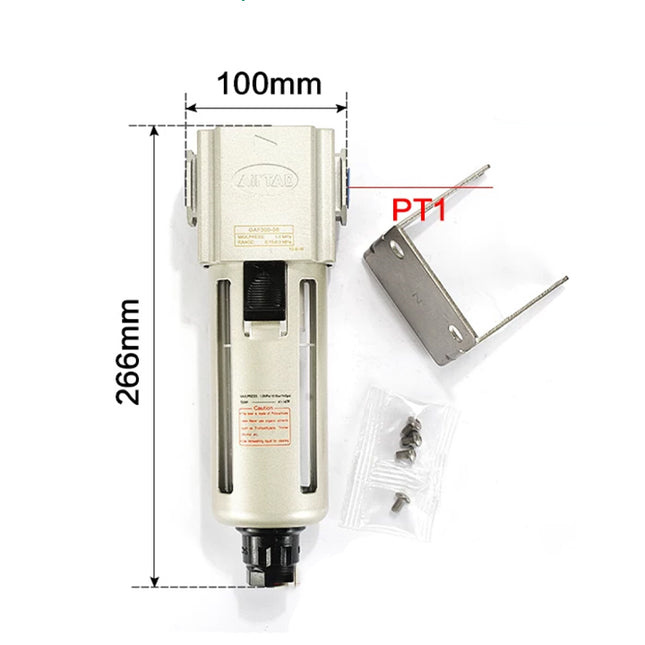

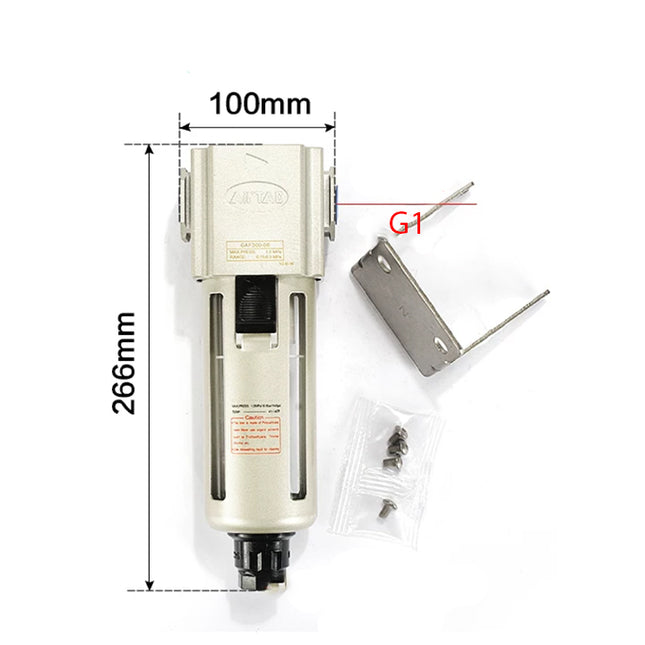

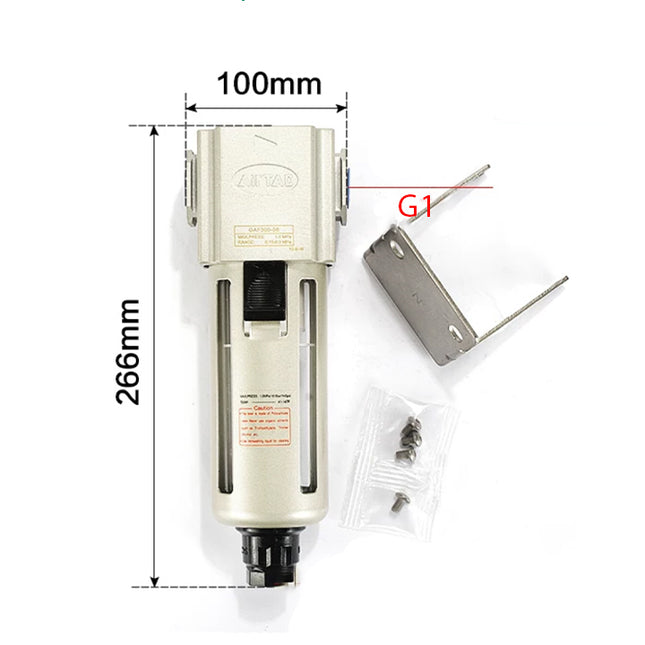

| GAF600 | PT 3/4", PT 1" | 205 | 1040 |
[Note] PT threads are standard. G and NPT thread types are available upon request.
Product Ordering Code
Example: GAF300 N 10 A J W T
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code | GAF200 / GAF300 / GAF400 / GAF500 / GAF600 |
| 2 | Bowl Material |
Blank: PC (Polycarbonate - Standard) N: Nylon Bowl (Better chemical resistance) C: Metal Bowl (For harsh environments) |
| 3 | Port Size |
06: 1/8" | 08: 1/4" | 10: 3/8" 15: 1/2" | 20: 3/4" | 25: 1" |
| 4 | Drain Type |
Blank: Semi-automatic & Manual Drain A: Automatic Drain |
| 5 | Bracket Code |
Blank: Includes Mounting Bracket J: Without Bracket |
| 6 | Filtering Grade |
Blank: 40μm (Standard) W: 5μm (Fine) |
| 7 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
