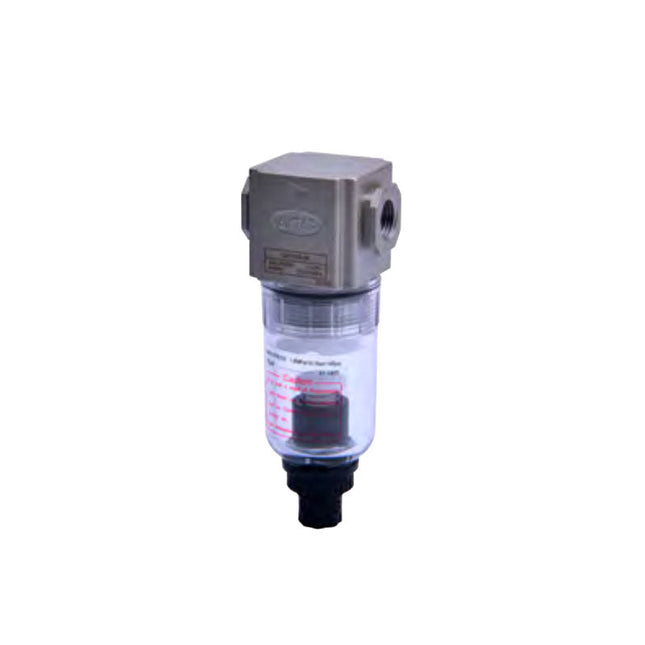

GAF Series Air Filter
High Efficiency Particle & Moisture Separation
Product Features
- Unique Diversion Structure: Engineered with a specialized internal deflector that forces incoming compressed air to spin centrifugally. This effectively separates liquid water from the gas and drops it into the bowl, while reliably filtering out solid particles.
- High Efficiency: Delivers high water separation efficiency with minimal pressure loss, ensuring your pneumatic system receives a steady flow of clean, dry air. Features a large-capacity drain bowl to reduce maintenance frequency.
- Filter Grades: Available in standard 40μm filtering grade for general industrial use, or an optional fine 5μm grade for precision pneumatic applications.
- Flexible Drain Options: The filter bowl can be configured with either a Differential + Manual drain (standard) or a fully Automatic drain mechanism.
- Material Adaptability: Protective bowls are available in standard Polycarbonate (PC), robust Metal, or chemical-resistant Nylon, ensuring safe operation across diverse environments.
- Easy Mounting: Can be easily installed inline or surface-mounted using the included dedicated fixing bracket.
Technical Specifications
General Specifications
| Working Medium | Compressed Air |
| Filtering Grade (Precision) | Standard: 40μm | Optional: 5μm |
| Operating Pressure Range | 0.15 ~ 0.9 MPa (20 ~ 130 psi) |
| Proof Pressure | 1.5 MPa (215 psi) |
| Operating Temperature Range | -5 ~ 70°C (No freezing) |
Model Specific Parameters
| Series Model | Port Size [Note] |
Bowl Capacity (CC) |
Weight (g) |
|---|---|---|---|
| GAF200 | PT 1/8", PT 1/4" | 25 | 200 |
| GAF300 | PT 1/4", PT 3/8", PT 1/2" | 60 | 360 |
| GAF400 | PT 3/8", PT 1/2" | 100 | 640 |
| GAF500 | PT 3/4" | 108 | 680 |
| GAF600 | PT 3/4", PT 1" | 205 | 1040 |
[Note] PT threads are standard. G and NPT thread types are available upon request.
Product Ordering Code
Example: GAF300 N 10 A J W T
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code | GAF200 / GAF300 / GAF400 / GAF500 / GAF600 |
| 2 | Bowl Material |
Blank: PC (Polycarbonate - Standard) C: Metal Bowl (For harsh environments) N: Nylon Bowl (Better chemical resistance) |
| 3 | Port Size |
06: 1/8" | 08: 1/4" | 10: 3/8" 15: 1/2" | 20: 3/4" | 25: 1" |
| 4 | Drain Type |
Blank: Differential + Manual Drain A: Automatic Drain |
| 5 | Bracket Code |
Blank: Includes Mounting Bracket J: Without Bracket |
| 6 | Filtering Grade |
Blank: 40μm (Standard) W: 5μm (Fine) |
| 7 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
