GA Series Distribution Block
4-Way Airflow Branching | FRL Modular Integration
Product Features
- Efficient Air Branching: Designed to be seamlessly installed between a GA series regulator (or filter regulator) and a GA series lubricator. It effectively splits the airflow: one path enters the lubricator to supply oiled air to cylinders, while the other unlubricated paths go directly to equipment that requires dry air (like solenoid valves).
- Modular Integration: Highly compatible with standard FRL (Filter, Regulator, Lubricator) units. Multiple types of dedicated mounting brackets (T-type, L-type, U-type) are available to securely connect the distribution block with existing regulators and lubricators.
Technical Specifications
General Specifications
| Working Medium | Compressed Air |
| Number of Ports | 4-Way Distribution |
| Operating Pressure Range | 0 ~ 1.0 MPa (0 ~ 145 psi) |
| Maximum Proof Pressure | 1.5 MPa (215 psi) |
| Operating Temperature Range | -20 ~ 70°C (No freezing) |
Model Specific Parameters
| Series Model Code | Port Size [Note] |
|---|---|

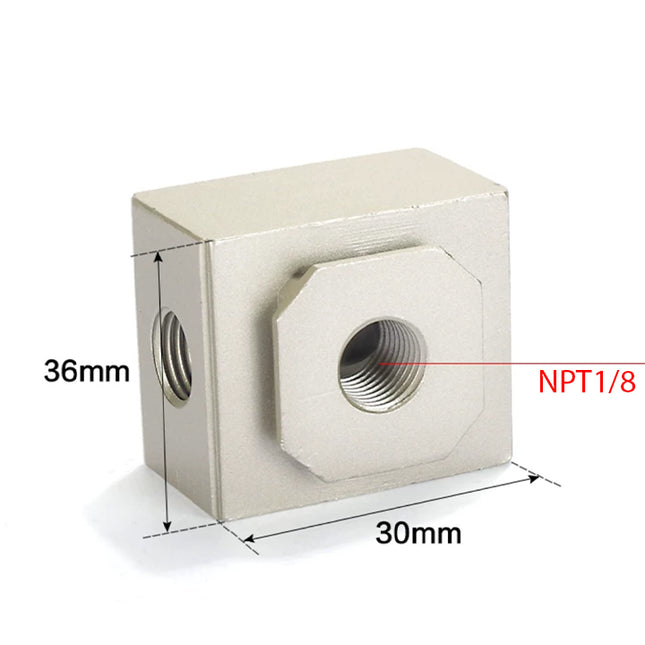

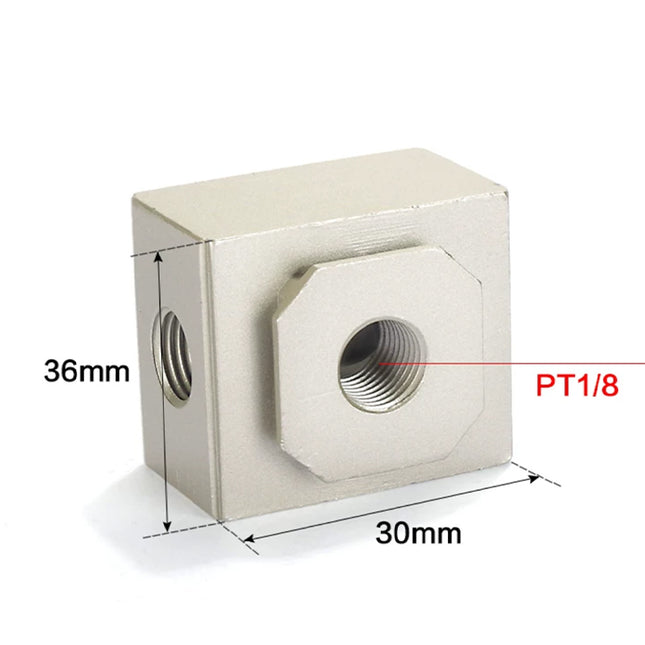

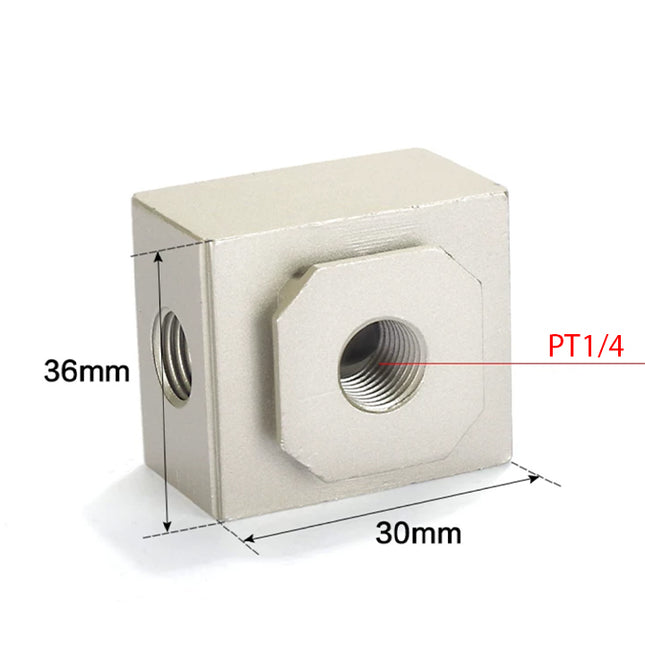

| GA200-06 | PT 1/8" |
| GA200-08 | PT 1/4" |

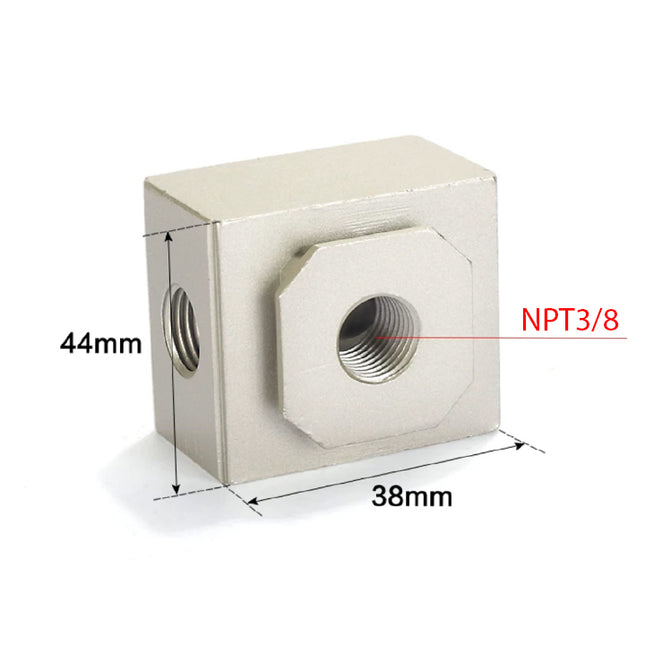

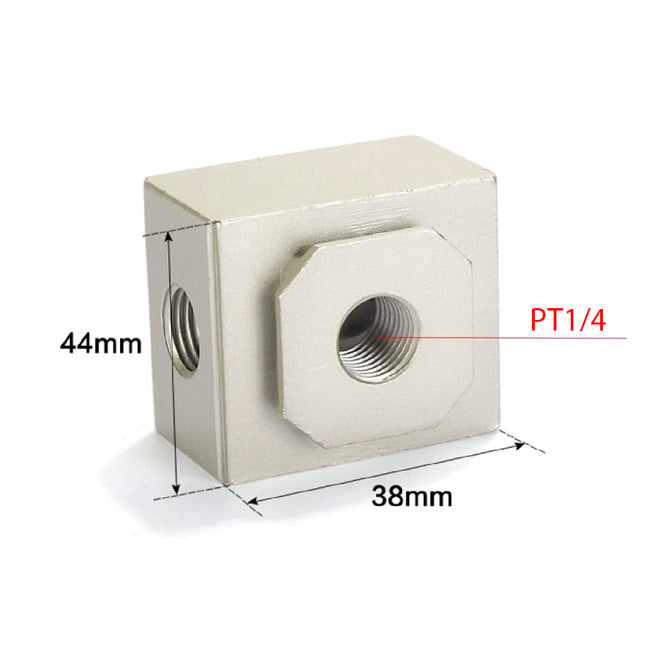

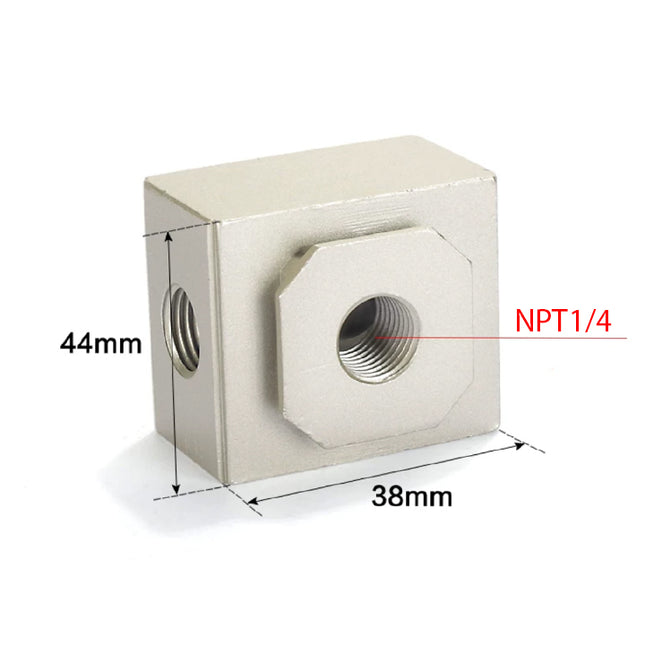

| GA300-08 | PT 1/4" |
| GA300-10 | PT 3/8" |

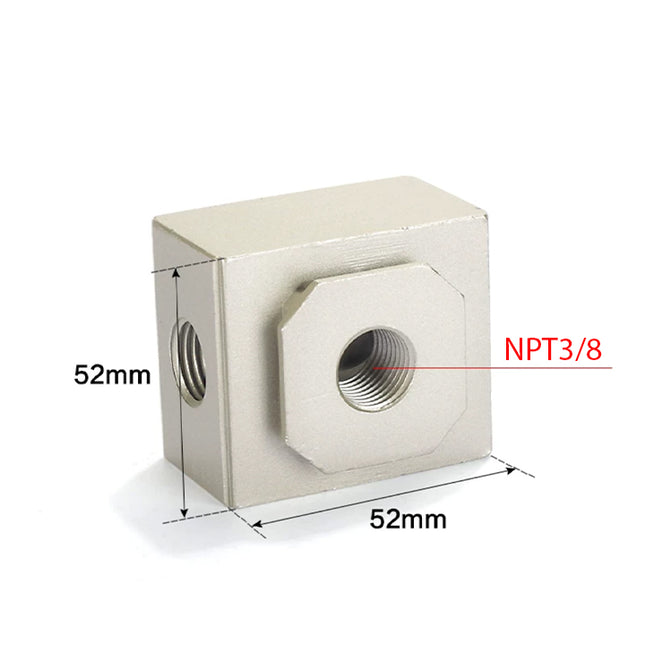

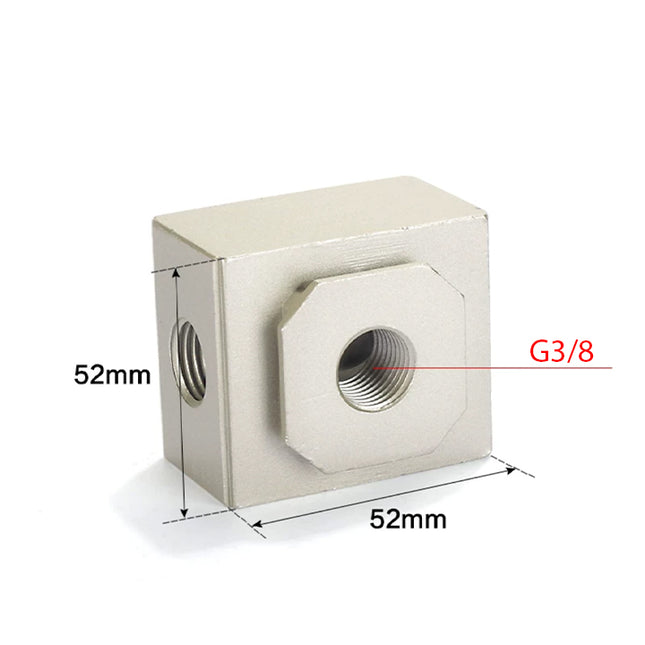

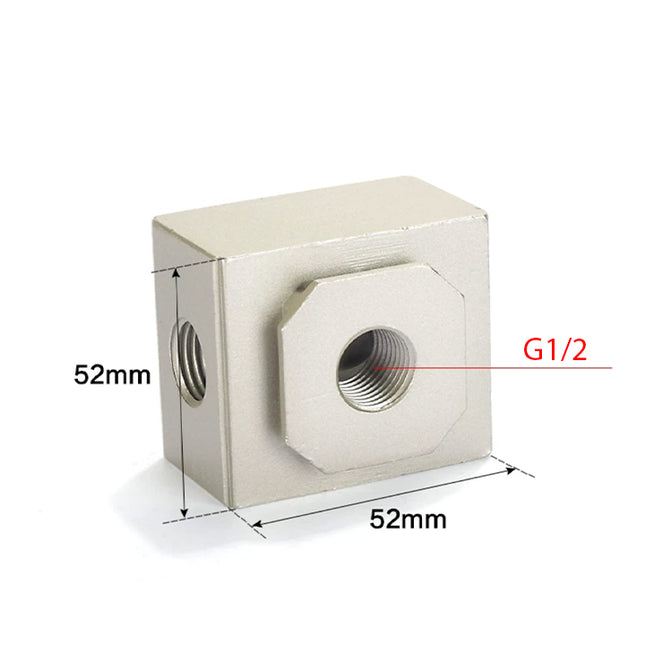

| GA400-10 | PT 3/8" |
| GA400-15 | PT 1/2" |

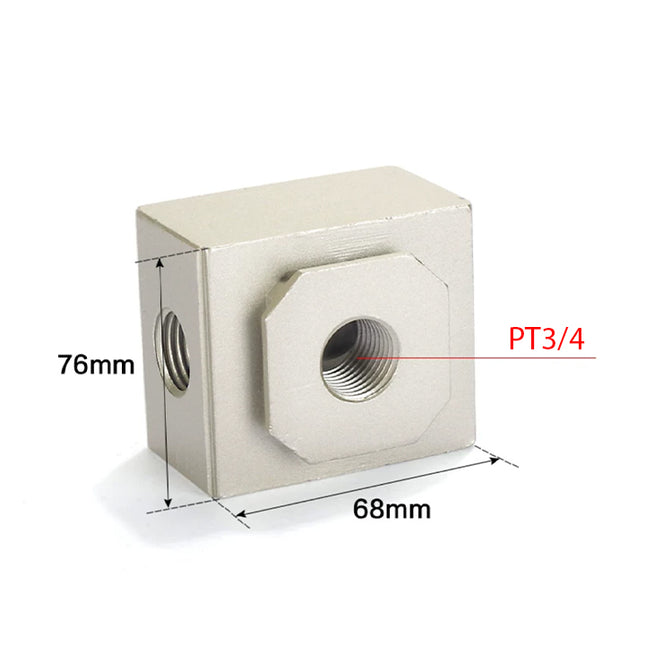

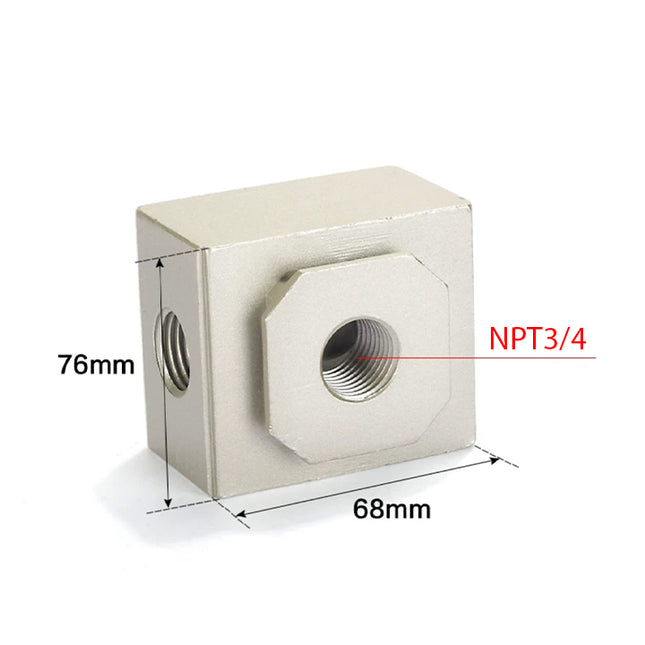

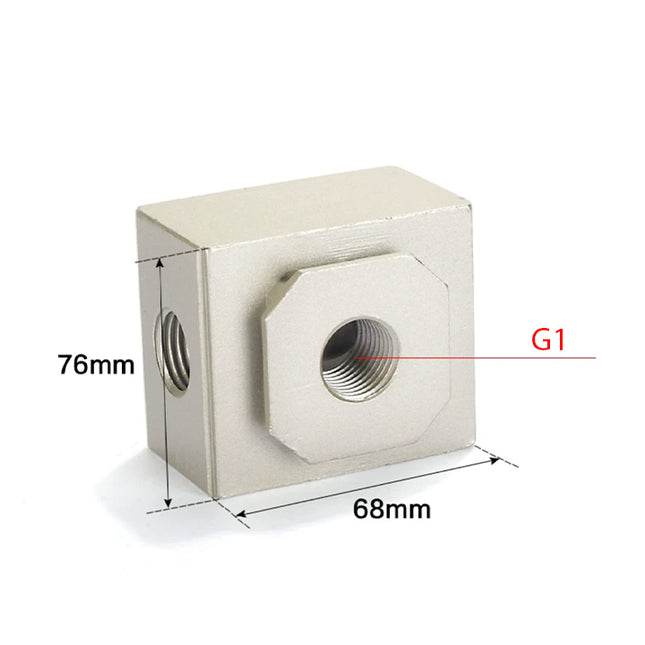

| GA600-20 | PT 3/4" |
| GA600-25 | PT 1" |
[Note] PT threads are standard. G and NPT thread types are available upon request.
Product Ordering Code
Example: GA300 08 T
| No. | Item | Options & Description |
|---|---|---|
| 1 | Series Code |
GA200: 200 Series Distribution Block GA300: 300 Series Distribution Block GA400: 400 & 500 Series Distribution Block GA600: 600 Series Distribution Block |
| 2 | Port Size |
06: 1/8" | 08: 1/4" | 10: 3/8" 15: 1/2" | 20: 3/4" | 25: 1" |
| 3 | Thread Code |
Blank: PT Thread G: G Thread T: NPT Thread |
