Cylinder Rod End Accessories

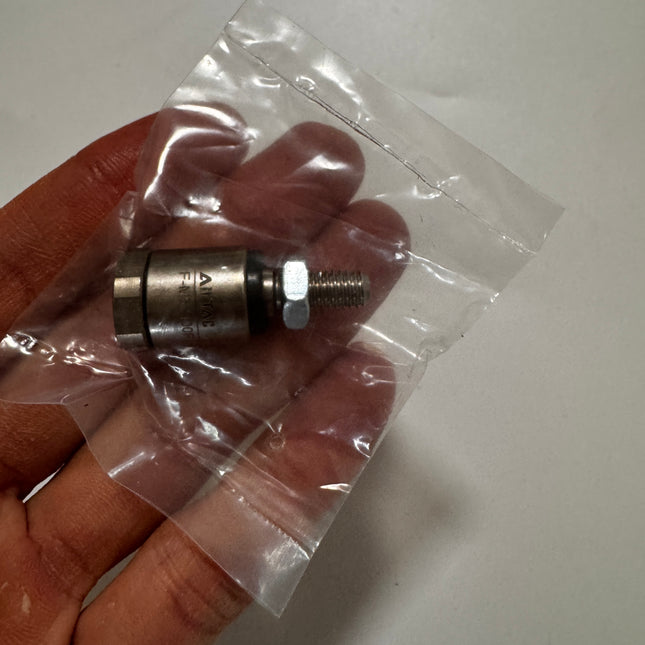

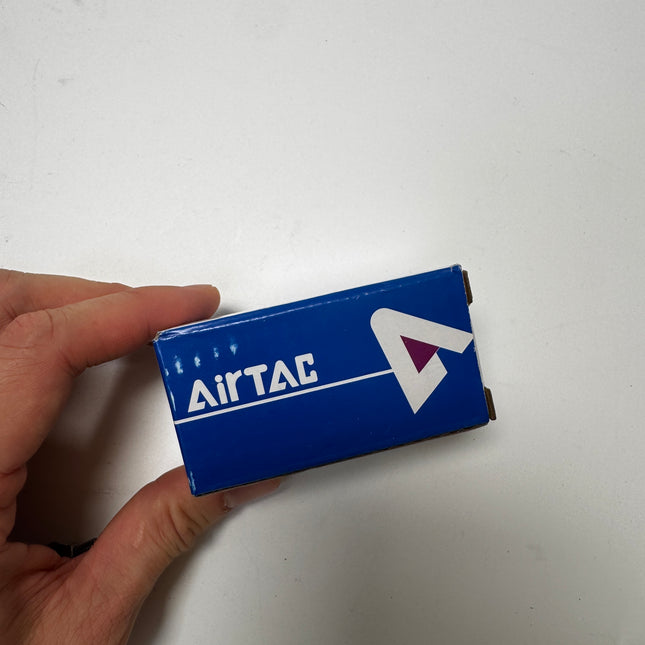

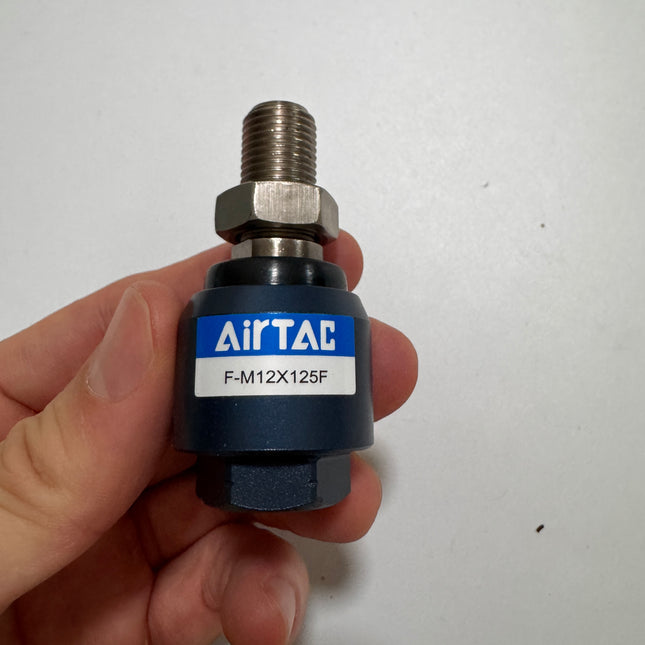

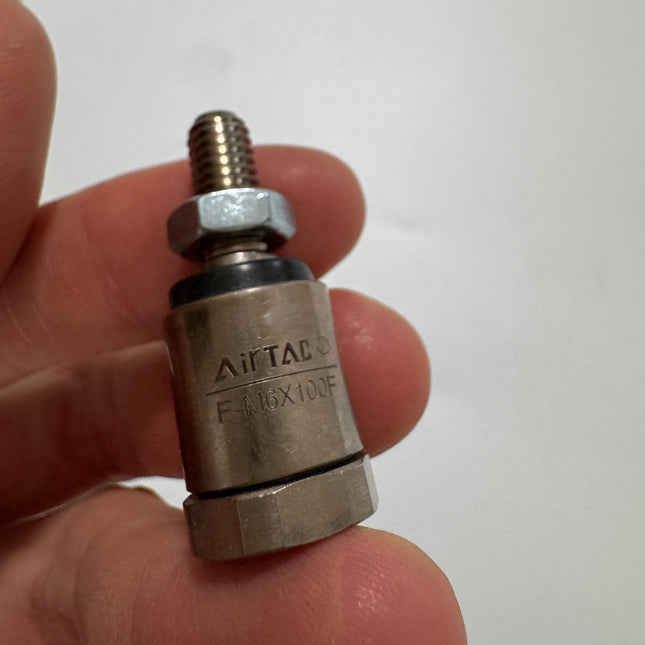

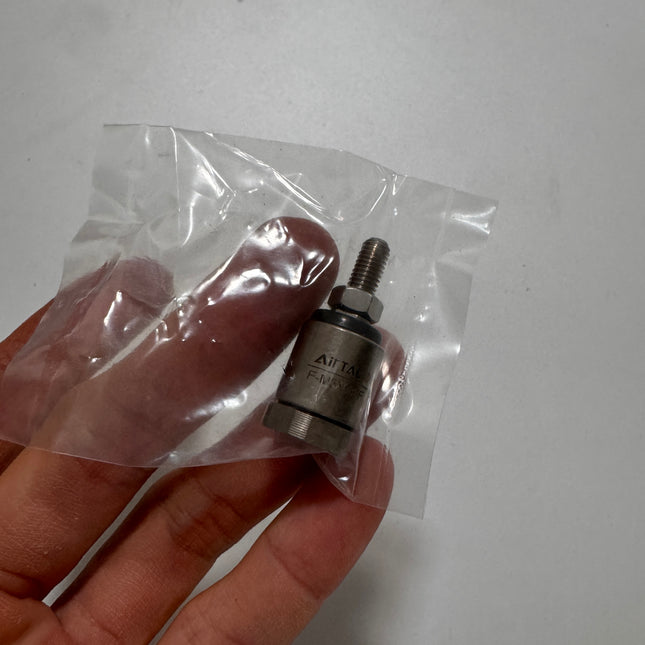

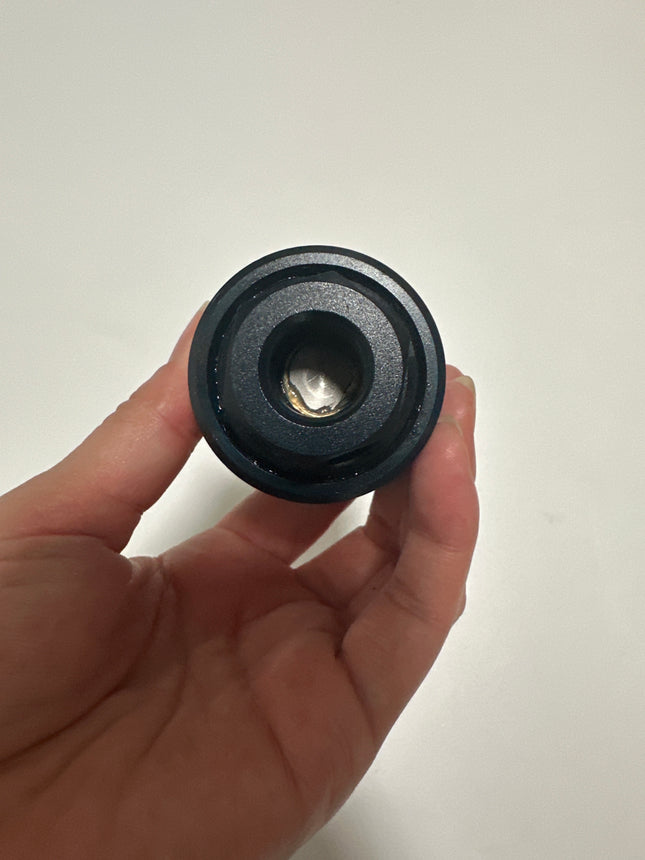

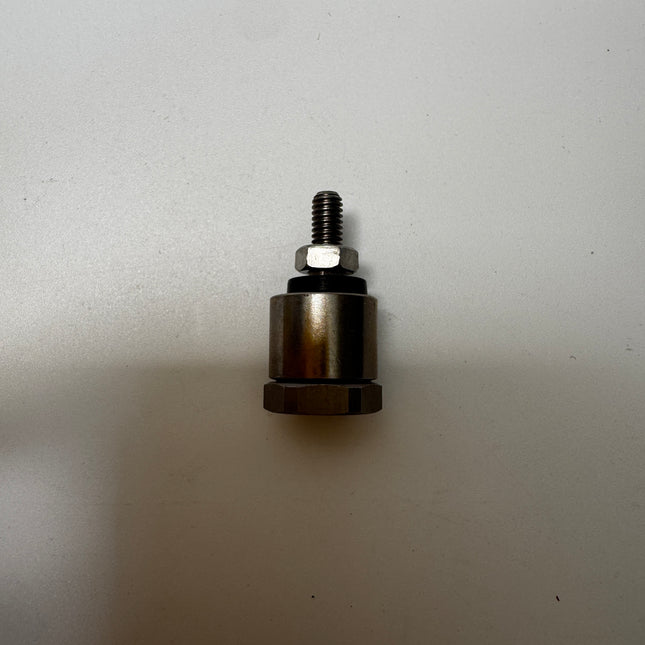

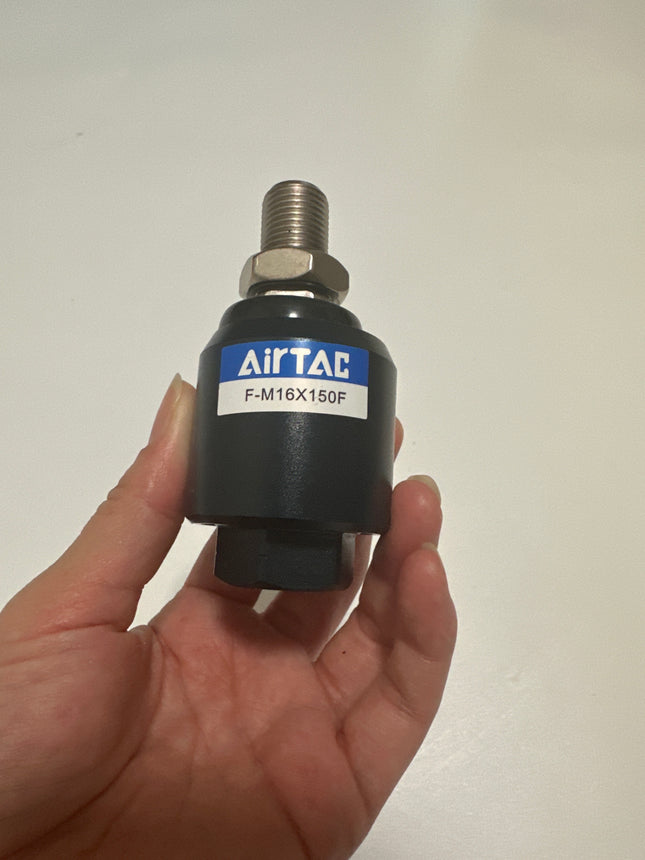

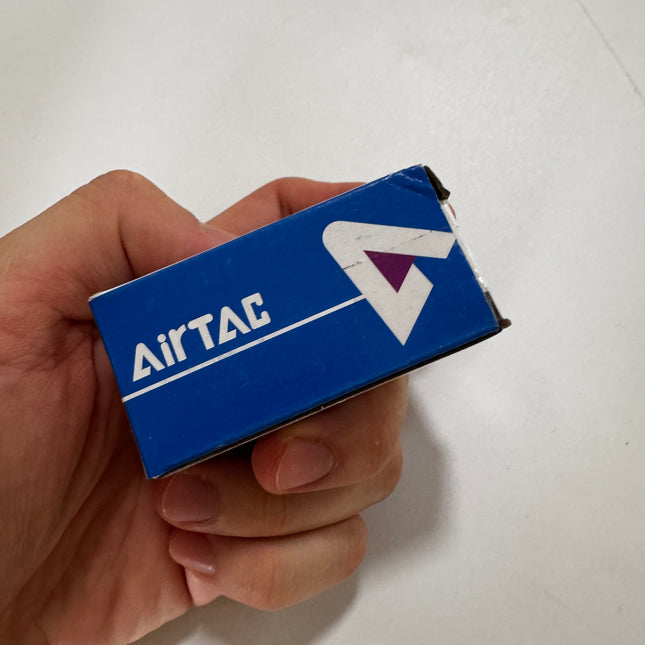

Floating Joint (F Series)
- Eliminates Eccentricity: Effectively absorbs external forces caused by eccentricity between the cylinder and the driven body.
- Ball Joint Structure: Features an internal ball joint design for flexible swing and wide deflection angles.
- Zero Clearance: Designed with no axial clearance for precise operation.
- Variety: Available in multiple thread specifications (M3 to M36) to suit various cylinder series (SE, SI, SC, MA, MI, etc.).
Ordering Code

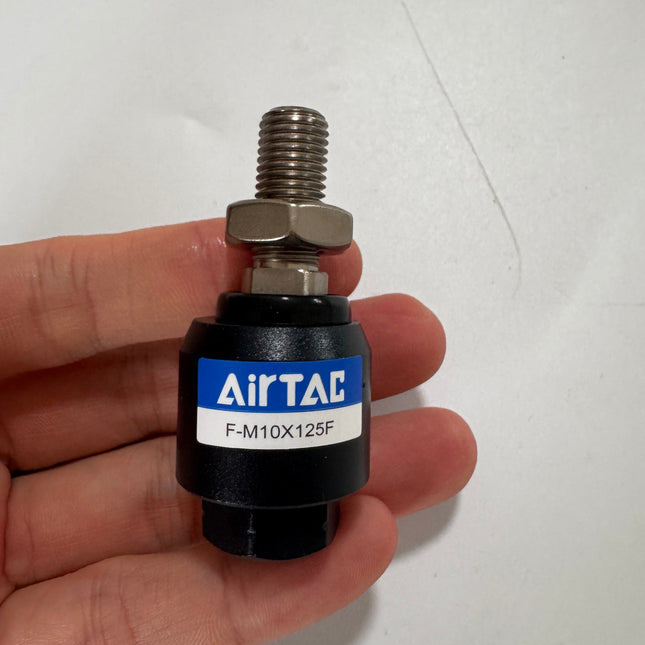

F - M10 X 125 F
| Accessory Code | Thread Specification (Dia x Pitch) | Type Suffix |
|---|---|---|
| F: Accessory |
M3X050: M3x0.5 M10X125: M10x1.25 M20X150: M20x1.5 (See full list in catalog) |
F: Floating Joint |

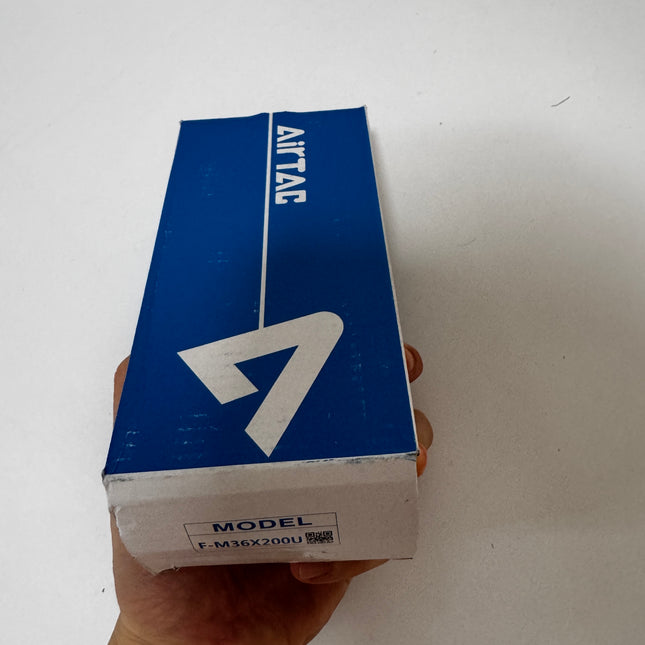

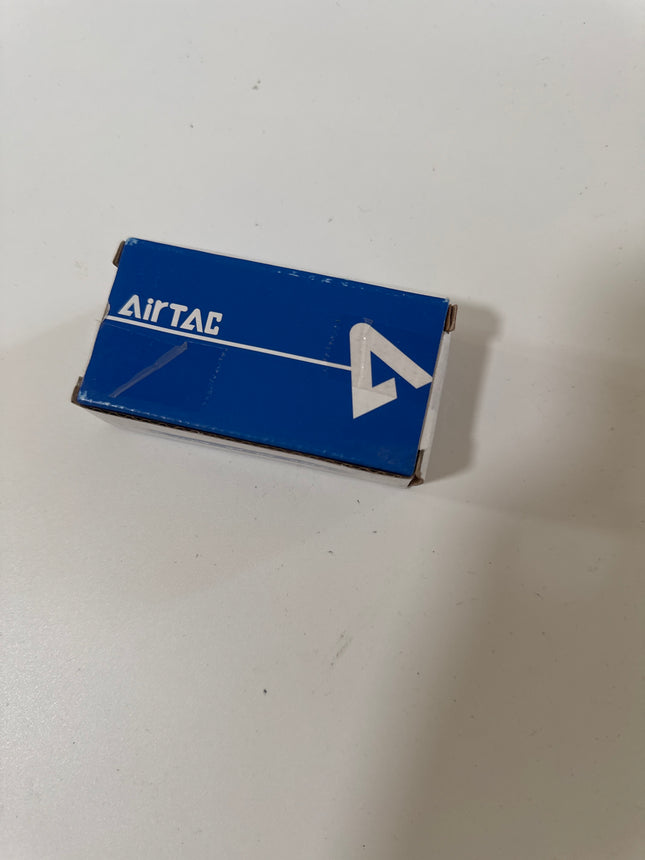

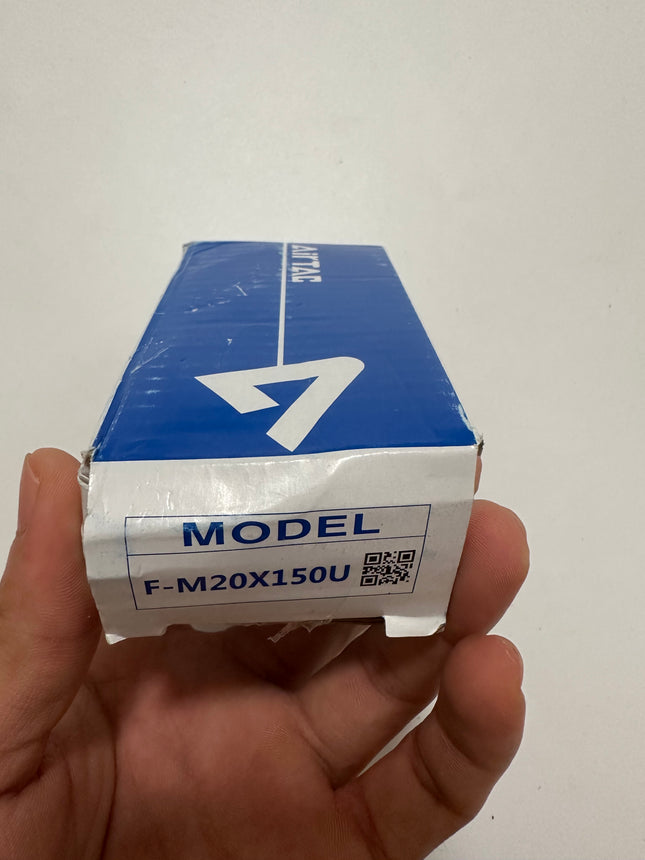

Rod End / Universal Joint (U Series)
- Universal Movement: Spherical bearing design allows for multi-directional movement and misalignment compensation.
- High Durability: Robust construction suitable for industrial applications.
- Wide Compatibility: Matches a wide range of cylinder series including SE, SAI, SC, JSI, ACQ, MA, MF, MBL, PB, and MI.
Ordering Code
F - M10 X 125 U
| Accessory Code | Thread Specification (Dia x Pitch) | Type Suffix |
|---|---|---|
| F: Accessory |
M4: M4x0.7 M10: M10x1.25 M16: M16x1.5 (See full list in catalog) |
U: Rod End (Fish Eye) |

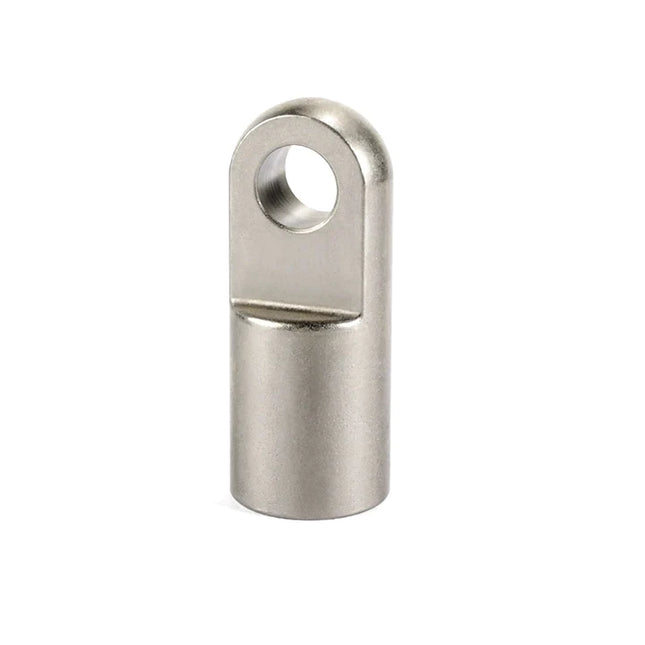

I-Clevis (I Series)
- Single Knuckle: Standard I-joint for linear force transmission.
- Materials: Manufactured for strength and reliability in connecting cylinder rods to loads.
- Compatibility: extensively maps to standard cylinder series (SE, SAI, SG, SC, JSI, MI, MPG, etc.).
Ordering Code
F - M16 X 150 I
| Accessory Code | Thread Specification (Dia x Pitch) | Type Suffix |
|---|---|---|
| F: Accessory |
M3: M3x0.5 M10: M10x1.25 M16: M16x1.5 (See full list in catalog) |
I: I-Clevis (Single) |

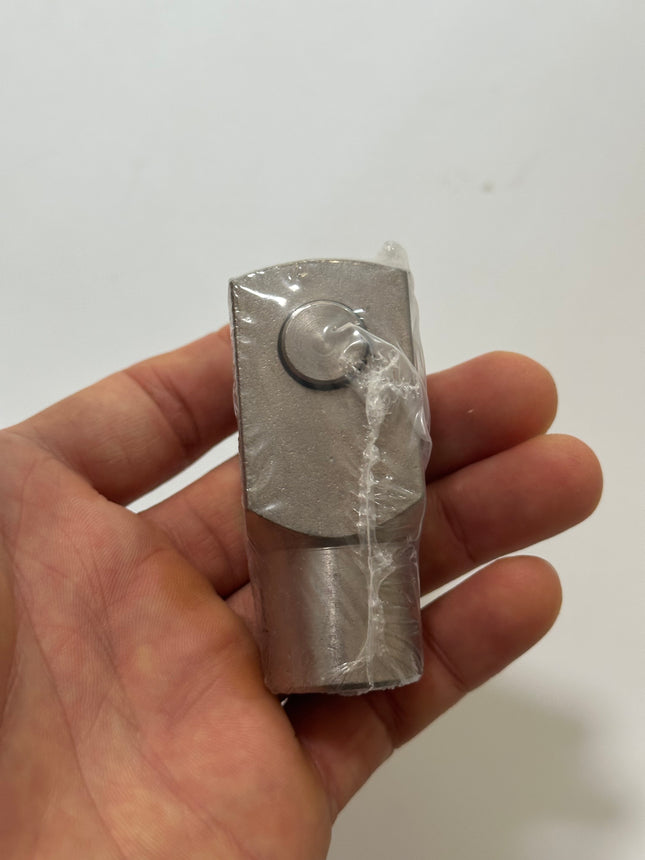

Y-Clevis (Y Series)
- Double Knuckle: Standard Y-joint (Fork) for pivotal connections.
- Pin Connection: Designed to work with a pin (often supplied separately or included depending on the kit) for flexible linkage.
- Wide Application: Fits almost all standard cylinder series (SE, SAI, SG, SC, JSI, MI, MPG, etc.).
Ordering Code
F - M16 X 150 Y
| Accessory Code | Thread Specification (Dia x Pitch) | Type Suffix |
|---|---|---|
| F: Accessory |
M3: M3x0.5 M10: M10x1.25 M16: M16x1.5 (See full list in catalog) |
Y: Y-Clevis (Double) |
