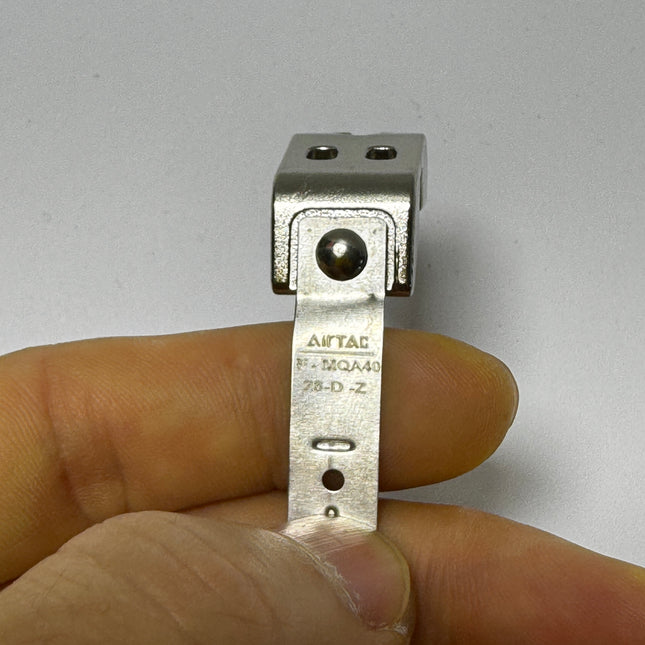

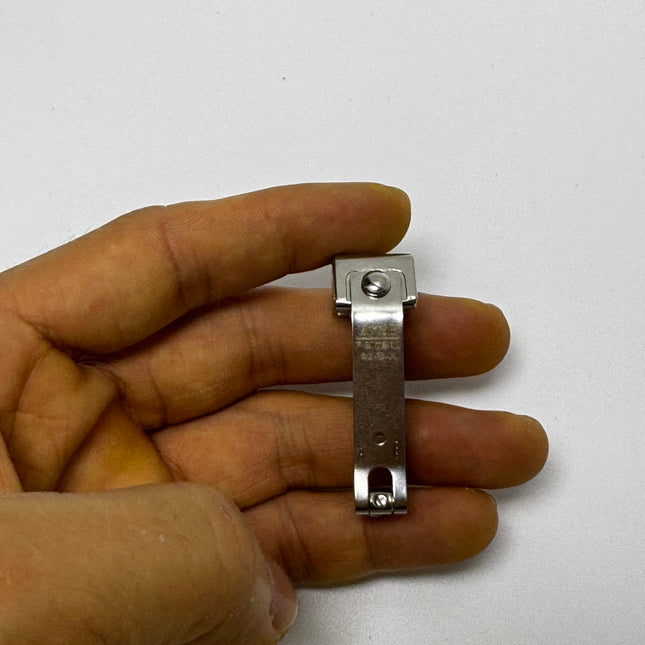

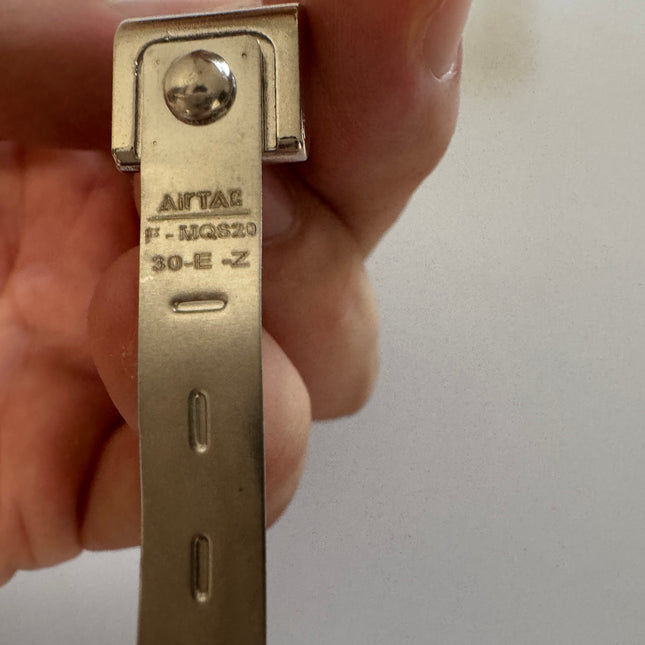

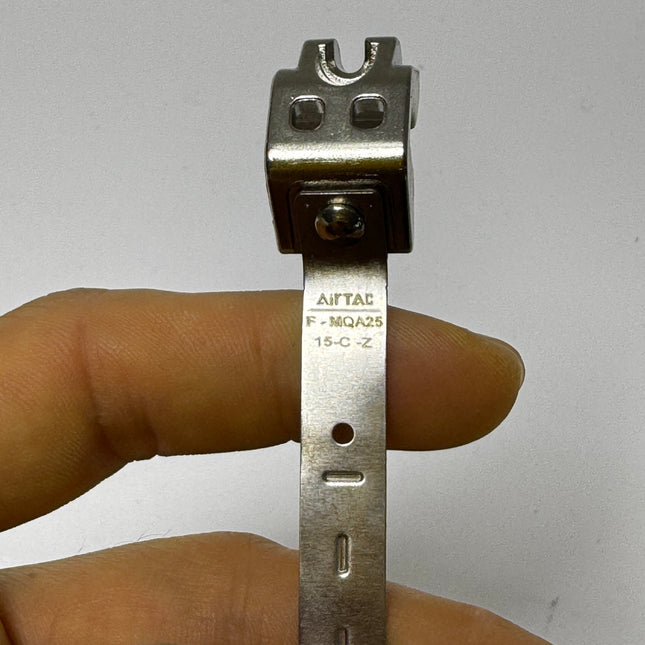

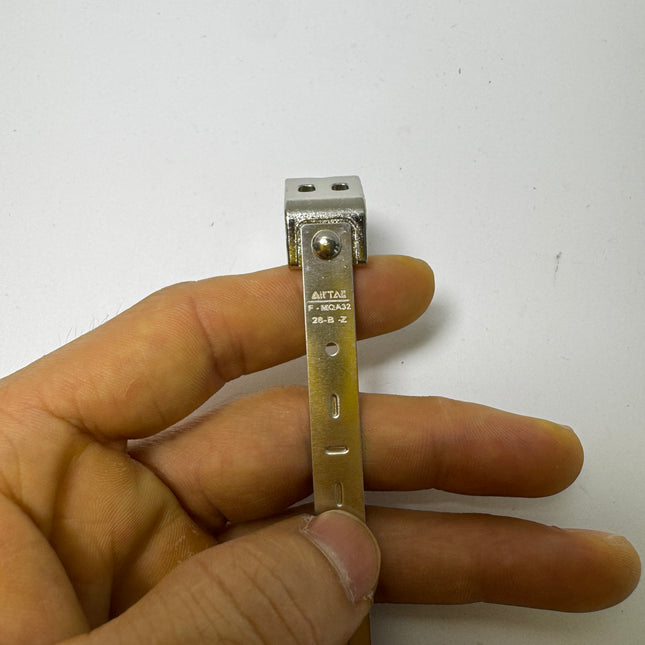

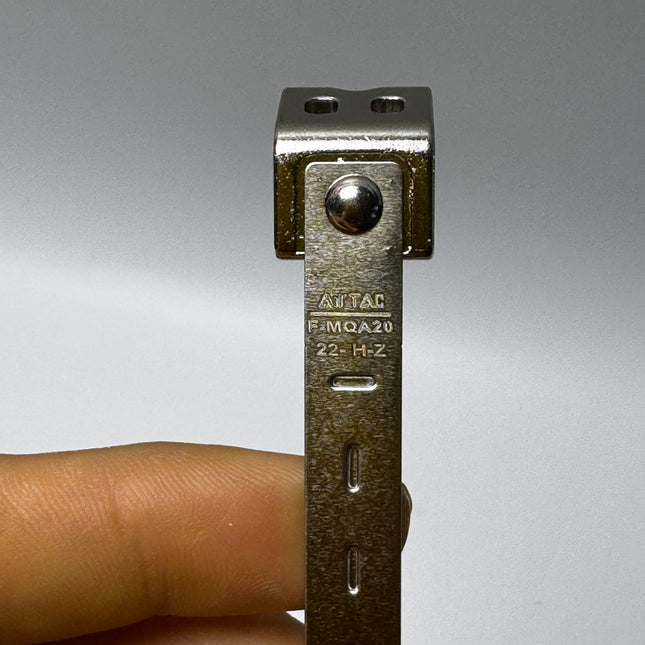

F-MQ Series Round Cylinder Sensor Mounting Accessory
Product Features
- Dedicated Design: Specifically designed for mounting sensors on round body cylinders.
- Material Options: Available in Aluminum Alloy (for general use) and Stainless Steel (for smaller bores or specific environments).
- Secure Fixation: Uses a stainless steel band clamp mechanism to securely hold the sensor in place on the cylinder barrel.
- Compatibility: Suitable for DMSG, CMSG, and EMSG series sensors.
Installation Instructions
Applicable Sensors: DMSG, CMSG, EMSG
Step-by-Step Guide
- Insert Sensor: Loosen the sensor fixing screw and the band fixing screw. Insert the sensor into the band clamp slot.
- Wrap Band: Wrap the stainless steel band around the round cylinder body and clasp the ends together properly.
- Positioning: Slide the assembly to set the sensor at the desired detection position on the cylinder.
- Secure: Tighten the band fixing screw to secure the bracket to the cylinder, then tighten the sensor fixing screw.
Accessory Ordering Code
Ordering Example: F - MQ - A32 (For Φ32 Aluminum Cylinder)
Ordering Key
| Body Material | Applicable Product | Cylinder Bore | Ordering Code |
|---|---|---|---|
|
Aluminum Alloy (Standard) |
MCK, MBL | Φ 20 mm | A20 |
| Φ 25 mm | A25 | ||
| Φ 32 mm | A32 | ||
| Φ 40 mm | A40 | ||
| Φ 50 mm | A50 | ||
| Φ 63 mm | A63 | ||
| Φ 80 mm | A80 | ||
|
Aluminum Alloy (Thickened Type) |
TWG | Φ 32 mm | A32T |
| Φ 40 mm | A40T | ||
| Φ 50 mm | A50T | ||
| Stainless Steel | PB/PBR MI, MF, MG MA/MAC |
Φ 6 mm | S06 |
| Φ 8 mm | S08 | ||
| Φ 10 mm | S10 | ||
| Φ 12 mm | S12 | ||
| Φ 16 mm | S16 | ||
| Φ 20 mm | S20 | ||
| Φ 25 mm | S25 | ||
| Φ 32 mm | S32 | ||
| Φ 40 mm | S40 | ||
| Φ 50 mm | S50 | ||
| Φ 63 mm | S63 |
