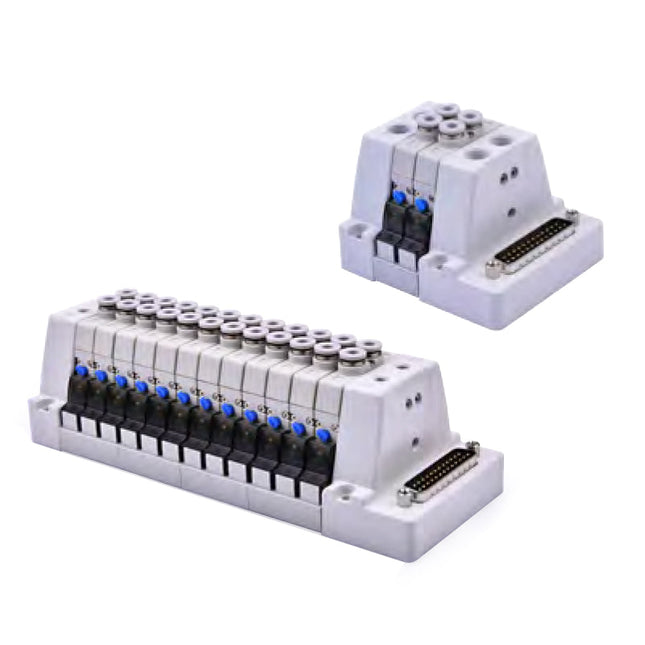

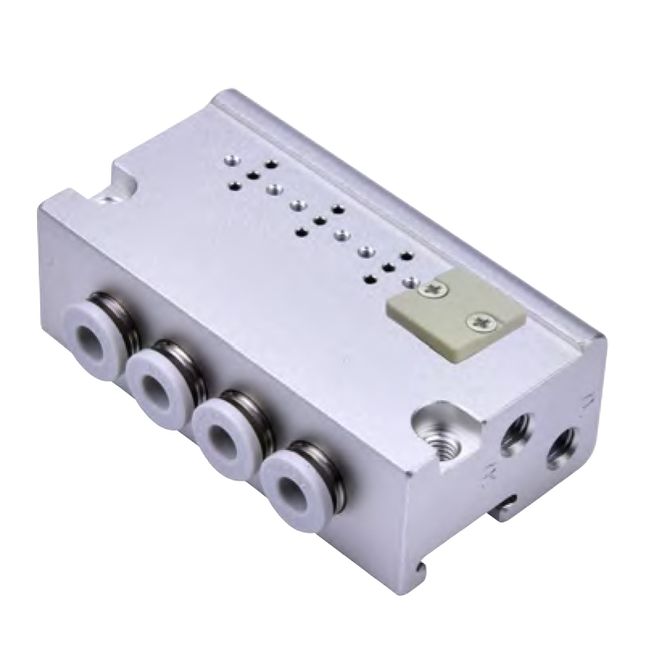

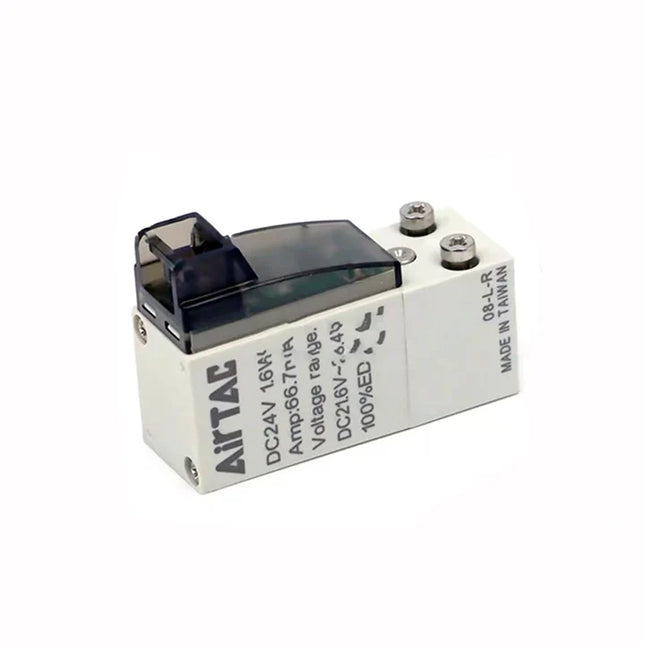

Product Features
- Equipped with an arc suppression device to prevent damage to the solenoid valve due to surge voltage.
- Designed for square wiring input for DC solenoids; terminal wire assembly or entire terminal block can be selected.
- Equipped with photocouplers or rectifiers for rectification, which reduces AC power coil noise issues.
- Multiple voltage specifications are available: AC220V, AC110V, DC24V, DC12V.
- Low starting voltage, long service life.
- Manual override with LOCK function, convenient for installation and debugging.
General Specifications
| Item |
CPV10 |
| Working Medium |
Air (filtered through 40µm filter or finer) |
| Operation Type |
Direct Acting |
| Effective Orifice |
Φ0.55mm |
| Effective Orifice (P→A) |
0.25mm²(Cv=0.014) |
| Effective Orifice (A→R) |
0.35mm²(Cv=0.02) |
| Positions |
Three-way Two-position |
| Weight (Valve Body) |
15g |
| Weight (Terminal Wire) |
050 : 4.6g ; 200 : 21.4g |
| Operating Pressure Range |
0~0.8MPa (0~114psi) |
| Proof Pressure |
1.2MPa (175psi) |
| Working Temperature |
-20～70°C |
| Lubrication |
No need |
| Body Material |
Aluminum Alloy |
Electrical Specifications
| Item |
Specific Parameter (Common to AC/DC) |
| Standard Voltage |
AC220V, AC110V, DC24V, DC12V |
| Operating Voltage Range |
DC±10% ; AC±15%～-10% |
| Power Consumption |
DC: 0.9W; AC: 1.5VA |
| Protection Degree |
Dustproof |
| Insulation Class |
F Class |
| Wiring Form |
Terminal Type |
| Response Time |
on＜7ms ; off＜7ms |
Product Ordering Code
Valve Body Ordering Code
Example Code: CPV 10 B P 050
| 1. Model Code |
2. Body Width |
3. Standard Voltage |
4. Manual Pin Code |
5. Wire Length [Note 1] |
|
CPV: CPV Series Micro Solenoid Valve
|
10: 10mm
|
A: AC220V
|

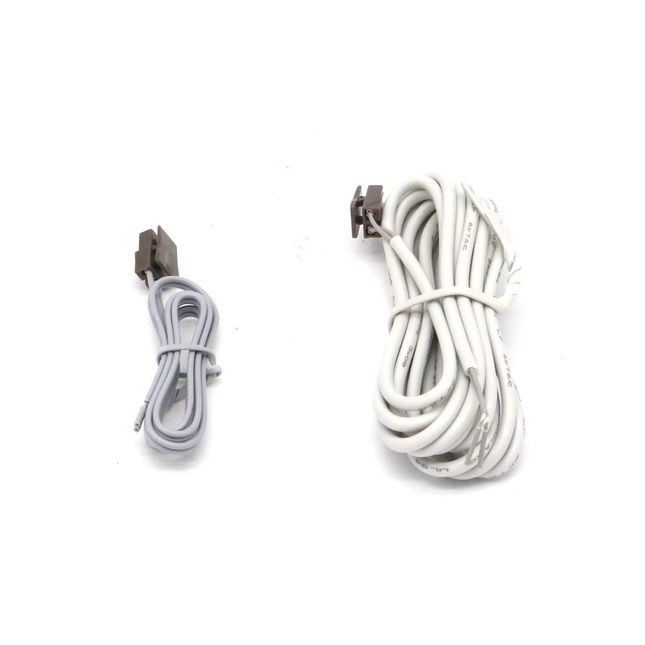

P: With Manual Pin
|
050: 0.5m
|
|
|
B: DC24V
|
|
200: 2.0m
|
|
|
C: AC110V
|
|
|
|
|
F: DC12V
|
|
|
[Note 1] Comes with M1.6 cross-head round screw.
Terminal Ordering Code
Example Code: CPV T 050
| 1. Model Code |
2. Terminal Wire |
3. Wire Length |
|
CPV: CPV Series Micro Solenoid Valve
|
T: Terminal Wire
|
050: 0.5m
|
|
|
200: 2.0m
|
