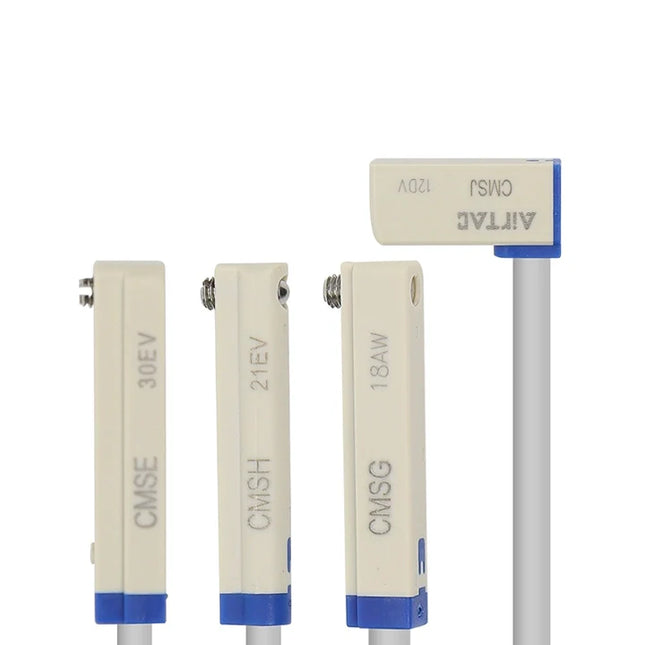

CMS Series Magnetic Sensor
Type II Sensor | High Flexibility | Industrial Machinery Ready
Product Features & Overview
Sensor Types
- General Type (CMS): Identified by a Blue Label. Standard use.
- High Temperature Type: Identified by a Red Label. Ideal for high heat environments.
For Machinery Industry (A05–CMS)
Specially engineered for dynamic industrial environments:
- High Flexibility Cable: Flexibility is improved by approx. 20% compared to regular models. Anti-bending cable material is highly suitable for robotic arms, drag chains, and constant motion.
- SR Bend-Resistant Structure: Enhanced resistance to frequent bending and flexing near the sensor body.
- Shock-Resistant Body: Made from tough engineering plastic to withstand industrial impacts.
- Environmental Protection: Excellent protection against dust, water, and oil droplets.
Note: A05–CMS minimum cable bending radius is recommended at 19mm. The high-temperature version does not feature an indicator light.
Mounting Accessories
The CMSG model comes with two types of mounting kits, suitable for various cylinder profiles:
- F-MQ Series: Flexible clip mount
- F-SC Series (SH): Screw mount bracket
Technical Specifications
| Model Type | 2-wire General Type / 2-wire High Temperature Type |
| Voltage Range | 5V ~ 240V AC/DC |
| Max. Switching Current | 100mA |
| Max. Load Capacity | 10W Max. |
| Internal Power Consumption | None |
| Internal Residual Voltage | 2.5V Max. @100mA DC / None (High Temp) |
| Leakage Current | None |
| Max. Switching Frequency | 200Hz |
| Shock Resistance | 50G |
| Protective Circuit | None |
| Operating Temperature |
General: -10°C ~ 70°C High Temp: -10°C ~ 125°C |
| Protection Grade | IP64 |
| Certifications | CE Certified, RoHS |
Finished Product Ordering Code
Example: CMS - G - 020 - H
Or for Machinery Industry Type: A05 - CMS - G - 020
| No. | Item | Options & Description |
|---|---|---|
| 1 | Industry Code |
Blank: General type A05: Machinery industry type (High Flex) |
| 2 | Series Code | CMS: Magnetic Sensor |
| 3 | Cable Specification |
Direct Cable Output: 020: 2m cable | 030: 3m cable 050: 5m cable | 100: 10m cable |
| 4 | Cable Connector Type |

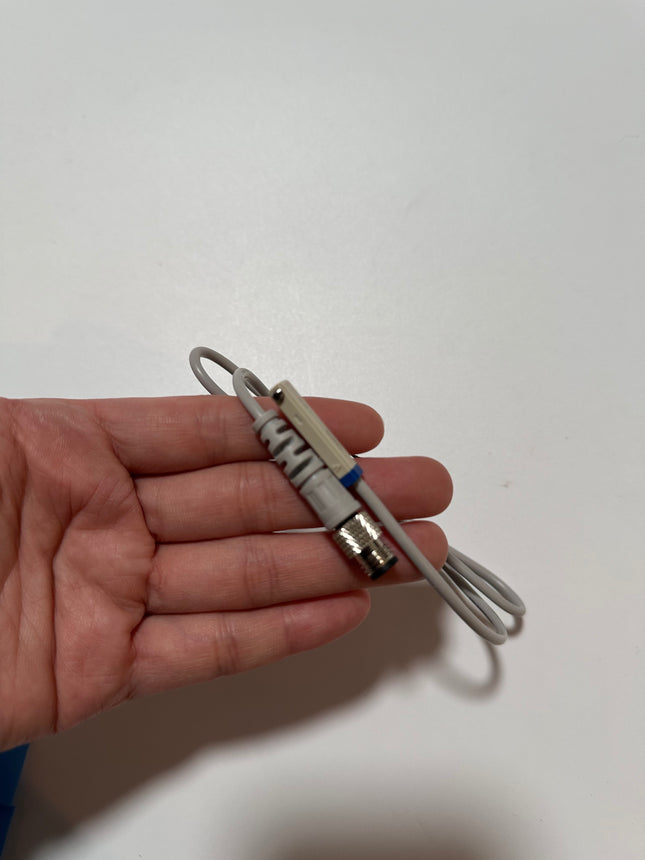

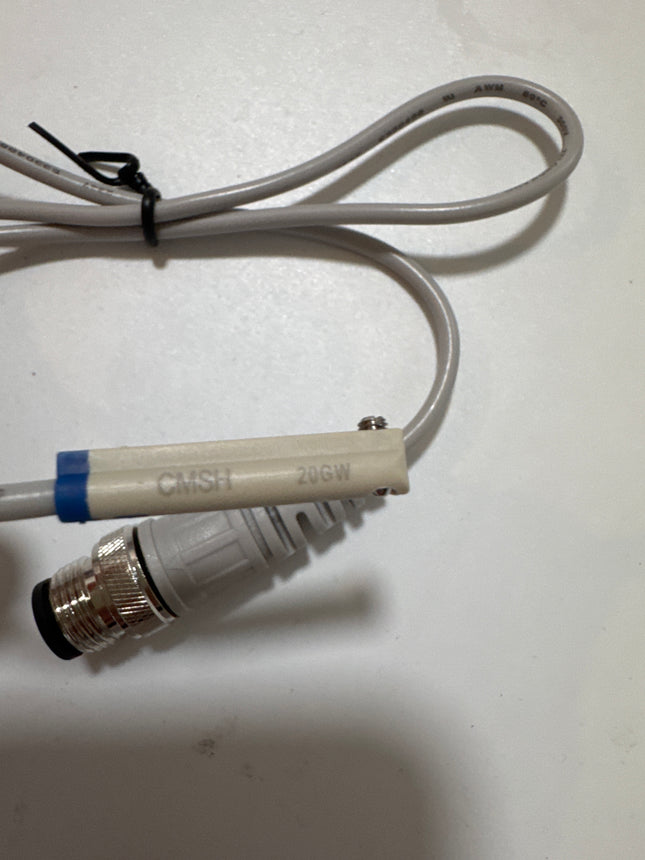

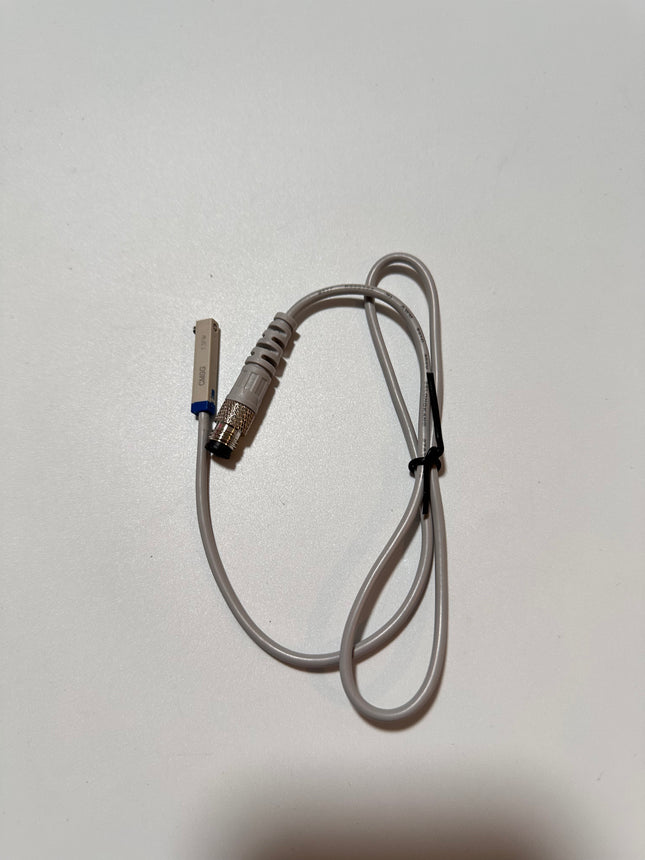

Quick Male Connector: M08: M8 quick connector + 0.5m cable (Also: M08010/1m, M08020/2m, M08030/3m) M12: M12 quick connector + 0.5m cable (Also: M12010/1m, M12020/2m, M12030/3m) |
| 5 | Special Code |
Blank: Standard type H: High-temperature type |
Note 1: The A05 machinery industry type does not support M08 and M12 quick connectors.
Note 2: High-temperature type (H) is not available for the A05 series.
Note 2: High-temperature type (H) is not available for the A05 series.
Sensor Selection Guide – DMS, EMS, CMS Series
Please use this guide to find the correct sensor model and mounting method for your specific cylinder series.
1. Direct Slot Mounting
| Sensor Model | Compatible Cylinder Series & Bore Size |
|---|---|
| DMSG / CMSG / EMSG |
HFK / HFKL (Ø10~Ø25) ACO / TACQ (Ø16~Ø160) SDA (Ø10~Ø100) TWQ / TCL / TCM (Ø12~Ø100) QCK (Ø12~Ø63) SAU / HFZ / HFY / HFP (Ø10~Ø63) TR / STW (Ø10~Ø63) MD / MKC (Ø16~Ø40) AQK / BAK (Ø16~Ø32) MCK (with MCK40G bracket) |
2. Mounting with Brackets & Clamps
| Sensor Model | Compatible Cylinder Series | Mounting Method | Required Accessory Model |
|---|---|---|---|
| DMSG / CMSG | PB / PBR, MI / TMI, MF, MG, MA / MAC | Aluminum Clamp | MBL, MCK, TWK (standard/enhanced) |
| Round body cylinders | Plastic Clip | 3Q, 4Q | |
| DMSG / CMSG | Standard Tie-rod Cylinders (Ø32 ~ Ø250) | Clamp Mounting | SC, SGC Kits |
3. External Slot & Plug-in Mounting
| Sensor Model | Mounting Style | Compatible Cylinder Series | Bore Size |
|---|---|---|---|

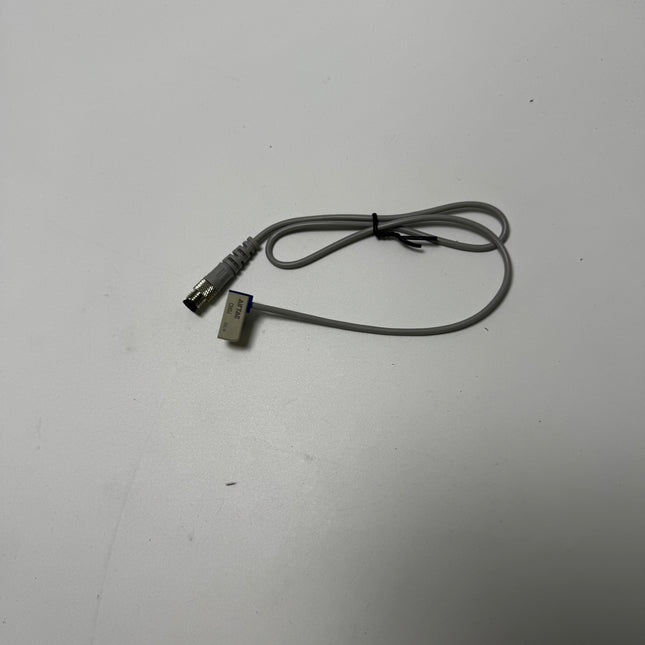

| DMSJ / CMSJ | External Slot | ACO/TACQ, SDA, TWQ, QCK, QDK, TN | Ø10 ~ Ø100 |
| TWH / TWM | Ø20 ~ Ø80 | ||
| DMSH / CMSH / EMSH | Plug-in Type | ACO/TACQ, TC, HFZ, HFY, HFP, HFR, HFC, HFT | Ø6 ~ Ø125 |
| QDK, HLQ, HLQH, HLS/HLSL, MU, HLH, MPG | Ø6 ~ Ø63 | ||
| HRQ, HFK, HLF, HGS, RMH, HFD | Ø2 ~ Ø100 | ||

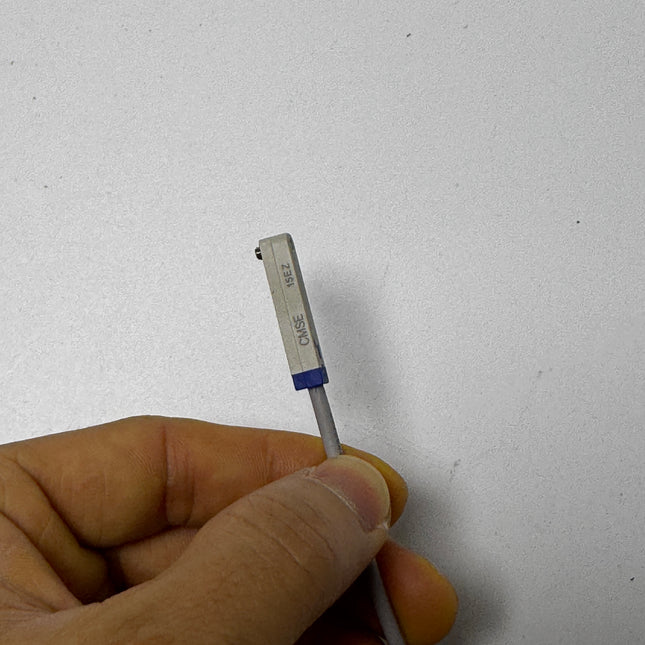

| DMSE / CMSE | Slot-in Type | SE / BSE, SAI / TSAI, SAI, ACE, ACE / JSI | Ø32 ~ Ø200 |
