CM3 Series Mechanical Valve
- Product Features
- Specifications
- Product Ordering Code
Product Features

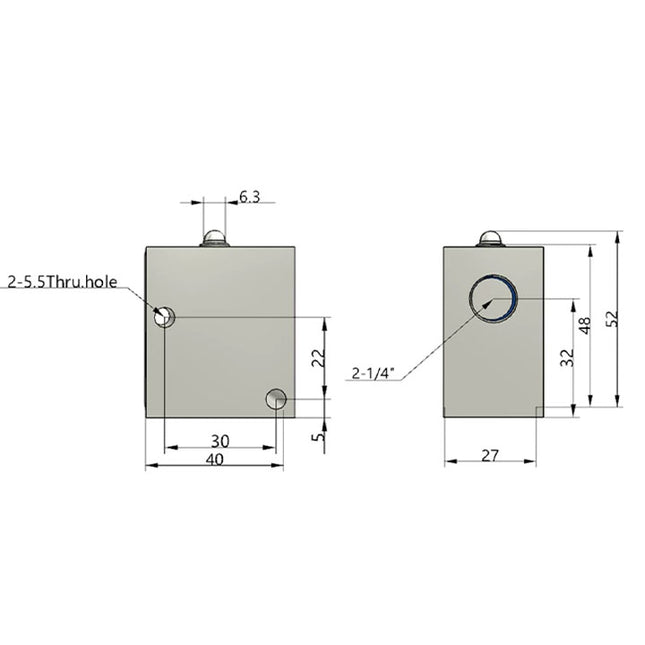

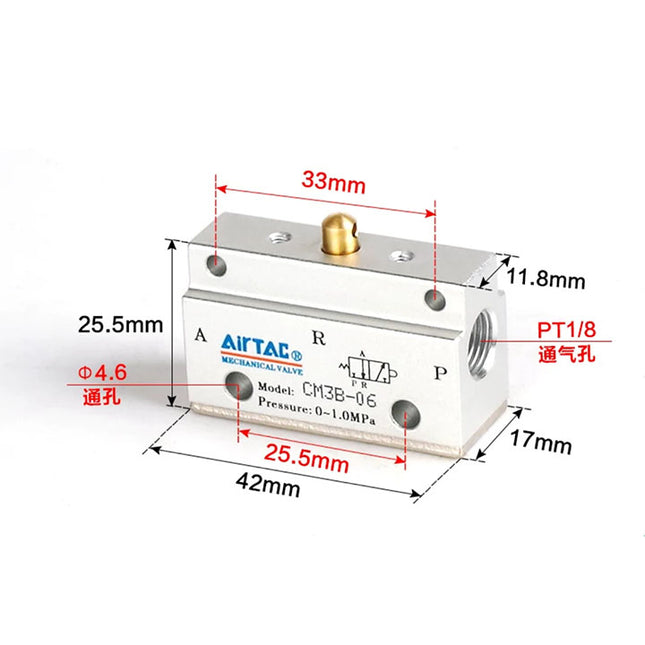

- The CM3B, CM3L, CM3V, and CM3R models are equipped with an external mechanical part that can be used for position detection or as a limit switch.

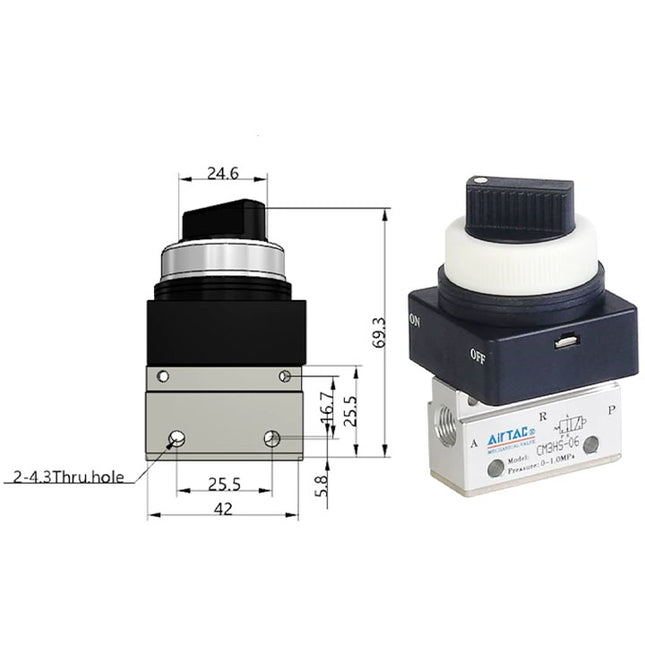

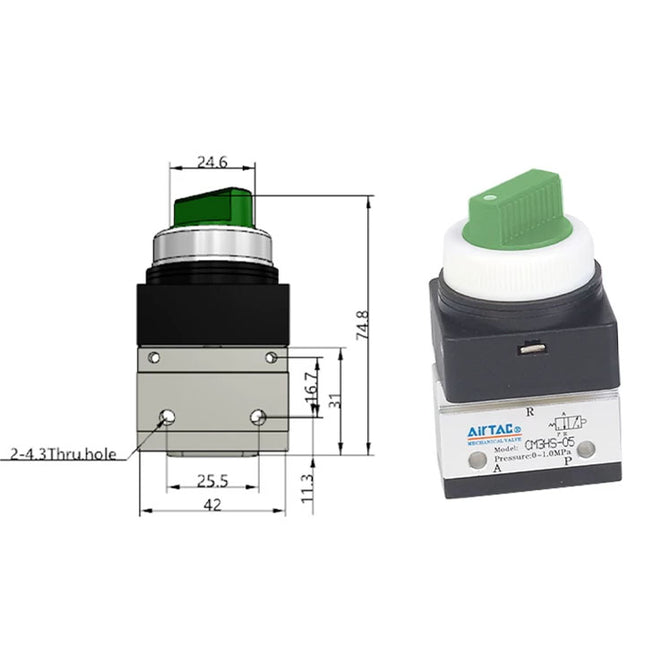

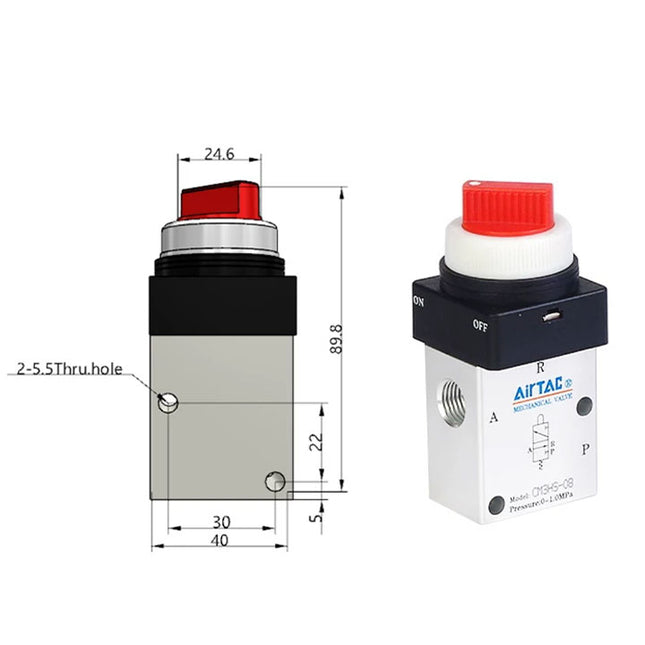

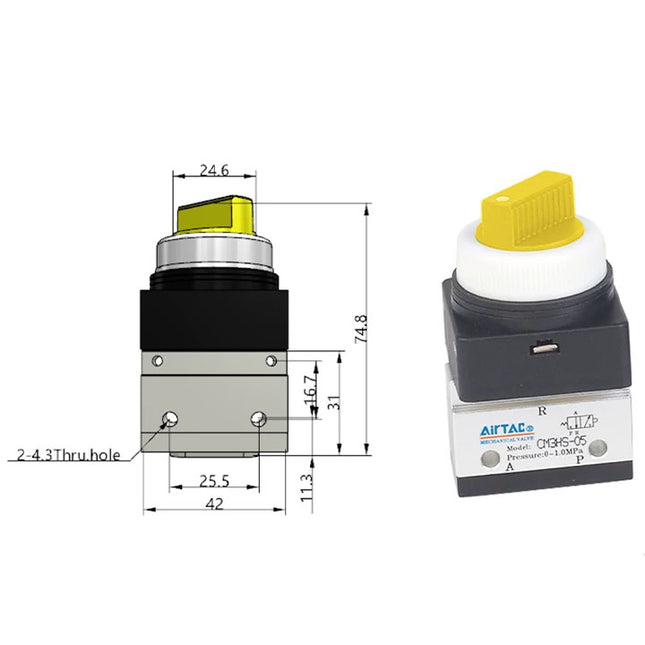

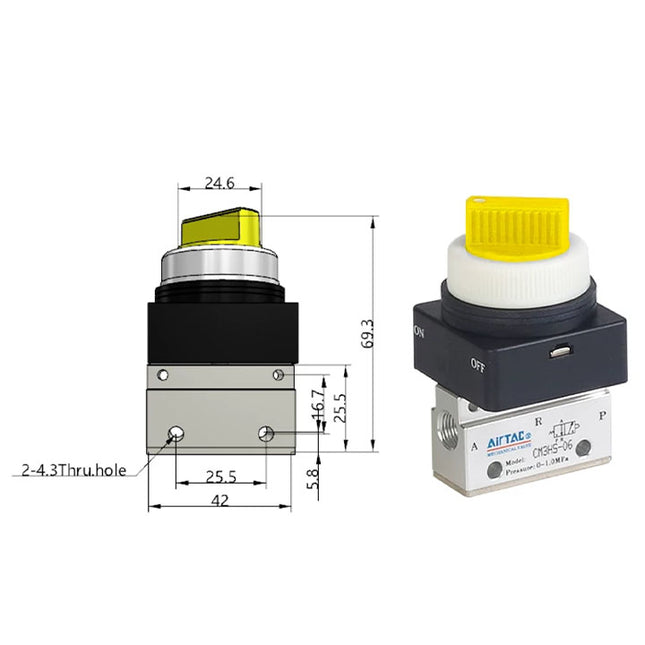

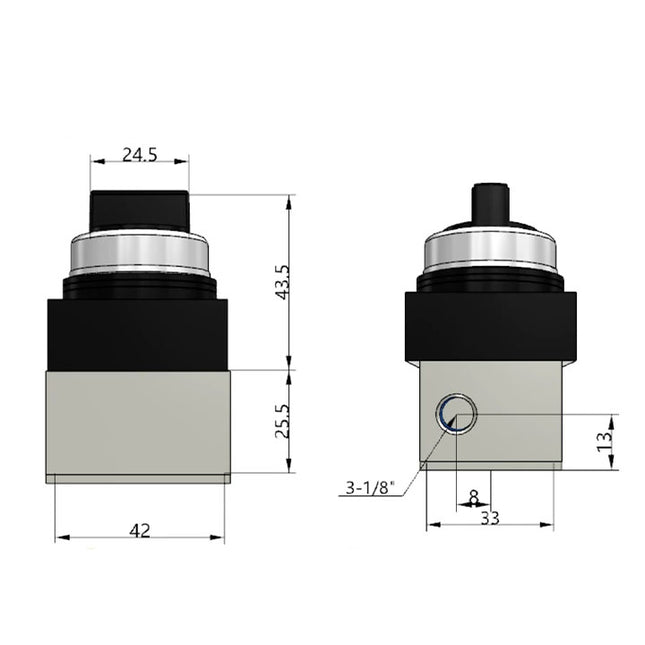

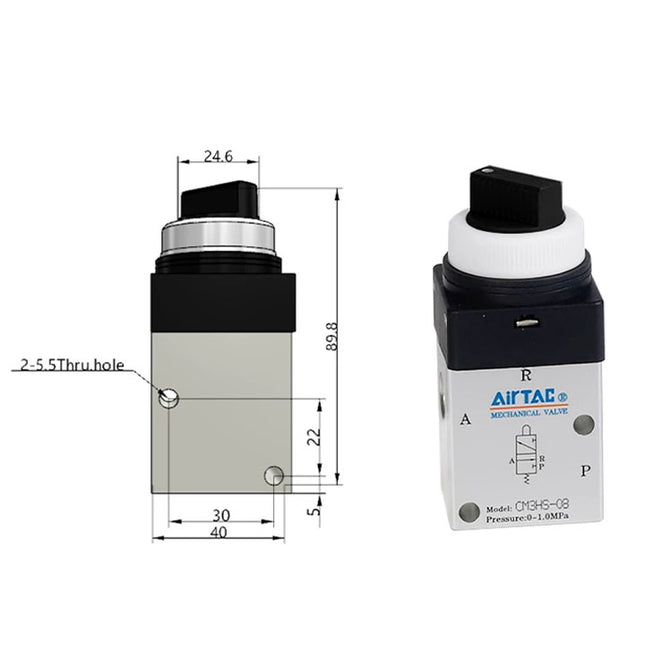

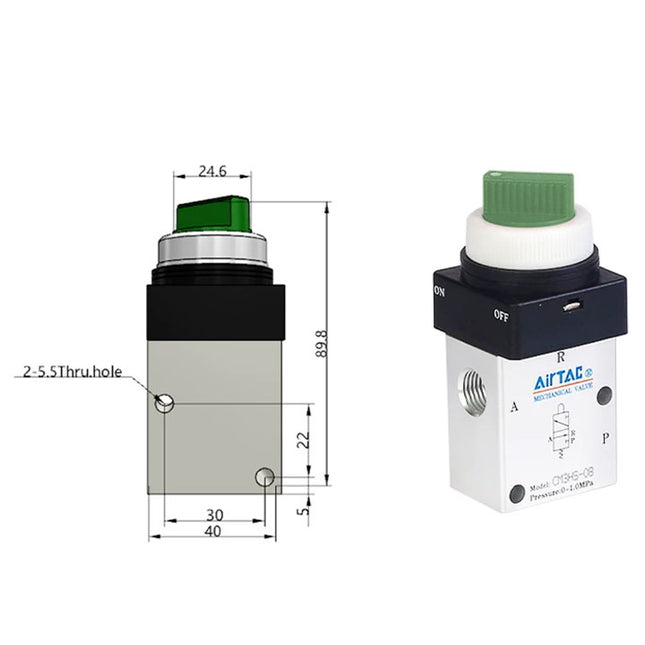

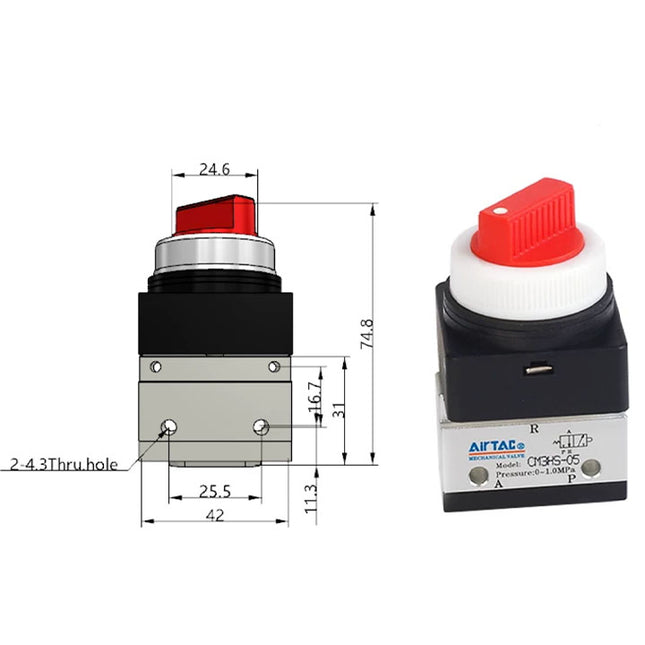

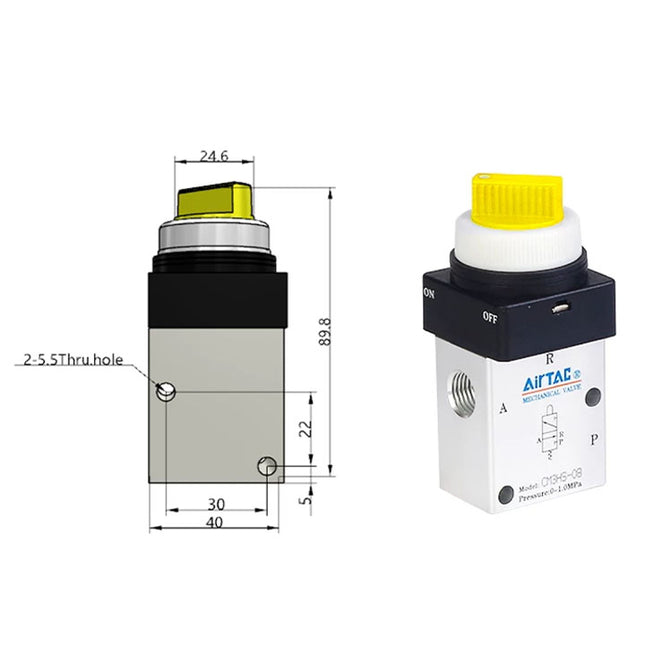

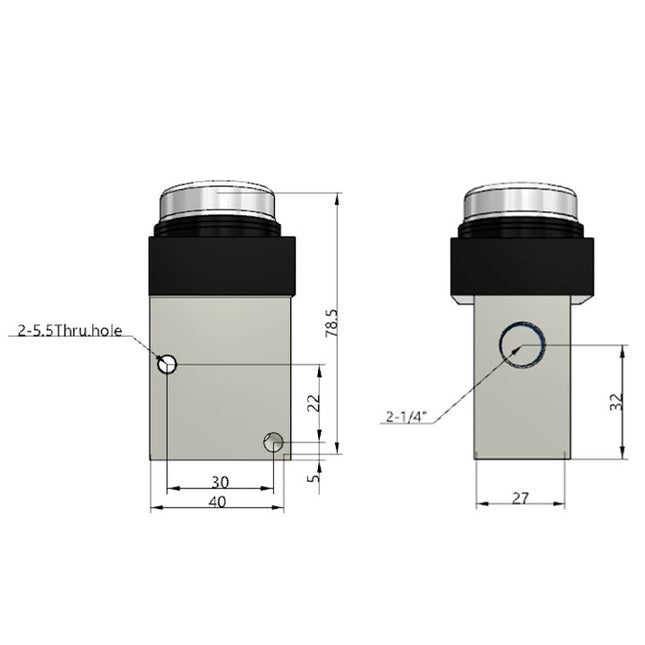

- The CM3PF, CM3PM, CM3PMS, CM3PMX, CM3PL, CM3PP, CM3HS, CM3HD, and CM3Y series are manually operated. They utilize a spool-type structure for control, making them suitable for use under conditions where other methods are not applicable.
- The valve has a button-style design with good sealing and a responsive, sensitive action, which does not require lubrication.
- Features multiple position and flow capabilities for convenient installation.

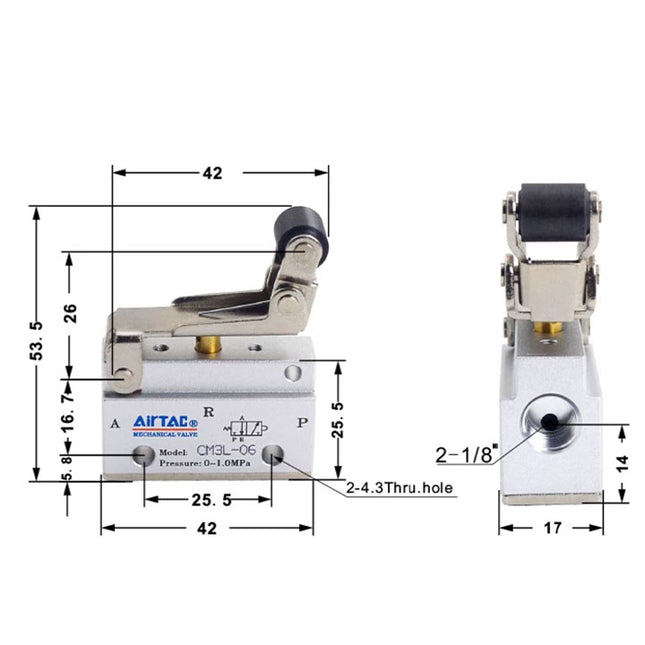

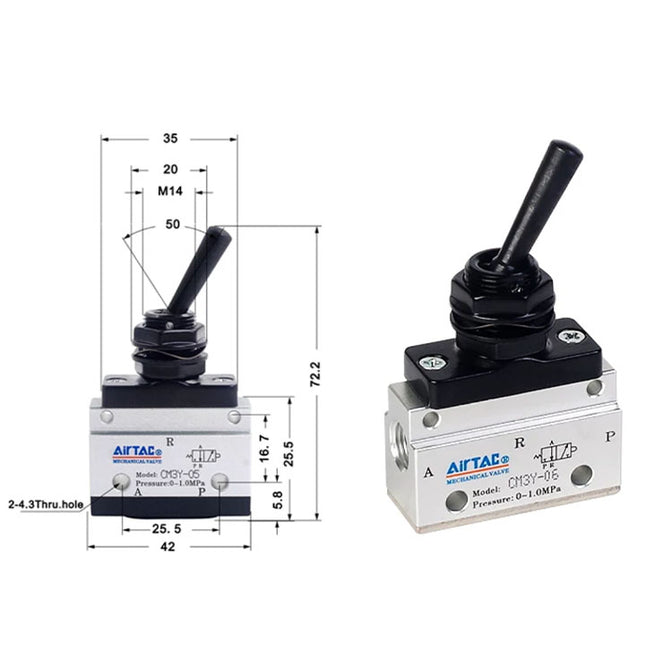

- The heads of the CM3L, CM3V, CM3R, and CM3Y series are made of metal materials, ensuring a long service life and stable, reliable performance.

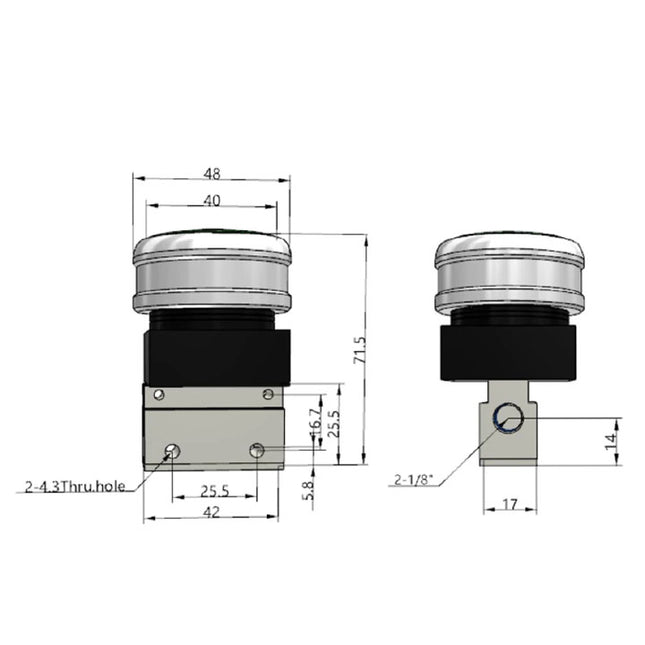

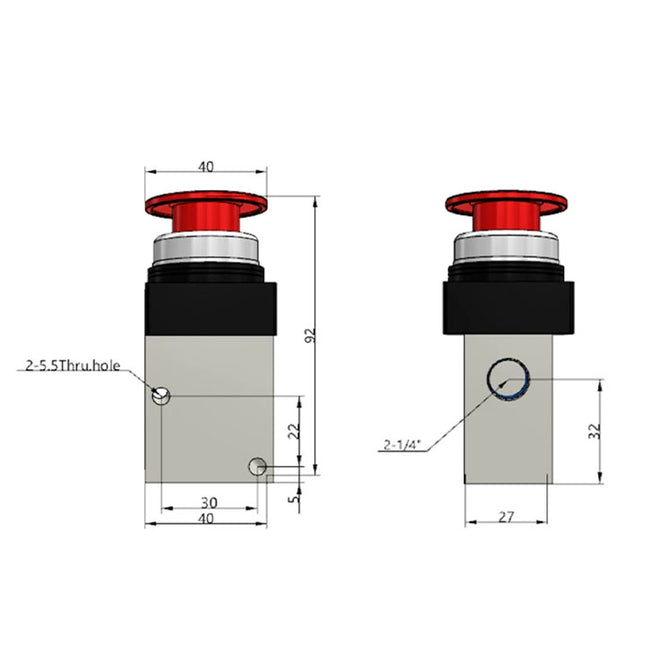

- The CM3PMS and CM3PMX series feature a brass protective cover, which can effectively protect the push button and prevent accidental activation from external forces, ensuring safer operation.
Specifications
| Model | CM3□-05 | CM3□-06 | CM3□-08 |
|---|---|---|---|
| Actuation Mode | External Mechanical | ||
| Working Medium | Air (filtered by 40μm or larger filter element) | ||
| Operating Pressure Range | 0~1.0MPa (0~10bar)(0~145psi) | ||
| Proof Pressure | 1.5MPa（15ber）(215psi) | ||
| Operating Temperature | -20~70°C | ||
| Effective Area [Note 1] | 2.0mm² | 2.5mm² | 15.0mm² |
| Cv Value | 0.11 | 0.14 | 0.84 |
| Port Size [Note 2] | M5 x 0.8 | PT1/8 | PT1/4 |
| Body Material | Aluminum Alloy | ||

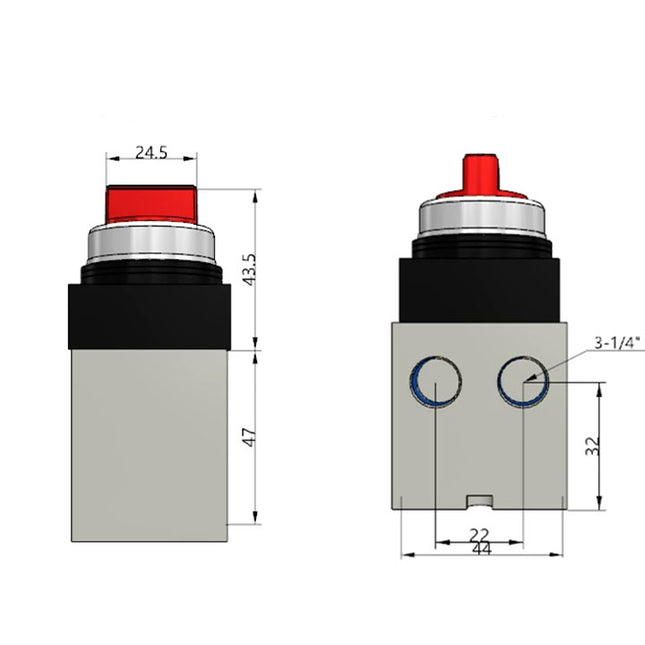

[Note 1] HD models are 5-Port 3-Position.
[Note 2] G and NPT thread types are available.
Product Ordering Code
| ① Structure Code | ② Actuator Code | ③ Port Size | ④ Button Color | ⑤ Thread Type |
|---|---|---|---|---|
|
CM3: Mechanical Valve |

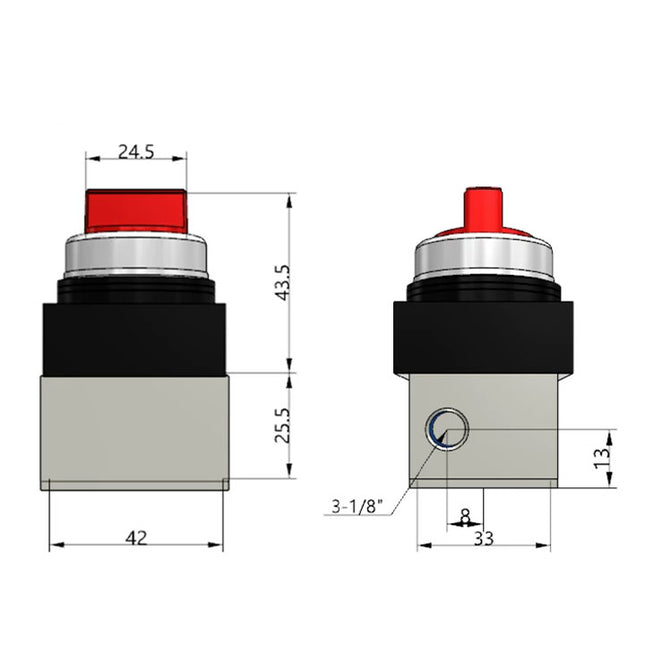

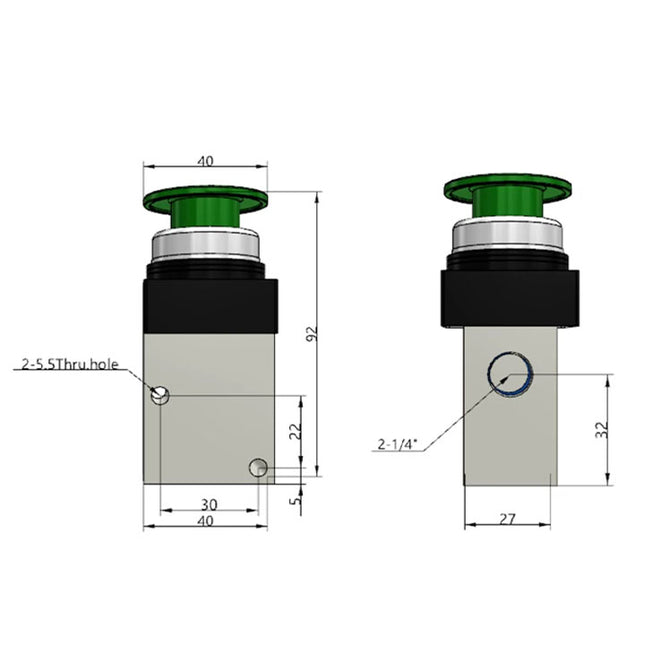

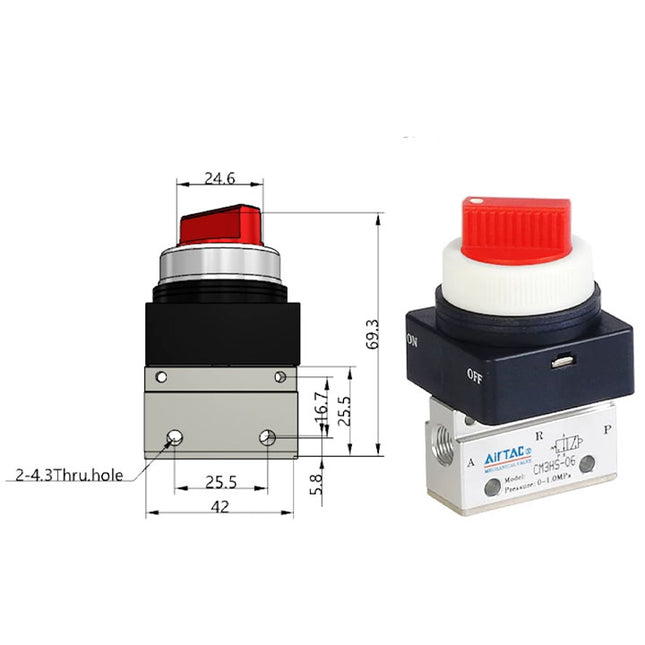

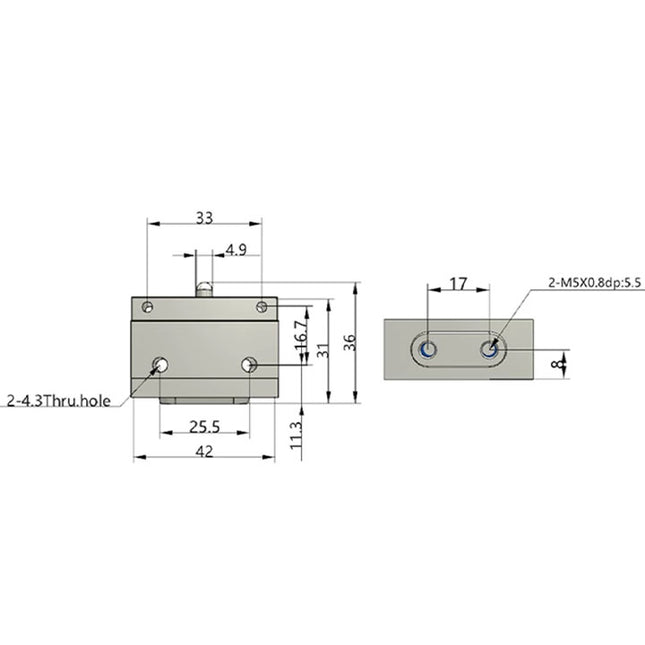

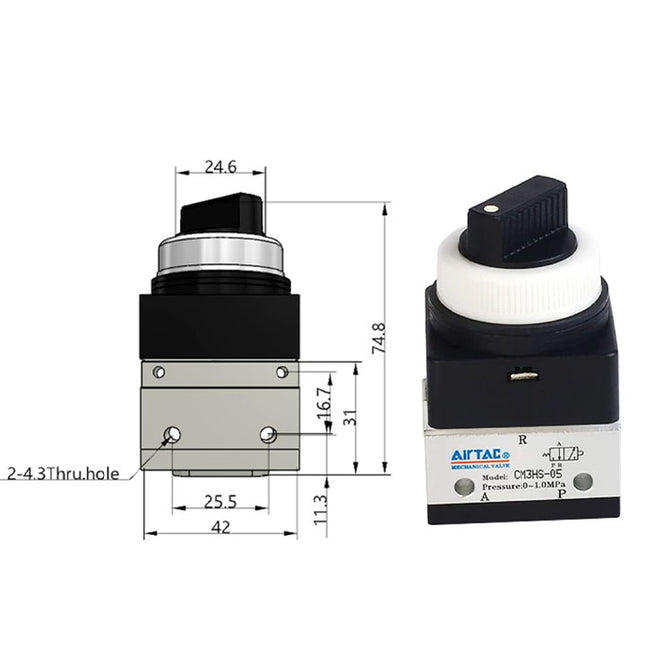

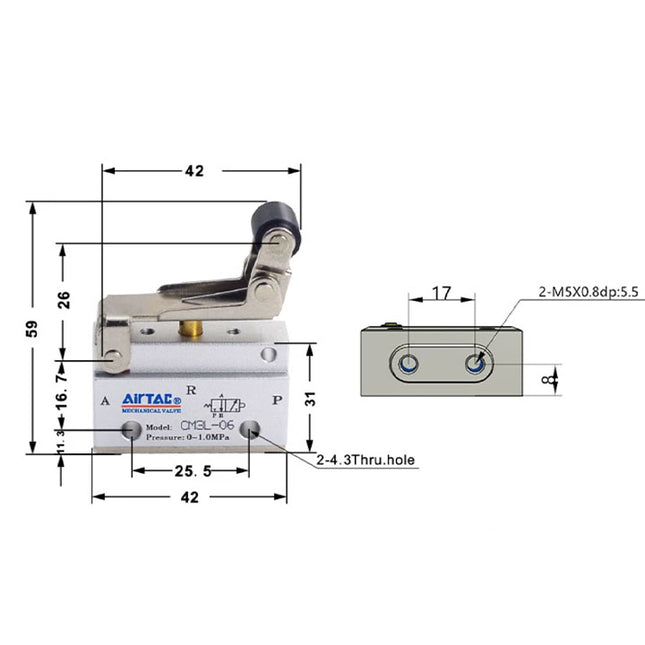

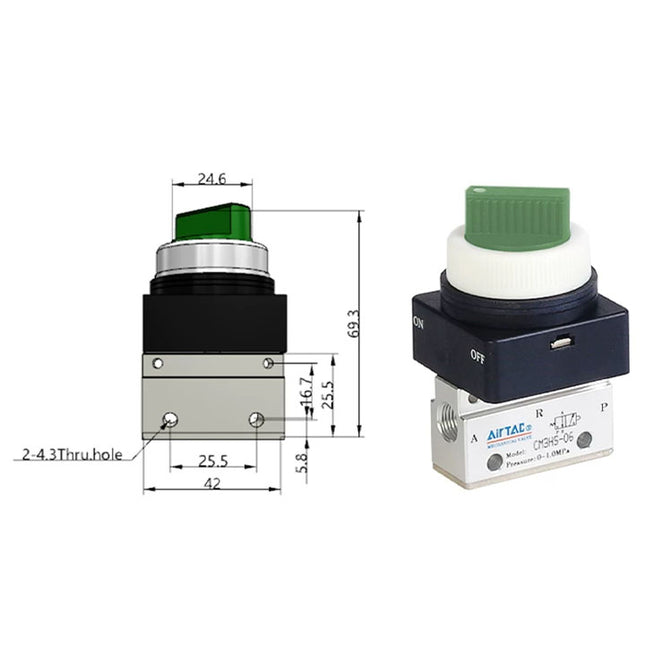

B: Plunger Mechanical Actuator R: Roller Lever Mechanical Actuator L: One-way Roller Lever Mechanical Actuator V: Vertical Roller Mechanical Actuator Y: Knob Selector Hand Actuator PL: Latching Push-Pull Hand Actuator (Red/Green) PP: Flush Pushbutton Hand Actuator PF: Flat Pushbutton Hand Actuator PM: Mushroom Head Pushbutton Actuator PMS: Mushroom Head Pushbutton Actuator (with guard) PMX: Large Mushroom Head Pushbutton Actuator (with guard) HS: Selector Switch Hand Actuator HD: Dual-Head Selector Hand Actuator |
05: M5 06: 1/8" 08: 1/4" |
Blank: White R: Red G: Green B: Black Y: Yellow |
For M5 Port: No code For 1/8", 1/4" Ports: Blank: PT Thread G: G Thread T: NPT Thread |
