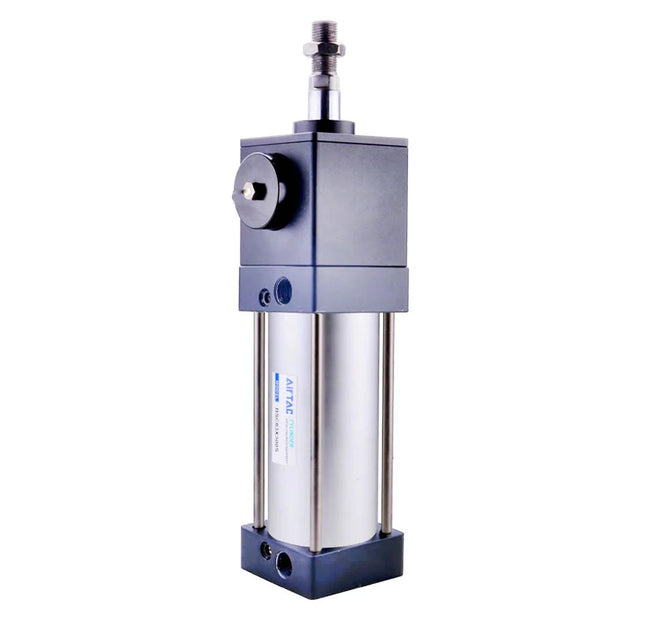

Standard Cylinder — BSC Series (Clamping Cylinder)
Product Features
- Derivative Series: Belongs to the derivative series of standard cylinder with locking device combination.
- Any Position Stop: Can realize locking stop at any intermediate position of the stroke.
- Rational Mechanism: Adopts a rational locking mechanism; the locking state is independent of the piston movement direction.
Specifications
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
|---|---|---|---|---|---|---|---|
| Acting Type | Double Acting | ||||||
| Fluid | Air (filtered 40μm or better) | ||||||
| Mounting (BSC) | Basic, FA, FB, CA, CB, LB, TC, TCM1 | ||||||
| Mounting (BSCD) | Basic, FA, LB, TC, TCM1 | ||||||
| Operating Pressure | 0.15~0.7 MPa (22~100 psi) (1.5~7.0 bar) | ||||||
| Proof Pressure | 1.5 MPa (215 psi) (15 bar) | ||||||
| Temperature °C | -20 ~ 70 | ||||||
| Speed Range mm/s | 30 ~ 800 | 30 ~ 500 | |||||
| Cushion Type | Adjustable Cushion | ||||||
| Cushion Stroke | 21 | 28 | 29 | 28 | |||
| Unlocking Pressure | 0.3 ~ 0.7 MPa (45 ~ 100 psi) (3 ~ 7 bar) | ||||||
| Static Holding Force (N) | 600 | 900 | 1400 | 2200 | 3600 | 5500 | 8600 |
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | PT1/2 | |||
Note:
[1] PT thread and G thread are available options.
[1] PT thread and G thread are available options.
Stroke Specifications
| Bore (mm) | Standard Stroke (mm) | Max. Stroke |
|---|---|---|
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 700 |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 800 |
| 50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
| 63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
| 80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
| 100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
| 125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
Note: Please contact the company for other special strokes.
Product Ordering Code
Example: BSC 80 x 50 S LB
| No. | Category | Description / Options |
|---|---|---|
| ① | Model Code |
BSC: Clamping Cylinder (Standard) BSCD: Double Rod Clamping Cylinder |
| ② | Specification | SC: Standard Tie-rod Type |
| ③ | Bore Size | 32, 40, 50, 63, 80, 100, 125 mm |
| ④ | Stroke | Refer to Stroke table |
| ⑤ | Magnet Code |
Blank: No Magnet S: With Magnet |
| ⑥ | Mounting [Note 1] |
Blank: Standard LB: Axial Foot FA: Front Flange FB: Rear Flange (Not for BSCD) CA: Single Clevis (Not for BSCD) CB: Double Clevis (Not for BSCD) TC: Center Trunnion |
| ⑦ | Thread |
Blank: PT Thread G: G Thread |
Note 1: Accessories are common with SAU series.
