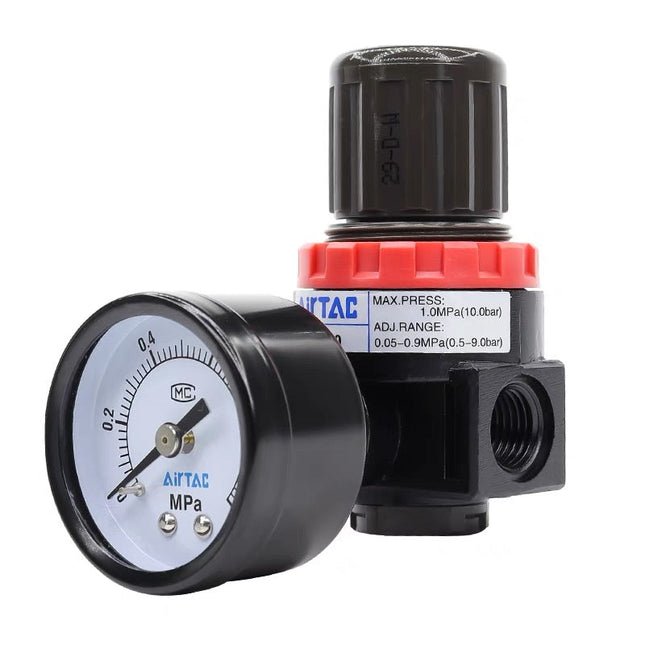

Regulator
Product Features
- Compact structure, easy to install and use.
- Self-locking pressure adjustment mechanism can prevent pressure changes caused by external interference.
- In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).
Specifications
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
|---|---|---|---|---|---|
| Working Medium | Air | ||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
| Pressure Regulation Range | 0.05–0.9MPa (7–130Psi) | ||||
| Max Operating Pressure | 1.0MPa (145Psi) | ||||
| Proof Pressure | 1.5MPa (215Psi) | ||||
| Operating Temperature Range | -20–70°C | ||||
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Port Size |
|
| 3 | Model Type Code |
|
| 4 | Bracket Code |
|
| 5 | Pressure Gauge Code |
|
| 6 | Pressure Unit |
|
| 7 | Thread Code [Note 1] |
|
Note 1: For G and T threads, the pressure gauge dial will display corresponding pressure units.
