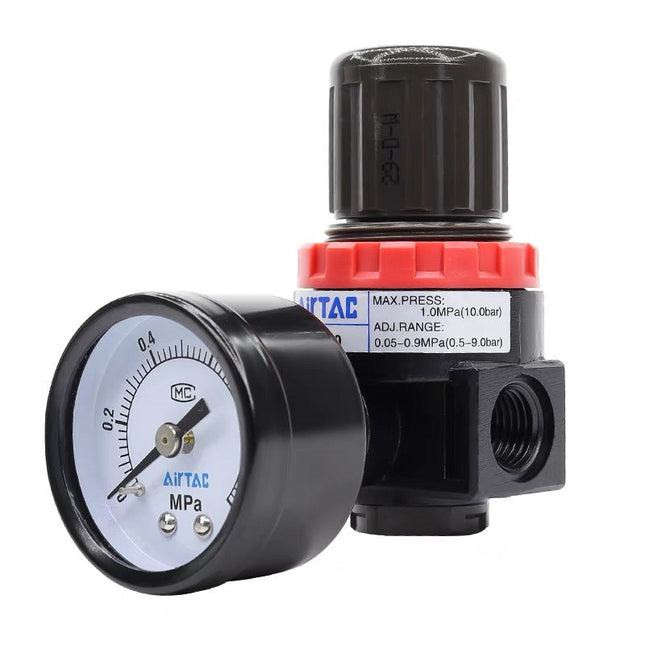

AR / BR Series Regulator
Product Features
- Compact Structure: Lightweight and compact design, easy to install and use.
- Self-locking Mechanism: The pressure adjustment knob features a press-in self-locking mechanism to prevent accidental pressure changes from external interference.
- Standard Options: In addition to the standard type, a low-pressure type is available (Max. adjustable pressure 0.4MPa).
Specifications
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
|---|---|---|---|---|---|
| Fluid | Air | ||||
| Port Size | PT 1/8" | PT 1/4" | PT 1/4" | PT 3/8" | PT 1/2" |
| Pressure Adjusting Range | 0.05 ~ 0.9 MPa (7 ~ 130 psi) | ||||
| Max Operating Pressure | 1.0 MPa (145 psi) | ||||
| Proof Pressure | 1.5 MPa (215 psi) | ||||
| Temperature Range | -20 ~ 70°C | ||||
Product Ordering Code
Example: AR 2000 L 1
Ordering Key
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code |
AR: A Series Regulator BR: B Series Regulator |
| 2 | Port Size |
1500: 1/8" 2000: 1/4" 3000: 3/8" 4000: 1/2" |
| 3 | Type Code |
Blank: Standard Type (0.9 MPa) L: Low Pressure Type (0.4 MPa) |
| 4 | Bracket Code |
Blank: With Bracket J: No Bracket |
| 5 | Pressure Gauge |
Blank: With Pressure Gauge N: No Pressure Gauge |
| 6 | Scale Unit |
1: MPa 2: psi 3: bar 4: kgf/cm² & psi |
| 7 | Thread Type |
Blank: PT G: G Thread T: NPT |
