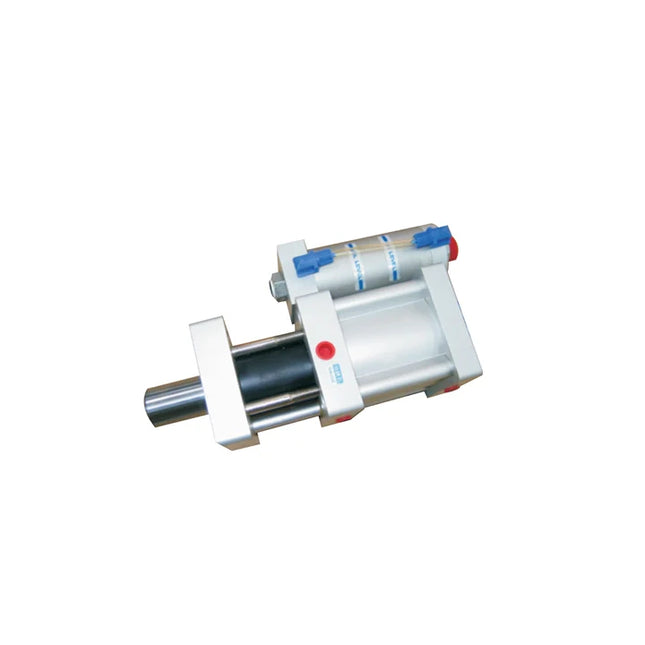

APTC Series Air-Hydro Booster Cylinder
Direct Pressure Type | High Force Output | Pneumatic-Hydraulic
Product Features
- Best of Both Worlds: Intelligently combines the rapid operating speed of a pneumatic cylinder with the high force output of a hydraulic cylinder, providing immense power without the need for a separate hydraulic power unit.
- Direct Pressure Technology: Uses standard shop air to directly pressurize the internal hydraulic fluid, converting low air pressure into high hydraulic pressure instantly.
- High Force Output: Capable of delivering theoretical outputs ranging from 1 Ton up to 13 Tons, making it perfect for heavy-duty applications like pressing, punching, riveting, coining, and clamping.
- Clean & Efficient: Operates entirely on standard filtered compressed air. Completely enclosed internal hydraulic circuit prevents oil leaks and maintains a clean working environment.
- Flexible Mounting: Compact structural design available in both split-type and horizontal installation configurations to suit various machine setups.
General Specifications
| Oil Cylinder Bore (mm) | 50, 63, 80, 100 |
| Operating Pressure Range | 0.2 ~ 0.7 MPa (Filtered Dry Air) |
| Hydraulic Fluid | ISO VG32 (Anti-wear Hydraulic Oil) |
| Ambient & Fluid Temp. (°C) | -5 ~ 60 °C (No freezing) |
| Oil Cylinder Proof Pressure | 30 MPa |
| Air Cylinder Proof Pressure | 1.5 MPa |
| Stroke Tolerance | +1.0 / 0 mm |
| Maximum Operating Frequency | 10 times/min |
Theoretical Booster Force Output
Note: The actual output force may vary slightly due to internal friction and operating air pressure. Ensure to factor in a safety margin when sizing the cylinder.
| Output Code | Theoretical Force (Ton) | Applicable Oil Cylinder Bore (mm) |
|---|---|---|
| 1T | 1 Ton | 50 |
| 3T | 3 Ton | 63 |
| 5T | 5 Ton | 63 |
| 8T | 8 Ton | 80 |
| 13T | 13 Ton | 100 |
Product Ordering Code
Model Example: APTC - 50 - 20 - 5T - F
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Series | APTC: Air-Hydro Booster Cylinder (Direct Pressure Type) |
| 2 | Oil Cylinder Bore (mm) |
50 (Matches 1T output) 63 (Matches 3T or 5T output) 80 (Matches 8T output) 100 (Matches 13T output) |
| 3 | Booster Stroke (mm) |
5: 5mm 10: 10mm 15: 15mm 20: 20mm |
| 4 | Theoretical Output |
1T: 1 Ton | 3T: 3 Ton | 5T: 5 Ton 8T: 8 Ton | 13T: 13 Ton |
| 5 | Mounting Type |
F: Split Type (Separate air and oil cylinders connected via tubing) S: Horizontal Installation (Integrated) |
